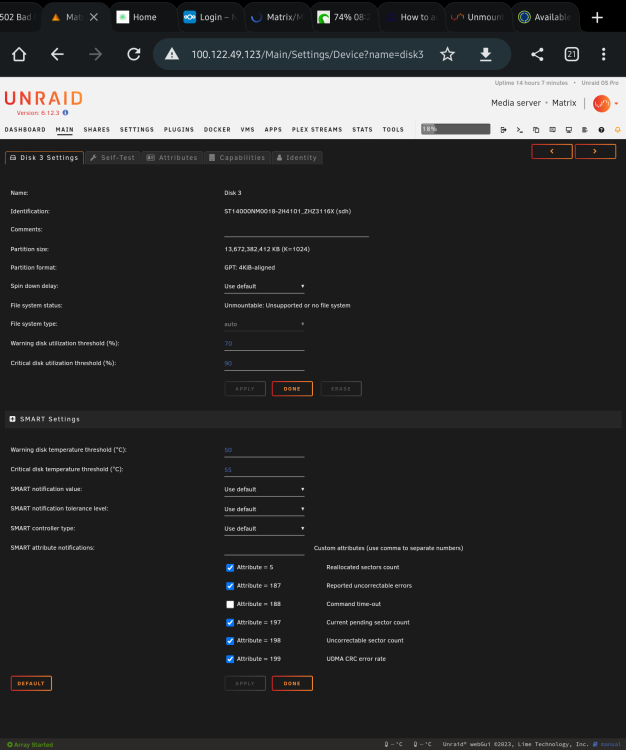

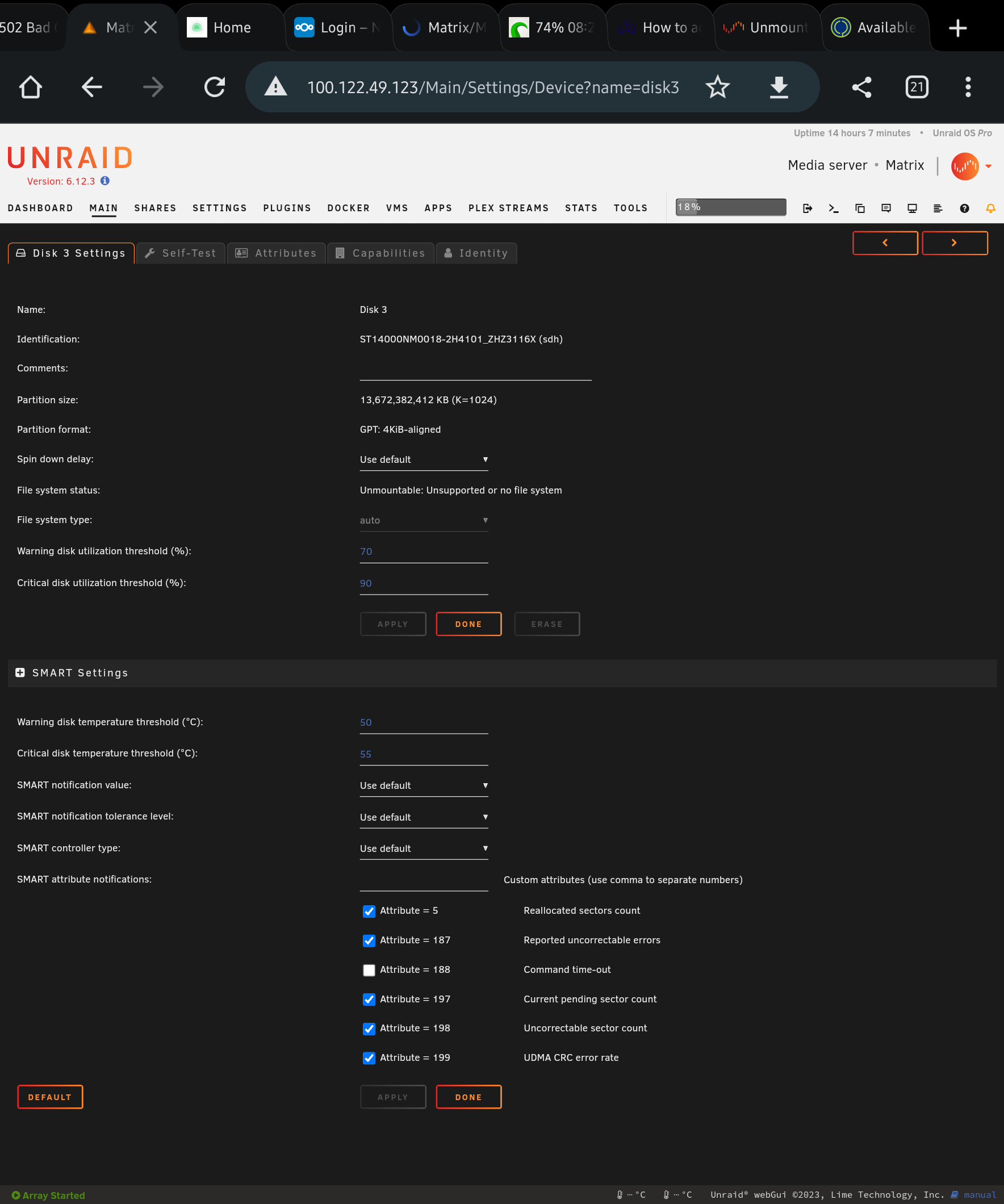

July 17, 20232 yr Hi everyone my array went down suddenly with Unmountable: Unsupported or no file system on one of my disks. the file system now shows auto instead of xfs like it should and now that disk has errors. how can i copy the data off that drive to the other drives and save it? ive attached the diag file. any help is appreciated. matrix-diagnostics-20230716-2158.zip
July 17, 20232 yr Disk3 is failing, you can see if the emulated disk mounts, then use a new disk and rebuild.
July 17, 20232 yr Author 4 hours ago, JorgeB said: Disk3 is failing, you can see if the emulated disk mounts, then use a new disk and rebuild. im kind of new to unraid how would i do that?
July 17, 20232 yr 13 minutes ago, KLLSWITCH said: im kind of new to unraid how would i do that? stop array unassign drive start array at that point Unraid will be emulating the drive. See if the ‘emulated’ drive shows as mounted and the contents look correct. Replacing/Rebuilding drives is cover here in the online documentation accessible via the ‘Manual’ link at the bottom of the GUI or the DOCS link at the top of each forum page.
July 17, 20232 yr Author 2 hours ago, itimpi said: stop array unassign drive start array at that point Unraid will be emulating the drive. See if the ‘emulated’ drive shows as mounted and the contents look correct. Replacing/Rebuilding drives is cover here in the online documentation accessible via the ‘Manual’ link at the bottom of the GUI or the DOCS link at the top of each forum page. Ok I kind of figured that's what he meant. I tried that this morning before work and unraid won't mount it and wants to format the drive. Not really sure what else to do other than taking the drive out and seeing if I can read the files with my windows machine.
July 17, 20232 yr 3 minutes ago, KLLSWITCH said: Ok I kind of figured that's what he meant. I tried that this morning before work and unraid won't mount it and wants to format the drive. Not really sure what else to do other than taking the drive out and seeing if I can read the files with my windows machine. You should try the procedures detailed in this section of the online documentation accessible via the ‘Manual’ link at the bottom of the GUI or the DOCS link at the top of each forum page which covers handling drives reported as unmountable. The results of that will determine on what advice you get as the best way to proceed.
July 17, 20232 yr Author 18 minutes ago, itimpi said: You should try the procedures detailed in this section of the online documentation accessible via the ‘Manual’ link at the bottom of the GUI or the DOCS link at the top of each forum page which covers handling drives reported as unmountable. The results of that will determine on what advice you get as the best way to proceed. Ok I will give that a shot thanks 👍
July 17, 20232 yr Just now, KLLSWITCH said: So one thing is the file system shows auto and I didn't see auto covered? If you know what format was used (probably XFS in the array) then you can set it explicitly by clicking on the drive on the Main tab with the array stopped. The auto option relies on Unraid being able to dynamically work out what format was used. Once set explicitly the check/repair options appear that are appropriate to the format you set.
July 17, 20232 yr Author 3 hours ago, itimpi said: If you know what format was used (probably XFS in the array) then you can set it explicitly by clicking on the drive on the Main tab with the array stopped. The auto option relies on Unraid being able to dynamically work out what format was used. Once set explicitly the check/repair options appear that are appropriate to the format you set. I am unable to select a fs for that drive since it won't mount.
July 17, 20232 yr 1 minute ago, KLLSWITCH said: I am unable to select a fs for that drive since it won't mount did you stop the array first! You need to select the file system at that point before any attempt is made to mount it. You cannot change that setting once you have started the array.
July 17, 20232 yr Author 17 minutes ago, itimpi said: did you stop the array first! You need to select the file system at that point before any attempt is made to mount it. You cannot change that setting once you have started the array. Yes that was with array stopped.
July 17, 20232 yr Strange then. At that point I have no problems changing the file system on my own systems,
July 17, 20232 yr Author 9 minutes ago, itimpi said: Strange then. At that point I have no problems changing the file system on my own systems, Is that what the disc mounted or unmounted?
July 17, 20232 yr 15 minutes ago, KLLSWITCH said: Is that what the disc mounted or unmounted? By definition if the array is stopped the disk is not mounted.
July 18, 20232 yr Author 8 hours ago, itimpi said: By definition if the array is stopped the disk is not mounted. i was able to change the FS back to xfs but the drive still shows unmountable
July 18, 20232 yr 2 hours ago, KLLSWITCH said: i was able to change the FS back to xfs but the drive still shows unmountable Yes, but does the check filesystem still fail?

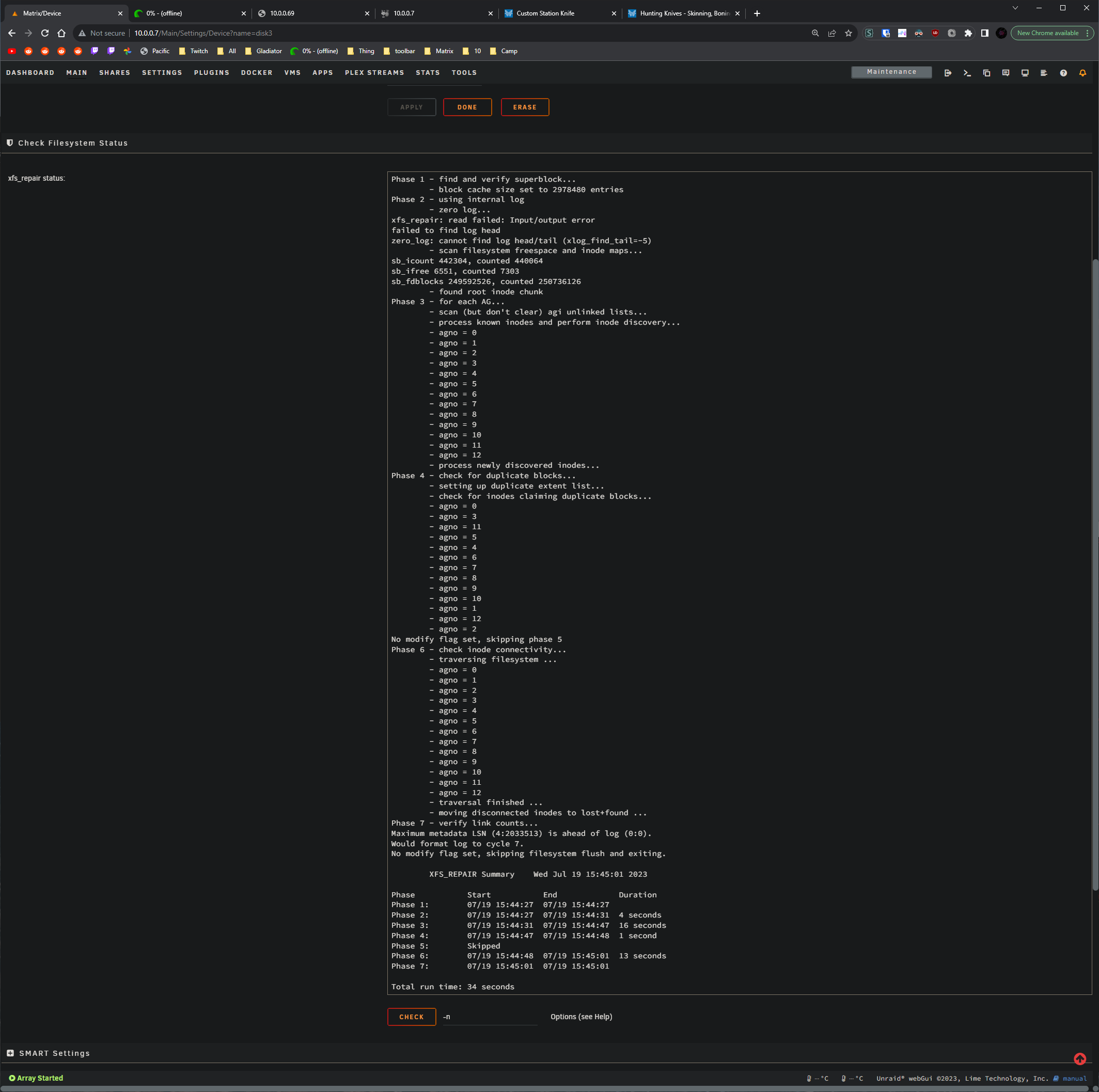

July 19, 20232 yr Author sorry for the late reply work has been busy. The check filesystem came back with this Edited July 19, 20232 yr by KLLSWITCH

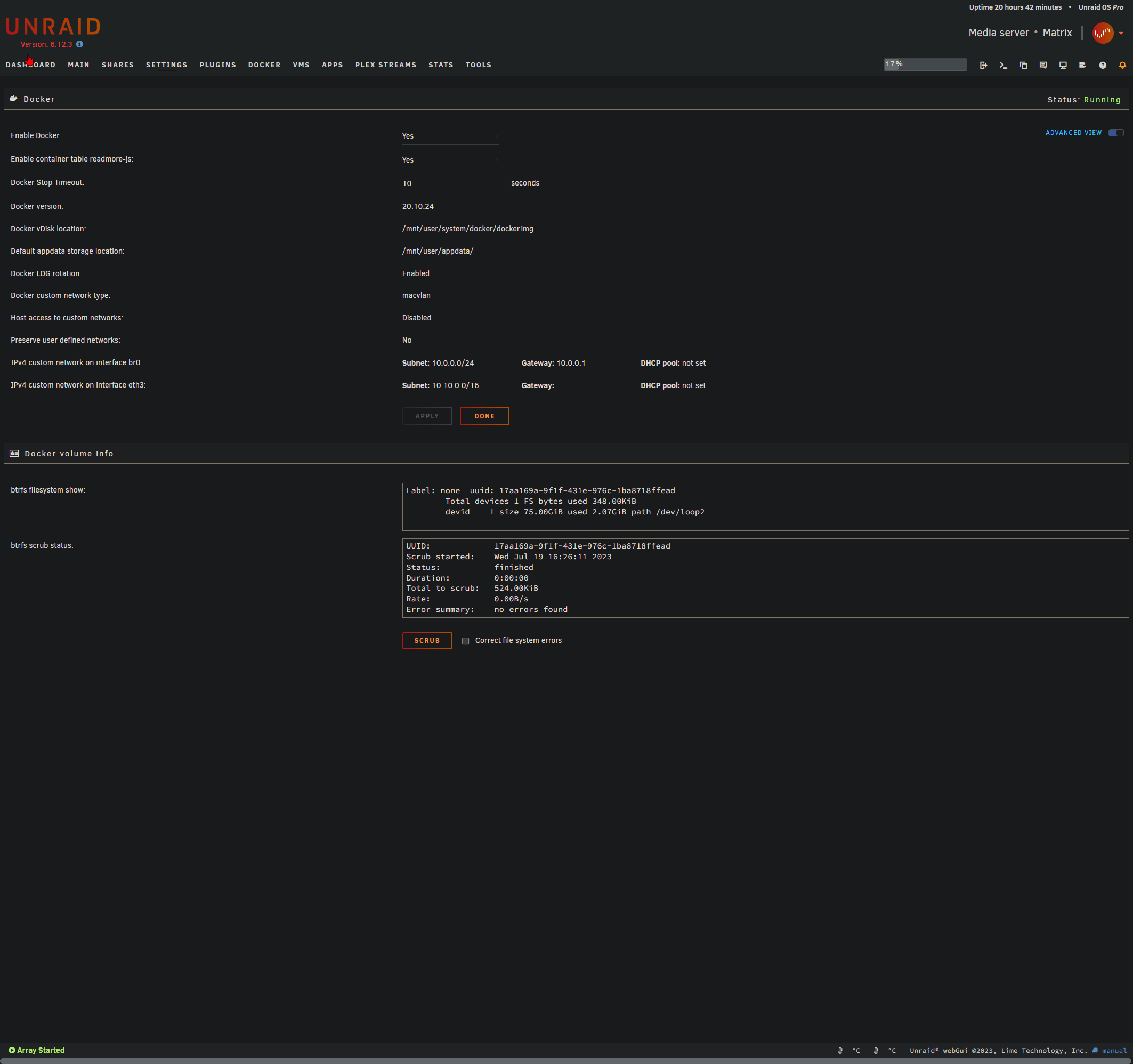

July 19, 20232 yr Author ok so i got the drive repaired for the time being but now all my docker containers are gone? i went to docker and it said no error were found but all the containers are gone?
July 21, 20232 yr Author 15 hours ago, JorgeB said: If you still have the appdata you an recreate the image. i ended up just re downloading them all from the previous app tab in CA, Thanks for all your help!!
