I have been getting frequent occurrences of my docker.img file becoming corrupt.

No other drive or filesystem errors.  SMART tests do not report error.



I don't know if the constant problem is my cache drive, docker, Unraid, or ZFS.



My guess:

My cache drive is ZFS.  The docker file is BTRFS vDisk.  Maybe there's a conflict?



# zpool status -xv
  pool: cache
 state: ONLINE
status: One or more devices has experienced an error resulting in data
        corruption.  Applications may be affected.
action: Restore the file in question if possible.  Otherwise restore the
        entire pool from backup.
   see: https://openzfs.github.io/openzfs-docs/msg/ZFS-8000-8A
  scan: scrub repaired 0B in 00:15:38 with 3 errors on Sun Aug 27 12:39:33 2023
config:

        NAME        STATE     READ WRITE CKSUM
        cache       ONLINE       0     0     0
          sdi1      ONLINE       0     0   128

errors: Permanent errors have been detected in the following files:

        /mnt/cache/system/docker/docker.img





tower-diagnostics-20230827-1425.zip

17 minutes ago, Jaybau said:

My cache drive is ZFS.  The docker file is BTRFS vDisk.  Maybe there's a conflict?

That's fine, I would start by running memtest.

6 hours ago, JorgeB said:

That's fine, I would start by running memtest.



memtest = 1 pass, 0 errors.

Edited August 28, 20232 yr by Jaybau

Did you ever solve this? I have the same issue happening.

memtest passed multiple times, checked monthly, although I have only been running unraid for one month, I have ran it at least 3 times and all passed.



root@NAS2:~# zpool status cache -v
  pool: cache
 state: ONLINE
  scan: scrub repaired 0B in 00:00:29 with 1 errors on Tue Dec 31 10:16:17 2024
config:
        NAME           STATE     READ WRITE CKSUM
        cache          ONLINE       0     0     0
          mirror-0     ONLINE       0     0     0
            nvme0n1p1  ONLINE       0     0     4
            nvme1n1p1  ONLINE       0     0     4
errors: Permanent errors have been detected in the following files:
        cache/domains:<0x4>

root@NAS2:~# zpool status cache -v
  pool: cache
 state: ONLINE
  scan: scrub repaired 0B in 00:00:29 with 1 errors on Tue Dec 31 10:16:17 2024
config:
        NAME           STATE     READ WRITE CKSUM
        cache          ONLINE       0     0     0
          mirror-0     ONLINE       0     0     0
            nvme0n1p1  ONLINE       0     0     7
            nvme1n1p1  ONLINE       0     0     7
errors: Permanent errors have been detected in the following files:
        /mnt/cache/system/docker/docker.img
        cache/domains:<0x4>



As you can seen docker.img pops up inbetween two command runs for some reason, without any change in docker containers

The 0x4 shows because I deleted the file earlier today as that file was irrelevant, one one but now same is happening for docker.img

I am having similar issues on other drives as well, all zfs/btrfs are having corruption.



16TBx2 MIRROR Seagate Exos x18

root@NAS2:~# zpool status data -v
  pool: data
 state: ONLINE
  scan: scrub in progress since Tue Dec 31 10:00:33 2024
        2.21T / 4.78T scanned at 504M/s, 972G / 4.78T issued at 216M/s
        256K repaired, 19.87% done, 05:09:15 to go
config:

        NAME        STATE     READ WRITE CKSUM
        data        ONLINE       0     0     0
          mirror-0  ONLINE       0     0     0
            sdc1    ONLINE       0     0     7  (repairing)
            sde1    ONLINE       0     0     7  (repairing)

errors: Permanent errors have been detected in the following files:

        /mnt/data/Backup/2024-12-23.zip
        /mnt/data/PlexData/Series/...1080p.mkv



8TBx2 MIRROR IronWolf

UUID:             9920b33f-88eb-49cf-a2d7-784bb99eaab9
Scrub started:    Mon Dec 30 03:03:45 2024
Status:           finished
Duration:         16:03:12
Total to scrub:   13.85TiB
Rate:             251.06MiB/s
Error summary:    csum=2
  Corrected:      0
  Uncorrectable:  2
  Unverified:     0

It shouldn't be related to the ssd/drives, as they were running fine without any issues in another system.

All drive extended smart tests are all passing, HDDScan ERASE passed, newly formatted afterwards

Running 7.0.0-rc.2

5 hours ago, hhhhh said:

memtest passed multiple times,

memtest is only definitive if it finds errors, if you have multiple sticks try using the server with just one, if the same try with a different one, that will basically rule out bad RAM which is the #1 reason for data corrutpion.

This morning the server was unresponsive on the web UI. I tried to login locally, which was very laggy and ended up with "login: timed out after 60 seconds" after entering the username, exact behavior as mentioned in following post:

Because of these stability issues and recent checksum issues I ran a memtest after a reboot which failed when using 2*16GB, tried either RAM stick 1x16GB in either slot when running memtest, both slots/sticks failed. Both memory sticks started failing somehow in the last month. Strange as this memory was working fine in the same system running windows prior to using unraid. I performed a memtest after deciding to go with ZFS, which passed mid december. This system ran fine for 2 years. Either way I purchased a new 1x32GB and no memtest errors. I will keep monitoring, and hope faulty memory caused the issues I experienced.

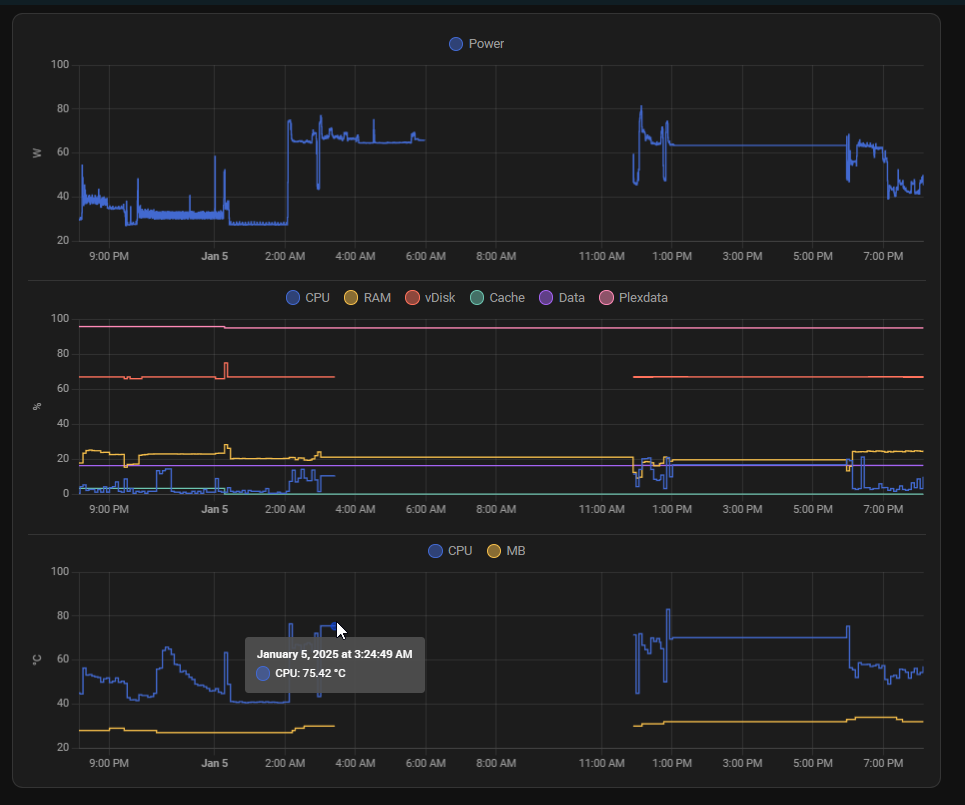

I did notice the CPU was getting quite hot due to some scheduled maintenance/backup tasks between 2 to 3:25 AM, which I believe is when unraid got stuck, HA (running on unraid) did keep collecting data from the external power monitor, but no longer from unraid, until I suppose docker even got stuck, ending any data stored after 6 AM.



I've changed my fan settings to keep the CPU temp lower under full load, and also improved ventilation so that the memory / cache drives run less hot.



Hoping these changes will solve the issues with system instability







Edited January 5, 20251 yr by hhhhh
