Hi All,



Hope someone can help... (I searched both the Legacy and new Docs and there was not a single entry for VLAN ☹️)



I have a pfsense VM and a Windows 10 VM, both on same Unraid host, sharing same VLAN 4000. Pfsense is set to use br0 (with VLAN4000 configured to use LAN) and the Win10 has br0.4000. I have tried assigning both VM dedicated interfaces in Unraid and making sure they are both on the same bridge - but Win10 still refuses to grab a valid IP. And also Win10 on br0 and setting vlan inside - nothing is ever received.



I am fairly sure it's not a pfsense config issue, as I have a Unifi docker with a Guest Wifi VLAN, and clients are pulling DHCP and internet through the VLAN 100 from pfsense with no problems. Also in a packet capture I see the unraid docker bridge talking the pfsense VLAN 4000 interface IP.



In the Unraid network settings I have just the VLAN 4000 configured...should I remove it? But then I lose the ability to give the win10 VM a VLAN nic directly.



Any help appreciated 🙂

ungb-diagnostics-20230907-1746.zip

21 hours ago, Tomo82 said:

I am fairly sure it's not a pfsense config issue

You need ensure pfsense have a work DHCP on vlan.4000



vlan 4000 seems not a usual no., pls also try some less then 1000, in this case, even there are no hardware switch inside.



https://community.cisco.com/t5/switching/which-series-switch-supports-vlan-up-to-4000/td-p/2063058



Edited September 8, 20232 yr by Vr2Io

Hi Vr2lo,

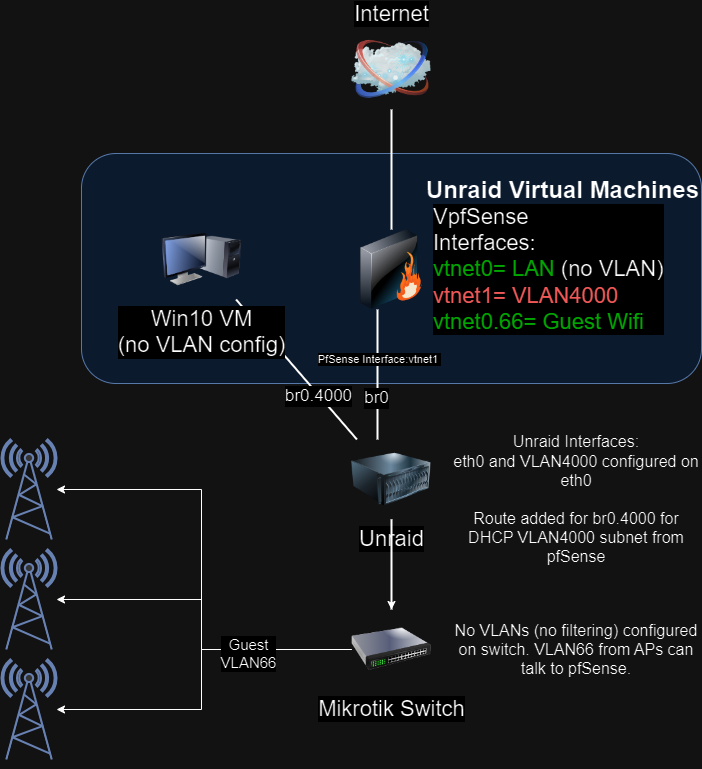

Thanks for your reply, I remember the VLAN numbers go above 4000 (it's been some years since I did my CCNA course yikes) - I will try a lower number VLAN later (I can't shut down pfsense to change Unraid network settings at the moment). I made a diagram of the setup I am using, please see attached.





The diagram show vlan4000 was vtnet1 ( confuse it is br0.4000 ) which other two was vtnet0. When I check back diagnostic, both eth0 and eth1 was bond, so all that should be conflict each other.

Edited September 8, 20232 yr by Vr2Io

Fixed: I stopped array, went to Network Settings and changed the vlans, applied, then changed them back - now it works. No changes to VMs or switches etc. Unraid networking seems so flakey to me, dissapointed.

On 9/8/2023 at 3:56 PM, Vr2Io said:

The diagram show vlan4000 was vtnet1 ( confuse it is br0.4000 ) which other two was vtnet0. When I check back diagnostic, both eth0 and eth1 was bond, so all that should be conflict each other.

Thanks for trying to help @Vr2Io 👍
