September 12, 20232 yr woke up the other morning and my docker web guis would not load even though the dockers were running. Rebooted. Disk 11 error - unmountable or no file system found shut down array, started array in maintenance mode disk11 / settings page - no GUI option for xfs repair. (no file system found) terminal - xfs_repair /dev/md11 14 hours later - Sorry could not find valid secondary superblock also... disk 10 is currently emulated, I was about to install the new drive when this all happened. 2 parity drives. not super worried about data on disk 11. just some movies, newest disk. dont know what to do next. would xfs_repair -l do anything? or stop array, un-assign disk 11, check the emulated data? attaching diags thanks in advance~! big-z-diagnostics-20230911-1827.zip Edited September 12, 20232 yr by TRusselo
September 12, 20232 yr Community Expert You are having flash drive issues, it should be replaced (or try reformatting first) Also disable rootshare, it's constantly spamming the log with these: Sep 11 21:21:23 BIG-Z smbd[19213]: [2023/09/11 21:21:23.881912, 0] ../../source3/smbd/smb2_service.c:787(make_connection_snum) Sep 11 21:21:23 BIG-Z smbd[19213]: make_connection_snum: canonicalize_connect_path failed for service rootshare, path /mnt/user Then post new diags after array start.
September 13, 20232 yr Author 15 hours ago, JorgeB said: You are having flash drive issues, it should be replaced (or try reformatting first) Also disable rootshare, it's constantly spamming the log with these: Sep 11 21:21:23 BIG-Z smbd[19213]: [2023/09/11 21:21:23.881912, 0] ../../source3/smbd/smb2_service.c:787(make_connection_snum) Sep 11 21:21:23 BIG-Z smbd[19213]: make_connection_snum: canonicalize_connect_path failed for service rootshare, path /mnt/user Then post new diags after array start. Long day at work, sorry for the delay, Do you want the new USB drive and rootshare disabled before proceeding to the disk11 issue? And when you say "post new diags after array start", is maintenance mode ok? or reboot without starting array?
September 13, 20232 yr Community Expert 6 hours ago, TRusselo said: is maintenance mode ok? Normal mode so it tries to mount the disks.
September 13, 20232 yr Author ok, will be able to try tonight. so busy... thanks again as always. will report back
September 14, 20232 yr Author 16 hours ago, JorgeB said: Normal mode so it tries to mount the disks. New diags below. big-z-diagnostics-20230913-1834.zip
September 14, 20232 yr Community Expert Still seeing issues with the flash drive. Pool shows corruption detected, good idea to run memtest. After the above is checked and as for disk11, partition layout is invalid, we can see if the emulated disk mounts, and you have dual parity but best to rebuild disk10 first then we can try emulating disk11.
September 14, 20232 yr Author 3 hours ago, JorgeB said: Still seeing issues with the flash drive. Pool shows corruption detected, good idea to run memtest. After the above is checked and as for disk11, partition layout is invalid, we can see if the emulated disk mounts, and you have dual parity but best to rebuild disk10 first then we can try emulating disk11. I have not done anything to the flash drive yet. you didnt answer my question if you wanted me to fix that before proceeding, so I assumed no. Ill swap the flash drive after work today, register the new flash drive, after that, rebuild disk 10... (10 tb)... be back in 2 days....
September 17, 20232 yr Author On 9/14/2023 at 2:05 AM, JorgeB said: Still seeing issues with the flash drive. Pool shows corruption detected, good idea to run memtest. After the above is checked and as for disk11, partition layout is invalid, we can see if the emulated disk mounts, and you have dual parity but best to rebuild disk10 first then we can try emulating disk11. ok. new flash built and installed. Disk 10 is rebuilt. what now?
September 17, 20232 yr Community Expert Stop array, unassign disk11, start array with disk11 unassigned. Post new diagnostics so we can see if emulated disk11 is mountable.
September 24, 20232 yr Author Sorry for the delay. busy life. Reboot, tried to UNSELECT disk 11 to check emulated data. get this warning (see screenshot). sounds bad. reselected the bad disk 11. started array new fresh diags. big-z-diagnostics-20230924-1723.zip Edited September 24, 20232 yr by TRusselo
September 25, 20232 yr Community Expert 11 hours ago, TRusselo said: get this warning (see screenshot). sounds bad. Check "I want to do this" or it's not possible to see if the emulated disk mounts.

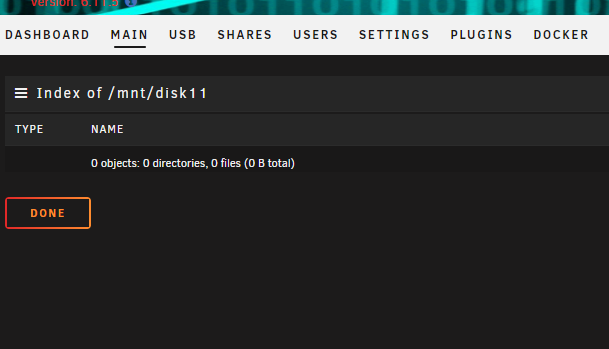

October 13, 20232 yr Author Solution On 9/25/2023 at 4:36 AM, JorgeB said: Check "I want to do this" or it's not possible to see if the emulated disk mounts. Sorry for the late replay. busy life. Covid for the past week. couldnt deal with anything. So... unselected disk, array online No emulated data available. fresh diags below. again. i dont care about the missing data. How do i get back to good state? select disk and format? then resync? big-z-diagnostics-20231013-1656.zip Edited October 13, 20232 yr by TRusselo
October 14, 20232 yr Community Expert No valid filesystem is being detected on disk11, are you sure that disk was ever formatted?
October 15, 20232 yr Author On 10/14/2023 at 2:54 AM, JorgeB said: No valid filesystem is being detected on disk11, are you sure that disk was ever formatted? pretty sure. disk was installed for couple weeks before i got the error

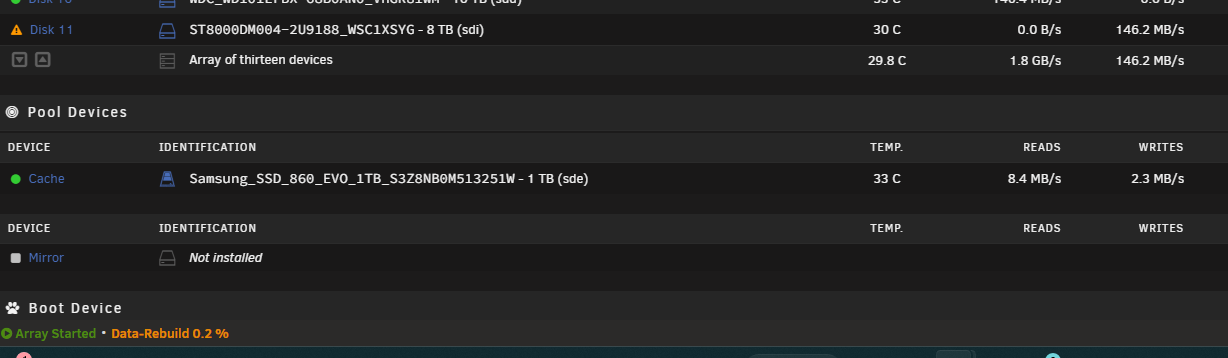

October 15, 20232 yr Author hmm.... rebuilding something... but there was nothing when unmounted, no emulated data. still said unmountable... hmm... we'll see what gets written
October 16, 20232 yr Community Expert Disk was disabled so it needs to be rebuild, but since it was formatted it will be empty.
October 18, 20232 yr Author rebuilt after formatting disk.... but no emulated folders when disk was removed... dunno. but it works now. files are good too. not corrupted. working. thanks guys!
