Unable to increase vDisk size for HAOS VM

[manofoz]

Hello,

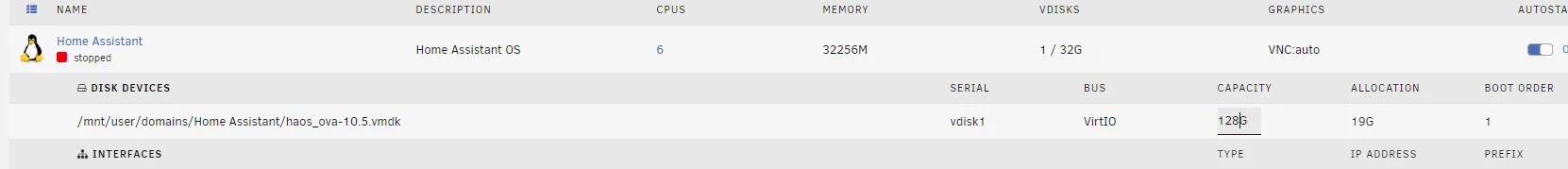

My Home Assistant OS vDisk is starting to get full and I'd like to increase it's size. However when I got to do so it does not save my changes and just snaps it back to what it was sized at before:

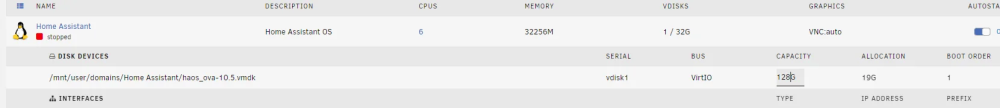

Click enter or off the text box and poof back to 32G:



I also tried qemu-img resize but it does not like my disk file:



root@HaynesTower:~# qemu-img resize "/mnt/user/domains/Home Assistant/haos_ova-10.5.vmdk" +96G

qemu-img: Image format driver does not support resize



I tried qemu-img convert as well which looked like it worked, it hung a while and then completed with nothing output, but the disk size remained the same.



Anyone overcome something like this?

Thanks!

[manofoz]

I ended up creating a new vDisk and then moving the data disk within Home Assistant to it. So far so good but still curious why this functionality didn't work in unRAID.

[ghost82]

Resize command of qemu-img doesn't work on vmdk files; you need to convert vmdk to qcow2 or raw with qemu-img convert command, then resize it.

[Przemek]

To anyone who want to do this having VMDK image.

1. Make backup of you VM - just in case
2. Shutdown your VM
3. Convert VMDK to qcow2

   qemu-img convert -p -f vmdk -O qcow2 /mnt/user/domains/home_assistant/haos_ova-6.0.vmdk /mnt/user/domains/home_assistant/haos_ova-6.0.qcow2



4. Change the path to your new disk in your VM
5. Change the type from raw to qcow2 in your VM

   <driver name='qemu' type='qcow2' cache='writeback'/>
         <source file='/mnt/user/domains/home_assistant/haos_ova-6.0.qcow2' index='1'/>



6. Update the setup, click on the VM and increase the disk size in UNRAID UI


Edited December 13, 2023 by Przemek
