GPT HEADER CORRUPTION HAS BEEN DETECTED


Recommended Posts

Bonjour,

J'ai ce message au démarrage.

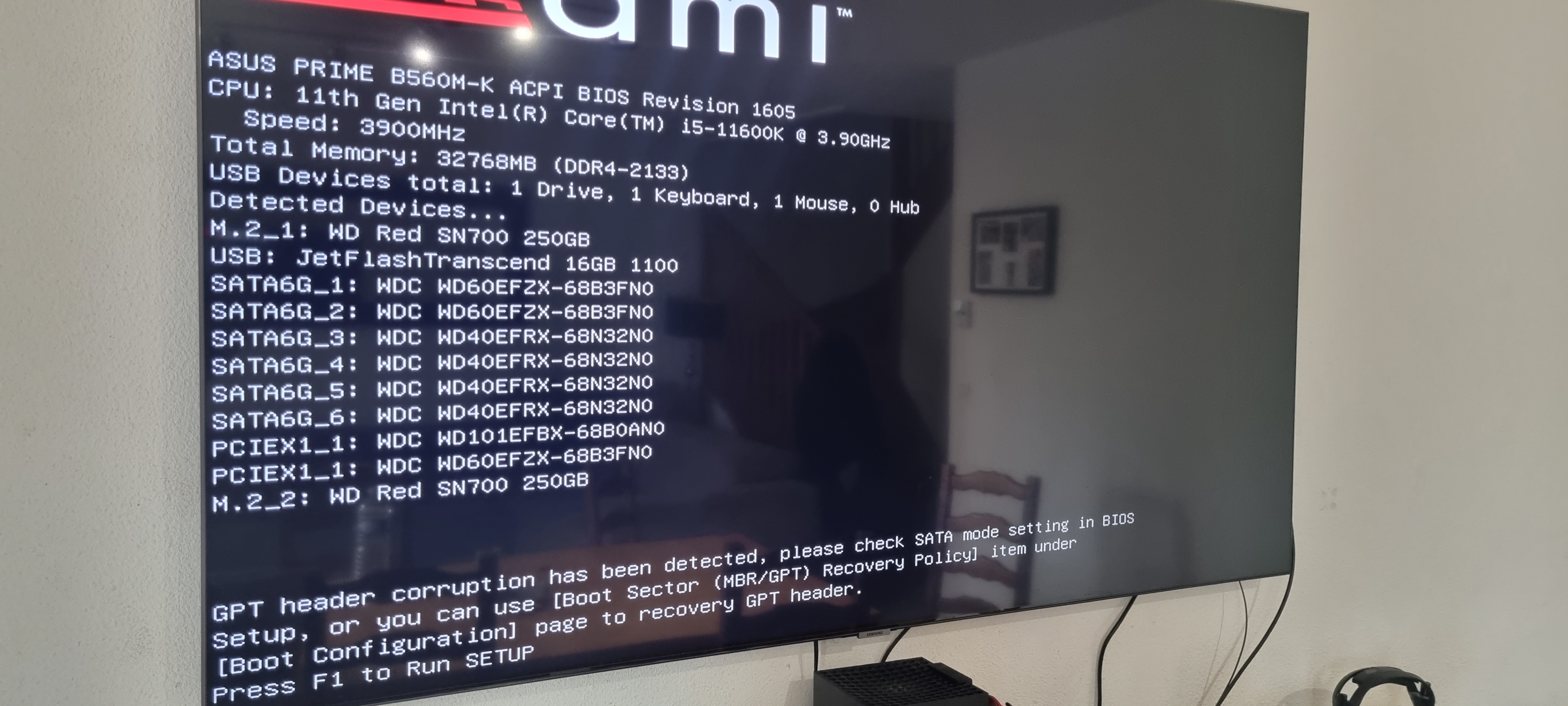

GPT header corruption has been detected, please check SATA mode setting in BIOS setup, or you carn use [boot sector (MBR/GPT) recovery policy] item under [boot configuration] page to recovery GPT header..

J'ai une carte ASUS mais je trouve pas ce qu'il faut faire. si quelqu'un peux m'aidé merci.


Link to comment

Bonjour,



Ca sent le disque HS.

Tu pourrais exécuter en mode console la commande fdisk -l /dev/sdX pour chacun de tes disques (X représentant la lettre de ton disque)

Le mieux étant de débrancher tous tes disques et de les rebrancher un par un jusqu'à ce que tu trouves le disque défectueux .



Bon courage.

Link to comment

root@FabFlix:~# fdisk -l /dev/sdg
Disk /dev/sdg: 3.64 TiB, 4000787030016 bytes, 7814037168 sectors
Disk model: WDC WD40EFRX-68N
Units: sectors of 1 * 512 = 512 bytes
Sector size (logical/physical): 512 bytes / 4096 bytes
I/O size (minimum/optimal): 4096 bytes / 4096 bytes
Disklabel type: gpt
Disk identifier: D2A96A13-D820-4E5D-BD33-2963C28DF30D

Device     Start        End    Sectors  Size Type
/dev/sdg1     64 7814037134 7814037071  3.6T Linux filesystem
root@FabFlix:~# ^C
root@FabFlix:~# fdisk -l /dev/sdf
Disk /dev/sdf: 3.64 TiB, 4000787030016 bytes, 7814037168 sectors
Disk model: WDC WD40EFRX-68N
Units: sectors of 1 * 512 = 512 bytes
Sector size (logical/physical): 512 bytes / 4096 bytes
I/O size (minimum/optimal): 4096 bytes / 4096 bytes
Disklabel type: gpt
Disk identifier: FB71DFC0-D64C-48FF-B874-C9D1F622AAC3

Device     Start        End    Sectors  Size Type
/dev/sdf1     64 7814037134 7814037071  3.6T Linux filesystem
root@FabFlix:~# fdisk -l /dev/sdf
Disk /dev/sdf: 3.64 TiB, 4000787030016 bytes, 7814037168 sectors
Disk model: WDC WD40EFRX-68N
Units: sectors of 1 * 512 = 512 bytes
Sector size (logical/physical): 512 bytes / 4096 bytes
I/O size (minimum/optimal): 4096 bytes / 4096 bytes
Disklabel type: gpt
Disk identifier: FB71DFC0-D64C-48FF-B874-C9D1F622AAC3

Device     Start        End    Sectors  Size Type
/dev/sdf1     64 7814037134 7814037071  3.6T Linux filesystem
root@FabFlix:~# fdisk -l /dev/sdfe
fdisk: cannot open /dev/sdfe: No such file or directory
root@FabFlix:~# fdisk -l /dev/sdd
Disk /dev/sdd: 3.64 TiB, 4000787030016 bytes, 7814037168 sectors
Disk model: WDC WD40EFRX-68N
Units: sectors of 1 * 512 = 512 bytes
Sector size (logical/physical): 512 bytes / 4096 bytes
I/O size (minimum/optimal): 4096 bytes / 4096 bytes
Disklabel type: gpt
Disk identifier: 03159B6D-7913-4487-8A30-BF1616540E42

Device     Start        End    Sectors  Size Type
/dev/sdd1     64 7814037134 7814037071  3.6T Linux filesystem
root@FabFlix:~# fdisk -l /dev/sdb
Disk /dev/sdb: 5.46 TiB, 6001175126016 bytes, 11721045168 sectors
Disk model: WDC WD60EFZX-68B
Units: sectors of 1 * 512 = 512 bytes
Sector size (logical/physical): 512 bytes / 4096 bytes
I/O size (minimum/optimal): 4096 bytes / 4096 bytes
Disklabel type: gpt
Disk identifier: 49BEF8DC-C3C2-4D18-9C2C-77F7CAB94900

Device     Start         End     Sectors  Size Type
/dev/sdb1     64 11721045134 11721045071  5.5T Linux filesystem
root@FabFlix:~# fdisk -l /dev/sdi
Disk /dev/sdi: 5.46 TiB, 6001175126016 bytes, 11721045168 sectors
Disk model: WDC WD60EFZX-68B
Units: sectors of 1 * 512 = 512 bytes
Sector size (logical/physical): 512 bytes / 4096 bytes
I/O size (minimum/optimal): 4096 bytes / 4096 bytes
Disklabel type: gpt
Disk identifier: 1AD89246-0A69-4305-806B-A4445C9E0E54

Device     Start         End     Sectors  Size Type
/dev/sdi1     64 11721045134 11721045071  5.5T Linux filesystem
root@FabFlix:~# fdisk -l /dev/sdc
Disk /dev/sdc: 5.46 TiB, 6001175126016 bytes, 11721045168 sectors
Disk model: WDC WD60EFZX-68B
Units: sectors of 1 * 512 = 512 bytes
Sector size (logical/physical): 512 bytes / 4096 bytes
I/O size (minimum/optimal): 4096 bytes / 4096 bytes
Disklabel type: gpt
Disk identifier: 05158E81-D139-45B8-B939-7B596715848E

Device     Start         End     Sectors  Size Type
/dev/sdc1     64 11721045134 11721045071  5.5T Linux filesystem
root@FabFlix:~# fdisk -l /dev/sdh
Disk /dev/sdh: 9.1 TiB, 10000831348736 bytes, 19532873728 sectors
Disk model: WDC WD101EFBX-68
Units: sectors of 1 * 512 = 512 bytes
Sector size (logical/physical): 512 bytes / 4096 bytes
I/O size (minimum/optimal): 4096 bytes / 4096 bytes
Disklabel type: gpt
Disk identifier: 0A85632F-1CB9-40A3-ADF4-779D50E61993

Device     Start         End     Sectors  Size Type
/dev/sdh1     64 19532873694 19532873631  9.1T Linux filesystem
root@FabFlix:~# fdisk -l /dev/nvme0n1
Disk /dev/nvme0n1: 232.89 GiB, 250059350016 bytes, 488397168 sectors
Disk model: WD Red SN700 250GB
Units: sectors of 1 * 512 = 512 bytes
Sector size (logical/physical): 512 bytes / 512 bytes
I/O size (minimum/optimal): 512 bytes / 512 bytes
Disklabel type: dos
Disk identifier: 0x00000000

Device         Boot Start       End   Sectors   Size Id Type
/dev/nvme0n1p1       2048 488397167 488395120 232.9G 83 Linux
root@FabFlix:~# fdisk -l /dev/nvme1n1
Disk /dev/nvme1n1: 232.89 GiB, 250059350016 bytes, 488397168 sectors
Disk model: WD Red SN700 250GB
Units: sectors of 1 * 512 = 512 bytes
Sector size (logical/physical): 512 bytes / 512 bytes
I/O size (minimum/optimal): 512 bytes / 512 bytes
Disklabel type: dos
Disk identifier: 0x00000000

Device         Boot Start       End   Sectors   Size Id Type
/dev/nvme1n1p1       2048 488397167 488395120 232.9G 83 Linux
root@FabFlix:~#

Link to comment
