HBA Link Speed Validation


Go to solution Solved by JorgeB,

Recommended Posts

I just installed a new 9300 HBA in my server. I had found a command that can be run from the command line that will output the link speed of the HBA to ensure its connection is not degraded. But i dont seem to be able to locate that forum. It helped me find out that my oboard SAS was running a degraded link, was hoping to ensure thats not the ase now



Output looked something like this:

# fcinfo hba-port

HBA Port WWN: 10000000c6789451
OS Device Name: /dev/cfg/c2
Manufacturer: Emulex
Model: LPe11000-S
Firmware Version: 2.80a4 (Z3D2.80A4)
FCode/BIOS Version: .........
Serial Number: ...........................
Driver Name: emlxs
Driver Version: 2.31o (2008.10.20.14.00)
Type: unknown
State: offline
Supported Speeds: 1Gb 2Gb 4Gb
Current Speed: not established
Node WWN: ...........................
HBA Port WWN: 10000000c7643890
OS Device Name: /dev/cfg/c1
Manufacturer: Emulex
Model: LPe11000-S
Firmware Version: 2.80a4 (Z3D2.80A4)
FCode/BIOS Version: .........
Serial Number: ......................
Driver Name: emlxs
Driver Version: 2.31o (2008.10.20.14.00)
Type: unknown
State: offline
Supported Speeds: 1Gb 2Gb 4Gb
Current Speed: not established
Node WWN: ..............................

Link to comment

I found the command, but I am still seeing a downgraded rating. Any suggestions?



lspci -d 1000: -vv



05:00.0 Serial Attached SCSI controller: Broadcom / LSI SAS3008 PCI-Express Fusion-MPT SAS-3 (rev 02)
        Subsystem: Broadcom / LSI SAS3008 PCI-Express Fusion-MPT SAS-3
        Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr+ Stepping- SERR+ FastB2B- DisINTx+
        Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
        Latency: 0, Cache Line Size: 64 bytes
        Interrupt: pin A routed to IRQ 218
        NUMA node: 0
        IOMMU group: 52
        Region 0: I/O ports at 6000
        Region 1: Memory at dec40000 (64-bit, non-prefetchable)
        Region 3: Memory at dec00000 (64-bit, non-prefetchable)
        Expansion ROM at deb00000 [disabled]
        Capabilities: [50] Power Management version 3
                Flags: PMEClk- DSI- D1+ D2+ AuxCurrent=0mA PME(D0-,D1-,D2-,D3hot-,D3cold-)
                Status: D0 NoSoftRst+ PME-Enable- DSel=0 DScale=0 PME-
        Capabilities: [68] Express (v2) Endpoint, MSI 00
                DevCap: MaxPayload 4096 bytes, PhantFunc 0, Latency L0s <64ns, L1 <1us
                        ExtTag+ AttnBtn- AttnInd- PwrInd- RBE+ FLReset+ SlotPowerLimit 0W
                DevCtl: CorrErr- NonFatalErr+ FatalErr+ UnsupReq-
                        RlxdOrd+ ExtTag+ PhantFunc- AuxPwr- NoSnoop+ FLReset-
                        MaxPayload 256 bytes, MaxReadReq 512 bytes
                DevSta: CorrErr- NonFatalErr- FatalErr- UnsupReq- AuxPwr- TransPend+
                LnkCap: Port #0, Speed 8GT/s, Width x8, ASPM not supported
                        ClockPM- Surprise- LLActRep- BwNot- ASPMOptComp+
                LnkCtl: ASPM Disabled; RCB 64 bytes, Disabled- CommClk+
                        ExtSynch- ClockPM- AutWidDis- BWInt- AutBWInt-
                LnkSta: Speed 8GT/s, Width x4 (downgraded)
                        TrErr- Train- SlotClk+ DLActive- BWMgmt- ABWMgmt-
                DevCap2: Completion Timeout: Range BC, TimeoutDis+ NROPrPrP- LTR-
                         10BitTagComp- 10BitTagReq- OBFF Not Supported, ExtFmt- EETLPPrefix-
                         EmergencyPowerReduction Not Supported, EmergencyPowerReductionInit-
                         FRS- TPHComp- ExtTPHComp-
                         AtomicOpsCap: 32bit- 64bit- 128bitCAS-
                DevCtl2: Completion Timeout: 50us to 50ms, TimeoutDis- LTR- 10BitTagReq- OBFF Disabled,
                         AtomicOpsCtl: ReqEn-
                LnkCap2: Supported Link Speeds: 2.5-8GT/s, Crosslink- Retimer- 2Retimers- DRS-
                LnkCtl2: Target Link Speed: 8GT/s, EnterCompliance- SpeedDis-
                         Transmit Margin: Normal Operating Range, EnterModifiedCompliance- ComplianceSOS-
                         Compliance Preset/De-emphasis: -6dB de-emphasis, 0dB preshoot
                LnkSta2: Current De-emphasis Level: -6dB, EqualizationComplete+ EqualizationPhase1+
                         EqualizationPhase2+ EqualizationPhase3+ LinkEqualizationRequest-
                         Retimer- 2Retimers- CrosslinkRes: unsupported
        Capabilities: [a8] MSI: Enable- Count=1/1 Maskable+ 64bit+
                Address: 0000000000000000  Data: 0000
                Masking: 00000000  Pending: 00000000
        Capabilities: [c0] MSI-X: Enable+ Count=96 Masked-
                Vector table: BAR=1 offset=0000e000
                PBA: BAR=1 offset=0000f000
        Capabilities: [100 v2] Advanced Error Reporting
                UESta:  DLP- SDES- TLP- FCP- CmpltTO- CmpltAbrt- UnxCmplt- RxOF- MalfTLP- ECRC- UnsupReq- ACSViol-
                UEMsk:  DLP+ SDES- TLP- FCP+ CmpltTO+ CmpltAbrt+ UnxCmplt+ RxOF+ MalfTLP+ ECRC+ UnsupReq+ ACSViol-
                UESvrt: DLP+ SDES+ TLP- FCP+ CmpltTO- CmpltAbrt- UnxCmplt- RxOF+ MalfTLP+ ECRC- UnsupReq- ACSViol-
                CESta:  RxErr- BadTLP- BadDLLP- Rollover- Timeout- AdvNonFatalErr-
                CEMsk:  RxErr+ BadTLP+ BadDLLP+ Rollover+ Timeout+ AdvNonFatalErr+
                AERCap: First Error Pointer: 00, ECRCGenCap+ ECRCGenEn- ECRCChkCap+ ECRCChkEn-
                        MultHdrRecCap- MultHdrRecEn- TLPPfxPres- HdrLogCap-
                HeaderLog: 00000000 00000000 00000000 00000000
        Capabilities: [1e0 v1] Secondary PCI Express
                LnkCtl3: LnkEquIntrruptEn- PerformEqu-
                LaneErrStat: 0
        Capabilities: [1c0 v1] Power Budgeting <?>
        Capabilities: [190 v1] Dynamic Power Allocation <?>
        Capabilities: [148 v1] Alternative Routing-ID Interpretation (ARI)
                ARICap: MFVC- ACS-, Next Function: 0
                ARICtl: MFVC- ACS-, Function Group: 0
        Kernel driver in use: mpt3sas
        Kernel modules: mpt3sas

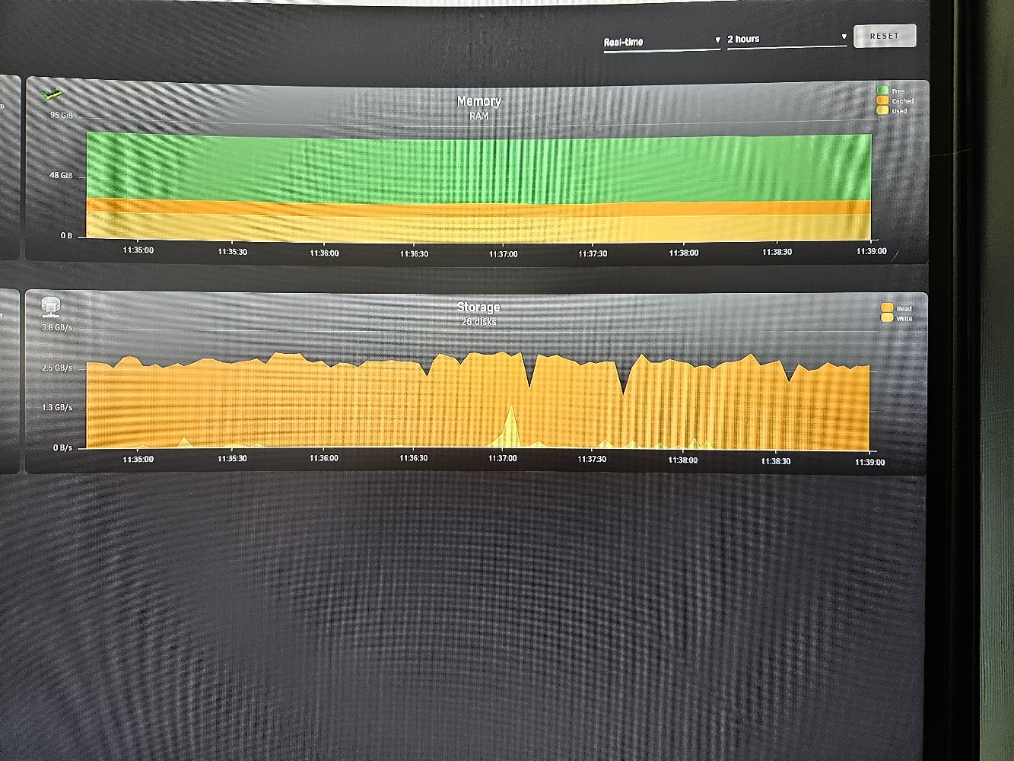

Link to comment
