February 2, 20242 yr Hi All, at a bit of a loss and trying to fend off frustration but cant for the life of me figure out why my Intel X520 is not working in Unraid - Card shows up in System Devices but no Eth shows up in Network Config Settings - Even if my transceivers were incorrect the Eth jacks should still show up shouldnt threy? Ive tried looking into the Eprom of the card - before i adjusted the EPROM for additional transceivers I deleted the Network.cfg files and rebooted to the Gui and still wasnt able to see the eth adapters. Looks like the driver is in Use - and Im kind of at a loss here Do i need to inject a driver or add commands for boot? not sure where to go from here or how to determind the diagnostics file looking for help Feb 2 19:02:03 Whoville kernel: ixgbe: Intel(R) 10 Gigabit PCI Express Network Driver Feb 2 19:02:03 Whoville kernel: ixgbe: Copyright (c) 1999-2016 Intel Corporation. Feb 2 19:02:03 Whoville kernel: ixgbe: probe of 0000:01:00.0 failed with error -5 Feb 2 19:02:03 Whoville kernel: ixgbe: probe of 0000:01:00.1 failed with error -5 Thank you, Kelton whoville-diagnostics-20240202-1841.zip Edited February 3, 20242 yr by globadyne
February 3, 20242 yr Community Expert NIC is failing to initialize but there's no reason why, you can try a different PCI slot or try the NIC in the different PC to confirm it's working.
February 3, 20242 yr Author Only slot available sadly I have tested card in another system I was getting BAR errors I wonder if this is OS related I've seen a few posts that it could be kernel or or set PCI alloc off in syslinux
February 3, 20242 yr Community Expert Solution 7 minutes ago, globadyne said: or set PCI alloc off in syslinux You can try that, I remember seeing other users with the same issue and trying a different Linux OS with a similar kernel didn't help, confirming it's not an Unraid issue.
February 3, 20242 yr Author I tried it in Ubuntu 22.04 and it worked albeit in a different board I wouldn't think I'm overloaded on my lanes 12 600k on a z790. I have an LSI HBA in the bottom slot driving for hard drives a singular NVME Oh, attempting to use this Intel X 520 card and I have two of the saddle plugs enabled on the board Even if the LSI card ran it has speed, it would still be more than enough. I wonder if it's something to do with the way the boards allocating I thought I saw a post on that
February 3, 20242 yr Author @JorgeB So status Tried Realloc and nic links show up but are down Is that more in line with the cable being unsupported ?
February 4, 20242 yr Community Expert 20 hours ago, globadyne said: Is that more in line with the cable being unsupported ? Could be.
February 6, 20242 yr Hello, Just wanted to piggyback on this thread. I'm having the same issue with a x520-DA2. It shows up in the device list, but nothing shown on the network page. hypeserver-diagnostics-20240205-1951.zip
February 6, 20242 yr Community Expert 23 minutes ago, Garland.Joseph97 said: I'm having the same issue with a x520-DA2. See if the pci=realloc=off boot option also helps.
February 7, 20242 yr Author 40 minutes ago, Garland.Joseph97 said: @JorgeB Just tried that and no luck unfortunately Might be worth attaching a diagnostic since you tried booting with Realloc Is there a reference to it in Syslog
February 7, 20242 yr Good call, here is my latest diag. The device is still showing up in the systems devices list, but nothing in network settings. hypeserver-diagnostics-20240207-0719.zip
February 7, 20242 yr Community Expert I'm not seeing the pci=realloc=off boot option, did you remove it?
February 8, 20242 yr @JorgeB I added it wrong the first time, made this change and now (1) port is showing up in network settings. but the port is down. I'll go check my cables in the morning. hypeserver-diagnostics-20240207-2246.zip Edited February 8, 20242 yr by Garland.Joseph97 answered my own question
February 8, 20242 yr Everything is working normally. The non working port was due to a noncompatible SFP. I swapped it and now both appear to be working. Thank you for the help everyone!

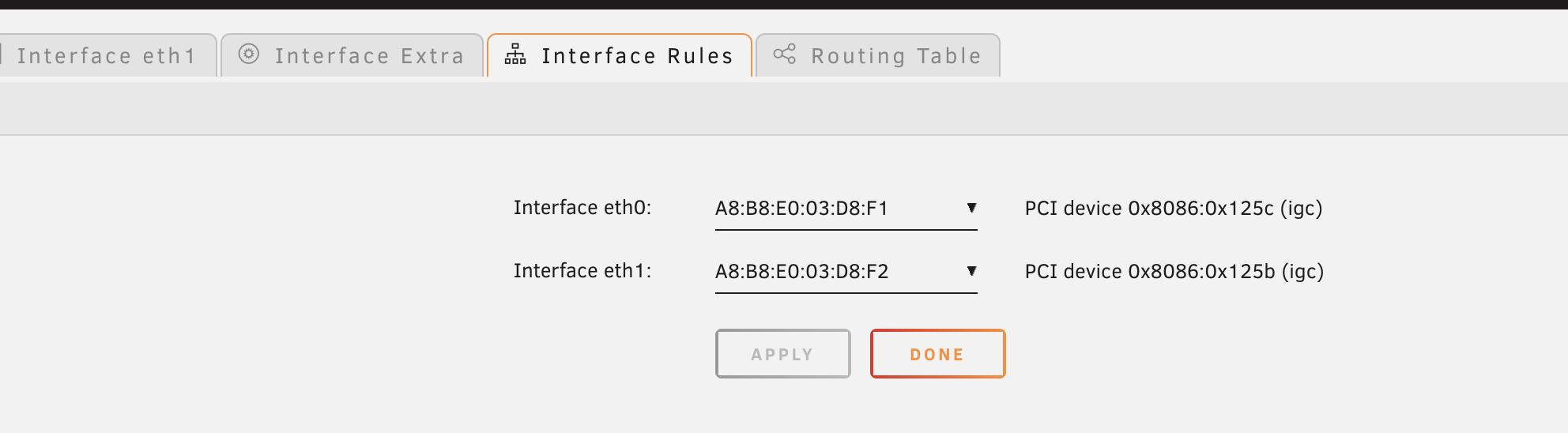

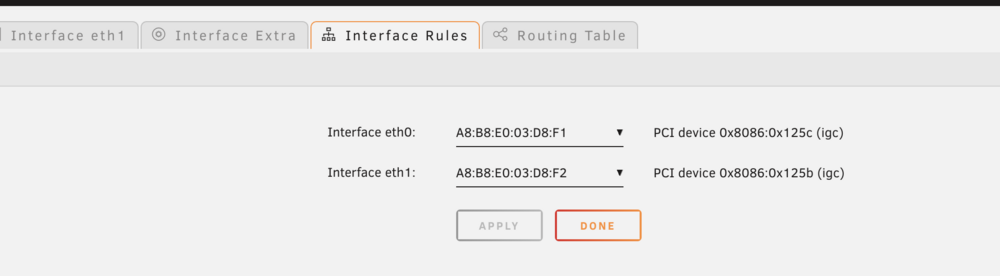

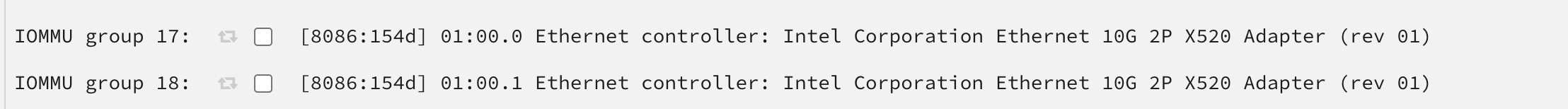

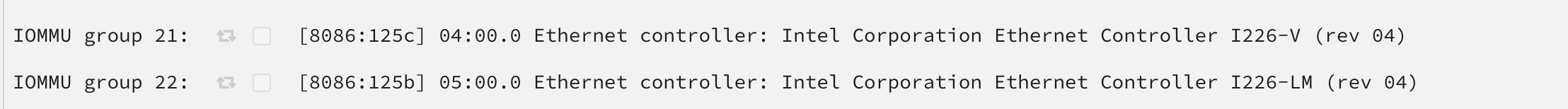

May 1, 20251 yr I'm having the same issue on Unraid 7, the server can see all 4 NICs on the System Devices page, but only the 2 internal NICs on the Network Setting page Any suggestions
May 1, 20251 yr Community Expert 7 minutes ago, LugoCloud said: I'm having the same issue on Unraid 7, the server can see all 4 NICs on the System Devices page, but only the 2 internal NICs on the Network Setting page Any suggestions Do the two 10Gs have drivers attached lspci -k
May 1, 20251 yr Just now, SimonF said: Do the two 10Gs have drivers attached lspci -k This is the output of the lspci -k Quote root@unraidserver:~# lspci -k 00:00.0 Host bridge: Intel Corporation Raptor Lake-S Host Bridge/DRAM Controller (rev 01) DeviceName: Onboard - Other Subsystem: Zycoo Co., Ltd Device 0760 00:01.0 PCI bridge: Intel Corporation Raptor Lake PCI Express 5.0 Graphics Port (PEG010) (rev 01) Subsystem: Zycoo Co., Ltd Device 0760 Kernel driver in use: pcieport 00:02.0 VGA compatible controller: Intel Corporation Raptor Lake-S GT1 [UHD Graphics 770] (rev 04) DeviceName: Onboard - Video Subsystem: Zycoo Co., Ltd Device 0760 Kernel driver in use: i915 Kernel modules: i915, xe 00:06.0 PCI bridge: Intel Corporation Raptor Lake PCIe 4.0 Graphics Port (rev 01) Kernel driver in use: pcieport 00:08.0 System peripheral: Intel Corporation GNA Scoring Accelerator module (rev 01) DeviceName: Onboard - Other Subsystem: Zycoo Co., Ltd Device 0760 00:0a.0 Signal processing controller: Intel Corporation Raptor Lake Crashlog and Telemetry (rev 01) DeviceName: Onboard - Other 00:14.0 USB controller: Intel Corporation Alder Lake-S PCH USB 3.2 Gen 2x2 XHCI Controller (rev 11) DeviceName: Onboard - Other Subsystem: Zycoo Co., Ltd Device 0760 Kernel driver in use: xhci_hcd 00:14.2 RAM memory: Intel Corporation Alder Lake-S PCH Shared SRAM (rev 11) DeviceName: Onboard - Other 00:15.0 Serial bus controller: Intel Corporation Alder Lake-S PCH Serial IO I2C Controller #0 (rev 11) DeviceName: Onboard - Other Subsystem: Zycoo Co., Ltd Device 0760 00:15.1 Serial bus controller: Intel Corporation Alder Lake-S PCH Serial IO I2C Controller #1 (rev 11) DeviceName: Onboard - Other Subsystem: Zycoo Co., Ltd Device 0760 00:15.2 Serial bus controller: Intel Corporation Alder Lake-S PCH Serial IO I2C Controller #2 (rev 11) DeviceName: Onboard - Other Subsystem: Zycoo Co., Ltd Device 0760 00:15.3 Serial bus controller: Intel Corporation Alder Lake-S PCH Serial IO I2C Controller #3 (rev 11) DeviceName: Onboard - Other Subsystem: Zycoo Co., Ltd Device 0760 00:16.0 Communication controller: Intel Corporation Alder Lake-S PCH HECI Controller #1 (rev 11) DeviceName: Onboard - Other Subsystem: Zycoo Co., Ltd Device 0760 Kernel driver in use: mei_me Kernel modules: mei_me 00:16.3 Serial controller: Intel Corporation Alder Lake-S Keyboard and Text (KT) Redirection (rev 11) DeviceName: Onboard - Other Subsystem: Zycoo Co., Ltd Device 0760 Kernel driver in use: serial 00:17.0 SATA controller: Intel Corporation Alder Lake-S PCH SATA Controller [AHCI Mode] (rev 11) DeviceName: Onboard - SATA Subsystem: Zycoo Co., Ltd Device 0760 Kernel driver in use: ahci Kernel modules: ahci 00:19.0 Serial bus controller: Intel Corporation Alder Lake-S PCH Serial IO I2C Controller #4 (rev 11) DeviceName: Onboard - Other Subsystem: Zycoo Co., Ltd Device 0760 00:19.1 Serial bus controller: Intel Corporation Alder Lake-S PCH Serial IO I2C Controller #5 (rev 11) DeviceName: Onboard - Other Subsystem: Zycoo Co., Ltd Device 0760 00:1a.0 PCI bridge: Intel Corporation Alder Lake-S PCH PCI Express Root Port #25 (rev 11) Subsystem: Zycoo Co., Ltd Device 0760 Kernel driver in use: pcieport 00:1c.0 PCI bridge: Intel Corporation Alder Lake-S PCH PCI Express Root Port #1 (rev 11) Subsystem: Zycoo Co., Ltd Device 0760 Kernel driver in use: pcieport 00:1c.1 PCI bridge: Intel Corporation Alder Lake-S PCH PCI Express Root Port #2 (rev 11) Subsystem: Zycoo Co., Ltd Device 0760 Kernel driver in use: pcieport 00:1c.4 PCI bridge: Intel Corporation Alder Lake-S PCH PCI Express Root Port #5 (rev 11) Subsystem: Zycoo Co., Ltd Device 0760 Kernel driver in use: pcieport 00:1e.0 Communication controller: Intel Corporation Alder Lake-S PCH Serial IO UART #0 (rev 11) DeviceName: Onboard - Other Subsystem: Zycoo Co., Ltd Device 0760 00:1e.3 Serial bus controller: Intel Corporation Alder Lake-S PCH Serial IO SPI Controller #1 (rev 11) DeviceName: Onboard - Other 00:1f.0 ISA bridge: Intel Corporation Device 7a83 (rev 11) DeviceName: Onboard - Other Subsystem: Zycoo Co., Ltd Device 0760 00:1f.3 Audio device: Intel Corporation Alder Lake-S HD Audio Controller (rev 11) DeviceName: Onboard - Sound Subsystem: Realtek Semiconductor Co., Ltd. Device 0897 00:1f.4 SMBus: Intel Corporation Alder Lake-S PCH SMBus Controller (rev 11) DeviceName: Onboard - Other Subsystem: Zycoo Co., Ltd Device 0760 Kernel driver in use: i801_smbus Kernel modules: i2c_i801 00:1f.5 Serial bus controller: Intel Corporation Alder Lake-S PCH SPI Controller (rev 11) DeviceName: Onboard - Other Subsystem: Zycoo Co., Ltd Device 0760 01:00.0 Ethernet controller: Intel Corporation Ethernet 10G 2P X520 Adapter (rev 01) Subsystem: Intel Corporation 10GbE 2P X520 Adapter Kernel driver in use: ixgbe Kernel modules: ixgbe 01:00.1 Ethernet controller: Intel Corporation Ethernet 10G 2P X520 Adapter (rev 01) Subsystem: Intel Corporation 10GbE 2P X520 Adapter Kernel driver in use: ixgbe Kernel modules: ixgbe 02:00.0 Non-Volatile memory controller: Sandisk Corp WD Blue SN580 NVMe SSD (DRAM-less) (rev 01) Subsystem: Sandisk Corp WD Blue SN580 NVMe SSD (DRAM-less) Kernel driver in use: nvme Kernel modules: nvme 03:00.0 System peripheral: Global Unichip Corp. Coral Edge TPU Subsystem: Global Unichip Corp. Coral Edge TPU Kernel driver in use: apex Kernel modules: apex 04:00.0 Ethernet controller: Intel Corporation Ethernet Controller I226-V (rev 04) Subsystem: Intel Corporation Device 0000 Kernel driver in use: igc Kernel modules: igc 05:00.0 Ethernet controller: Intel Corporation Ethernet Controller I226-LM (rev 04) Subsystem: Intel Corporation Device 0000 Kernel driver in use: igc Kernel modules: igc 06:00.0 System peripheral: Global Unichip Corp. Coral Edge TPU Subsystem: Global Unichip Corp. Coral Edge TPU Kernel driver in use: apex Kernel modules: apex
July 22, 2025Jul 22 Are there any other suggestions to get this working (Dell X710-DA2) on UNRAID 7.1.4, as I have added the 'pci=realloc=off' and tried different PCI slots and all of them show the card, see lspci -k:"01:00.0 Ethernet controller: Intel Corporation Device 154b (rev 02)Subsystem: Intel Corporation Device 000001:00.1 Ethernet controller: Intel Corporation Device 154b (rev 02)Subsystem: Intel Corporation Device 000001:00.2 Ethernet controller: Intel Corporation Device 154b (rev 02)Subsystem: Intel Corporation Device 000001:00.3 Ethernet controller: Intel Corporation Device 154b (rev 02)Subsystem: Intel Corporation Device 000001:00.4 Ethernet controller: Intel Corporation Device 154b (rev 02)Subsystem: Intel Corporation Device 000001:00.5 Ethernet controller: Intel Corporation Device 154b (rev 02)Subsystem: Intel Corporation Device 000001:00.6 Ethernet controller: Intel Corporation Device 154b (rev 02)Subsystem: Intel Corporation Device 000001:00.7 Ethernet controller: Intel Corporation Device 154b (rev 02)Subsystem: Intel Corporation Device 000001:01.0 Ethernet controller: Intel Corporation Device 154b (rev 02)Subsystem: Intel Corporation Device 000001:01.1 Ethernet controller: Intel Corporation Device 154b (rev 02)Subsystem: Intel Corporation Device 000001:01.2 Ethernet controller: Intel Corporation Device 154b (rev 02)Subsystem: Intel Corporation Device 000001:01.3 Ethernet controller: Intel Corporation Device 154b (rev 02)Subsystem: Intel Corporation Device 000001:01.4 Ethernet controller: Intel Corporation Device 154b (rev 02)Subsystem: Intel Corporation Device 000001:01.5 Ethernet controller: Intel Corporation Device 154b (rev 02)Subsystem: Intel Corporation Device 000001:01.6 Ethernet controller: Intel Corporation Device 154b (rev 02)Subsystem: Intel Corporation Device 000001:01.7 Ethernet controller: Intel Corporation Device 154b (rev 02)Subsystem: Intel Corporation Device 0000"But the only NIC that remains visible is the r8169 on the ASUSTeK PRIME B760M-A motherboard. TIA. home-nas-1-diagnostics-20250722-1316.zip
July 22, 2025Jul 22 Community Expert 01:00.0 Ethernet controller [0200]: Intel Corporation Device [8086:154b] (rev 02) Subsystem: Intel Corporation Device [8086:0000]01:00.1 Ethernet controller [0200]: Intel Corporation Device [8086:154b] (rev 02) Subsystem: Intel Corporation Device [8086:0000]01:00.2 Ethernet controller [0200]: Intel Corporation Device [8086:154b] (rev 02) Subsystem: Intel Corporation Device [8086:0000]01:00.3 Ethernet controller [0200]: Intel Corporation Device [8086:154b] (rev 02) Subsystem: Intel Corporation Device [8086:0000]01:00.4 Ethernet controller [0200]: Intel Corporation Device [8086:154b] (rev 02) Subsystem: Intel Corporation Device [8086:0000]01:00.5 Ethernet controller [0200]: Intel Corporation Device [8086:154b] (rev 02) Subsystem: Intel Corporation Device [8086:0000]01:00.6 Ethernet controller [0200]: Intel Corporation Device [8086:154b] (rev 02) Subsystem: Intel Corporation Device [8086:0000]01:00.7 Ethernet controller [0200]: Intel Corporation Device [8086:154b] (rev 02) Subsystem: Intel Corporation Device [8086:0000]01:01.0 Ethernet controller [0200]: Intel Corporation Device [8086:154b] (rev 02) Subsystem: Intel Corporation Device [8086:0000]01:01.1 Ethernet controller [0200]: Intel Corporation Device [8086:154b] (rev 02) Subsystem: Intel Corporation Device [8086:0000]01:01.2 Ethernet controller [0200]: Intel Corporation Device [8086:154b] (rev 02) Subsystem: Intel Corporation Device [8086:0000]01:01.3 Ethernet controller [0200]: Intel Corporation Device [8086:154b] (rev 02) Subsystem: Intel Corporation Device [8086:0000]01:01.4 Ethernet controller [0200]: Intel Corporation Device [8086:154b] (rev 02) Subsystem: Intel Corporation Device [8086:0000]01:01.5 Ethernet controller [0200]: Intel Corporation Device [8086:154b] (rev 02) Subsystem: Intel Corporation Device [8086:0000]01:01.6 Ethernet controller [0200]: Intel Corporation Device [8086:154b] (rev 02) Subsystem: Intel Corporation Device [8086:0000]01:01.7 Ethernet controller [0200]: Intel Corporation Device [8086:154b] (rev 02) Subsystem: Intel Corporation Device [8086:0000]This doesn't look right. How many ports does it have?
July 22, 2025Jul 22 Community Expert Looks to me like there's an issue with the NIC, it's not being detected correctly. Try booting with a different OS, like a Windows live flash drive to see if it's actually working.
