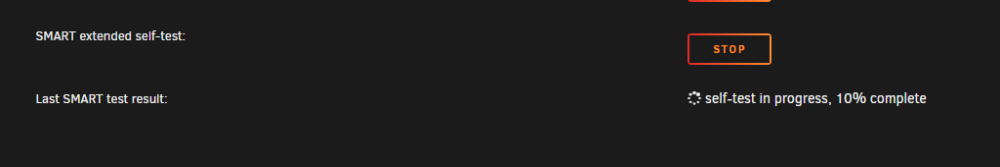

February 5, 20242 yr Unraid Version: 6.12.6 System Specs: - AMD Ryzen 9 3950X - ASROCK B550 TAICHI - 64GB ECC RAM - 2 x TOSHIBA_HDWG480 8TB NAS Drives - 2 x SEAGATE ST8000VN 8TB Ironwolf Drives - 2 X HGST_HDN727060 6TB Drives Server has been running fine so far when suddenly this appeared: The disks have always been sufficiently cooled and I don't do THAT much reading and writing on them. I have also attached the Diagnostics. I've checked on BIOS whether the two disks can be detected properly and they are seen in BIOS. I'm currently doing extended SMART self-test on both of them. At wit's end, please help! server-diagnostics-20240205-2324.zip Edited February 5, 20242 yr by rescend Added that I'm doing SMART Extended self-test
February 5, 20242 yr Community Expert Solution Disks were already disabled at boot, so we can't see what happened, but SMART looks fine for both, if they pass the test, the emulated disks are mounting and contents look correct, you can rebuild on top.

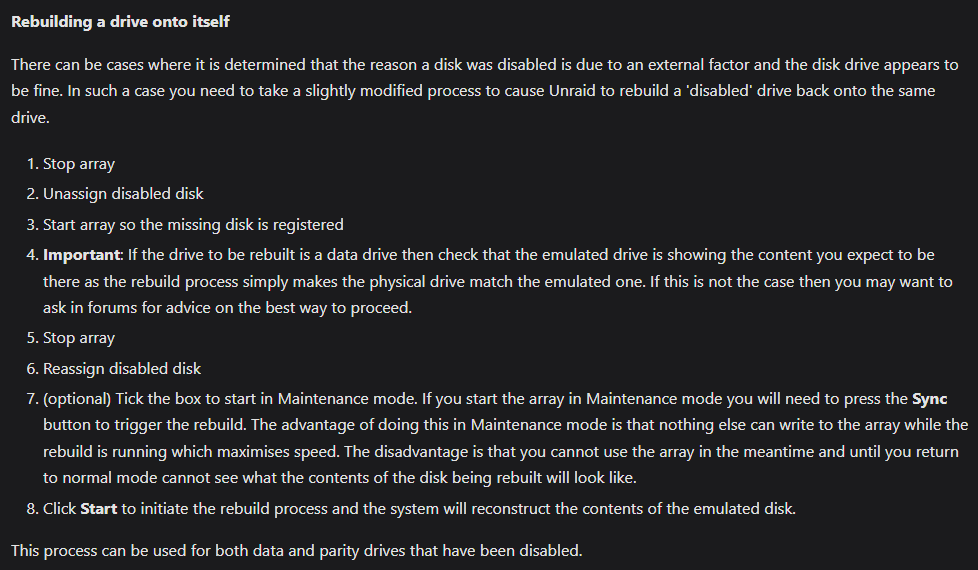

February 5, 20242 yr Author 3 minutes ago, JorgeB said: Disks were already disabled at boot, so we can't see what happened, but SMART looks fine for both, if they pass the test, the emulated disks are mounting and contents look correct, you can rebuild on top. I'll rebuild on top once the scans are done. However, I'm not quite sure how to rebuild on top. is this what you mean?
February 5, 20242 yr Author Just now, trurl said: yes Ok, I'll let the SMART test run and finish. If anything weird I'll update here again! Thanks !
February 5, 20242 yr Author 4 minutes ago, trurl said: Emulated disk2 shows little if any data. Is that expected? Yes sir! Just has one directory in it at the moment.
February 5, 20242 yr Community Expert OK. Just wanted to make sure you hadn't formatted the emulated disk. Several people have made that mistake recently when the emulated disk showed as unmountable.
February 16, 20242 yr Author Sorry for necroing this. Now another two disks has failed. I have successfully rebuilt on top once from the previous time, but now both Parity disks have failed. I ran a read check for a abit and its turning up lots of errors. Out of fear i stopped the scan and array and ended up with this I have no idea what is going on. Attached is the diagnostics before i powered down the system as I'm going to check the cables and power. I dont know what to do next for now. Please help wdnas-diagnostics-20240216-2159.zip Edited February 16, 20242 yr by rescend
February 16, 20242 yr Community Expert Problem with this controller: Feb 15 00:08:14 WDNas kernel: ahci 0000:0b:00.0: AHCI controller unavailable! Reboot and post new diags after array start
February 16, 20242 yr Author Ok, I restarted the system (and remove the two new sticks of RAM I installed since they're the only thing that changed, all these started happening AFTER I installed the sticks) and the 4 disks are back but the two Parity drives are still disabled. Shall I rebuild on top again? I did SMART Short tests to check if they were ok and both were completed without errors. wdnas-diagnostics-20240216-2215.zip
February 16, 20242 yr Community Expert 6 minutes ago, rescend said: Shall I rebuild on top again? Looks OK so far. Might as well give it a try. Parity doesn't contain any of your data anyway.
February 16, 20242 yr Author Alright then. Thanks for the responses @JorgeB @trurl. Thank you so very much.
