I have the following setup:



radarr

/config = /mnt/user/appdata/radarr
/movies = /mnt/user/media/Movies/
/downloads = /mnt/user/torrent/



sonarr

/tv = /mnt/user/media/TV Shows/
/downloads = /mnt/user/torrent/
/config = /mnt/user/appdata/sonarr



deluge

/downloads = /mnt/user/torrent/
/config = /mnt/user/appdata/deluge



However, once a file is downloaded it is moved from "/mnt/user/torrent/" to a "/mnt/user/media/Movies" without a hardlink.



"/mnt/user/torrent" and "/mnt/user/media" are 2 user shares. For hardlinks to work - do I need to have torrents inside the same share?



Additionally, do I need to make any changes to the volume mappings? For example to have:



radarr
/data/movies = /mnt/user/media/Movies/
/data/downloads = /mnt/user/media/torrent/



sonarr

/data/tv = /mnt/user/media/TV Shows/
/data/downloads = /mnt/user/media/torrent/



deluge

/data/downloads = /mnt/user/media/torrent/



I am not sure if I would need to have sonarr and radarr re-index my library if I make this change?



Tried the following setup:



Deluge:

- /data/torrent => /mnt/user/media/torrent



Sonarr

- /data => /mnt/user/media



So technically sonarr should see both however atomic movies / hardlinks are not working as the contents get deleted after the move, which is not ideal at all since we have extra io and we can't seed the files.



Used

docker exec -it sonarr /bin/bash

to jump into the container however, one interesting thing is that I could run "ln /data/torrent/something /data/TV Shows/something" so technically it works when manually running it, however sonarr seems to always just move, even though in the UI hardlinks are checked.



Hopefully someone has a working guide on how we can properly use hardlinks.

Edited February 20, 20242 yr by Shagon

Managed to get it working.





# Steps



Given the layout on disk:



```shell

/mnt/user/media

├── ebooks

├── downloads

├── Movies

├── Music

└── TV Shows

```



The container view should be:



## Deluge



```shell

/media

└── downloads

```



## Sonarr

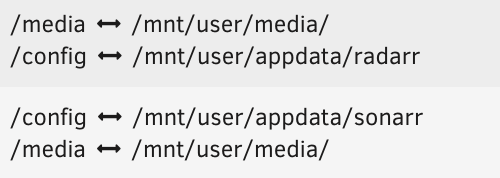

```shell

/media

├── ebooks

├── downloads

├── Movies

├── Music

└── TV Shows

```



## The switch



1. Backup `/appdata`

2. Turn off plex scanning

3. Turn off plex garbage collection (1, 2, 4, 5)

4. Turn off plex

5. Change sonarr volume binding

  1. Remove `/tv` => `/mnt/user/media/TV Shows` volume binding

  2. Add volume binding `/media` => `/mnt/user/media`

6. Change Deluge volume binding

  1. Remove `/downloads` => `/mnt/user/torrent/`

  2. Add volume binding `/media/downloads` => `/mnt/user/media/downloads`

7. Test manual volume binding

  1. `docker exec -it sonarr /bin/bash`

  2. `echo "something" > /media/downloads/something`

  3. `ln /media/downloads/something /media/TV\ Shows/something`

  4. `stat /media/downloads/something` should return "Links: 2"

8. Going back to Sonarr change the root directory from `/tv` to `/media/TV\ Shows` making sure **NOT** to move the files as the naming scheme is correct

9. Ensure Sonarr is set to use hardlinks

10. Ensure Sonarr is set **NOT** to remove downloaded files

11. Configure Deluge to seed for at least 1:1 ratio

12. Configure Deluge to use `/media/downloads` directory for downloads

13. Find a random episode on Sonarr and download it

14. Observe the import in Sonarr

15. Confirm the link exists by looking into the `/media/downloads` directory and doing `stat` on the downloaded file

16. Remove `something` file used for testing `rm /media/TV\ Shows/something`

17. Turn on plex and enable garbage collection (settings 1,2,4,5)





Repeat the above for Radarr as the core seems to be NAMING to be the same, so media in the container and media in unraid, or data in unraid and data in the container - the names MUST match

7 hours ago, Killabee44 said:

Hi,

I have a similar issue which I am trying to resolve. For Sonarr, where did you change the binding setting? in the appdata config file? Thanks.

In unraid itself
