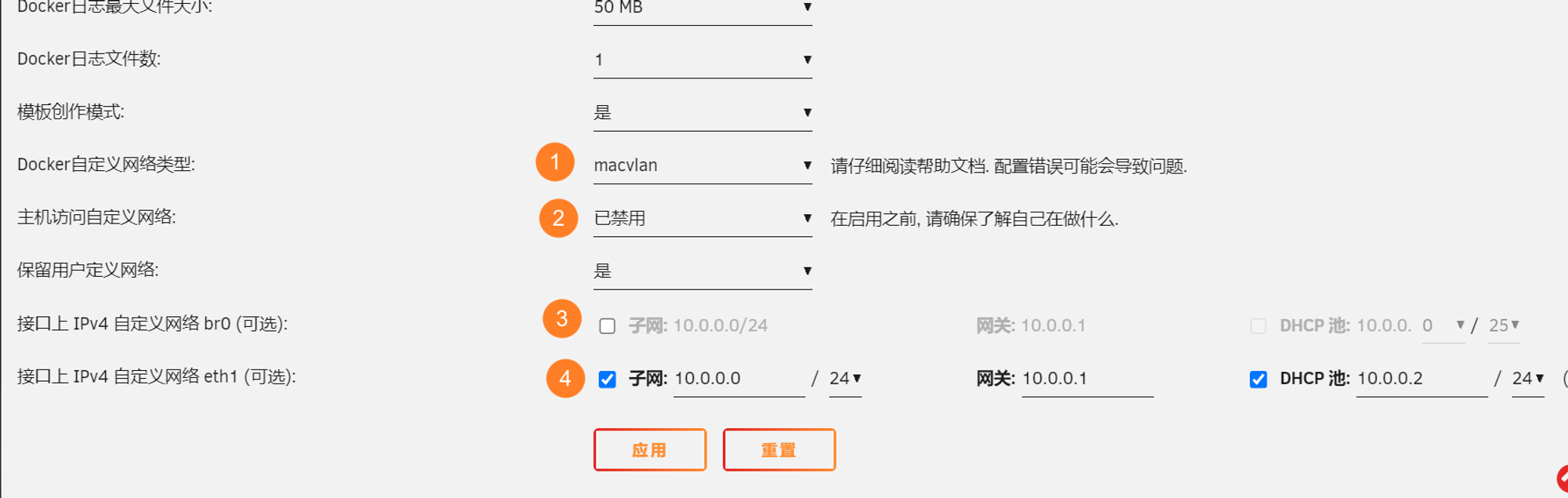

February 27, 20242 yr After I upgraded from 6.11.5 to 6.12.8, there is still a problem of using macvlan causing Unraid to lose connection. I used bond between eth0 and eth1 and opened the bridge. Then in the custom network of docker, I opened the macvlan of br0. Two days later, I discovered that Unraid had lost contact. After restarting, I plan to use eth1 as a separate macvlan network port. So I unbonded eth1 and opened it in docker's custom network. But after I start the array, I cannot see the docker custom network generated by the system. The configuration is similar to this: Docker network only has bridge and host. What's the reason? In version 6.11.5, it can run normally according to the description in https://www.jackiewu.top/article/how-to-solve-macvlan-and-ipvlan-issues. Currently I can only create a custom network for eth1 through the docker network command. For eth1, I haven't assigned any ip address to it or opened a bridge or anything. Can this solve the problem of lost connection? Edited February 27, 20242 yr by csu
February 27, 20242 yr Community Expert Because of the language cannot see if bridging is enabled or disabled, can you confirm? To keep using macvlan you must disable bridging
February 27, 20242 yr Author 20 minutes ago, JorgeB said: Because of the language cannot see if bridging is enabled or disabled, can you confirm? To keep using macvlan you must disable bridging Bridging of eth1 is turned disabled. I think this should solve the problem of lost connection. But I don’t know why the custom network set through the docker settings WEB UI cannot take effect and can only be created through the docker network create command.

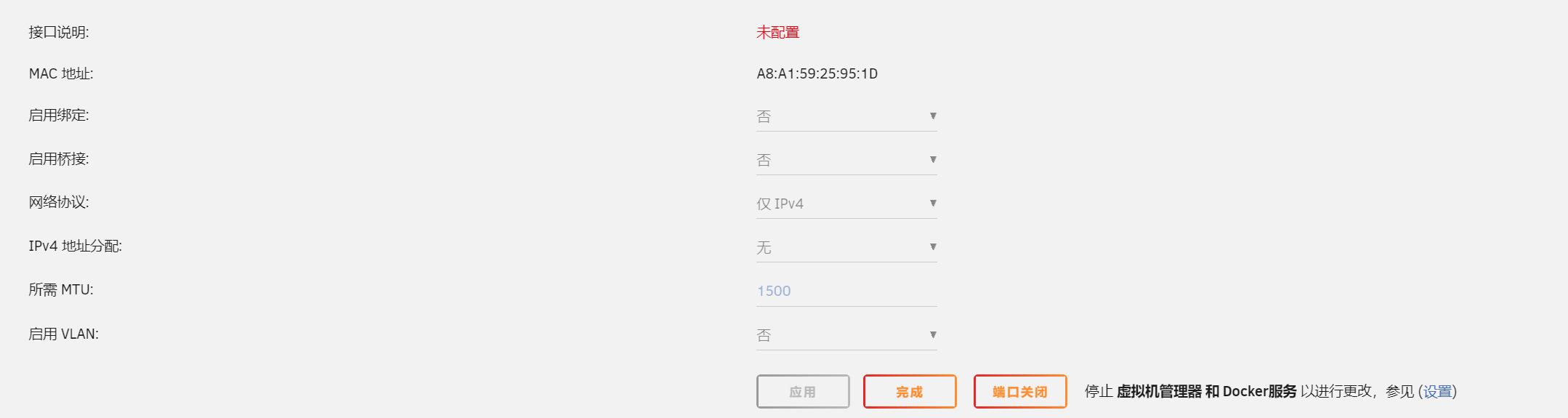

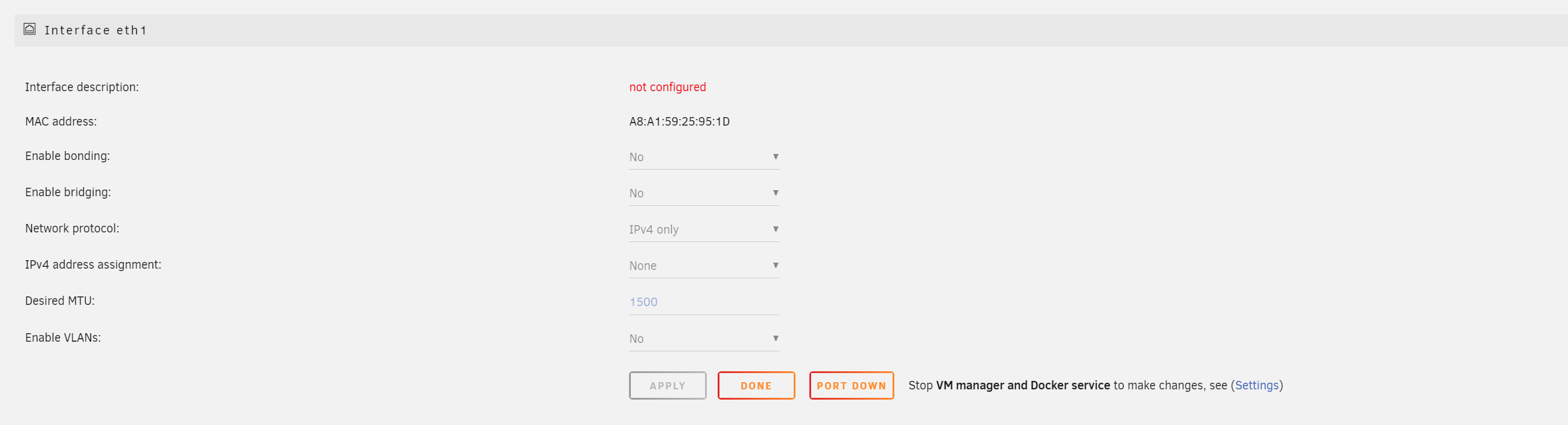

February 27, 20242 yr Author 1 minute ago, csu said: Bridging of eth1 is turned disabled. I think this should solve the problem of lost connection. But I don’t know why the custom network set through the docker settings WEB UI cannot take effect and can only be created through the docker network create command. This is my eth1 configuration. And this is the command I used " docker network create -d macvlan \ --subnet=192.168.1.0/24 \ --ip-range=192.168.1.128/25 \ --gateway=192.168.1.5 \ -o parent=eth1 macvlan” I think this should solve the problem of lost connection.
February 27, 20242 yr Community Expert 1 hour ago, csu said: But I don’t know why the custom network set through the docker settings WEB UI cannot take effect and can only be created through the docker network create command. This I'm afraid I cannot help with, but maybe someone else can.
February 27, 20242 yr Author I think it is because I set the address segment of the custom network eth1 and the address segment of the management network port to the same address segment, that is, 192.168.1.0/24, which is not allowed by the Unraid system. When I changed the address segment to 192.168.0.0/24, the system will automatically generate a custom network eth1. However, the system itself does not prompt that this is not allowed and does not report an error. And through the docker network create command, such a network can be created. I am not sure whether this is a bug.
February 27, 20242 yr Community Expert 7 minutes ago, csu said: I am not sure whether this is a bug. Me neither, maybe @bonienlcan help.
