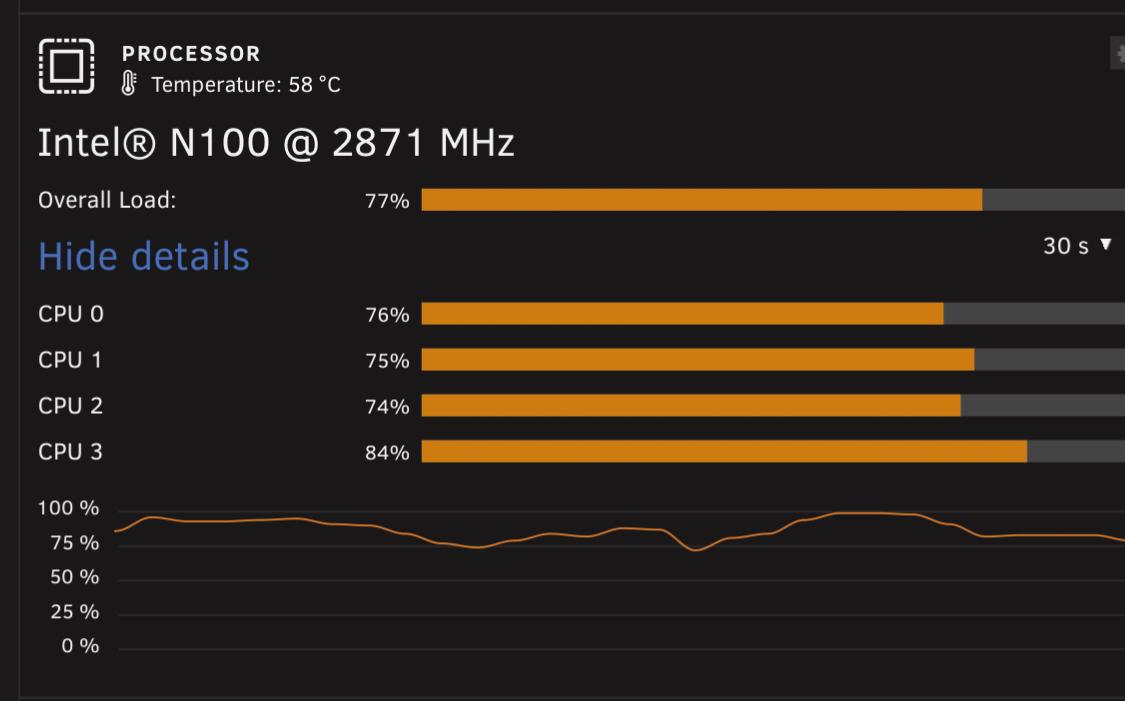

March 13, 20242 yr Hi, Why Unraid shows that process is still at over 2800Mhz and load are very high? when I set power saving in BIOS Unraid shows always 800mhz and load arround 10% that is weird, shouldn’t be load higher on lower mhz?

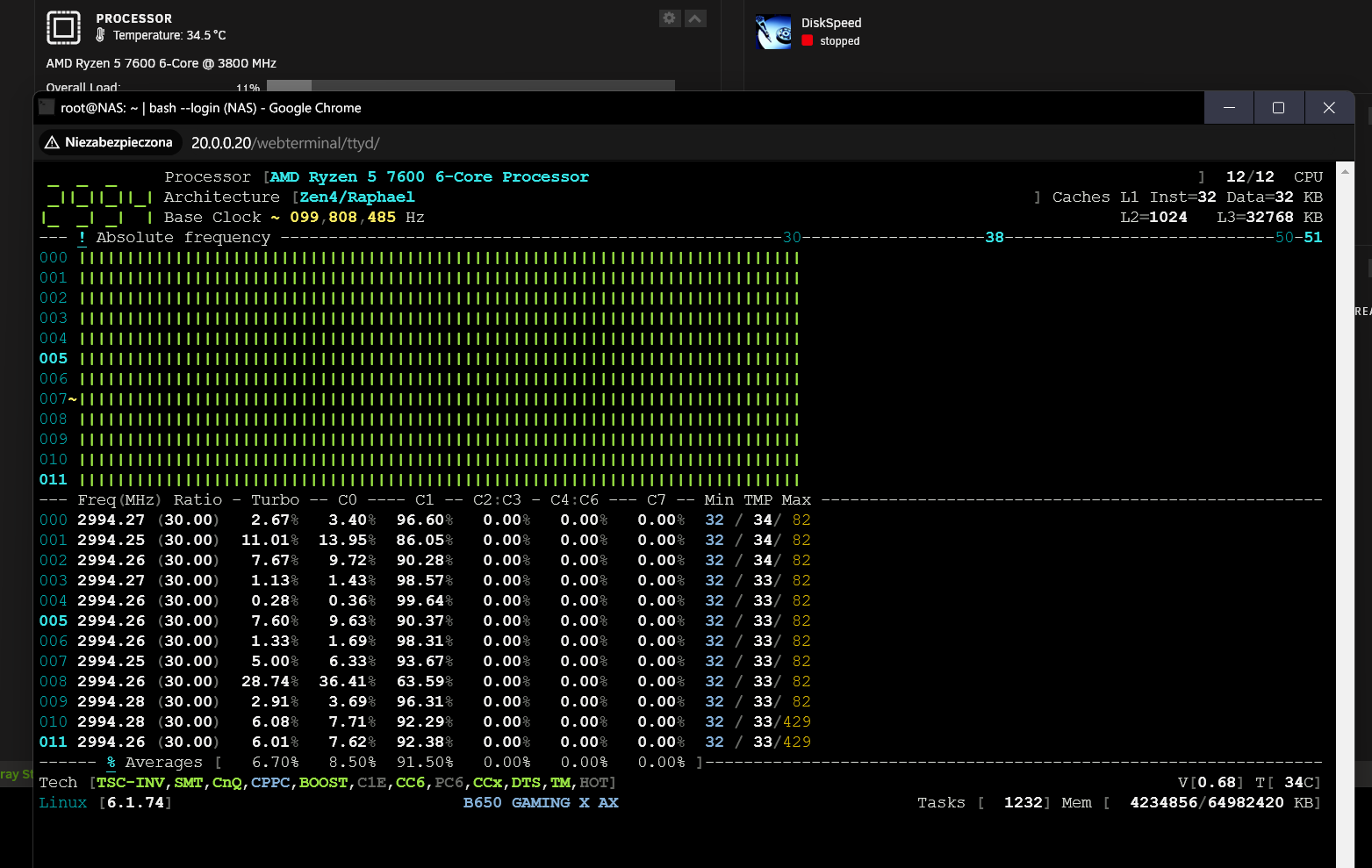

March 13, 20242 yr Solution This only displays nominal speed, not actual. Use corefreq plugin if you want to see current clocks. Edited March 13, 20242 yr by Kilrah
March 13, 20242 yr Author 29 minutes ago, Kilrah said: This only displays nominal speed, not actual. Use corefreq plugin if you want to see current clocks. But why load is higher when nominal speed is also higher?
March 13, 20242 yr Looks like you have C-states disabled so the CPU never really slows down. Usage on the dashboard includes iowait, so if things are waiting on drives it goes up even if actual CPU usage is low. Compare to htop which is pure CPU load. Edited March 13, 20242 yr by Kilrah
March 14, 20242 yr Author 19 hours ago, Kilrah said: Looks like you have C-states disabled so the CPU never really slows down. Usage on the dashboard includes iowait, so if things are waiting on drives it goes up even if actual CPU usage is low. Compare to htop which is pure CPU load. how to check and setting these C-states?
March 14, 20242 yr 1 hour ago, maTTi said: how to check and setting these C-states? BIOS settings. Different on every motherboard, I don't have this specific one so you will need to look around.
March 14, 20242 yr Author 34 minutes ago, JonathanM said: BIOS settings. Different on every motherboard, I don't have this specific one so you will need to look around. Thanks in case someone have the same motherboard: Asus PRIME N100I-D D4-CSM please paste the best settings for Unraid in bios
