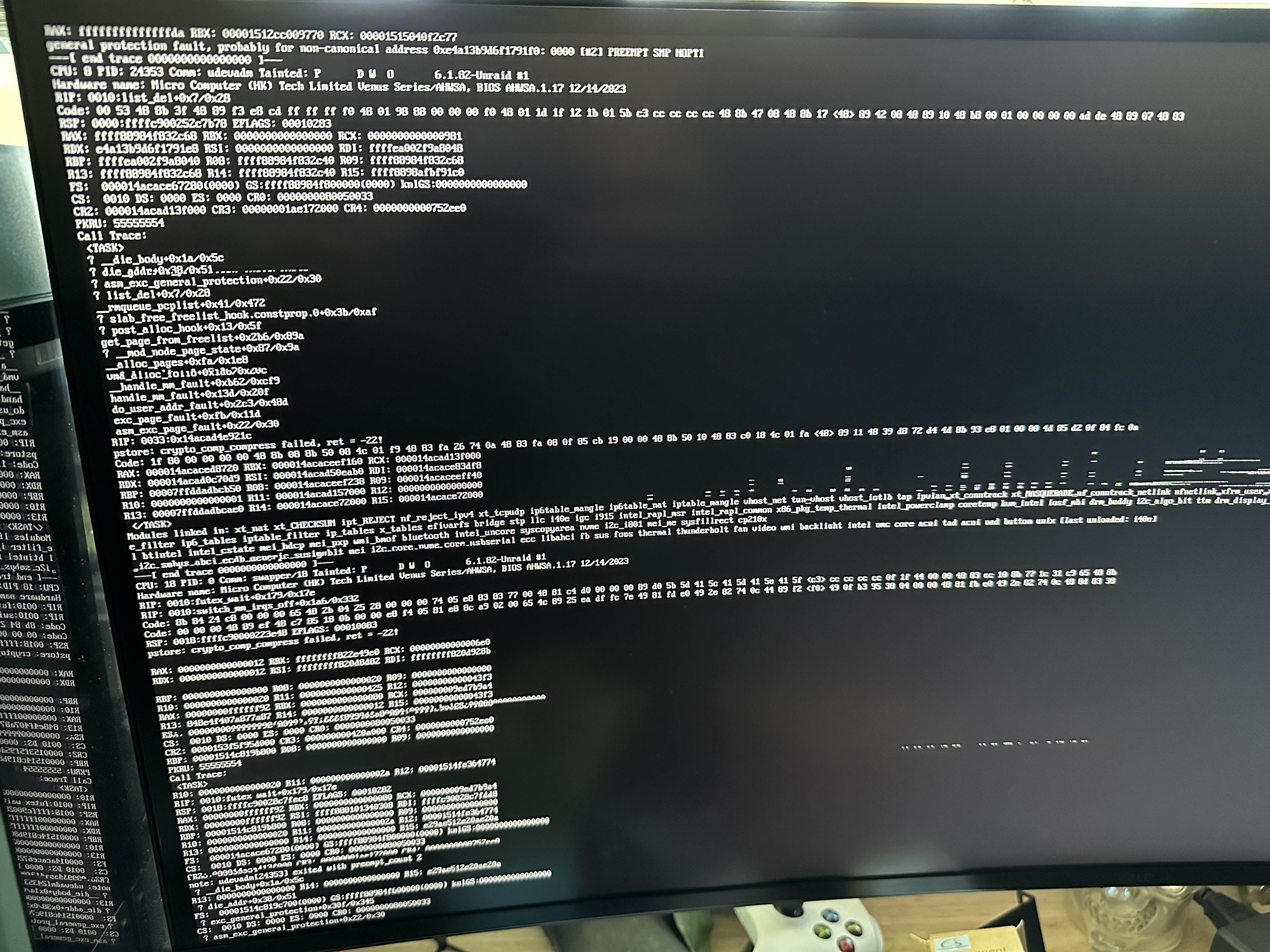

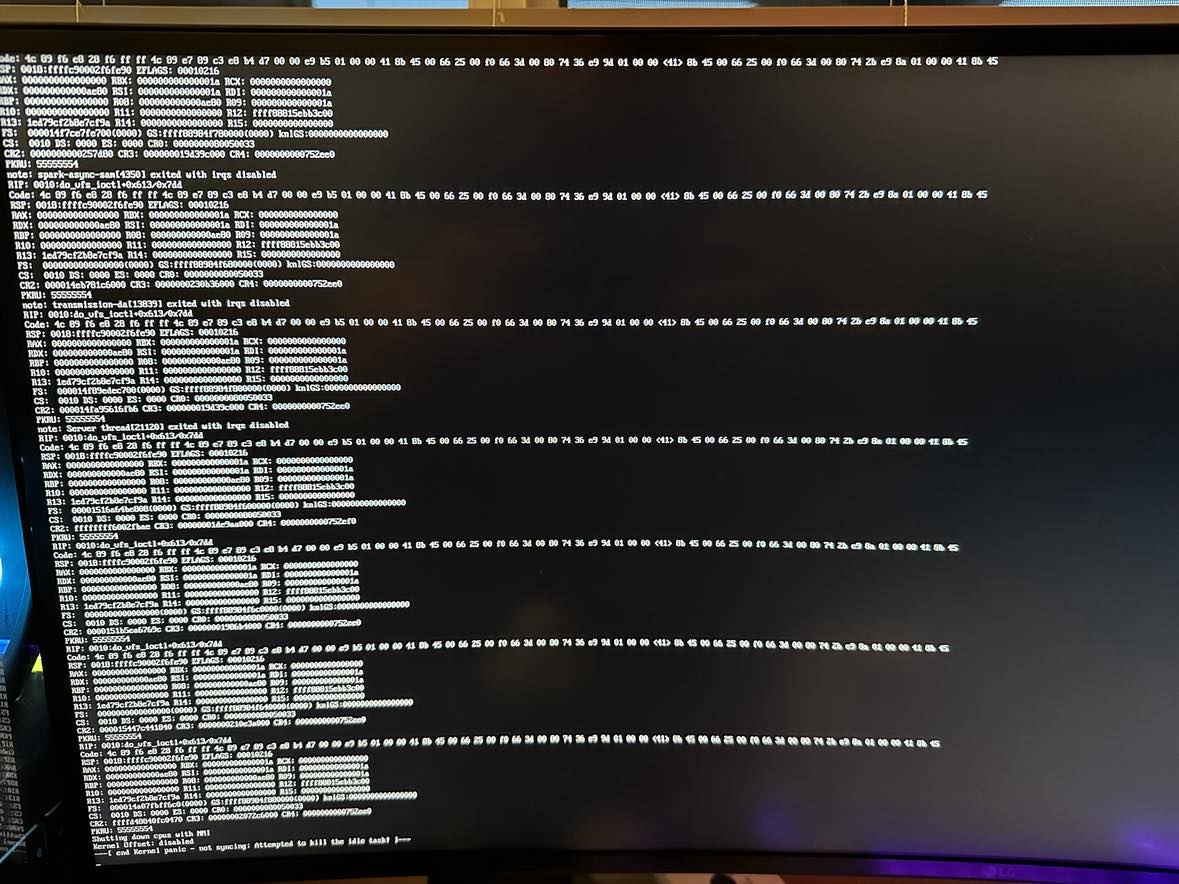

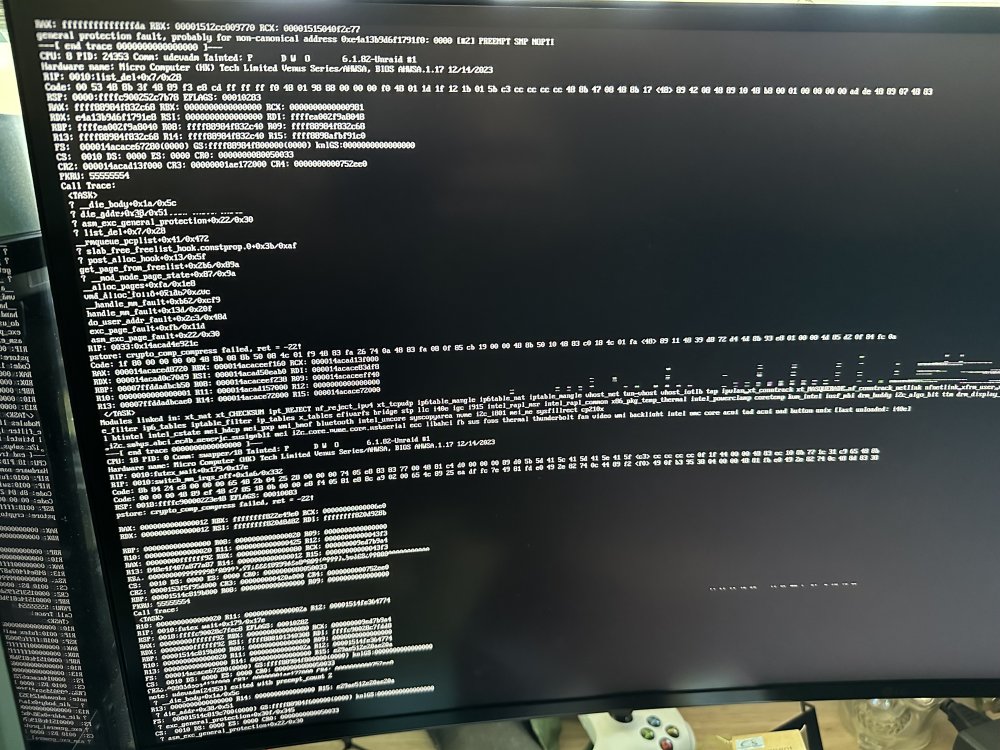

March 24, 20242 yr I've been having this issue for while now. I've downgraded, upgraded, disabled dockers, disabled VMs, disabled cstates, swapped out RAM, deleted and re-created docker.img. I'm using a pc from minisforum, the MS-01. I'm not sure if it's just giving out or what. I've setup a logging server and I have 0 logs. Nothing indicating what's going on. I did finally get something on my screen. I've also attached my diagnostic logs. I could really use some help. I'll just wake up and it's unresponsive. I have to hold the power button to get it to turn off. tower-diagnostics-20240324-1153.zip Edited March 24, 20242 yr by FreakyBigFoot
March 24, 20242 yr Community Expert The previous syslog only covers half an hour or so, does it cover a crash?
March 24, 20242 yr Author No, that's the thing. I'm not getting any logs. I'll wake up and it's 'on' but nothing is responsive. I have to hold the power button..

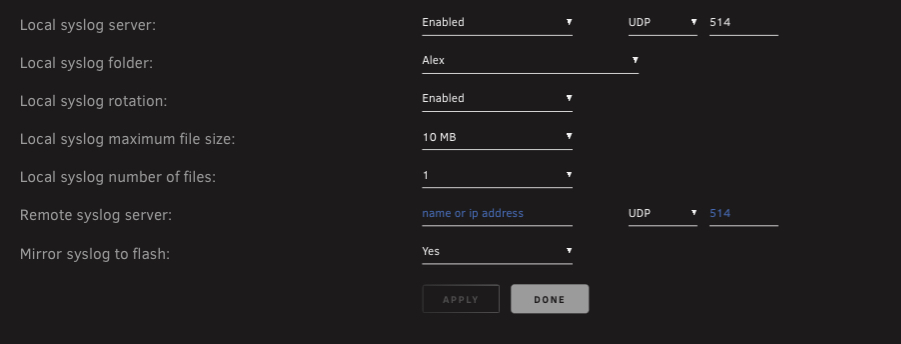

March 25, 20242 yr Community Expert 9 hours ago, FreakyBigFoot said: No, that's the thing. I'm not getting any logs. Don't follow, there is a previous log, post a screenshot of the syslog server settings.
March 25, 20242 yr Author I’m also using Datadog to gather logs. I have zero logs around the time it crashes. It crashed about an hour ago and same thing. Absolutely nothing. My fans kick on high and unraid just crashes. Edited March 25, 20242 yr by FreakyBigFoot
March 26, 20242 yr Community Expert 13 hours ago, FreakyBigFoot said: I have zero logs around the time it crashes. There won't be anything on the Alex share since the remote server is blank, you need to use the server IP, but there should be in the flash drive, logs folder.
March 30, 20242 yr Author Here is all I have: Mar 30 00:00:05 Tower emhttpd: read SMART /dev/sde Mar 30 00:00:21 Tower apcupsd[3370]: Communications with UPS lost. Mar 30 00:10:33 Tower apcupsd[3370]: Communications with UPS lost. Mar 30 00:15:07 Tower emhttpd: spinning down /dev/sde Mar 30 00:20:45 Tower apcupsd[3370]: Communications with UPS lost. Mar 30 00:30:57 Tower apcupsd[3370]: Communications with UPS lost. Mar 30 00:41:09 Tower apcupsd[3370]: Communications with UPS lost. Mar 30 00:51:21 Tower apcupsd[3370]: Communications with UPS lost. Mar 30 01:01:33 Tower apcupsd[3370]: Communications with UPS lost. Mar 30 01:11:45 Tower apcupsd[3370]: Communications with UPS lost. Mar 30 01:21:57 Tower apcupsd[3370]: Communications with UPS lost. Mar 30 01:32:09 Tower apcupsd[3370]: Communications with UPS lost. Mar 30 01:42:21 Tower apcupsd[3370]: Communications with UPS lost. Mar 30 01:52:32 Tower apcupsd[3370]: Communications with UPS lost. Mar 30 02:00:03 Tower emhttpd: read SMART /dev/sdd Mar 30 02:00:11 Tower emhttpd: read SMART /dev/sdc Mar 30 02:01:51 Tower root: /etc/libvirt: 71.2 MiB (74670080 bytes) trimmed on /dev/loop3 Mar 30 02:01:51 Tower root: /var/lib/docker: 1.7 GiB (1846673408 bytes) trimmed on /dev/loop2 Mar 30 02:01:51 Tower root: /mnt/cache: 28 GiB (30114258944 bytes) trimmed on /dev/nvme0n1p1 Mar 30 02:02:31 Tower emhttpd: read SMART /dev/sdh Mar 30 02:02:44 Tower apcupsd[3370]: Communications with UPS lost. Mar 30 02:02:51 Tower emhttpd: read SMART /dev/sde Mar 30 02:12:55 Tower apcupsd[3370]: Communications with UPS lost. Mar 30 02:22:51 Tower emhttpd: spinning down /dev/sdc Mar 30 02:23:06 Tower apcupsd[3370]: Communications with UPS lost. Mar 30 02:33:18 Tower apcupsd[3370]: Communications with UPS lost. Mar 30 02:43:30 Tower apcupsd[3370]: Communications with UPS lost. Mar 30 02:53:42 Tower apcupsd[3370]: Communications with UPS lost. Mar 30 03:03:54 Tower apcupsd[3370]: Communications with UPS lost. Mar 30 03:14:06 Tower apcupsd[3370]: Communications with UPS lost. Mar 30 03:24:19 Tower apcupsd[3370]: Communications with UPS lost. Mar 30 03:34:31 Tower apcupsd[3370]: Communications with UPS lost. Mar 30 03:44:43 Tower apcupsd[3370]: Communications with UPS lost. Mar 30 03:54:55 Tower apcupsd[3370]: Communications with UPS lost. Mar 30 04:05:07 Tower apcupsd[3370]: Communications with UPS lost. Mar 30 04:10:09 Tower emhttpd: spinning down /dev/sde Mar 30 04:10:10 Tower emhttpd: spinning down /dev/sdg Mar 30 04:15:20 Tower apcupsd[3370]: Communications with UPS lost. Mar 30 04:25:32 Tower apcupsd[3370]: Communications with UPS lost. Mar 30 04:32:25 Tower emhttpd: spinning down /dev/sdd Mar 30 04:35:44 Tower apcupsd[3370]: Communications with UPS lost. Mar 30 04:40:01 Tower root: Fix Common Problems Version 2024.03.09 Mar 30 04:40:02 Tower root: Fix Common Problems: Warning: Plugin fix.common.problems.plg is not up to date Mar 30 04:40:02 Tower root: Fix Common Problems: Warning: Plugin user.scripts.plg is not up to date Mar 30 04:40:02 Tower root: Fix Common Problems: Warning: Docker Application transmission has an update available for it Mar 30 04:40:09 Tower root: Fix Common Problems: Warning: Syslog mirrored to flash Mar 30 04:40:09 Tower root: Fix Common Problems: Warning: Wrong DNS entry for host ** Ignored Mar 30 04:40:20 Tower emhttpd: read SMART /dev/sdc Mar 30 04:40:21 Tower emhttpd: read SMART /dev/sdg Mar 30 04:40:21 Tower emhttpd: read SMART /dev/sde Mar 30 04:40:21 Tower emhttpd: read SMART /dev/sdf Mar 30 04:40:31 Tower emhttpd: read SMART /dev/sdd Mar 30 04:45:56 Tower apcupsd[3370]: Communications with UPS lost. Mar 30 04:56:09 Tower apcupsd[3370]: Communications with UPS lost. Mar 30 04:56:44 Tower emhttpd: spinning down /dev/sde Mar 30 04:56:45 Tower emhttpd: spinning down /dev/sdg Mar 30 04:56:45 Tower emhttpd: spinning down /dev/sdf Mar 30 04:56:55 Tower emhttpd: spinning down /dev/sdd Mar 30 04:56:55 Tower emhttpd: spinning down /dev/sdc Mar 30 05:06:21 Tower apcupsd[3370]: Communications with UPS lost. Mar 30 05:16:13 Tower emhttpd: spinning down /dev/sdi Mar 30 05:16:34 Tower apcupsd[3370]: Communications with UPS lost. Mar 30 05:24:50 Tower emhttpd: spinning down /dev/sdh Mar 30 05:26:47 Tower apcupsd[3370]: Communications with UPS lost. Mar 30 05:37:01 Tower apcupsd[3370]: Communications with UPS lost. Mar 30 05:47:13 Tower apcupsd[3370]: Communications with UPS lost. Mar 30 05:57:26 Tower apcupsd[3370]: Communications with UPS lost. Mar 30 06:07:39 Tower apcupsd[3370]: Communications with UPS lost. Mar 30 06:17:52 Tower apcupsd[3370]: Communications with UPS lost. Mar 30 06:28:05 Tower apcupsd[3370]: Communications with UPS lost. Mar 30 06:38:17 Tower apcupsd[3370]: Communications with UPS lost. Mar 30 06:48:30 Tower apcupsd[3370]: Communications with UPS lost. Mar 30 06:58:44 Tower apcupsd[3370]: Communications with UPS lost. Mar 30 07:08:58 Tower apcupsd[3370]: Communications with UPS lost. Mar 30 07:19:10 Tower apcupsd[3370]: Communications with UPS lost. Mar 30 07:29:24 Tower apcupsd[3370]: Communications with UPS lost. Mar 30 07:39:37 Tower apcupsd[3370]: Communications with UPS lost. Mar 30 07:49:50 Tower apcupsd[3370]: Communications with UPS lost. Mar 30 08:00:04 Tower apcupsd[3370]: Communications with UPS lost. Mar 30 08:10:18 Tower apcupsd[3370]: Communications with UPS lost. Mar 30 08:20:30 Tower apcupsd[3370]: Communications with UPS lost. Mar 30 08:30:43 Tower apcupsd[3370]: Communications with UPS lost. I uplugged the UPS on purpose because I have been trying to see if it runs better with certain things unplugged. It was crashing before & after I unplugged it so I know it's not the issue. Nothing indicating an issue here it seems. It just straight crashes
March 31, 20242 yr On 3/30/2024 at 1:43 PM, FreakyBigFoot said: I’m starting to think my CPU is bad. Garbled video like that could also be RAM.
April 1, 20242 yr Author I’ve tested it with memtest86. Let it run for hours. Also purchased more RAM and did the same.
June 6, 20242 yr Hey @FreakyBigFoot hope you are doing good! I also run unraid on ms01 (with 2x48GB Crucial DDR5 5600MHz) and had 3 similar crashes within the last 2 days. I wonder if you were able to fix the situation or what you did since your last post. Anything you can share? Edited June 6, 20242 yr by reneil1337
June 11, 20242 yr i'm also using a ms-01 with no major trouble. I have 2x32GB ram. I used to have troubles until using external fans. MS-01 is heating a lot if you are using it without additional fan with turbo boost on or with a pcie add-in card. I can suggest to monitor temp (cpu and ssd) and put a 120mm or 140mm blowing fan underneath and a 80mm above. You can find more details on serve the home There are also other threads about comaptibility
June 11, 20242 yr On 6/6/2024 at 5:04 PM, reneil1337 said: Hey @FreakyBigFoot hope you are doing good! I also run unraid on ms01 (with 2x48GB Crucial DDR5 5600MHz) and had 3 similar crashes within the last 2 days. I wonder if you were able to fix the situation or what you did since your last post. Anything you can share? Managed to fix the crashes on my end without having to disable efficiency cores or touching c-states. My homelab is located in a different room so my goal is not to silence the machine but to maximize performance while ensuring stability. I'm running Bios 1.22 btw and did a few things to improve overall thermals which resulted in way more stability: 1) Repasted CPU with Thermal Grizzly Kryonaut after reading https://forums.servethehome.com/index.php?threads/minisforum-ms-01-pcie-card-and-ram-compatibility-thread.42785/post-415479 2) Maxxed PL2 TDP limit in Bios to 115000 assuming that the system might not get enough juice and therefore crashes https://forums.servethehome.com/index.php?threads/minisforum-ms-01-pcie-card-and-ram-compatibility-thread.42785/post-415333 3) Adjusted fan curve making them spin earlier + increase overall fan speed to lower overall temperatures https://forums.servethehome.com/index.php?threads/minisforum-ms-01-pcie-card-and-ram-compatibility-thread.42785/post-415381 My Unraid server is now online for over 17 hours which never happened before. The MS01 usually crashed after 3-4 hours and never made it through an entire night.
June 15, 20242 yr On 6/11/2024 at 8:19 AM, reneil1337 said: Managed to fix the crashes on my end without having to disable efficiency cores or touching c-states. My homelab is located in a different room so my goal is not to silence the machine but to maximize performance while ensuring stability. I'm running Bios 1.22 btw and did a few things to improve overall thermals which resulted in way more stability: My Unraid server is now online for over 17 hours which never happened before. The MS01 usually crashed after 3-4 hours and never made it through an entire night. This should be of interest to you if you haven't seen it already, but MS-01 has severe issues with external drive cases to where I would not use it at all for drive storage duty. https://forums.servethehome.com/index.php?threads/minisforum-ms-01-qnap-jbod-issues.44250/
