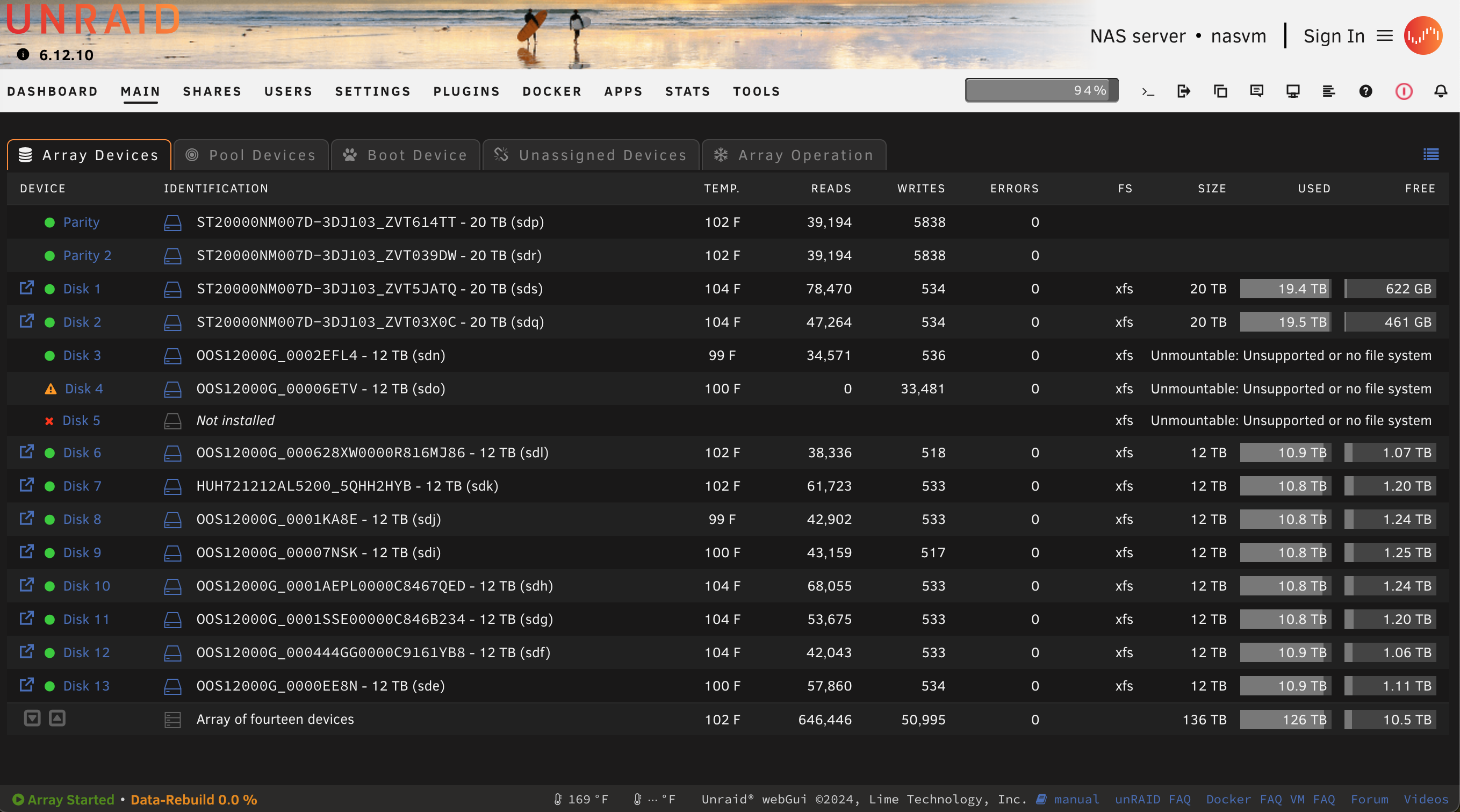

I just ran into an issue with rebuilding a drive. I have an array with dual parity disks. I had 2 disks exhibit an error. This has happened before and I usually rebuild one then when complete rebuild the other. In this case the disk was partially rebuilt and I noticed some array data was missing. I stopped the rebuild, rebooted the server and saw that 3 disks were unmountable. Something is causing my disks to drop out of the array and now I'm in a state that I don;t know how to recover from. I've attached diagnostics in case that might help diagnose the issue.

nasvm-diagnostics-20240429-1948.zip

Diags are after rebooting so we can't see what happen, but check filesystem on those 3 disks, run it without -n, and if it asks for it use -L.

Thanks for the guidance. I was able to get things running again although with data loss. I’m trying to figure out why Drive 5 keeps dropping out in error after rebuild now. SMART  tests pass so it must be something else. i’ve attached a current diagnostics dump. it’s probably what’s contributing to whatever happened before.

nasvm-diagnostics-20240507-0724.zip

Try uploading the diags again, it's downloading as 1KB corrupt file.

Lets see if these upload properly.





nasvm-diagnostics-20240508-1119.zip

Lots of these with disk5:



May  5 05:19:45 nasvm kernel: sd 1:0:8:0: Power-on or device reset occurred



They usually indicate a power/connection problem, check/replace cables or swap slots for that disk.



You also need to check filesystem for disk 1

Things are still rebuilding but so far no changes and no drops. Not sure what exactly was going on. I will continue to monitor. Thank you for the help.
