Inability to create Win10 vm


Recommended Posts

Posted (edited)

So i searched as much as I could before I decided to give up and make a post, of which i dislike doing because I never know what's going to be asked of me and if I even know how to access such data, but alas I have given up trying to research it myself.

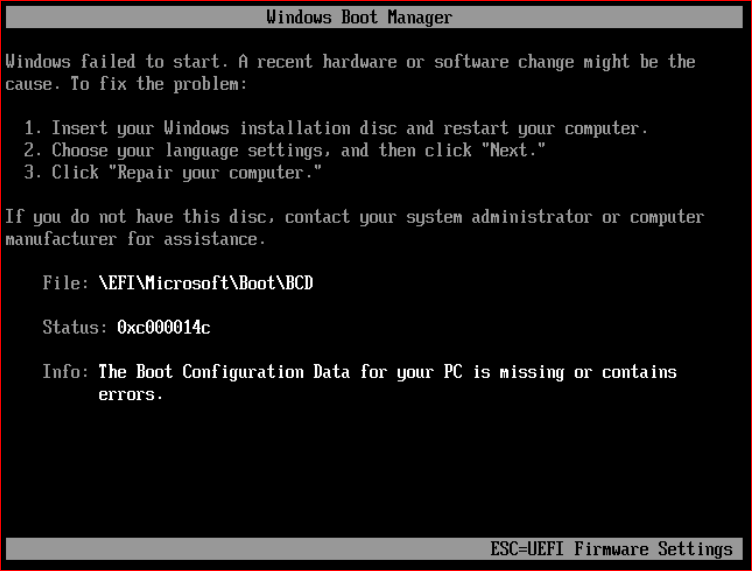

For the longest time I have been unable to make any Windows VM on Unraid but I was able to make Linux VMs easily. I come from minor beginner experience with Proxmox and never had an issue making windows vms on there. I was just recently (yesterday) able to get a windows xp vm up and running so I figured I would retry win10 and went through almost all of the options I can think of to try getting it to work; I've changed memory, cpus, i440fx vs q35, ovmf vs seabios, usb boot vs no usb boot, hyper-v on and off, usb 2 and 3, all the types of buses in all sorts of mixes between OS and VirtIO, tried changing vDisk bus too, tried changing the gpu from vnc to spice... nothing works for me, I do have a gpu in my server which is a dell poweredge 620, 2 intel xeon e5-2620 2.00 GHz cpus with 64GB ddr3 each with a radeon R5 M230 as a gpu.

As I am unsure what will be needed to help diagnose the issue here, Ill post whatever I can currently think of that might help.



<?xml version='1.0' encoding='UTF-8'?>
<domain type='kvm'>
  <name>Windows 10</name>
  <uuid>96185a89-f1f7-158b-0645-3d19b39d9960</uuid>
  <metadata>
    <vmtemplate xmlns="unraid" name="Windows 10" icon="windows.png" os="windows10"/>
  </metadata>
  <memory unit='KiB'>6291456</memory>
  <currentMemory unit='KiB'>6291456</currentMemory>
  <memoryBacking>
    <nosharepages/>
  </memoryBacking>
  <vcpu placement='static'>8</vcpu>
  <cputune>
    <vcpupin vcpu='0' cpuset='8'/>
    <vcpupin vcpu='1' cpuset='20'/>
    <vcpupin vcpu='2' cpuset='9'/>
    <vcpupin vcpu='3' cpuset='21'/>
    <vcpupin vcpu='4' cpuset='10'/>
    <vcpupin vcpu='5' cpuset='22'/>
    <vcpupin vcpu='6' cpuset='11'/>
    <vcpupin vcpu='7' cpuset='23'/>
  </cputune>
  <os>
    <type arch='x86_64' machine='pc-i440fx-7.2'>hvm</type>
    <loader readonly='yes' type='pflash'>/usr/share/qemu/ovmf-x64/OVMF_CODE-pure-efi.fd</loader>
    <nvram>/etc/libvirt/qemu/nvram/96185a89-f1f7-158b-0645-3d19b39d9960_VARS-pure-efi.fd</nvram>
  </os>
  <features>
    <acpi/>
    <apic/>
    <hyperv mode='custom'>
      <relaxed state='on'/>
      <vapic state='on'/>
      <spinlocks state='on' retries='8191'/>
      <vendor_id state='on' value='none'/>
    </hyperv>
  </features>
  <cpu mode='host-passthrough' check='none' migratable='on'>
    <topology sockets='1' dies='1' cores='4' threads='2'/>
    <cache mode='passthrough'/>
  </cpu>
  <clock offset='localtime'>
    <timer name='hypervclock' present='yes'/>
    <timer name='hpet' present='no'/>
  </clock>
  <on_poweroff>destroy</on_poweroff>
  <on_reboot>restart</on_reboot>
  <on_crash>restart</on_crash>
  <devices>
    <emulator>/usr/local/sbin/qemu</emulator>
    <disk type='file' device='disk'>
      <driver name='qemu' type='raw' cache='writeback'/>
      <source file='/mnt/user/Virtual Disks/Windows 10/vdisk1.img'/>
      <target dev='hdc' bus='sata'/>
      <serial>vdisk1</serial>
      <boot order='1'/>
      <address type='drive' controller='0' bus='0' target='0' unit='2'/>
    </disk>
    <disk type='file' device='cdrom'>
      <driver name='qemu' type='raw'/>
      <source file='/mnt/user/isos/Win10_21H2_English_x64.iso'/>
      <target dev='hda' bus='scsi'/>
      <readonly/>
      <boot order='2'/>
      <address type='drive' controller='0' bus='0' target='0' unit='0'/>
    </disk>
    <disk type='file' device='cdrom'>
      <driver name='qemu' type='raw'/>
      <source file='/mnt/user/isos/virtio-win-0.1.248-1.iso'/>
      <target dev='hdb' bus='scsi'/>
      <readonly/>
      <address type='drive' controller='0' bus='0' target='0' unit='1'/>
    </disk>
    <controller type='scsi' index='0' model='virtio-scsi'>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x04' function='0x0'/>
    </controller>
    <controller type='pci' index='0' model='pci-root'/>
    <controller type='virtio-serial' index='0'>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x05' function='0x0'/>
    </controller>
    <controller type='usb' index='0' model='ich9-ehci1'>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x07' function='0x7'/>
    </controller>
    <controller type='usb' index='0' model='ich9-uhci1'>
      <master startport='0'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x07' function='0x0' multifunction='on'/>
    </controller>
    <controller type='usb' index='0' model='ich9-uhci2'>
      <master startport='2'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x07' function='0x1'/>
    </controller>
    <controller type='usb' index='0' model='ich9-uhci3'>
      <master startport='4'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x07' function='0x2'/>
    </controller>
    <controller type='sata' index='0'>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x08' function='0x0'/>
    </controller>
    <interface type='bridge'>

      <source bridge='br0'/>
      <model type='virtio-net'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x03' function='0x0'/>
    </interface>
    <serial type='pty'>
      <target type='isa-serial' port='0'>
        <model name='isa-serial'/>
      </target>
    </serial>
    <console type='pty'>
      <target type='serial' port='0'/>
    </console>
    <channel type='unix'>
      <target type='virtio' name='org.qemu.guest_agent.0'/>
      <address type='virtio-serial' controller='0' bus='0' port='1'/>
    </channel>
    <input type='tablet' bus='usb'>
      <address type='usb' bus='0' port='1'/>
    </input>
    <input type='mouse' bus='ps2'/>
    <input type='keyboard' bus='ps2'/>
    <graphics type='vnc' port='-1' autoport='yes' websocket='-1' listen='0.0.0.0' keymap='en-us'>
      <listen type='address' address='0.0.0.0'/>
    </graphics>
    <audio id='1' type='none'/>
    <video>
      <model type='qxl' ram='65536' vram='65536' vgamem='16384' heads='1' primary='yes'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x02' function='0x0'/>
    </video>
    <memballoon model='virtio'>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x06' function='0x0'/>
    </memballoon>
  </devices>
</domain>




Edited by Silver Replicant
  • 2 weeks later...
Posted

The only thing I noticed is that in your XML for the VM the .iso that contains the os install files has Boot Order="2 "whereas I would initially expect it to be "1" with the vdisk being "2".
