That looks like a macvlan call trace, try switching to ipvlan.

20 hours ago, JorgeB said:

That looks like a macvlan call trace, try switching to ipvlan.

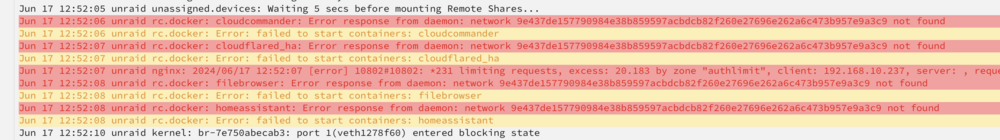

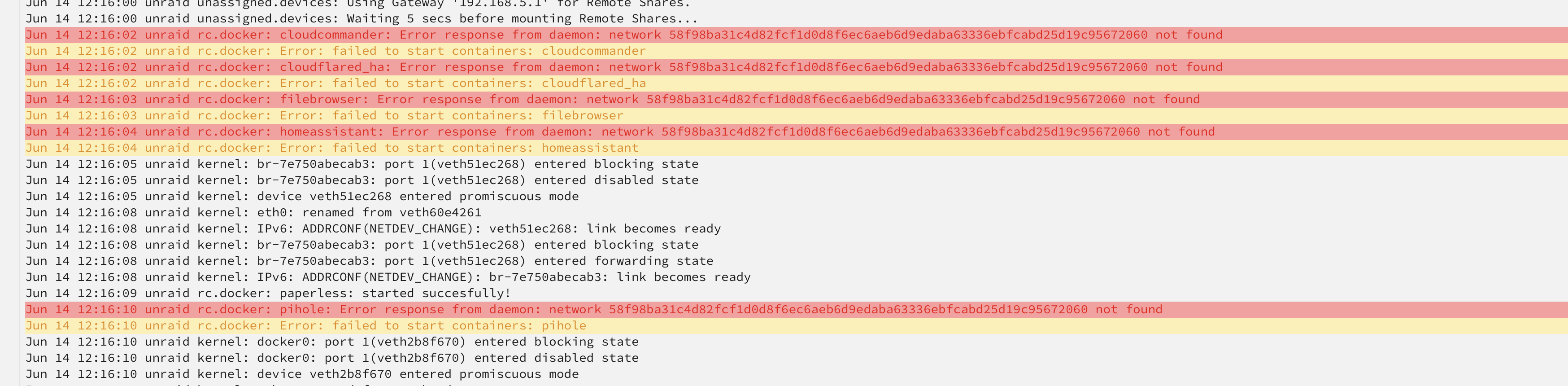

Oh looks like that was the issue. No more traces in the logs 😀. I switched to ipvlan, but now when I reboot the docker all my dockers that uses custom network with static IP are not starting. I get this error

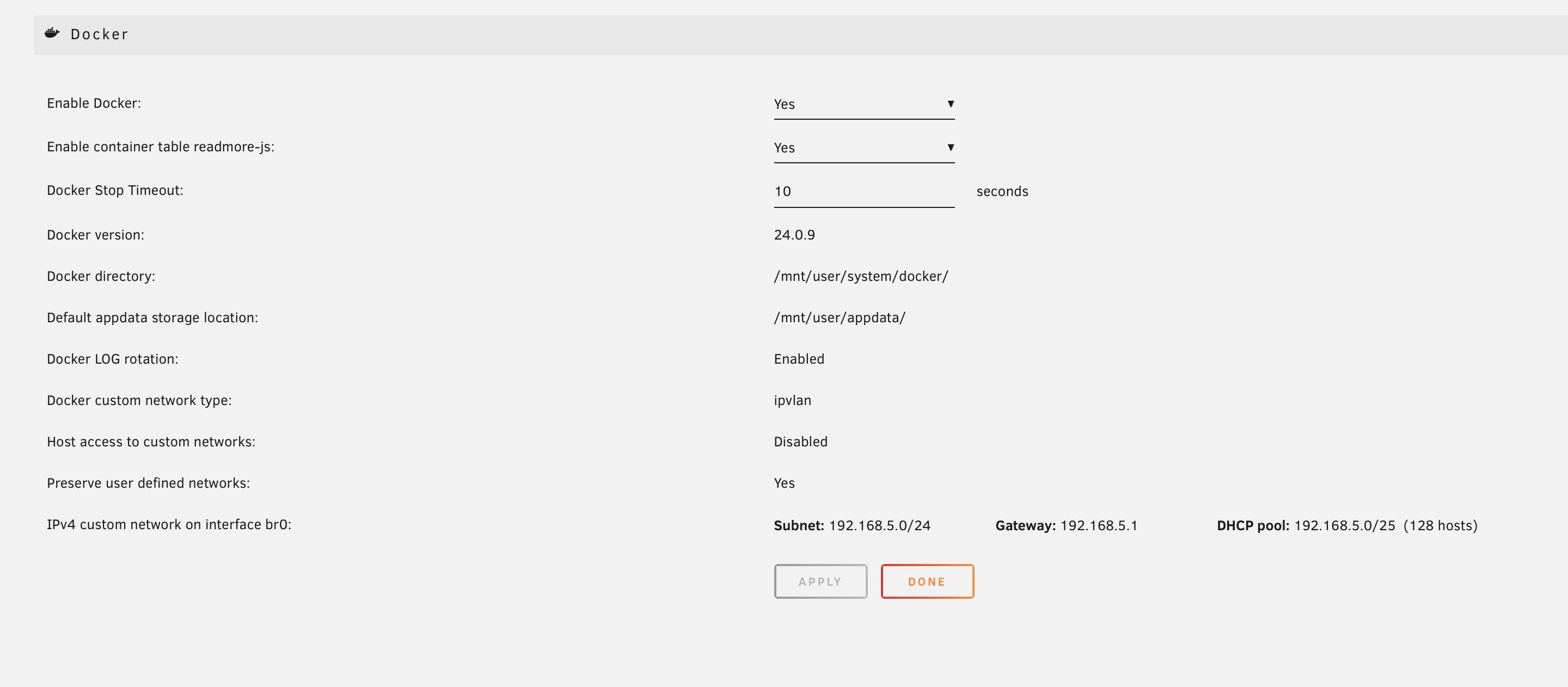

These are the settings I have in the docker networks



I deleted the custom network and recreated again, but getting same issue during the docker start. Anything I am doing wrong?



Thank you,

I would think that ipvlan should work the same, but you can try macvlan with bridging disabled, that also resolves the call traces:



https://docs.unraid.net/unraid-os/release-notes/6.12.4/#fix-for-macvlan-call-traces

Even with the macvlan, bridging disabled, I am getting the network not found error. switching either to ipvan or macvlan doesn't start up the custom network. All my dockers are custom, all start fine, except the one that are external are not starting up.

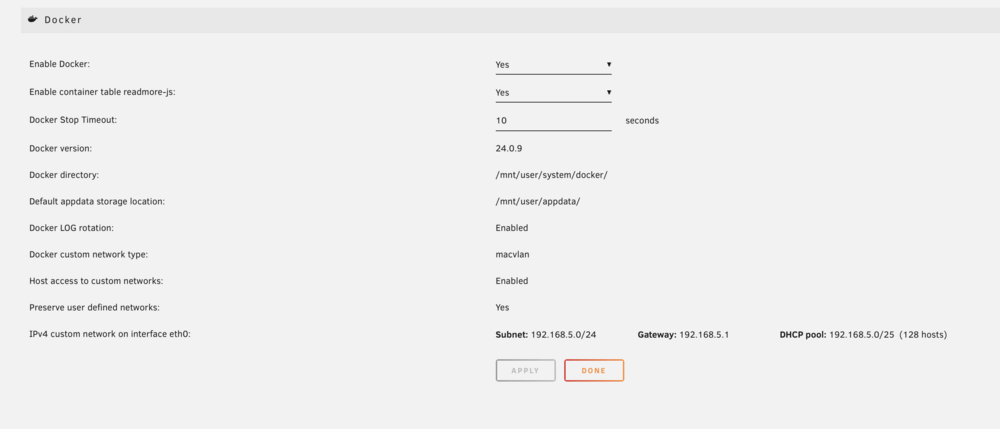

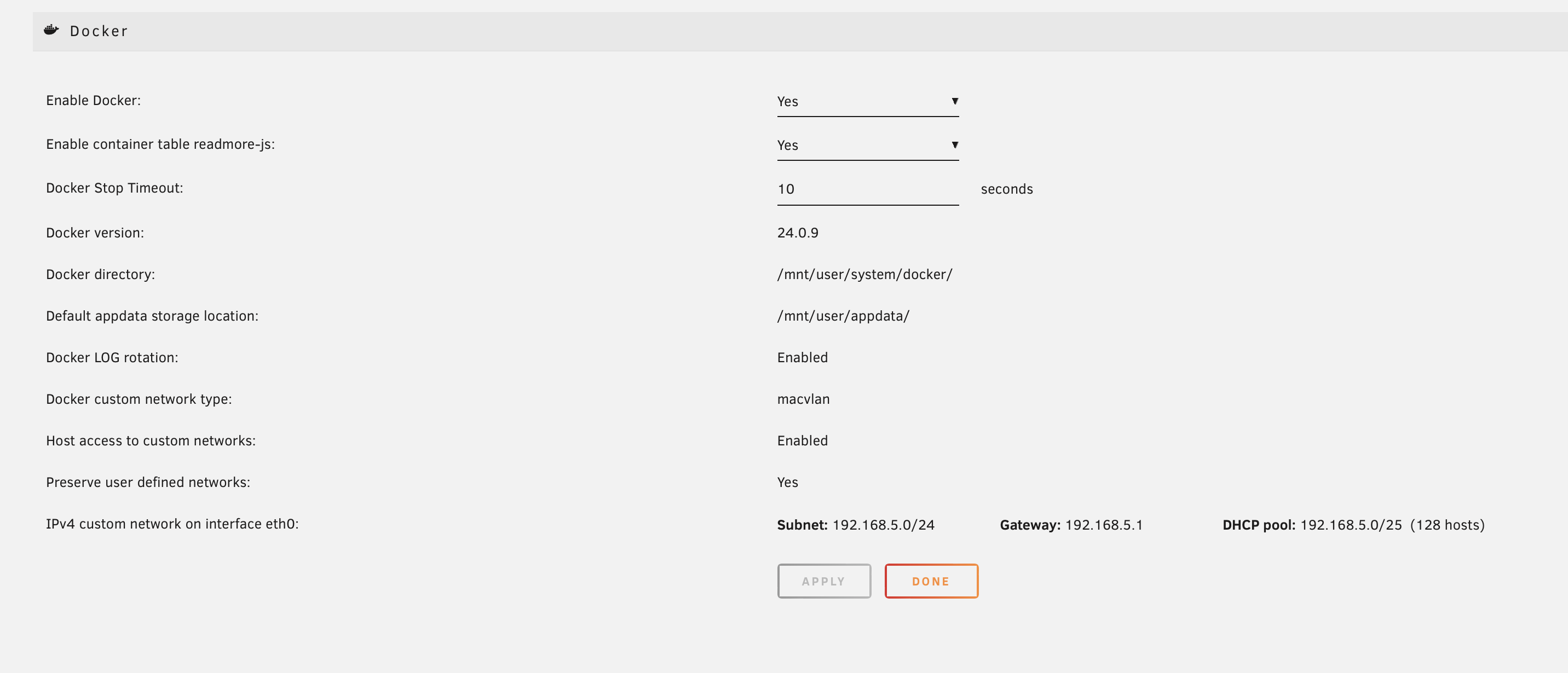

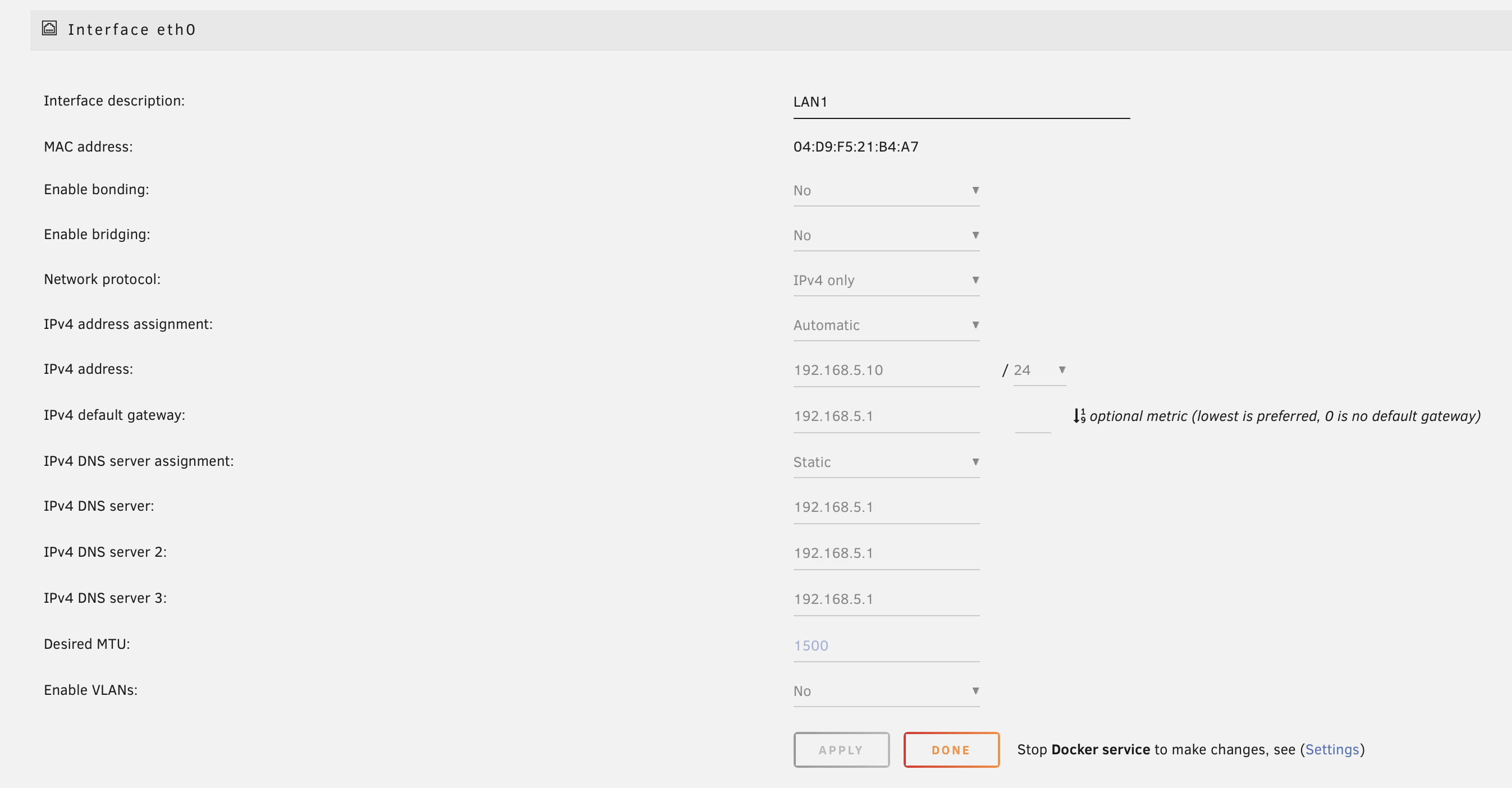

I think I have all the settings correct.



And this is the docker:

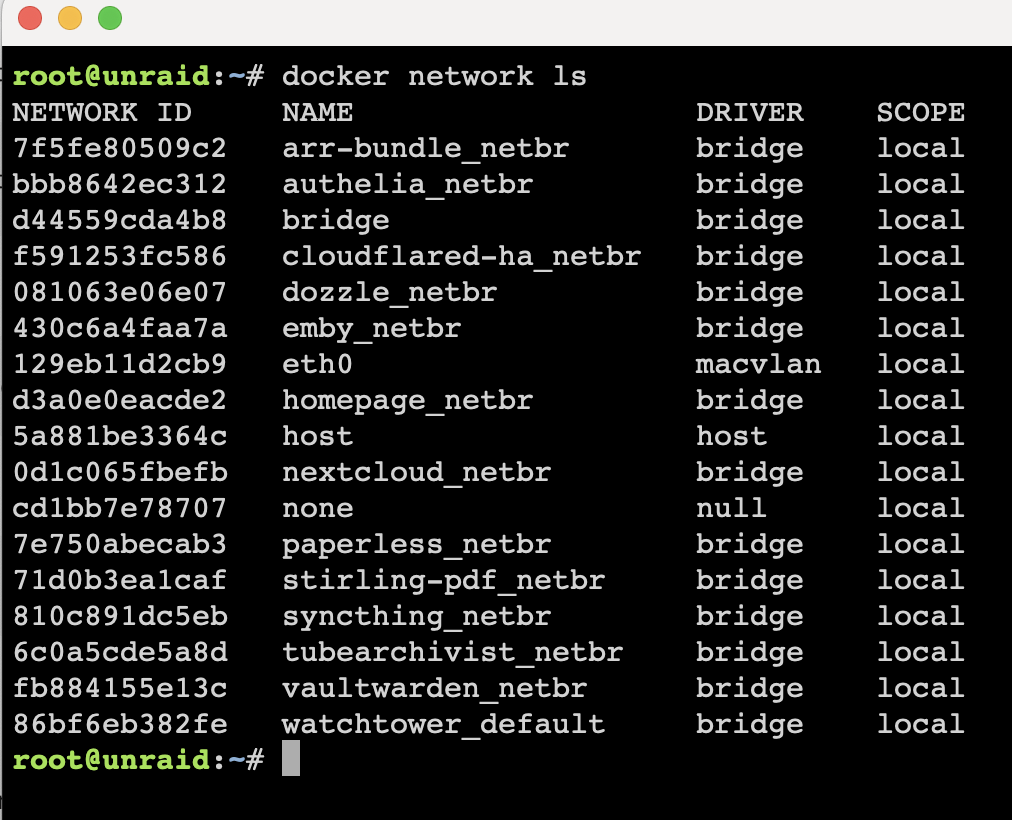

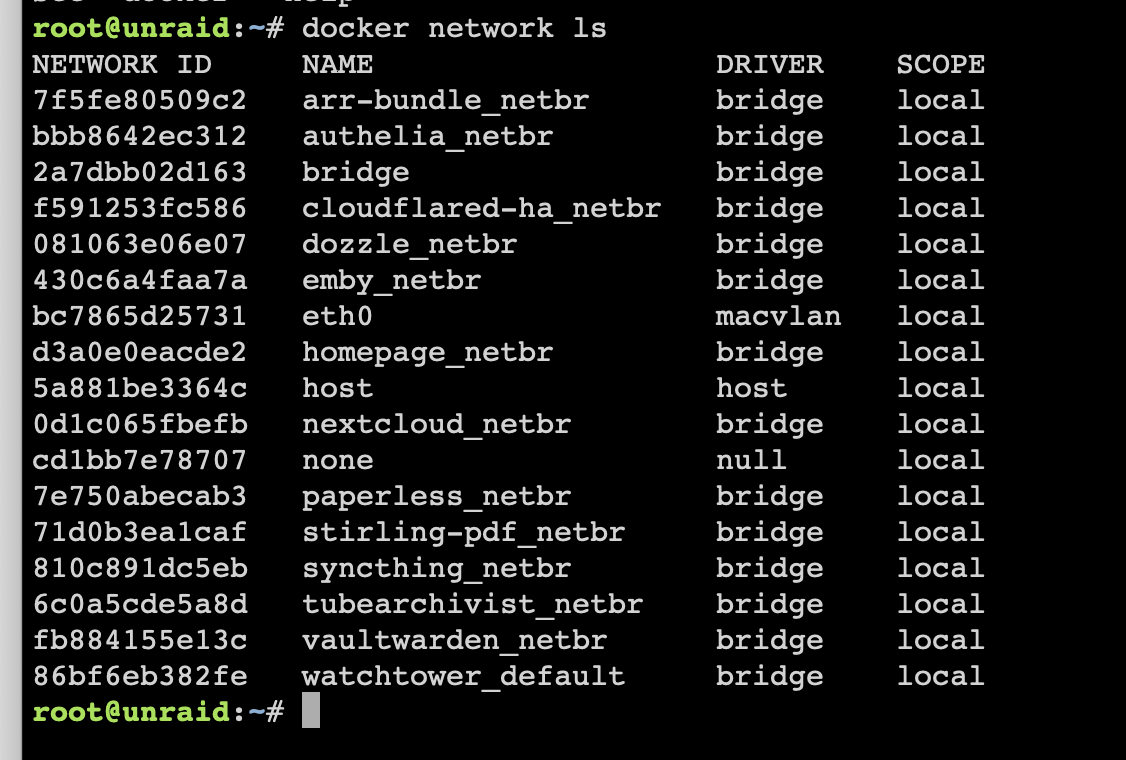

my custom networks:



sample of my docker compose in Portainer:

services:
  homeassistant:
    container_name: homeassistant
    image: "ghcr.io/home-assistant/home-assistant:stable"
    labels:
      - net.unraid.docker.icon=https://raw.githubusercontent.com/linuxserver/docker-templates/master/linuxserver.io/img/homeassistant-logo.png
      - net.unraid.docker.webui=http://192.168.5.100:8123
    volumes:
      - /mnt/user/appdata/home_assistant/config:/config
      - /etc/localtime:/etc/localtime:ro
      - /run/dbus:/run/dbus:ro
    restart: always
    networks:
      eth0:
        ipv4_address: 192.168.5.100
    ports:
      - 8123:8123
networks:
    eth0:
        external: true



May be I am doing something wrong. Diagnostics also attached if it helps.

unraid-diagnostics-20240617-1301.zip



Edited June 18, 20242 yr by 062bel313
docker screenshot added

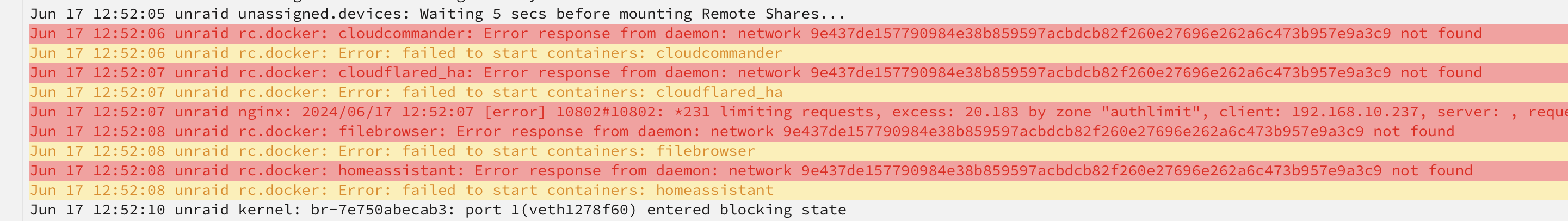

I think I might have found the issue, but I am not sure how to resolve it. Everytime I do enable/disable docker it doesn't preserve my network, with macvlan as well as ipvlan.





Now the id is different, even though I have preserve user defined networks enabled. Am I doing anything wrong?



I would suggest recreating the docker image and all custom networks:



https://docs.unraid.net/unraid-os/manual/docker-management/#re-create-the-docker-image-file
Then:
https://docs.unraid.net/unraid-os/manual/docker-management/#re-installing-docker-applications
Also see below if you have any custom docker networks:
https://docs.unraid.net/unraid-os/manual/docker-management/#docker-custom-networks

Before recreating the docker image, I wanted to try to create a different network with parent as br0 (for ipvlan) in one container and use it in other containers. With this configuration it works somehow. If I enable/disable the docker everythig start now.



Created main network from pihole container and used the same network in other container as below.



pihole:

    networks:
      vlan_network:
        ipv4_address: 192.168.5.110

networks:
  vlan_network:
    driver: ipvlan
    driver_opts:
      parent: br0
    ipam:
      driver: default
      config:
       - subnet: 192.168.5.0/24
         ip_range: 192.168.5.0/25
         gateway: 192.168.5.1



and other networks:

    networks:
      pihole_vlan_network:
        ipv4_address: 192.168.5.100

networks:
    pihole_vlan_network:
        external: true






Is this just a fluke or was I doing it wrong before? any insights (to understand).



If this fails, I will recreated= docker image as suggested.

9 hours ago, 062bel313 said:

Is this just a fluke or was I doing it wrong before?

Not sure, networking is not my strong suit, but glad it's working.
