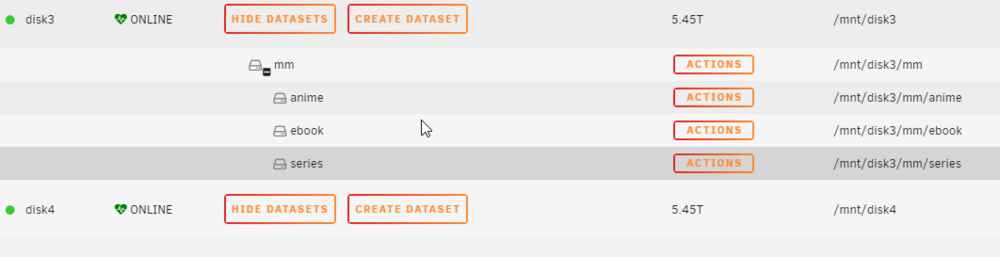

June 13, 20242 yr Hello. Moved to unRAID from TrueNAS SCALE couple of days ago, trying to wrap my head around data placement. In TrueNAS I wouldn't have to worry about it since data were automatically striped across all disks in the pool which were spinning all the time, but in unRAID I pursue a goal of setup where disks are being used only when accessed to. Now, specifics: - I have 4 x 6 TB HDDs in ZFS hybrid array, where disk3 and disk4 has been chosen for multimedia storage, - I've created a share named "mm", which is also a ZFS dataset, available for disks 3 & 4; unRAID created in on disk3, - Using "ZFS Master" plugin I've also created folders/datasets named "anime", "ebooks", "series", Now my task is to put movies on disk4, separating them from everything else, but "movies" should still be a part of root "mm" dataset, so inside SMB share named "mm" I would have anime, ebooks, tv shows and movies alike. So, question is: am I thinking straight, can it even be done? I've read abour unRAID alot, I've seen people talking they have such data structure, but I can't to graps the idea of how to do this How should I setup the share for my choice: allocation, split level disks availability and such? Thank you in advance.
June 13, 20242 yr Community Expert Unraid can only control allocation for shares (top level folders).

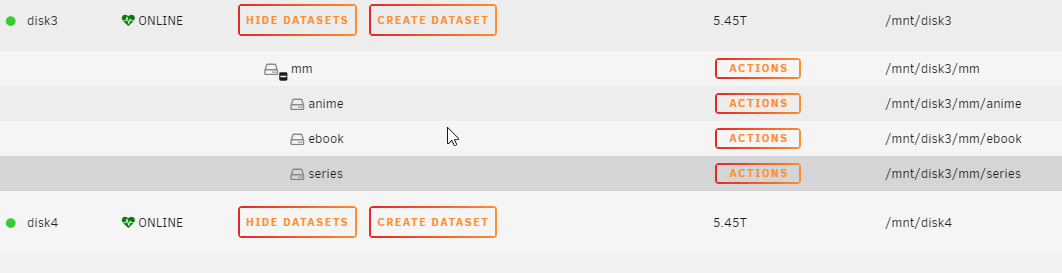

June 13, 20242 yr Author Solution 7 minutes ago, JorgeB said: Unraid can only control allocation for shares (top level folders). Okay, I figured it out, although this method is not exactly elegant. I had share settings look like this: Then I accessed this SMB share and created a "videos" folder: due to disk4 was empty, this new folder has been created there. Then I changed allocation back to "High-water", leaving split level as I set before (split only top level), then deleted "/mnt/disk4/videos" folder and created "disk4/mm/video" zfs dataset. In result, I have my multimedia share on disks 3 & 4, while only "movies" are going to the disk4, and all subdirectories are datasets available for snapshots. I'm gonna test how share is working, but once setup I don't expect any issues.
