foo_fighter Posted June 17 Share Posted June 17 I would like to request a plugin for UGreen NAS Models. There is some work already done in GitHub: https://github.com/miskcoo/ugreen_dx4600_leds_controller and https://gist.github.com/Kerryliu/c380bb6b3b69be5671105fc23e19b7e8 Some Nice features would be: Programmable color for LAN Led: different colors for 100/1000/10000 connections and flashing for activity Programmable color for HDD Leds: Color of LEDs could be temperature dependent. Solid or Off for HDDS in sleep, Flashing Green for Normal, Orange for hot and Red for overheating. 2 Link to comment
ich777 Posted June 18 Share Posted June 18 13 hours ago, foo_fighter said: I would like to request a plugin for UGreen NAS Models. Please see: https://github.com/miskcoo/ugreen_dx4600_leds_controller/issues/10 2 Link to comment
ich777 Posted June 18 Share Posted June 18 @foo_fighter & @Janis.S & @DjSni do you have such a NAS? I need some testers when I have the plugin ready. 1 Link to comment
DjSni Posted June 18 Share Posted June 18 yes i have a 6800 Pro, sure i will test it. thx Link to comment
Janis.S Posted June 18 Share Posted June 18 48 minutes ago, ich777 said: @foo_fighter & @Janis.S & @DjSni do you have such a NAS? I need some testers when I have the plugin ready. Yes I have the DXP4800 Plus (4 Bay) and would like to test it. Thank you very much your efforts Link to comment
ich777 Posted June 18 Share Posted June 18 14 minutes ago, Janis.S said: Yes I have the DXP4800 Plus (4 Bay) and would like to test it. Thank you very much your efforts 47 minutes ago, DjSni said: yes i have a 6800 Pro, sure i will test it. It will take me a few days more and you also would have to upgrade to the latest public beta/RC to test. I will keep you updated. Link to comment
DjSni Posted June 18 Share Posted June 18 1 minute ago, ich777 said: It will take me a few days more and you also would have to upgrade to the latest public beta/RC to test. I will keep you updated. That's not a problem, since this will be my backup NAS I have hardly installed anything yet. Unfortunately I don't have access to beta releases. Link to comment
ich777 Posted June 18 Share Posted June 18 18 minutes ago, DjSni said: Unfortunately I don't have access to beta releases. You need to wait for the next public beta/RC since it isn't working on the current closed beta anyways. Link to comment
evilskaTeR Posted June 18 Share Posted June 18 That's great! I wish I could help in this beta phase but I can't switch to a beta release in this NAS... As soon as this plugin is available I can test it against my DXP2800 (2 bay unit) Link to comment
foo_fighter Posted June 19 Author Share Posted June 19 (edited) 13 hours ago, ich777 said: @foo_fighter & @Janis.S & @DjSni do you have such a NAS? I need some testers when I have the plugin ready. Nice! I didn't realize how far along you were. I also have a 4800+ running 6.12.10 Edited June 19 by foo_fighter Link to comment
superimpose Posted June 19 Share Posted June 19 15 hours ago, ich777 said: @foo_fighter & @Janis.S & @DjSni do you have such a NAS? I need some testers when I have the plugin ready. I also like testing. I own a DXP4800 (4 bay with N100) and am currently using the CLI tool from https://github.com/miskcoo/ugreen_dx4600_leds_controller/releases/download/v0.1-debian12/ugreen_leds_cli via /boot/config/go. Link to comment
ich777 Posted June 19 Share Posted June 19 1 hour ago, superimpose said: I also like testing. I own a DXP4800 (4 bay with N100) and am currently using the CLI tool from https://github.com/miskcoo/ugreen_dx4600_leds_controller/releases/download/v0.1-debian12/ugreen_leds_cli via /boot/config/go. I assume the Network LED doesn't work with that correct? Link to comment
superimpose Posted June 19 Share Posted June 19 2 minutes ago, ich777 said: I assume the Network LED doesn't work with that correct? All LEDs work - but they can only be set statically. The real network and disk status is not displayed. Link to comment
ich777 Posted June 19 Share Posted June 19 6 minutes ago, superimpose said: All LEDs work - but they can only be set statically. The real network and disk status is not displayed. Ah got it! Thanks for the clarification! As said above, I still have to sort out a few things with the developer from the driver and a public release from the Uneaid beta so that we can test the plugin when it‘s done. 3 3 Link to comment
californicated Posted June 19 Share Posted June 19 8 hours ago, ich777 said: Ah got it! Thanks for the clarification! As said above, I still have to sort out a few things with the developer from the driver and a public release from the Uneaid beta so that we can test the plugin when it‘s done. Will there also be some love for the DXP480T? It doesn't have any coloured leds for the disks, but a power led that blinks when running a third party OS. I appreciate your efforts! Link to comment
ich777 Posted June 19 Share Posted June 19 8 minutes ago, californicated said: Will there also be some love for the DXP480T? Please see the readme over here: https://github.com/miskcoo/ugreen_dx4600_leds_controller/blob/master/README.md You have to ask on his GitHub however I would first wait so that the plugin is actually available and usable on Unraid that you can do some testing. Link to comment

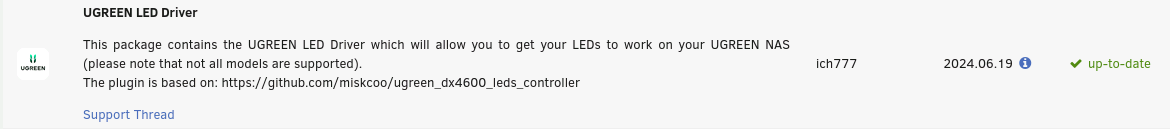

ich777 Posted June 20 Share Posted June 20 Just a little update, plugin is now done, now we just have to wait for a public beta so that you guys can test it: 2 2 1 Link to comment
BlackBeltJimmy Posted June 20 Share Posted June 20 5 hours ago, ich777 said: Just a little update, plugin is now done, now we just have to wait for a public beta so that you guys can test it: awesome. looking forward for it to be online soon Link to comment
ich777 Posted June 20 Share Posted June 20 12 minutes ago, BlackBeltJimmy said: awesome. looking forward for it to be online soon When the public beta from Unraid on the next branch drops you will see it in the CA App. I hope that everything is working as expected, as said I have no hardware to test but I think we can figure it out if something is not working. Link to comment
foo_fighter Posted June 20 Author Share Posted June 20 Is there a dependency that requires the beta version of Unraid or can the plugin be installed from a custom path with 6.12.10 for example? Link to comment
SimonF Posted June 20 Share Posted June 20 44 minutes ago, foo_fighter said: Is there a dependency that requires the beta version of Unraid or can the plugin be installed from a custom path with 6.12.10 for example? Additional options need to be added to kernel at compile time. They have been added to next release. 1 1 Link to comment
foo_fighter Posted June 20 Author Share Posted June 20 1 hour ago, SimonF said: Additional options need to be added to kernel at compile time. They have been added to next release. Sorry, one other question. Is this referring to the Kernel Mod extension specifically? Would the command line tool work in previous versions as long as the i2c module is loaded? Link to comment
SimonF Posted June 20 Share Posted June 20 1 hour ago, foo_fighter said: Sorry, one other question. Is this referring to the Kernel Mod extension specifically? Would the command line tool work in previous versions as long as the i2c module is loaded? Yes for kernal modules. I beleive the plugin is using modules but ich7777 would need to coonfirm Link to comment
ich777 Posted June 20 Share Posted June 20 20 hours ago, foo_fighter said: Would the command line tool work in previous versions as long as the i2c module is loaded? No at least not how it‘s intended and you would run into conflicts if you run both. Just wait a bit longer until the public beta drops and you can test it like I mentioned above. Before you ask, yes, the Kernel module can also change the colors from the leds but that‘s up to you to customize it like you would have it since I provide only the basic functionality. But again, you have to wait for a public beta since I even don‘t know if it is working or not, I got no such hardware on hand. Lets test it first and then think aabout customizing it. 22 hours ago, foo_fighter said: Is there a dependency that requires the beta version of Unraid or can the plugin be installed from a custom path with 6.12.10 for example? Yes, otherwise I would have released the plugin already for 6.12.10 1 Link to comment
