Having some real issues with a new Unraid build, and not sure what I'm doing wrong/where Ive gone wrong.



Both NVME drives are not showing in unassigned drives. I've pulled them out, stuck them back in, swapped them round etc to no avail.



Only one shows in System Devices (which is the bottom M.2 slot on the motherboard - no matter which drive is in).



Its an Intel i5-12400F on a Gigabyte B760M DS3H DDR4 Mobo - The NVMEs are Crucial P3 Plus (1 TB and PCIe 4). As far as I can tell, they should be compatable with both the CPU and Mobo as PCIe4 devices.

thecube-diagnostics-20240702-1515.zip

Nothing is being detected by Linux, this is not a software issue.

4 minutes ago, JorgeB said:

Nothing is being detected by Linux, this is not a software issue.

Heres a fresh one - I think in the last one, I only had one connected.



thecube-diagnostics-20240702-1558.zip

This gets stranger by the minute!

So just after I sent you those new logs, I took the drives out - stuck them in a caddy and tested them on my Win 11 Desktop. Both came up fine, so formatted them as MBR and dropped test files on them both - work fine.

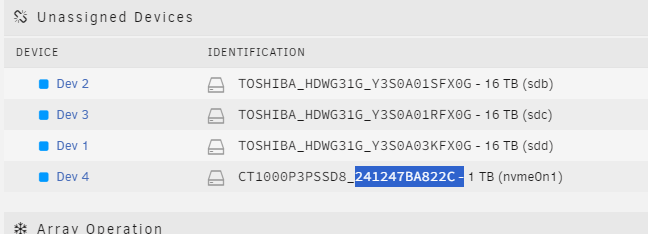

Stuck them back in the new build, one is NOW showing in unassigned devices, but the other is still missing

In the previous diags there were still no NVMe devices detected on a hardware level.

Here's the new Diag with the one showing (which is the bottom M.2 slot and not the one powered by the CPU, I think)

thecube-diagnostics-20240702-1615.zip

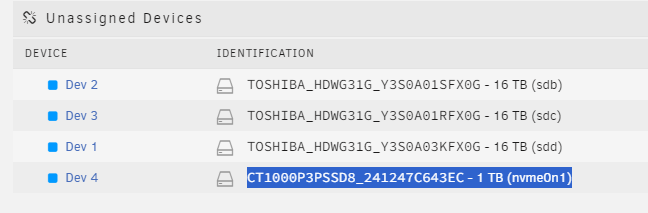

Swapped them around - and it does look like the top M.2 slot is fubar, as the bottom one is working fine again with the other NVME:

7 minutes ago, siron1992 said:

Swapped them around - and it does look like the top M.2 slot is fubar

That's a possibility

I've RMA'd the Mobo - I'll let you know. Thanks for you help!

This was a faulty mobo - Replacement see's them fine. First time I've ever had a DOA MOBO!
