Hello everyone,



I'm new to Unraid, and i installed a bunch of apps. I want them to be behind a reverse proxy for many reasons.

I setup traefik and cloudflare tunnel (for external exposition).

The problem i have is the following : I can reach from the external with a routing in cloudflare let's say grafana.mydomain.com, but it won't go through Traefik for some reasons.

This is my config bellow, let me know if you have any questions, i appreciate any help ! Thanks !



traefik.yml

global:
  checkNewVersion: true
  sendAnonymousUsage: false

serversTransport:
  insecureSkipVerify: true

entryPoints:
  # Not used in apps, but redirect everything from HTTP to HTTPS
  http:
    address: :80
    forwardedHeaders:
      trustedIPs: &trustedIps
        # Start of Clouflare public IP list for HTTP requests, remove this if you don't use it
        - 173.245.48.0/20
        - 103.21.244.0/22
        - 103.22.200.0/22
        - 103.31.4.0/22
        - 141.101.64.0/18
        - 108.162.192.0/18
        - 190.93.240.0/20
        - 188.114.96.0/20
        - 197.234.240.0/22
        - 198.41.128.0/17
        - 162.158.0.0/15
        - 104.16.0.0/13
        - 104.24.0.0/14
        - 172.64.0.0/13
        - 131.0.72.0/22
        - 2400:cb00::/32
        - 2606:4700::/32
        - 2803:f800::/32
        - 2405:b500::/32
        - 2405:8100::/32
        - 2a06:98c0::/29
        - 2c0f:f248::/32
        # End of Cloudlare public IP list
    http:
      redirections:
        entryPoint:
          to: https
          scheme: https

  # HTTPS endpoint, with domain wildcard
  https:
    address: :443
    forwardedHeaders:
      # Reuse list of Cloudflare Trusted IP's above for HTTPS requests
      trustedIPs: *trustedIps
    http:
      tls:
        # Generate a wildcard domain certificate
        certResolver: letsencrypt
        domains:
          - main: mydomain.com
            sans:
              - '*.mydomain.com'
      middlewares:
        - securityHeaders@file

providers:
  providersThrottleDuration: 2s

  # File provider for connecting things that are outside of docker / defining middleware
  file:
    filename: /etc/traefik/fileConfig.yml
    watch: true

  # Docker provider for connecting all apps that are inside of the docker network
  docker:
    watch: true
    network: proxy    # Add Your Docker Network Name Here
    # Default host rule to containername.domain.example
    defaultRule: "Host(`{{ lower (trimPrefix `/` .Name )}}.mydomain.com`)"    # Replace with your domain
    #swarmModeRefreshSeconds: 15s #comment out or remove this line if using traefik v3
    exposedByDefault: false
    useBindPortIP: true
    endpoint: "unix:///var/run/docker.sock"
    #endpoint: "tcp://dockersocket:2375" # Uncomment if you are using docker socket proxy

# Enable traefik ui
api:
  dashboard: true
  insecure: true

# Log level INFO|DEBUG|ERROR
log:
  level: ERROR

# Use letsencrypt to generate ssl serficiates
certificatesResolvers:
  letsencrypt:
    acme:
      email: [email protected]
      storage: /etc/traefik/acme.json
      dnsChallenge:
        provider: cloudflare
        # Used to make sure the dns challenge is propagated to the rights dns servers
        resolvers:
          - "1.1.1.1:53"
          - "1.0.0.1:53"

accessLog:
  filePath: "/etc/traefik/access.log"



fileConfig.yml

http:

  ## MIDDLEWARES ##
  middlewares:
    # Only Allow Local networks
    local-ipwhitelist:
      ipWhiteList:
        sourceRange:
          - 127.0.0.1/32 # localhost
          - 192.168.1.1/24 # LAN Subnet
          - 172.10.0.1/24 #proxy lan

    # Security headers
    securityHeaders:
      headers:
        customResponseHeaders:
          X-Robots-Tag: "none,noarchive,nosnippet,notranslate,noimageindex"
          X-Forwarded-Proto: "https"
          server: ""
        customRequestHeaders:
          X-Forwarded-Proto: "https"
        sslProxyHeaders:
          X-Forwarded-Proto: "https"
        referrerPolicy: "same-origin"
        hostsProxyHeaders:
          - "X-Forwarded-Host"
        contentTypeNosniff: true
        browserXssFilter: true
        forceSTSHeader: true
        stsIncludeSubdomains: true
        stsSeconds: 63072000
        stsPreload: true

# Only use secure ciphers - https://ssl-config.mozilla.org/#server=traefik&version=2.6.0&config=intermediate&guideline=5.6
tls:
  options:
    default:
      minVersion: VersionTLS12
      cipherSuites:
        - TLS_ECDHE_ECDSA_WITH_AES_128_GCM_SHA256
        - TLS_ECDHE_RSA_WITH_AES_128_GCM_SHA256
        - TLS_ECDHE_ECDSA_WITH_AES_256_GCM_SHA384
        - TLS_ECDHE_RSA_WITH_AES_256_GCM_SHA384
        - TLS_ECDHE_ECDSA_WITH_CHACHA20_POLY1305
        - TLS_ECDHE_RSA_WITH_CHACHA20_POLY1305

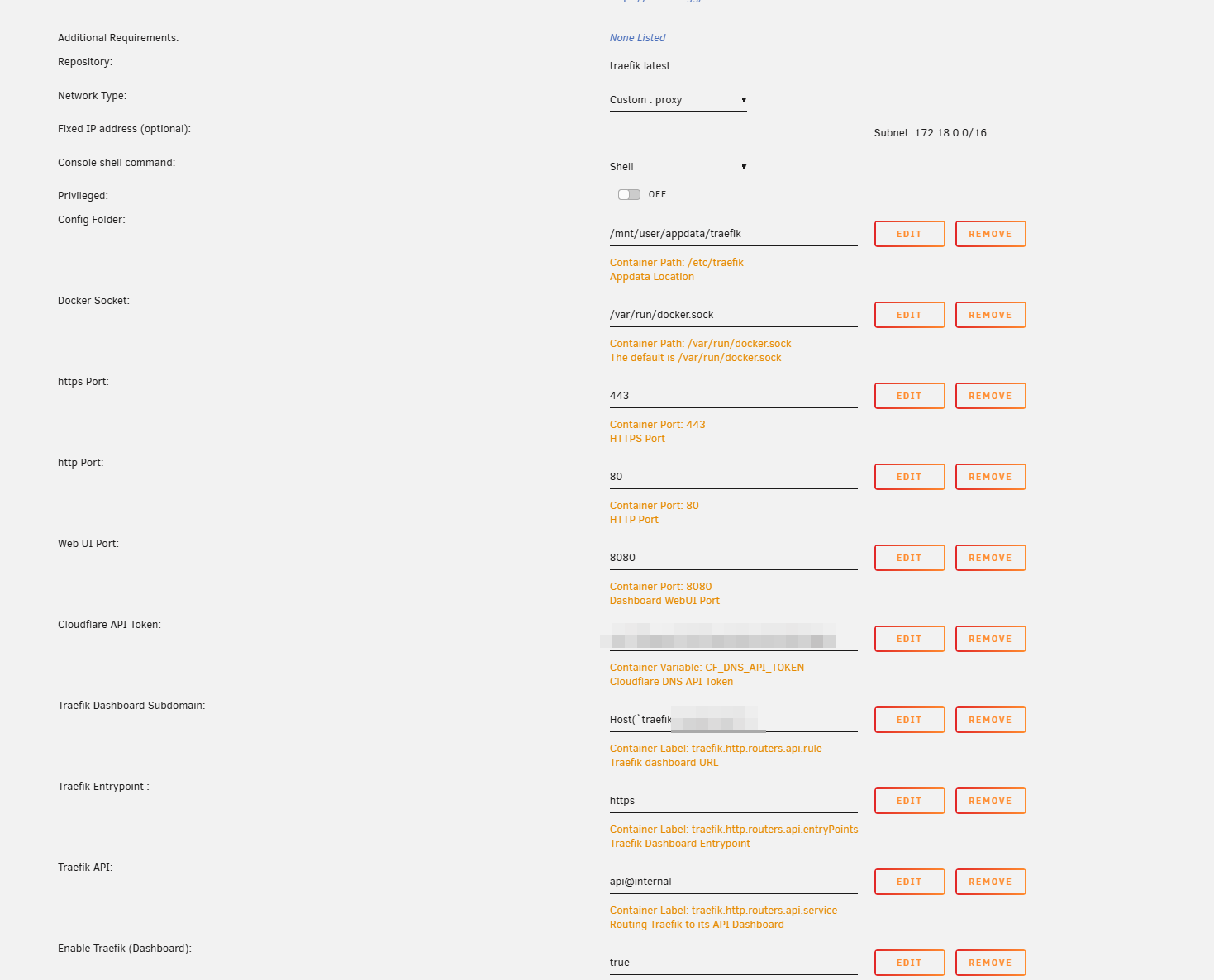

Docker config :

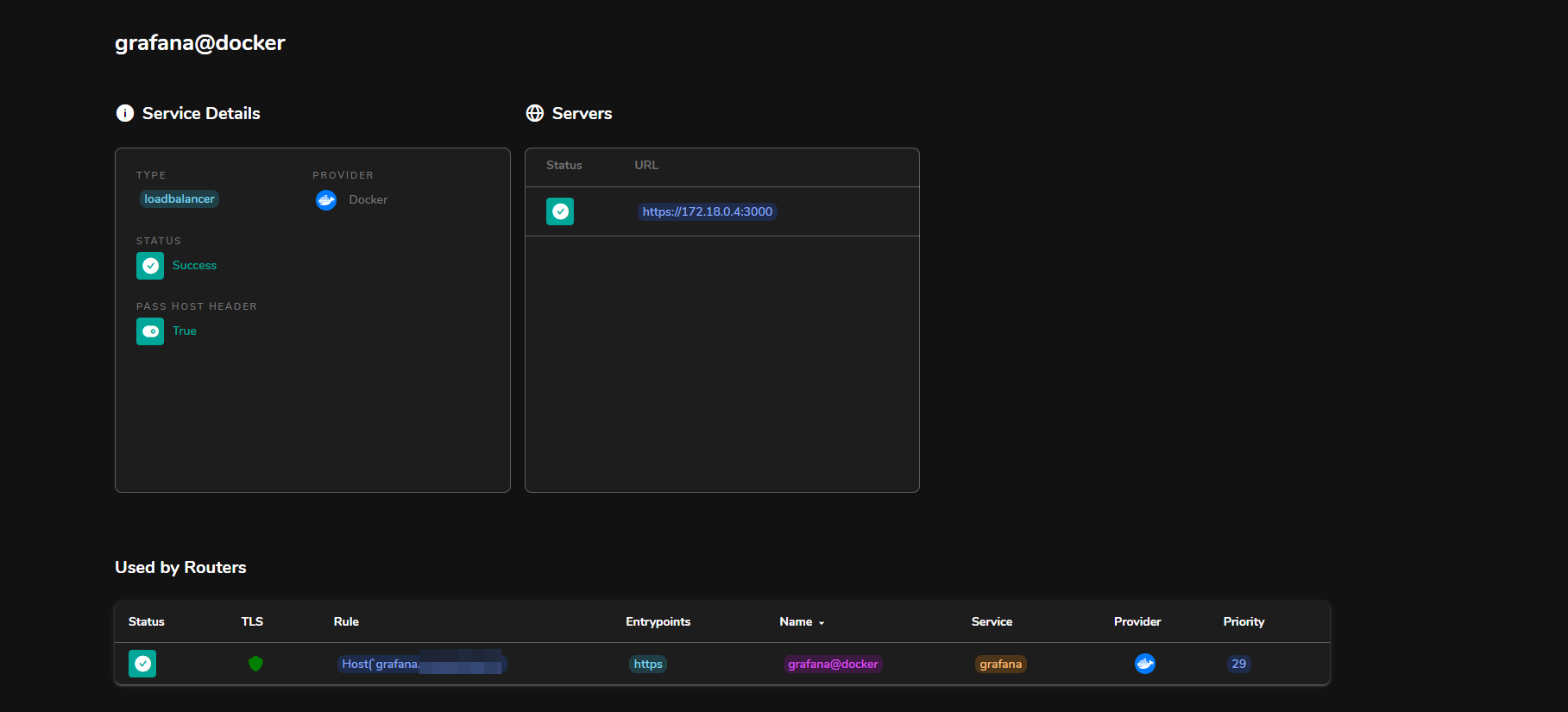

Traefik dashboard showing grafana service:



Were you able to fix it?
