Problems 2.5 Gbit USB -> RJ45

[Tobi892]

Hello Together,



i have Unraid now running for about 3 days but i face some issues with the 2.5 gbit adapter.



So first at all, the first time i connected it/plugged it in, it got recognized and everything. It also showed the 2.5 gbit adapter eth1 in the Dashboard.

After a little time (about 6h maybe???) the connection was suddenly lost and i couldn't go to the webui anymore.

So well i rebooted the machine and it didn't get recognized anymore.



So i thought like well ok maybe the chipset is weird of the adapter.

I googled a little bit and found a Driver Plugin called "RTL8152 Drivers"



With this driver installed it gets detected all the time but today i had a connection loss again.

Do you probably have any hint how i can further debug it?



I only have 3 days experience with unraid so it would be nice if you can probably also reference to the doc/stackoverflow if it's unraid specific



USB to RJ45 -> https://www.amazon.de/-/en/Adapter-Ethernet-2500Mbps-Aluminium-Compatible/dp/B0CWV2Q6HJ/ref=sr_1_2?crid=1Y1NXCYBOT33C&dib=eyJ2IjoiMSJ9.WwlqDKBWG33auD_BODblVCOMYAhlrtVD9-WXjGIRW4sKX3tcRagUW8q9ORhkY5u9Y26rvl6Ox4nFESa7Ys_ox8i1Eer5v0a3joX1fP_CyqZiP2HE6rJ19V25n-xNmpAOz_a_HW4HHtZJRrf-zfNATQ.2feJLtN3whTk-eV21TlhuptJOvTkPJ9ruF_Kpwsw0-M&dib_tag=se&keywords=amazon+ugreen+2.5+gbit&qid=1723046683&sprefix=amazon+ugreen+2.5+gbit%2Caps%2C90&sr=8-2



Hardware:

Intel Core i3 13100:  https://www.amazon.de/-/en/Intel®-i3-13100-Desktop-Processor-P-cores/dp/B0BN5Z8MDR/ref=sr_1_1?crid=3D26G95H83H7Z&dib=eyJ2IjoiMSJ9.OBzdqt_t53KBE4xoWOamcPrjumUyu_uSxLoAdW410v6vAmyBEhI6fSPgRFaZti-CvCXz0Y31yKABRlRa1LYQVZ6PLD9AhN8MwxJi--A8fCEXG7qzeYY5l6kwwRjJGyVNGkkp3d8zxvaGBeKvKPh9NFjLgcDQM_FHwp6IaKY7TcN_Wmf2WJE3xjWX6oW0LZsRHek1U-3GQ-2uGJbveS-ayW_XH5mM9YghlzIYQ5r9WZA.zFPiNb9mefEhbYJQGDbPLUVvrioxVMIW56W7XbRDr6w&dib_tag=se&keywords=i3+13100&qid=1723046758&sprefix=i3+13100%2Caps%2C89&sr=8-1



ASRock B760M-ITX/D4 WiFi: https://www.amazon.de/-/en/ASRock-Asro-B760M-ITX-D4-WiFi/dp/B0BQWQ9QPK/ref=sr_1_1?crid=3SM7ISNAL9QLP&dib=eyJ2IjoiMSJ9.qHtTIsQlF8lpmIGPVF-HV1umcNivmWkL8_g_mZLNsneKZfJIwwpLvI8UPik1-d8AXT1O-kkH10nExoyIDGBLsvmc_5u74iI1kw8CbkKjcVP35EE6YFE-MufXuUb8fmkT1bJsJdsShVSAPgb0Vaw4zASDyngwQFkhzE-Q5Wd8_4OKUOCcIWjGdPnK8FyIn8C3jwPR0sDAQ8KPLB6womotwOagND9Ef1IgVUbCJsGAkgo.zSBom_0K6tevjYlrm6cclXoDXozx_8lU_KwBFLIsLDw&dib_tag=se&keywords=ASRock+B760M-ITX%2FD4+WiFi&qid=1723046789&sprefix=asrock+b760m-itx%2Fd4+wifi%2Caps%2C96&sr=8-1

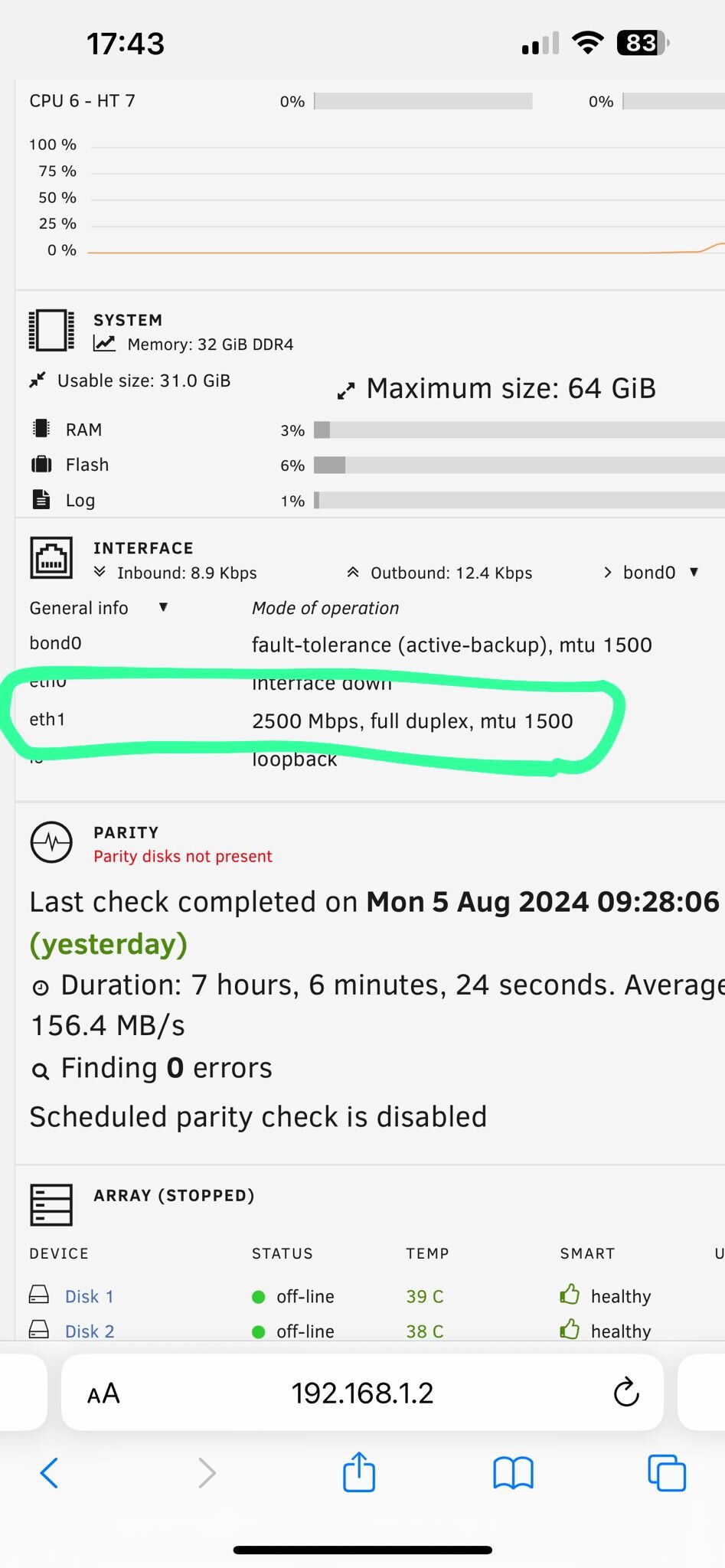

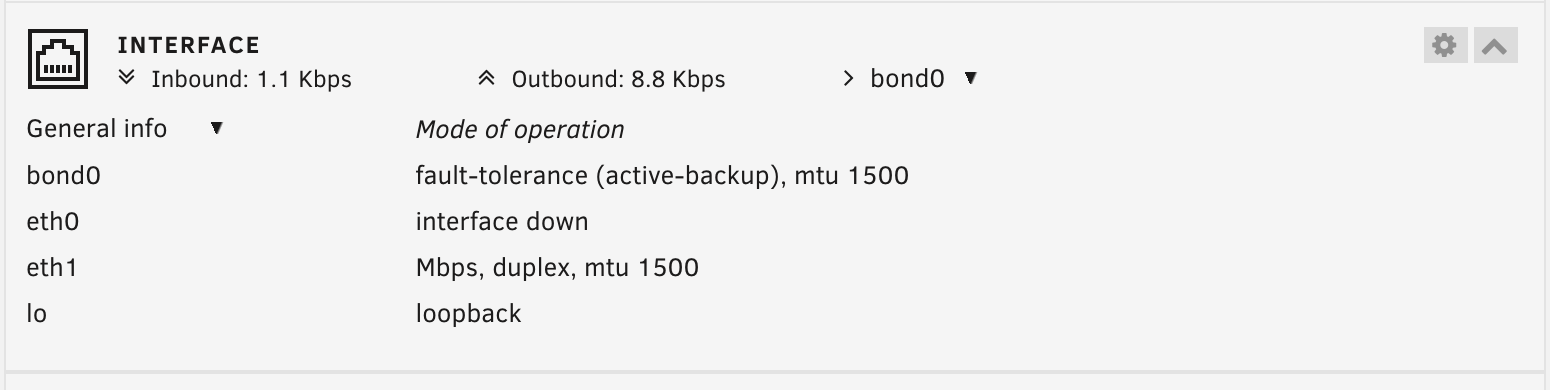

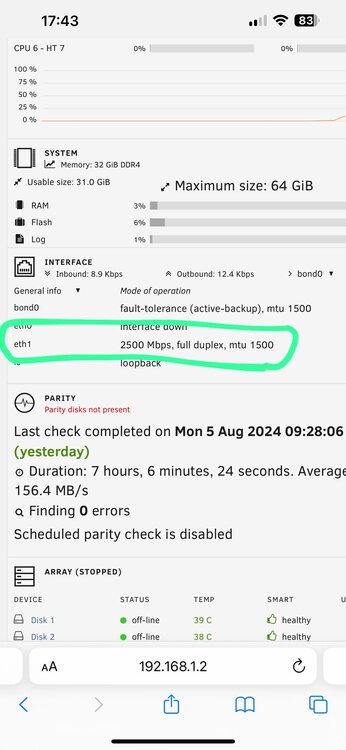

i added 2 Screenshots, the one with the green circle was without a driver, the other one with the installed driver





does anyone have an idea? I mean it must be compatible somehow as it works for some time











Edit:

Additional information:



I found on google some similiar problems

https://askubuntu.com/questions/1044127/usb-ethernet-adapter-realtek-r8153-keeps-disconnecting

https://bbs.archlinux.org/viewtopic.php?id=284914



On the Amazon link i actually saw that a picture incldues the chipset. So i went to unraid, deinstalled RTL8152 Drivers plugin and installed RTL8156b drivers.

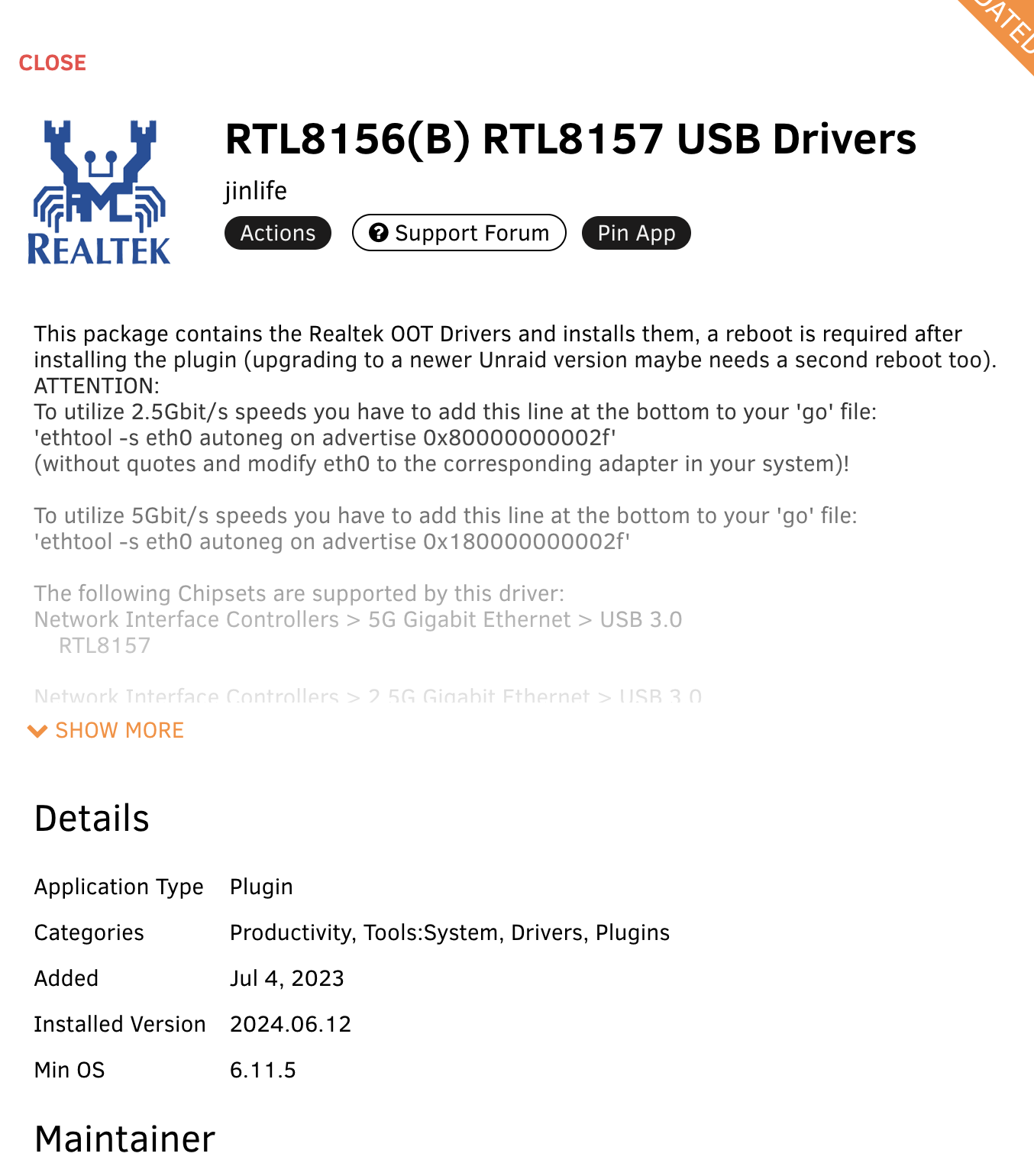

i set the NIC to 2.5gb advertise like explained in the desciption of the plugin

then i quickly installed iperf where i did get close to 2.5 gbit, it was like 2.37 but thats fine



about two minutes after the test it happened again and i had to reboot.



i checked the dmesg and got this:





[   38.781823] usbcore: registered new device driver r8152-cfgselector

[   38.895682] r8152-cfgselector 2-3: reset SuperSpeed USB device number 2 using xhci_hcd

[   38.958210] r8152 2-3:1.0 eth1: v2.18.1 (2024/05/20)

[   38.958212] r8152 2-3:1.0 eth1: This product is covered by one or more of the following patents:

                        US6,570,884, US6,115,776, and US6,327,625.



[   38.958226] usbcore: registered new interface driver r8152



little bit more down:

device bond0 entered promiscuous mode
[   42.355074] r8152 2-3:1.0 eth1: carrier on
[   42.427069] bond0: (slave eth1): link status definitely up, 2500 Mbps full duplex
[   42.427085] bond0: (slave eth1): making interface the new active one



so the 8152 driver gets loaded even i installed the 8156b driver?

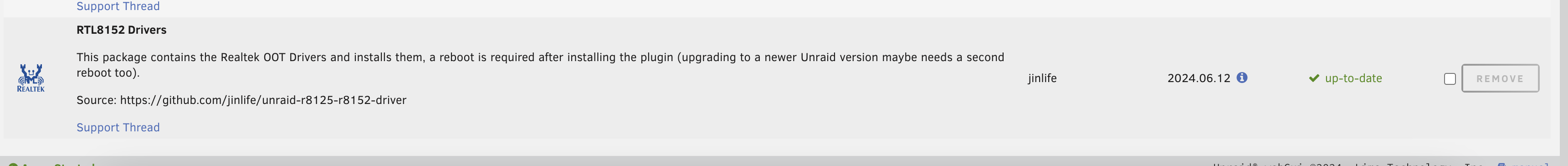

Whats also funny, when i install the 8156b driver plugin in the webui,

you still see 8152 in the plugin list. Is that normal?



Its getting confusing

Edited August 7 by Tobi892

[bmartino1]

Please post a diagnostic file by goin to tools > diag

and/or run unraid terminal command lspci and/or lsusb

look for realtek nic this will tell you what realtek nic you have and what unraid driver to go after.

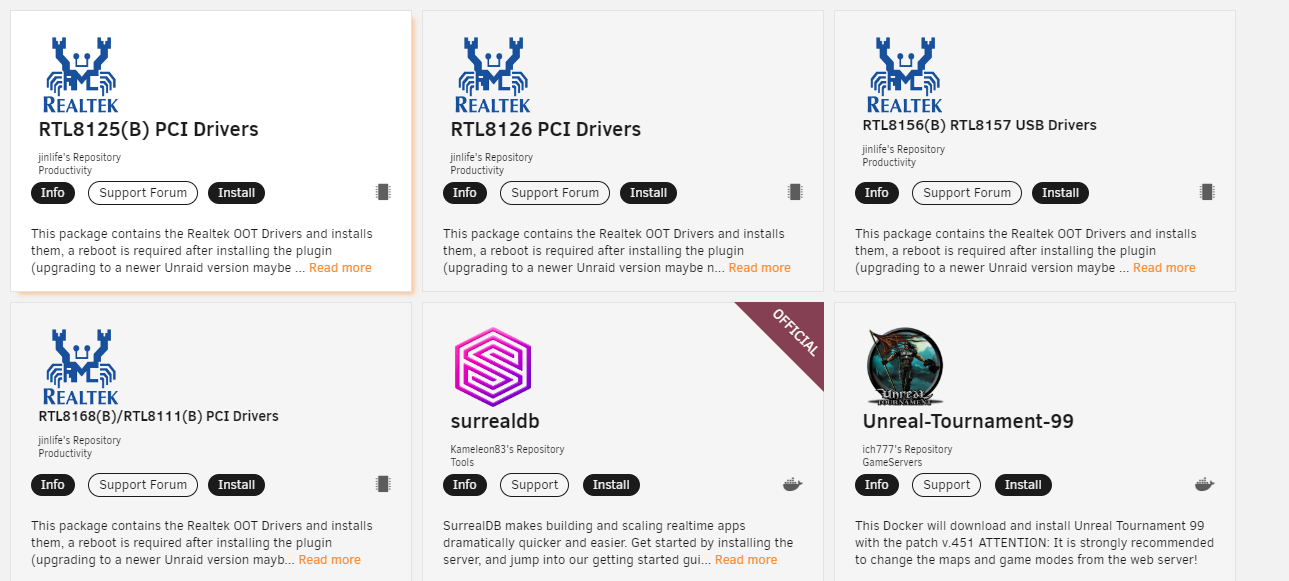

as you can see there are 4 unraid drive plugins.

Edited August 8 by bmartino1
