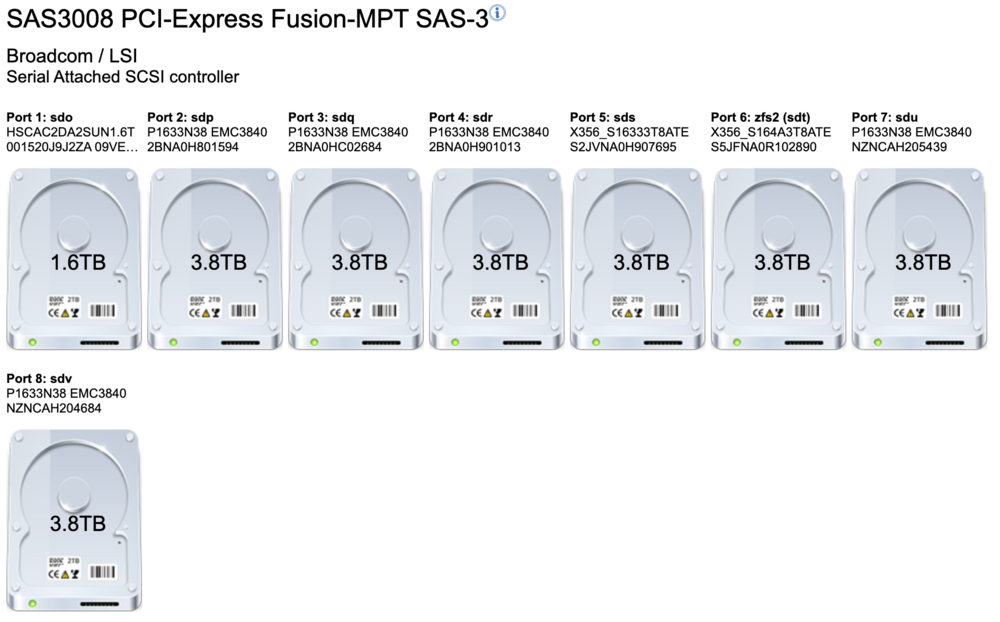

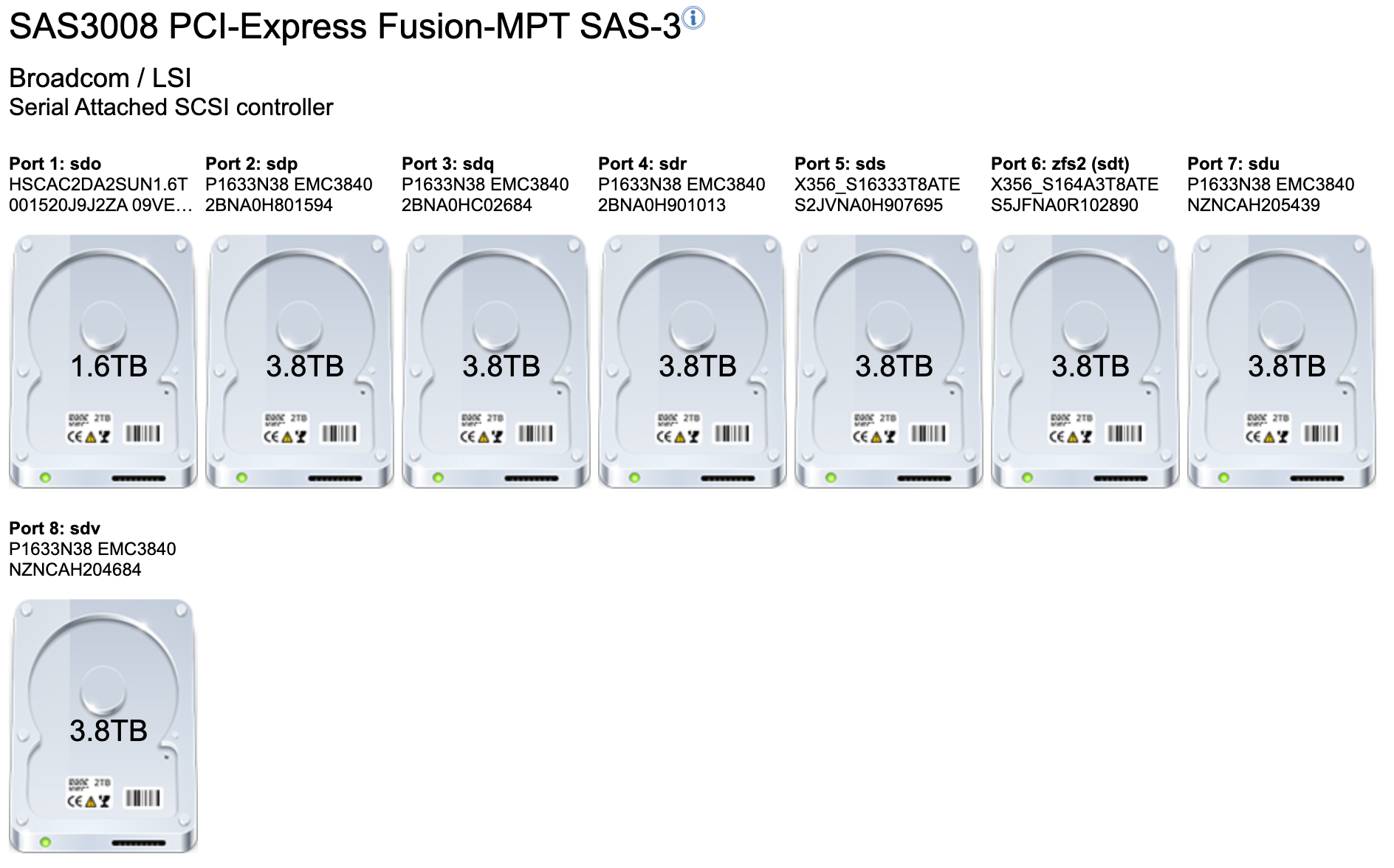

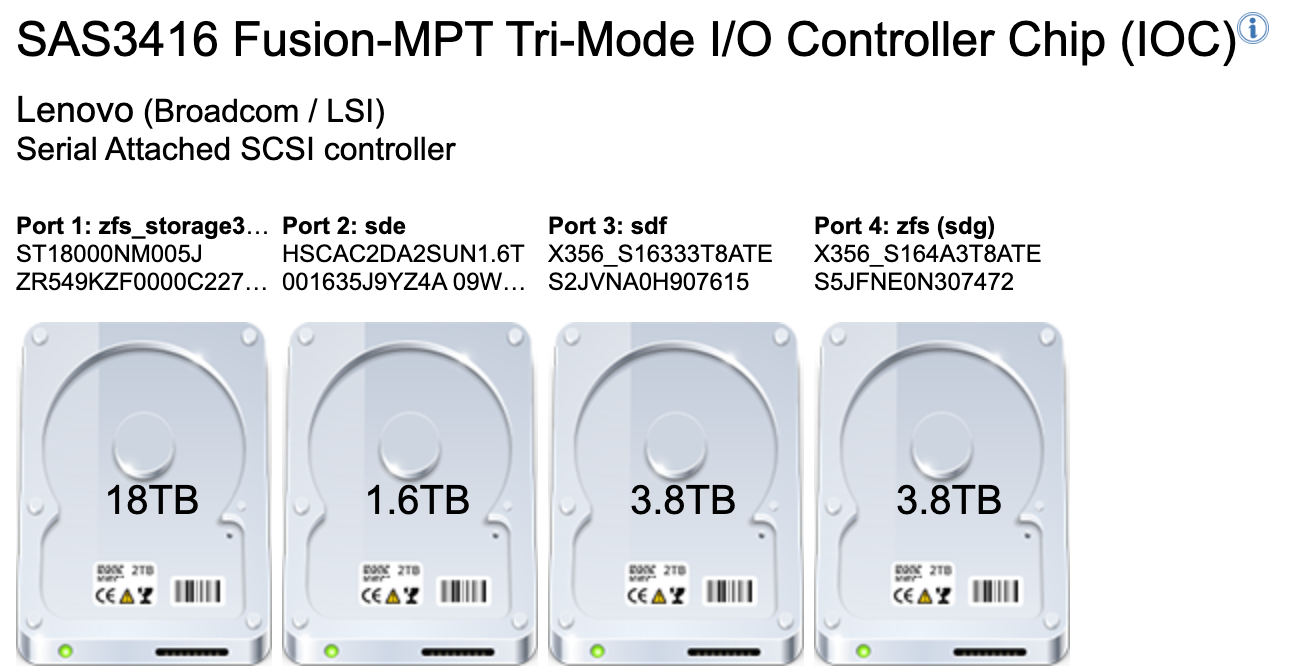

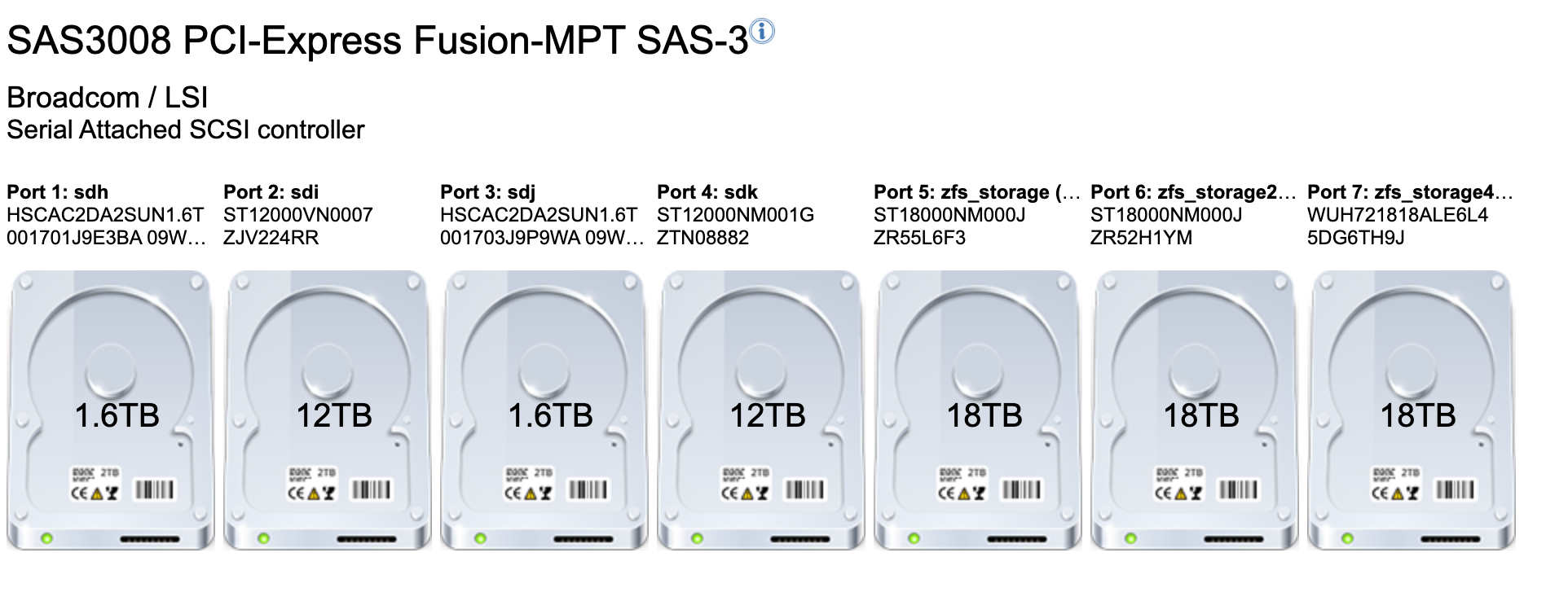

August 11, 20241 yr I have 2 HBA's installed but when I use disk speed docker container, it shows 3 HBA's other than the the MB controllers. Is this normal? I have a 9400-16i and a 9300-16i. I'm asking because I'm trying to solve an issue with all but two of my 3.84 TB SSD drives read/write at only 45MB/s. Just trying to see if this could be related or not. tower-diagnostics-20240810-2224.zip
August 11, 20241 yr Community Expert Solution 9300-16i appears as two 9300-8i controllers, so it's normal 81:00.0 Serial Attached SCSI controller [0107]: Broadcom / LSI SAS3416 Fusion-MPT Tri-Mode I/O Controller Chip (IOC) [1000:00ac] (rev 01) Subsystem: Lenovo ThinkSystem 430-16i SAS/SATA 12Gb HBA [1d49:0201] Kernel driver in use: mpt3sas Kernel modules: mpt3sas c3:00.0 Serial Attached SCSI controller [0107]: Broadcom / LSI SAS3008 PCI-Express Fusion-MPT SAS-3 [1000:0097] (rev 02) Subsystem: Broadcom / LSI SAS 9300-16i [1000:3130] Kernel driver in use: mpt3sas Kernel modules: mpt3sas c5:00.0 Serial Attached SCSI controller [0107]: Broadcom / LSI SAS3008 PCI-Express Fusion-MPT SAS-3 [1000:0097] (rev 02) Subsystem: Broadcom / LSI SAS 9300-16i [1000:3130] Kernel driver in use: mpt3sas Kernel modules: mpt3sas
