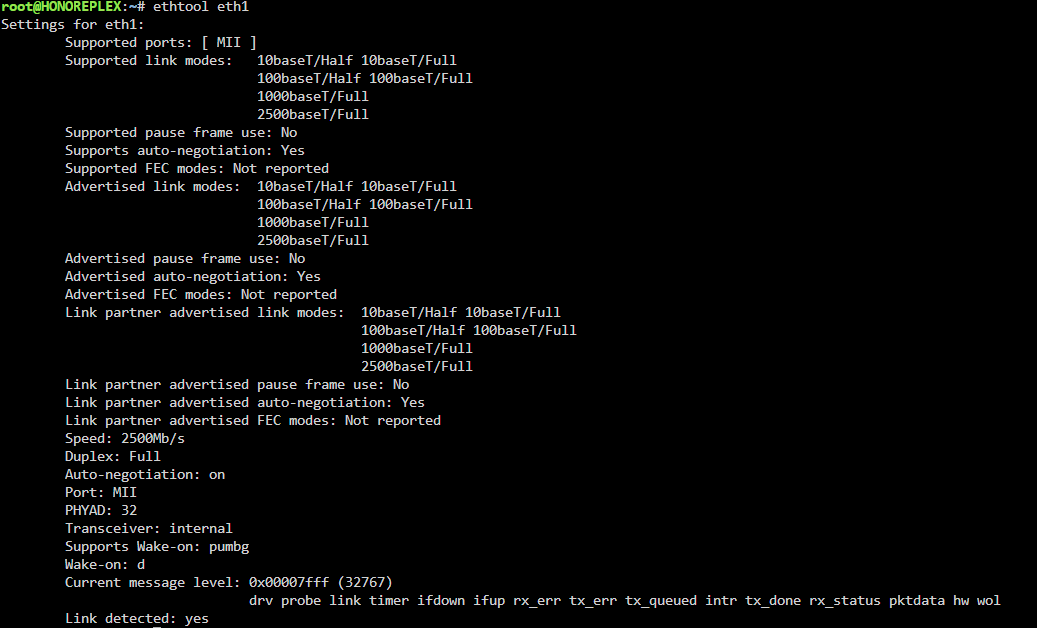

August 22, 20241 yr Hi all, I have a second nic on my unraid that I would like to use for my backup network. I have a Synology NAS with a 2.5gbe link and a pc with a 2.5gbe link connected to a trendnet 6 port 2.5gbe switch. I am using a Plugable 2.5Gbps USB to Ethernet Adapter (USBC-E2500). I installed the Realtek plugin and I can see the nic in network settings. I configured a static ip address that is on the same subnet as the other two hosts. The other two devices communicate with no issues. I ran ethtools in the cli and can see the 2.5gbe nic is showing the correct advertised speed. I try to ping and I get nothing. Any advice or additional troubleshooting steps would be greatly appreciated. honoreplex-diagnostics-20240822-0909.zip
August 23, 20241 yr Author Interesting. The port was inactive. I selected port up to reactivate it. What would cause the port to be inactive? I am still unable to ping the other two devices on the subnet. Here is an updated diagnostic. I don't know if the issue is driver related or not. honoreplex-diagnostics-20240823-0109.zip Edited August 23, 20241 yr by Michael T H to attach screenshot
August 23, 20241 yr Community Expert 2 hours ago, Michael T H said: I don't know if the issue is driver related or not. Could be, if you reboot is the port back down or up?
August 23, 20241 yr Author 12 hours ago, JorgeB said: Could be, if you reboot is the port back down or up? I rebooted and its still up. Im at a lost for what else I can try to get this thing working. Routing Table 192.168.10.0/24 eth1 metric 1
