# Unraid Version 6.12.6 2023-12-01





CPU

Intel® Core™ i5-4590 CPU @ 3.30GHz

4 Cores

RAM

16GB DDR3 (4 RAM slots total, 2 Used, 1 not usable due to CPU fan dimensions = maximum of 3 RAM slots)

Motherboard

ASUST H97M-E , Version Rev X.0x

Manuals:

Endor Asus Motherboard Manual EN.pdf

Endor Asus Motherboard Manual DE.pdf

Power supplies

1 x Thermaltake Toughpower GF A3 650W 80+ Gold

1 x Bequiet generic Power supply

Both power supplies are connected by using the “Phanteks Power Combo PHPWCOB_2P1M“ to add redundancy

Harddrives

4 x ST4000VX016 4TB Festplatte Seagate SkyHawk

SATA 6 Gb/s

Cache: 256 MB

Backup UPS

APC Back-UPS BX950MI-GR (approx. 30-50 min. powered up time)

BIOS

Bios: American Megatrends Inc., Version 2602
BIOS dated: Mon 7 Dec 2015 12:00:00 AM CET

RAID Storage

Unraid software RAID system, currently 8 TB data storage usable in total



Ethernet

Onboard Ethernet; 1000 Mbps, full duplex, mtu 1500

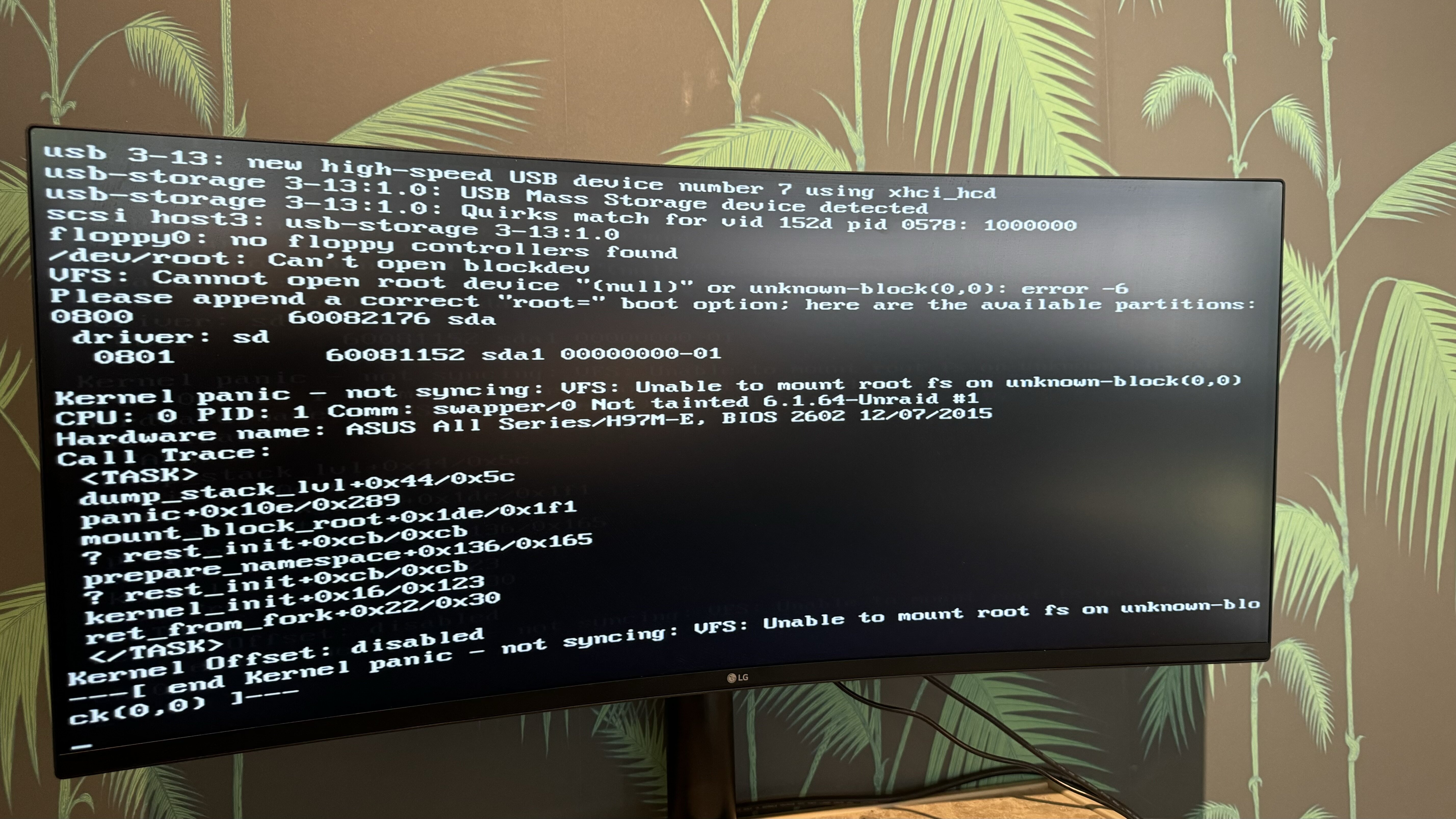

I am getting a already handled Error which is the following:



scsi host1: usb-storage 3–11:1.0
usb 4-6:
new SuperSpeed USB device number 3 using xhci_hcd
usb-storage 4-6:1.0: USB Mass Storage device detected
scsi host2: usb-storage 4-6:1.0
new high-speed USB device number 7 using xhci_hcd
usb 3-13:
USB Mass Storage device detected
usb-storage 3-13:1.0:
Quirks match for vid 152d pid 0578:
pid 0578: 1000000
usb-storage 3–13:1.0:
scsi host3: usb-storage 3–13:1.0
floppyo: no floppy controllers found
/dev/root: Can't open blockdev
nowb
error -6
Cannot open root device "sda" or unknown-block(0,0):
option; here are the available partitions:
UFS:
"root=" boot option;
UFS: Unable to mount root
Please append a correct
not syncing:
fs on unknown-block (0,0)
Kernel panic
swapper/0 Not tainted 6.1.64-Unraid #1
Šeries/H97M-E, BIOS 2602 12/07/2015
CPU: 0 PID: 1 Comm:
ASUS All Series/H97M-E,
Hardware
Call
name:
Trace:
<TASK>
dump_stack_lvl+0x44/0x5c
panic+0x10e/0x289
mount_block_root+0x1de/0x1f1
prepare_namespace+0x136/0x165
rest_init+0xcb/0xcb
kernel_init+0x16/0x123
ret_from_fork+0x22/0x30
</TASK>
Kernel Offset: disabled
pstore: cryptro compress
ck (0,0)
Kernel panic
crypto_comp_compress
disabled
failed, ret = −22

not syncing:
UFS: Unable to mount
root fs on unknown-block(0,0)



I already tried this (

)



and wanted to ask if this (

)  temporary fix is still the right way to handle the problem?

I perform itimpi's solution (I overwrite the bz files with those from the zip file) and then it boots fine. However, the problem eventually happens again. I didn't make any changes nor add any plugins.



Othewise i need help please!

USB2 port is more reliable for Unraid boot device

Thanks, but this is the output if i try to boot from the USB2 port:

I think it has to be something very obvious. And i am just not getting it.

1 hour ago, Spechtus said:

I already tried this (

Make sure you remove that since it no longer works.



This is usually a flash drive problem, try using a different one.

Thank you for your answer. Should i just copy and paste the existing files on flash drive into another?



No, create a new flash drive, confirm it boots first, and if yes, restore only the /config folder from the old one.

Could you send me a link to a stable 6.12.6 version where i can create the flash drive on?

18 minutes ago, Spechtus said:

Could you send me a link to a stable 6.12.6 version

Not available in the archive https://docs.unraid.net/unraid-os/download_list/



But why not 6.12.13  ?

I found some versioning in the old drive and it said 6.12.6 so i thought, in order to not break anything, i will take the same version. Or is there no difference ?



I already secured the config folder and tried to fix the old flash drive by scanning and repairing it. But the scan did not find any errors.

Should be fine and preferable to use the latest stable.

Thank you guys! The solution was to use a new Flash Drive, SanDisks are just meh for using UNRAID!

I've been using Sandisk USB2 flash on both of my servers for many years and neither have failed.



On 8/22/2024 at 11:53 AM, trurl said:

USB2 port is more reliable for Unraid boot device

Speed is unimportant in this usage. Not much data read or written, and mostly at boot time.
