How to access NFS share on Linux

[robbrown99]

I am new to NFS, but familiar with SMB. I set up an NFS (and SMB) share, and struggling to understand how to access it.



The SMB share automatically shows up. The NFS does not... and looking at the interweb, there is a lot of convoluted setup to get it working via command line.



Are there any GNOME or other utilities that make setup simpler?



I'd like to set this up, have the share be auto-mounted, and be able to access this like any other system folder (most desktop apps give a file picker, and don't allow for manual address entry).



I am on Fedora linux.



Thanks

[robbrown99]

OK, OK



I found a helpful video on youtube. I created a folder under my local /mnt/ directory but I can't seem to mount, probably because I am not passing any password?



The --help option isn't very helpful about how to add credentials



rbrown@localhost-live:~$ sudo mount 192.168.1.109:/Rob /mnt/nfs/Rob
mount.nfs: access denied by server while mounting 192.168.1.109:/Rob





[robbrown99]

I found some documentation on fedora



I had my command wrong when passing the folder arguments



This command helps find the folder:

rbrown@localhost-live:~$ showmount -e 192.168.1.109
Export list for 192.168.1.109:
/mnt/user/nextcloud *
/mnt/user/Rob       *





I then mounted the folder.

rbrown@localhost-live:~$ sudo mount 192.168.1.109:/mnt/user/Rob /mnt/nfs/Rob



I cannot get it to be read write though. I tried this:

rbrown@localhost-live:~$ sudo mount 192.168.1.109:/mnt/user/Rob /mnt/nfs/Rob -w --read-write



I also tried adding *(rw) to the NFS share in UNRAID. That doesn't work either



Any ideas on how I can mount as R+W?

[Frank1940]

Have a look here:



     https://forums.unraid.net/topic/150414-mounting-an-unraid-share-in-ubuntu-linux/



If you can't find any other way, why not install Samba (if not already installed) and use that?



EDIT:   Also Google    unraid.net:  mount unraid nfs share

Edited August 28 by Frank1940

[robbrown99]

Thanks @Frank1940 I just managed to get it working while you were typing this response.



It is more convoluted than I'd like, but it works. NFS is significantly faster for small file transfers (which for a photo library is what I need) than SMB. I tried both and NFS very obviously faster. Steps below.

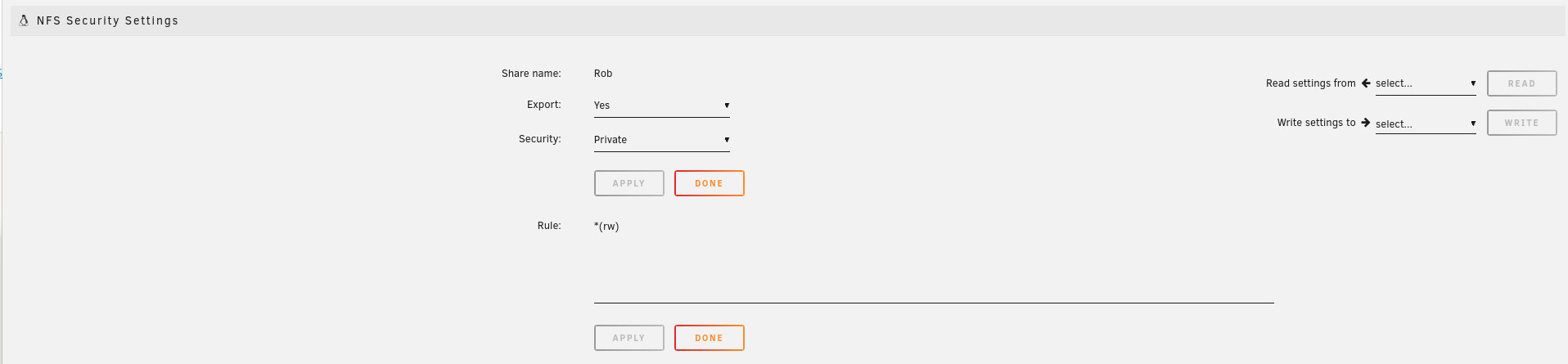

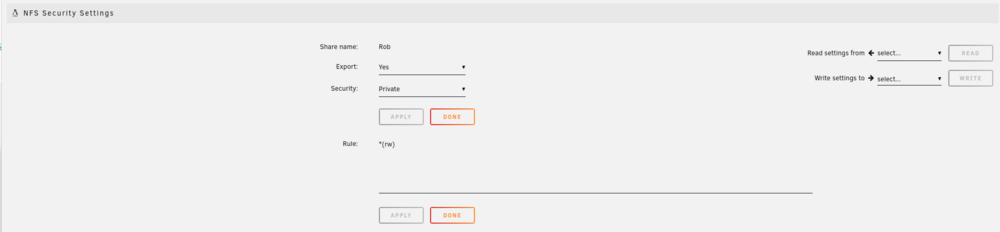

STEP 1. In the media server software (in this case Unraid), set up the share to support NFS in both
a) the share itself: SHARES >> <SHARE NAME>add rule *(rw) , Export = Yes, Security = Private
b) under  SETTINGS >> NFS >> Enable NFS = Yes, Tunable (fuse_remember): 330 (default)



STEP 2. On linux desktop client,
a) Find the name of the NFS open terminal: type the following, where the IP address is that of your media server.

showmount -e 192.168.1.109

This will then return a list of the NFS shares that have been exported, e.g.


Export list for 192.168.1.109:
/mnt/user/nextcloud *
/mnt/user/Rob       *



b) Copy the name of the share you want to mount e.g. /mnt/user/Rob



STEP 3. Set up the NFS share to automount:
a) Open folder /etc/ , open 'fstab' in a text editor (you may have to use super user privileges to save it)
b) Enter the following into fstab at the bottom of the file taking the share path and IP address from step 2. Note the format is as following:



<yourserver IP address>:<path to the exported share you want to mount from step 2b> <path you want to mount the NFS share to e.g. /mnt/name>  nfs <options> 0 0



More details on the options to set are here:
[https://linuxopsys.com/linux-nfs-mount-entry-in-fstab-with-example](https://linuxopsys.com/linux-nfs-mount-entry-in-fstab-with-example)

example:


192.168.1.109:/mnt/user/Rob /mnt/nfs/Rob  nfs rw,hard,intr,nofail,timeo=14 0 0
mount /mnt/nfs/Rob



Then save the file.

c) In terminal run


systemctl daemon-reload



STEP 4: Reboot the system to ensure this mounts persistently.
Your folder should mount automatically under the path from Step 2b e.g. /mnt/nfs/Rob





Given this was a struggle, how can I go edit the Unraid user documentation to make this easier for people in the future?

Edited August 28 by robbrown99

[Frank1940]

Let me say that you are on the right path.  However, you need to do a couple of things first.  Can I assume that you have some knowledge of the Linux command line?  I am going to have you check  a few things first before suggesting that you prepare a Guide to setting up NFS.   These are to make sure that files/directories that you create on your server will also work when they are accessed using SMB.

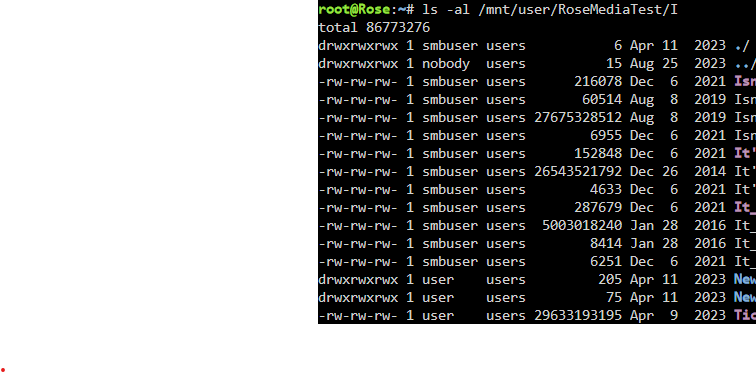

You need to use the Linux    ls   command to see that your client is writing the proper group and permissions for SMB to have access to them.  Below is an example of what I mean:



Notice that there are three different Owners-- nobody, smbuser, user   (smbuser and user are the user names that I selected for my various Windows client computers.)

Notice that there is only one group-- users

Notice that the permissions for files are:    -rw-rw-rw-          (Often designated as 666)

Notice that the permissions for directories are: drwxrwxrwx       (Often designated as 777)



Only the owner has various names.  In my analysis of how Unraid SMB works, all owners must be a member of the users group.  This is done by adding a Share Access user using the Unraid Users tab.   Now look at my screen capture.  I assure you that I can have full read/write access to everything in this directory from any client computer using SMB whether they are logged in as 'user' or 'smbuser'!  You may ask how this can be?  It is my conclusion that it because they are members of the users group!



So check to see that the files/directories you are creating from the NFS client has users as the group and has the permissions of 666 (for files) and 777 (for directories).  (By the way I understand the the default for many Linux distributions is for these to be 664 or 755!)



IF you need more info on how SMB works, see here:

        https://forums.unraid.net/topic/110580-security-is-not-a-dirty-word-unraid-windows-1011-smb-setup/



[robbrown99]

Thank you @Frank1940

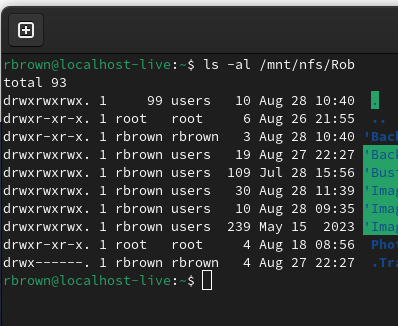

I ran that command, and it looks like the appropriate folders do indeed have the permissions. Thank you for the tip there.



I did notice an issue where my NAS wasn't on earlier, then when my client computer started the automount failed (but did not hang!). I need to write a script to manually mount it if it comes online out of sequence. Shouldn't be an issue in the future if NAS is always on but you never know. Right now I turn it off as I'm still building it and the fan is too loud (that's another project).
