September 4, 20241 yr Community Expert OK, based on the mountpoints this should be the rocinante pool, right?
September 4, 20241 yr Author Yes. The name of the zpool is wrong and is pointing to rocinante mounting point. Is it possible rename the pool?
September 4, 20241 yr Community Expert It should be, type: zpool export 5924509355974799305 then zpool import 5924509355974799305 rocinante then zpool status again
September 4, 20241 yr Author I have fixed the export command by zpool export tycho, since it was telling me that when exporting I had to indicate a name starting with a letter. Then I have put zpool import 5924509355974799305 rocinante and everything has been mounted correctly. What would be the next step to mount the remaining pool (tycho)? Thanks!
September 4, 20241 yr Community Expert Export the rocinante pool, and output of zpool import again, to confirm both show up correctly now
September 4, 20241 yr Author Seems OK. pool: tycho id: 10901411189181231896 state: DEGRADED status: One or more devices contains corrupted data. action: The pool can be imported despite missing or damaged devices. The fault tolerance of the pool may be compromised if imported. see: https://openzfs.github.io/openzfs-docs/msg/ZFS-8000-4J config: tycho DEGRADED raidz1-0 DEGRADED 13502292040317525666 FAULTED corrupted data sdl1 ONLINE sdm1 ONLINE sdn1 ONLINE sdo1 ONLINE sdp1 ONLINE pool: donnager id: 16552885184057344388 state: ONLINE action: The pool can be imported using its name or numeric identifier. config: donnager ONLINE raidz1-0 ONLINE sdi1 ONLINE sdj1 ONLINE sdr1 ONLINE sdq1 ONLINE sds1 ONLINE sdt1 ONLINE pool: rocinante id: 5924509355974799305 state: ONLINE action: The pool can be imported using its name or numeric identifier. config: rocinante ONLINE raidz1-0 ONLINE sdk1 ONLINE sde1 ONLINE sdh1 ONLINE sdd1 ONLINE sdf1 ONLINE sdg1 ONLINE pool: disk1 id: 8733512297879271467 state: ONLINE action: The pool can be imported using its name or numeric identifier. config: disk1 ONLINE sda1 ONLINE pool: cache id: 3766673087186651326 state: ONLINE action: The pool can be imported using its name or numeric identifier. config: cache ONLINE nvme0n1p1 ONLINE
September 4, 20241 yr Community Expert I believe v6.12 can import a degraded pool, but not 100% sure and I'm not in a place that I can test at the moment, sdk disk is originally form the other pool right? And if yes, what is the sdX for the missing rocinante pool disk?

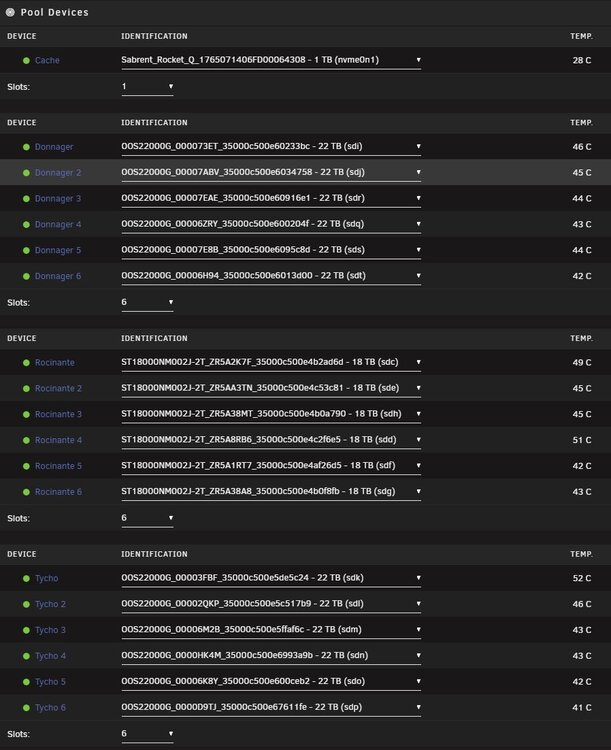

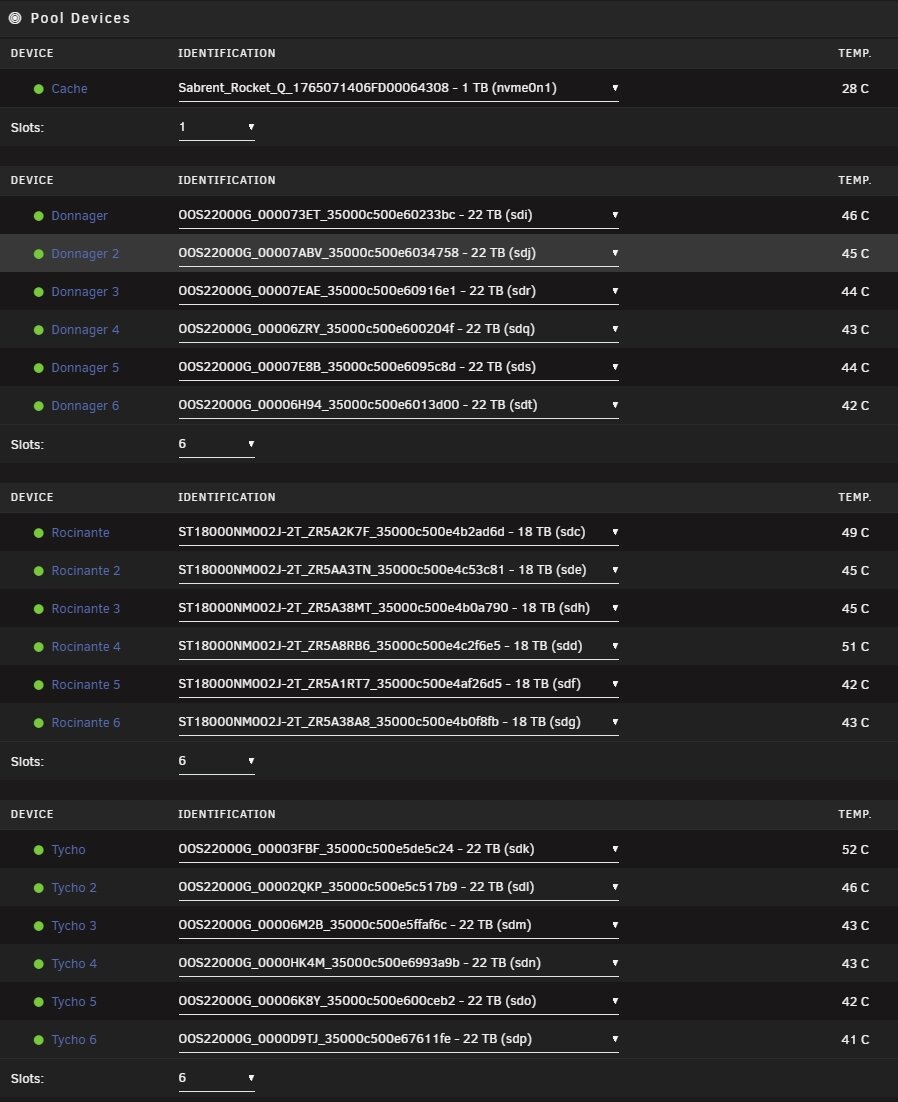

September 4, 20241 yr Author This is one of the doubts I have had during this whole process. I created the pool using the ZFS Master plugin and I have assigned the drives using the HDD IDs/SERIAL NUMBER as a reference. This screenshot shows the drive names they had originally and now they are mapped in the same order. The names of the drives have changed as a result of all this problem. I attach a screenshot of the mapping I did from the GUI in case it is useful. PS: I think that drive is the one that was originally in that pool (based on the serial number of the disks).
September 4, 20241 yr Community Expert Post the current diagnostics so that I can confirm all the assignments.
September 4, 20241 yr Community Expert Solution Please confirm yourself, and note that all the sdX devices refer to how they appear currently, not as they were in the screenshot, but from what I see, the rocinante pool is currently using a 22TB disk (sdk) that should be in the tycho pool, the 18TB disk that should be in the rocinante pool is sdc, which is currently not being used by any pool, if that is correct, lets start by correcting the rocinante pool, import the pool manually: zpool import rocinante then zpool replace rocinante /dev/sdk1 /dev/sdc1 I think sdc will still have a partition, if it doesn't that command will give an error, so post back, if it works, check the resilver status with zpool status and post back when it's done.

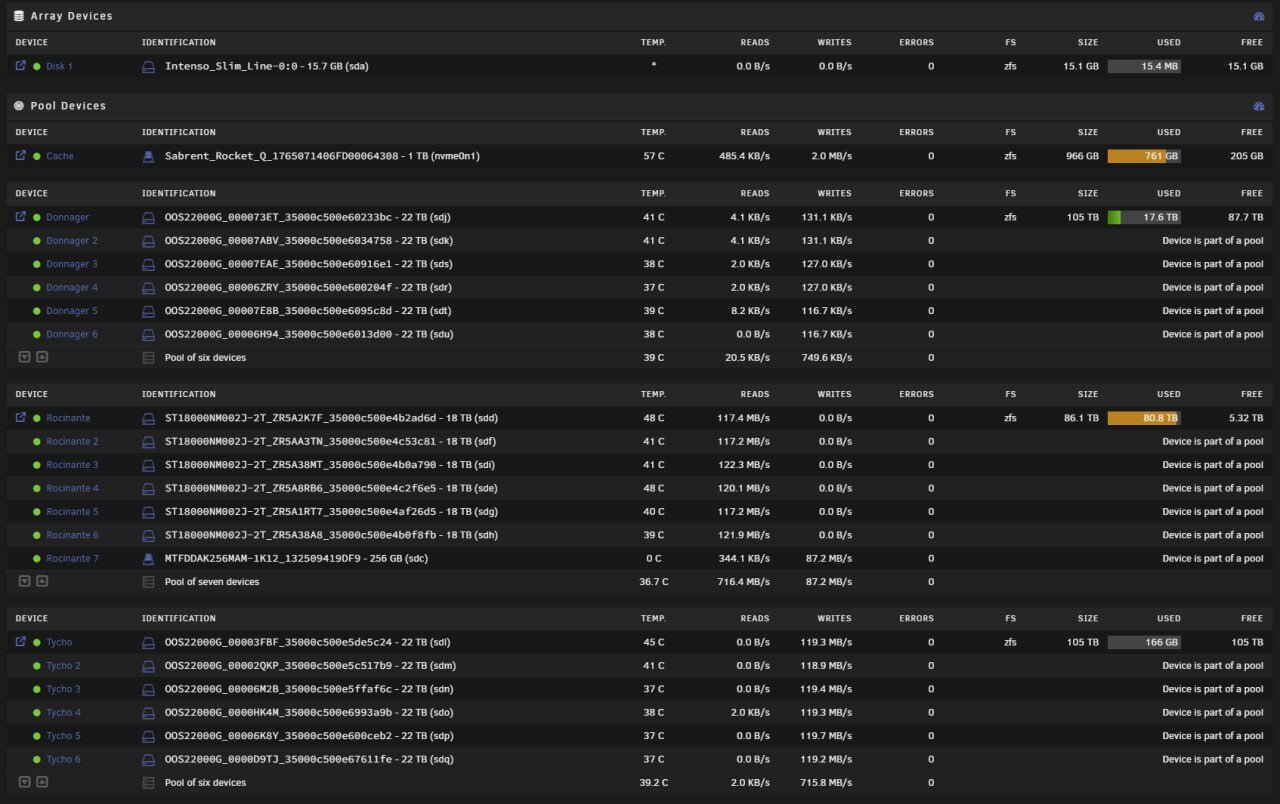

September 4, 20241 yr Author This GUI screenshot shows the current pool allocation I have. From the GUI I see everything correct. Shall I proceed with what you have indicated? PS: Indeed... All the disks in the Rocinante pool must be 18 TB. Edited September 4, 20241 yr by Coque
September 5, 20241 yr Community Expert The GUI shows what you want the to look in the end, but the zpool status and zpool import show the currently assigned disks: 12 hours ago, Coque said: rocinante ONLINE raidz1-0 ONLINE sdk1 ONLINE sde1 ONLINE sdh1 ONLINE sdd1 ONLINE sdf1 ONLINE sdg1 ONLINE Not that sdk is the actual first pool member, not sdc and the screenshot shows, so we need to correct that first, all the commands I posted above should be done with the array still stopped, array should only be started when both pools are fixed.
September 6, 20241 yr Author Hi, JorgeB. The task has been successfully completed. pool: rocinante state: ONLINE scan: resilvered 13.1T in 1 days 03:56:38 with 0 errors on Fri Sep 6 03:46:49 2024 config: NAME STATE READ WRITE CKSUM rocinante ONLINE 0 0 0 raidz1-0 ONLINE 0 0 0 sdc1 ONLINE 0 0 0 sde1 ONLINE 0 0 0 sdh1 ONLINE 0 0 0 sdd1 ONLINE 0 0 0 sdf1 ONLINE 0 0 0 sdg1 ONLINE 0 0 0 errors: No known data errors What would be the next step to try to recover the tycho pool? Thank you!
September 6, 20241 yr Community Expert Export this pool, import the tycho pool with 'zpool import tycho' and post the zpool status
September 6, 20241 yr Author Here it is. pool: tycho state: DEGRADED status: One or more devices could not be used because the label is missing or invalid. Sufficient replicas exist for the pool to continue functioning in a degraded state. action: Replace the device using 'zpool replace'. see: https://openzfs.github.io/openzfs-docs/msg/ZFS-8000-4J scan: scrub repaired 0B in 1 days 04:14:46 with 0 errors on Tue Sep 3 13:37:36 2024 config: NAME STATE READ WRITE CKSUM tycho DEGRADED 0 0 0 raidz1-0 DEGRADED 0 0 0 13502292040317525666 FAULTED 0 0 0 was /dev/sdm1 sdl1 ONLINE 0 0 0 sdm1 ONLINE 0 0 0 sdn1 ONLINE 0 0 0 sdo1 ONLINE 0 0 0 sdp1 ONLINE 0 0 0 errors: No known data errors It says there is a disk in FAULTED state. Thanks!
September 6, 20241 yr Community Expert Now lets add the missing disk to that pool, type: zpool replace tycho 13502292040317525666 /dev/sdk1 And monitor progress with zpool status
September 6, 20241 yr Author Hello. It's resilvering the disk pool: tycho state: DEGRADED status: One or more devices is currently being resilvered. The pool will continue to function, possibly in a degraded state. action: Wait for the resilver to complete. scan: resilver in progress since Fri Sep 6 11:46:20 2024 380G scanned at 25.3G/s, 54.3M issued at 3.62M/s, 93.3T total 0B resilvered, 0.00% done, no estimated completion time config: NAME STATE READ WRITE CKSUM tycho DEGRADED 0 0 0 raidz1-0 DEGRADED 0 0 0 replacing-0 DEGRADED 0 0 0 13502292040317525666 FAULTED 0 0 0 was /dev/sdm1 sdk1 ONLINE 0 0 0 sdl1 ONLINE 0 0 0 sdm1 ONLINE 0 0 0 sdn1 ONLINE 0 0 0 sdo1 ONLINE 0 0 0 sdp1 ONLINE 0 0 0 errors: No known data errors I'll wait for it to finish and update you. Thank you very much! PS: Crossfinger.
September 8, 20241 yr Author Good morning. The resilvering process of the pool called tycho has finished. state: ONLINE scan: resilvered 15.6T in 1 days 13:18:09 with 0 errors on Sun Sep 8 01:04:29 2024 config: NAME STATE READ WRITE CKSUM tycho ONLINE 0 0 0 raidz1-0 ONLINE 0 0 0 sdk1 ONLINE 0 0 0 sdl1 ONLINE 0 0 0 sdm1 ONLINE 0 0 0 sdn1 ONLINE 0 0 0 sdo1 ONLINE 0 0 0 sdp1 ONLINE 0 0 0 errors: No known data errors What's the next step? Can i start the arrays through the GUI or i need to test anything else? Edited September 8, 20241 yr by Coque
September 8, 20241 yr Community Expert 3 hours ago, Coque said: Can i start the arrays through the GUI or i need to test anything else? Yes, don't forget to export that pool first, and before start confirm the zpool import output matches the GUI assignments for all pools now, including device order, but it should.
September 9, 20241 yr Author Hello, JorgeB. I have done everything as you told me. I exported the zpool, checked that the disks were correctly assigned and, just in case, I restarted the server to mount the array + containers. And everything is working as usual. I am hugely grateful for your time and help. PS: Do you have a Patreon or Paypal to pay for a coffee or a beer?
September 9, 20241 yr Community Expert Glad to hear it's resolved, I have a Paypal in my signature, if you cannot see it, it's https://paypal.me/blackjohnnie
