Error when Unraid started, causing the log to fill up to 100%

[lokize]

Hi friends, I’m getting this error when starting Unraid. The error keeps occurring nonstop, causing the log to fill up to 100%.



0000:02:00.0:   device [1987:5016] error status/mask=00000001/00006000
Sep  8 07:30:35 Tower kernel: nvme 0000:02:00.0:    [ 0] RxErr
Sep  8 07:30:35 Tower kernel: pcieport 0000:00:06.0: AER: Corrected error message received from 0000:02:00.0
Sep  8 07:30:35 Tower kernel: nvme 0000:02:00.0: PCIe Bus Error: severity=Corrected, type=Physical Layer, (Receiver ID)

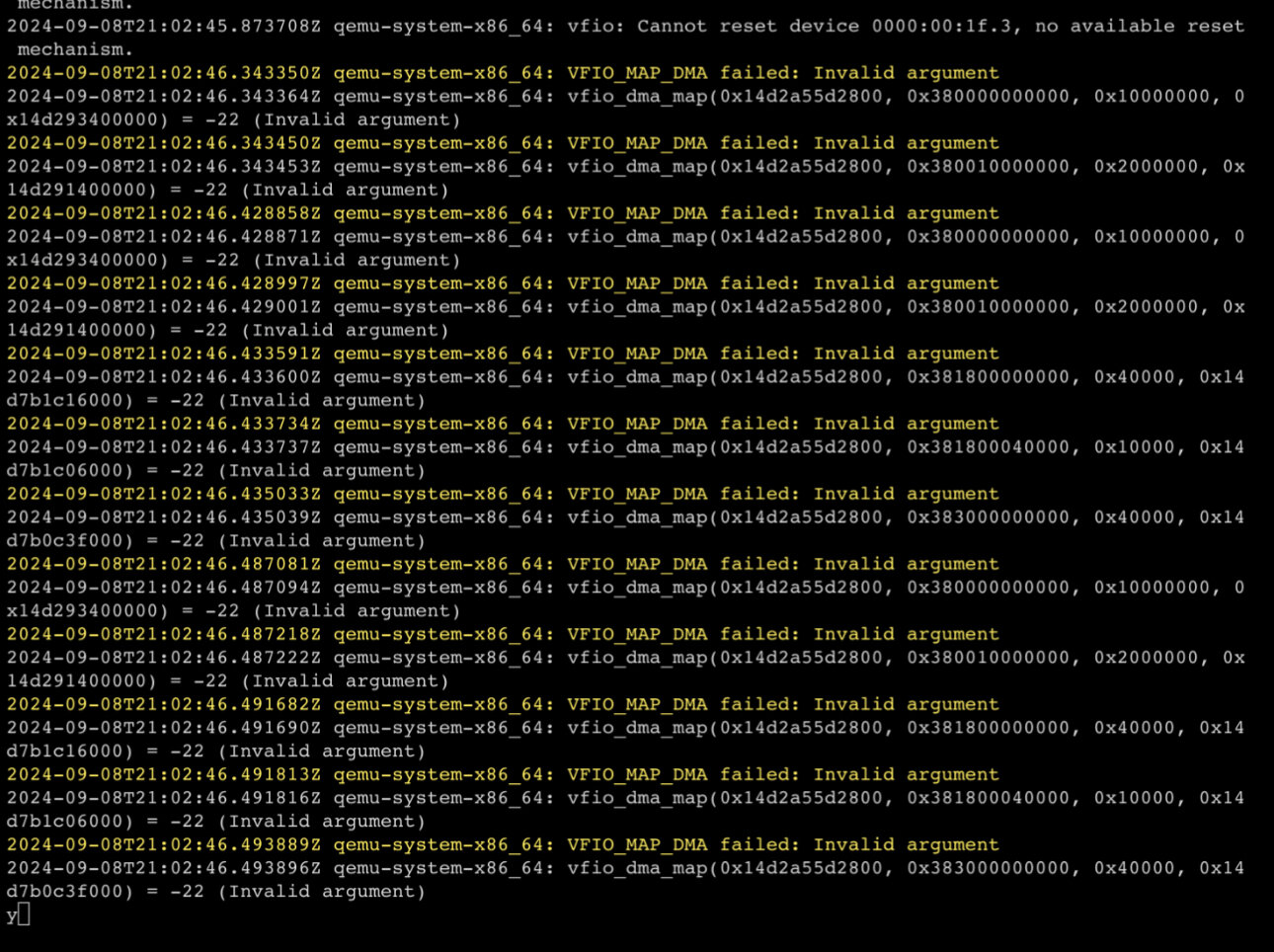

In addition, I don't know if it's related, but every time I start the Windows 11 VM for the first time, it remains paused with the following error:

Only after stopping it and starting it again can I actually get the VM to run.

Edited September 8, 2024 by lokize

[JorgeB]

Try this first:



https://forums.unraid.net/topic/118286-nvme-drives-throwing-errors-filling-logs-instantly-how-to-resolve/?do=findComment&comment=1165009



[lokize]

Solved but when I start vm I have this error:

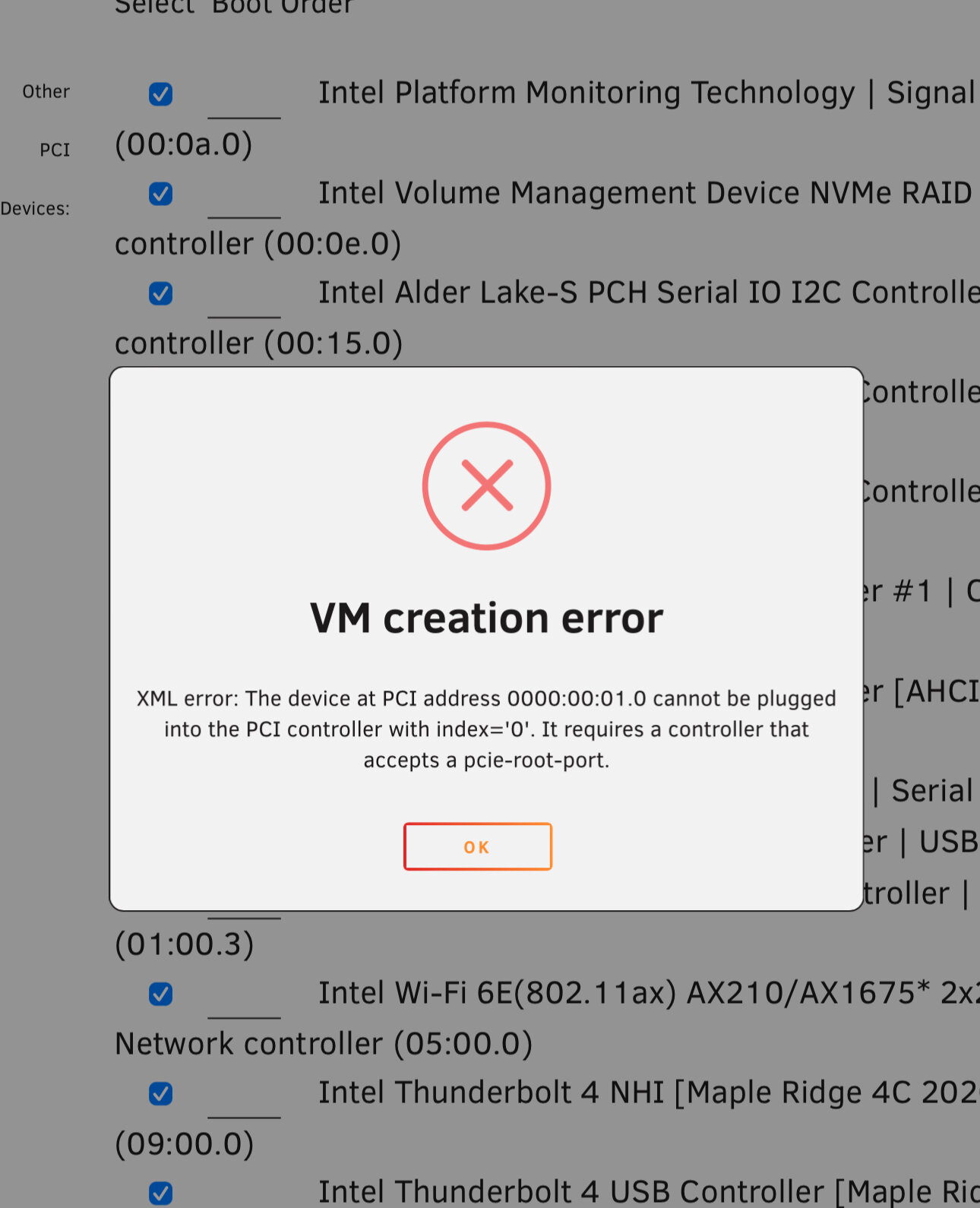

using q35 when I try to use i440 I have this error in second image:



Edited September 9, 2024 by lokize

[JorgeB]

Uncheck that device form passthrough.

[lokize]

In system devices? What device?

[JorgeB]

That one causing the error: 00:01.0

[lokize]

Ok, but what device I need to disable?

[lokize]

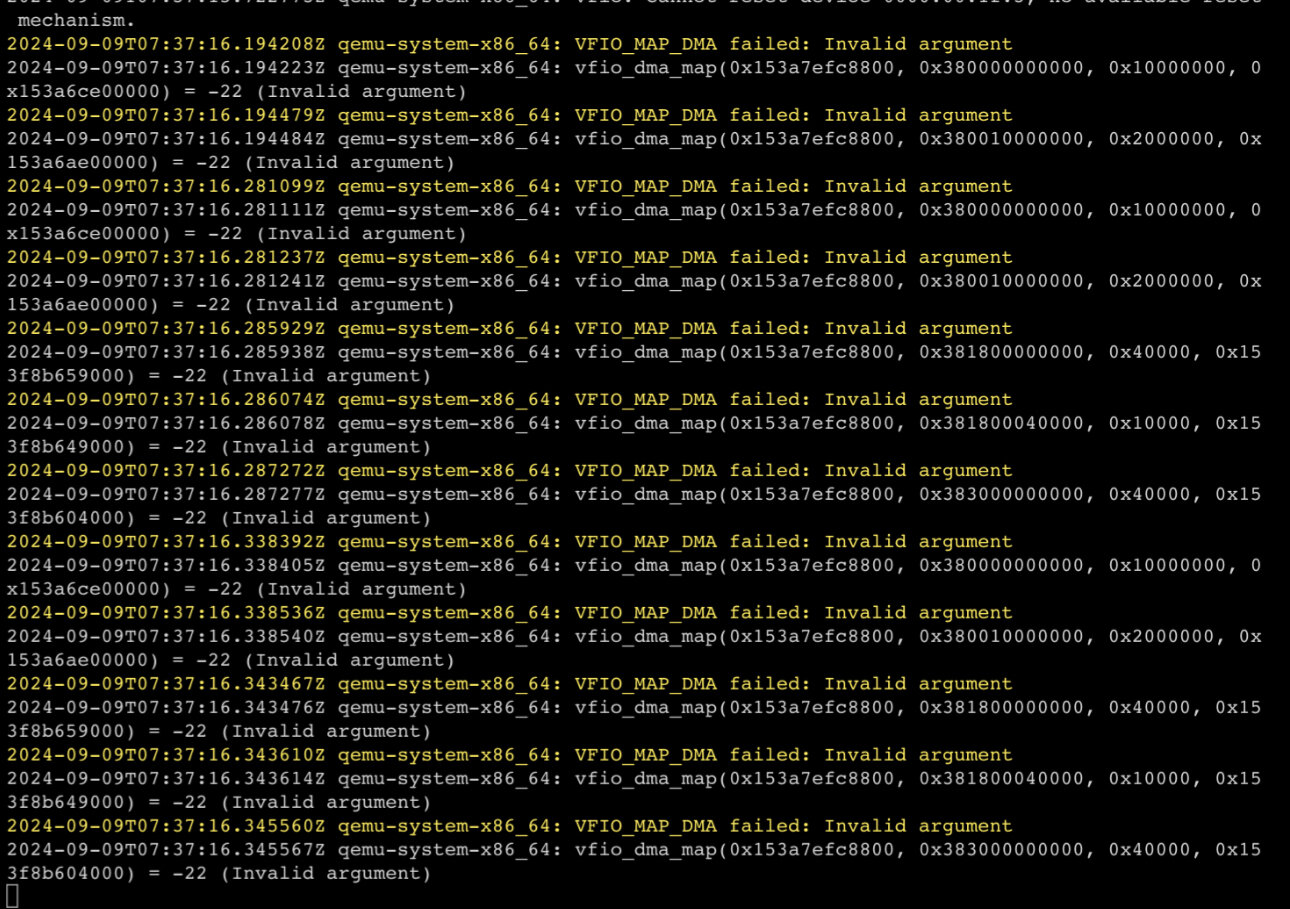

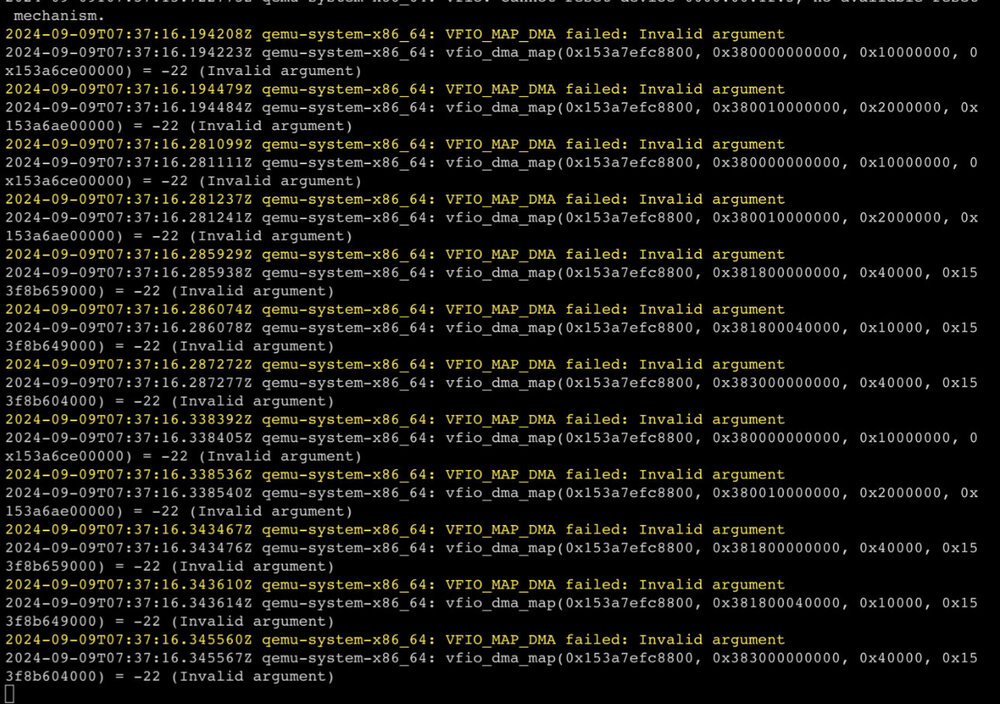

When I use q35 vm start but I have this error and black screen:





[lokize]

I recreated vm with i440 and started but still black screen and same error
————EDIT———-

fixed that disabling csm in bios





Edited September 9, 2024 by lokize

[JorgeB]

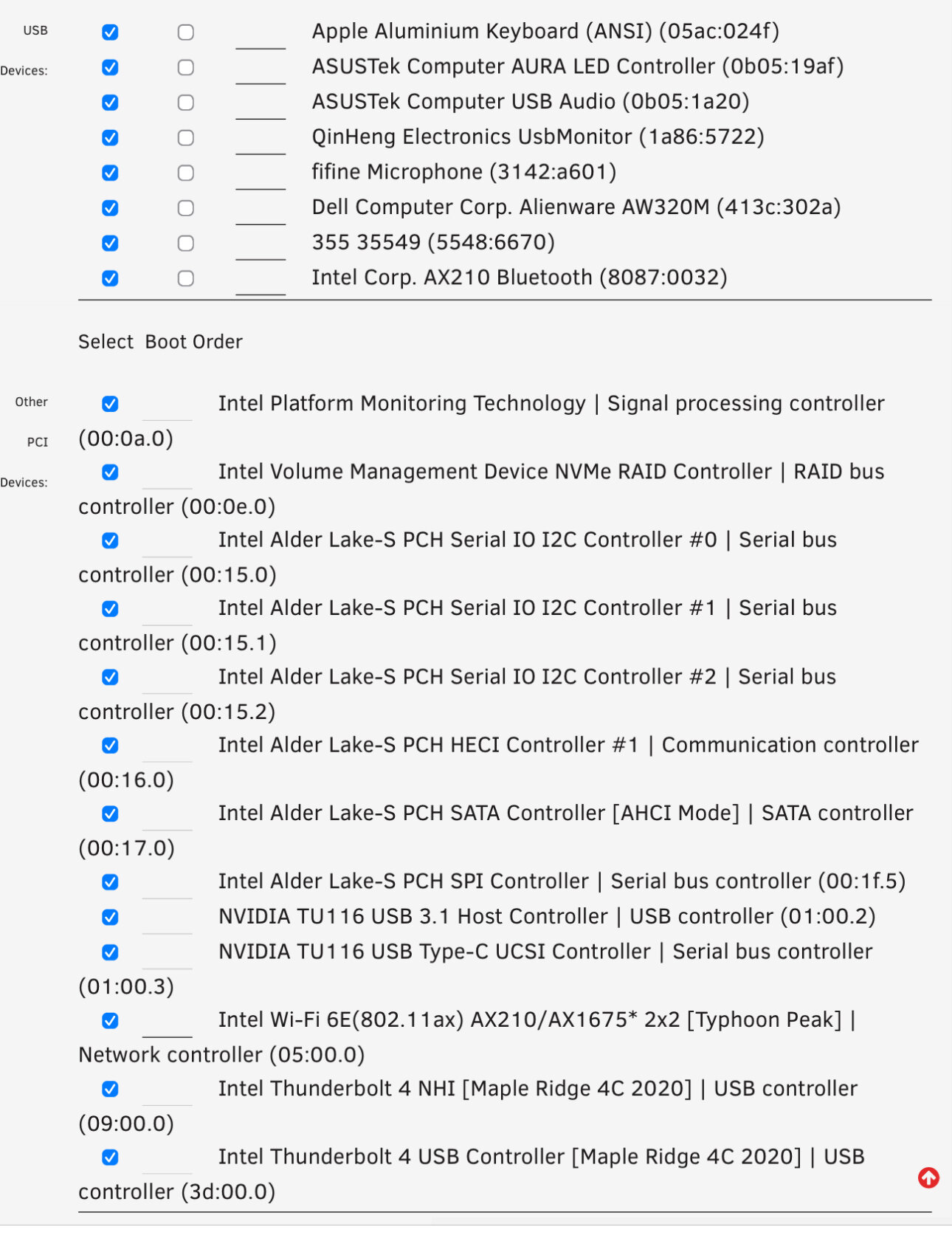

You should be able to see it in the System Devices view, it may be in the same IOMMU group has one of the other devices you are trying to passthrough, you will then need to uncheck all the devices from that group.

[lokize]

I was able to start it by only disabling CSM in the BIOS, but one of my USB devices didn’t work. However, I think it's better to start a new topic for that. Thank you very much for all the help you gave me in this topic, I really appreciate it.
