HDD 1 is deactivated has no SMART Errors. Reboot doesnt helped

[dMisterWb]

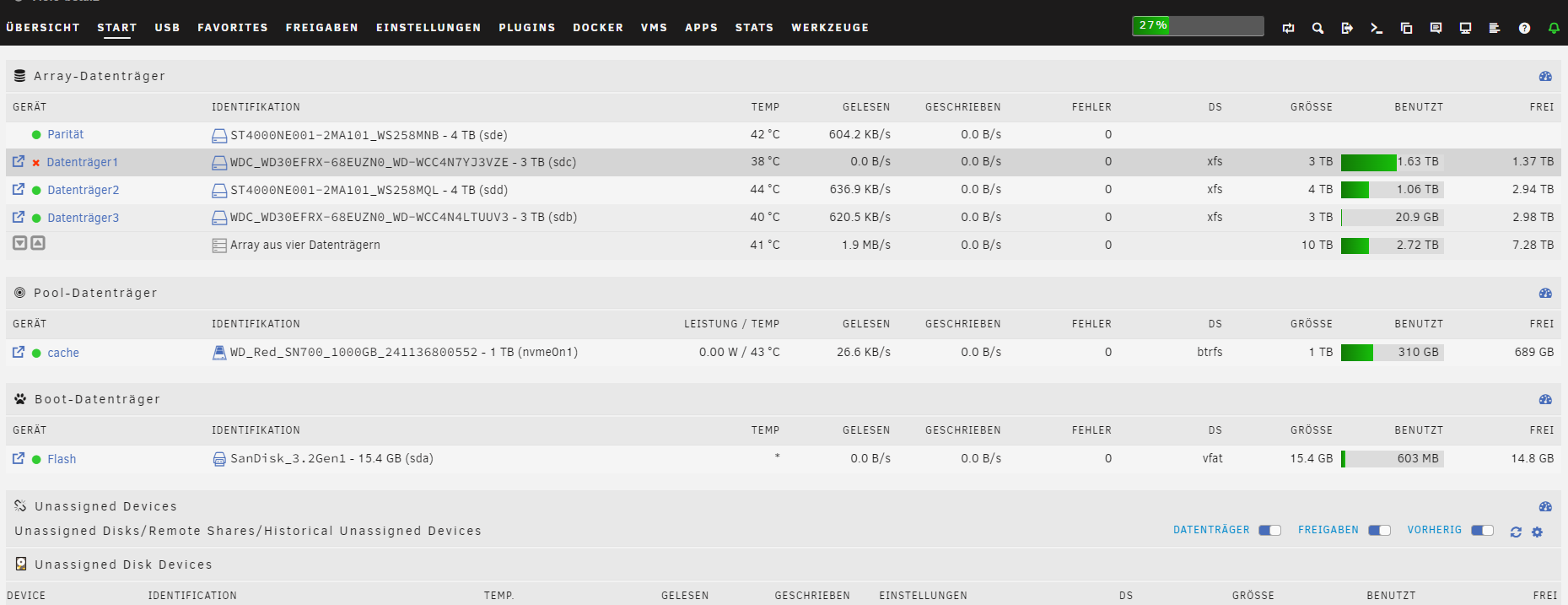

Hello i have this Problem:





Syslog is attached.



i didn't had this issue before. Before that issue the server had Problems to start i had to change usb port and reset the bios.



Then i started the data mover and then this Problem occoured.



Can any body help or do i have to change the HDD?

unraid-syslog-20240911-1351.zip

[JorgeB]

Please post the complete diagnostics.

[dMisterWb]

Here.



I did find thies in the SMART Table 199 UDMA CRC error count 45



This is a hard drive western digital red which was 4 years in a productive system.



do i have to change this hdd? can i change it with one with 2 TB temporary?



EDIT i changed the SATA and Power Cables and now change

unraid-diagnostics-20240911-1808.zip

Edited September 11, 2024 by xMisterWx

[JorgeB]

There's an apparent disk error logged, run an extended SMART test.

[dMisterWb]

Is running now. is the disk after that if everything is ok activated? or does i have to change the hdd in any case?

[dMisterWb]

The Advanced Smart Test was without Errors and the Drive ist still deactivated.

unraid-syslog-20240912-0159.zip unraid-diagnostics-20240912-0358.zip unraid-syslog-20240912-0357.zip

[JorgeB]

If the emulated disk is still mounting and contents look correct you can rebuild on top, probably a good idea to replace the cables first to rules that out:



https://docs.unraid.net/unraid-os/manual/storage-management#rebuilding-a-drive-onto-itself
