Issues making Windows Subsystem Android (WSA) work with Unraid

mans_ · September 20, 2024

WSA - https://github.com/MustardChef/WSABuilds For WSA to work, nested VM is necessary along with intel igpu. The issue is I am successfully able to do only one at a time and not both together. That is, I am able to pass through igpu via sr-iov or access nested vm with hyper-v enabled in the vm but not both together. How do I accomplish to make both work together?

<?xml version='1.0' encoding='UTF-8'?>
<domain type='kvm'>
  <name>Windows 11_code</name>
  <uuid>966aae06-dea8-d7c4-7dc6-91d9b803b0fa</uuid>
  <metadata>
    <vmtemplate xmlns="unraid" name="Windows 11" icon="windows11.png" os="windowstpm"/>
  </metadata>
  <memory unit='KiB'>46661632</memory>
  <currentMemory unit='KiB'>46661632</currentMemory>
  <memoryBacking>
    <nosharepages/>
  </memoryBacking>
  <vcpu placement='static'>28</vcpu>
  <cputune>
    <vcpupin vcpu='0' cpuset='4'/>
    <vcpupin vcpu='1' cpuset='5'/>
    <vcpupin vcpu='2' cpuset='6'/>
    <vcpupin vcpu='3' cpuset='7'/>
    <vcpupin vcpu='4' cpuset='8'/>
    <vcpupin vcpu='5' cpuset='9'/>
    <vcpupin vcpu='6' cpuset='10'/>
    <vcpupin vcpu='7' cpuset='11'/>
    <vcpupin vcpu='8' cpuset='12'/>
    <vcpupin vcpu='9' cpuset='13'/>
    <vcpupin vcpu='10' cpuset='14'/>
    <vcpupin vcpu='11' cpuset='15'/>
    <vcpupin vcpu='12' cpuset='16'/>
    <vcpupin vcpu='13' cpuset='17'/>
    <vcpupin vcpu='14' cpuset='18'/>
    <vcpupin vcpu='15' cpuset='19'/>
    <vcpupin vcpu='16' cpuset='20'/>
    <vcpupin vcpu='17' cpuset='21'/>
    <vcpupin vcpu='18' cpuset='22'/>
    <vcpupin vcpu='19' cpuset='23'/>
    <vcpupin vcpu='20' cpuset='24'/>
    <vcpupin vcpu='21' cpuset='25'/>
    <vcpupin vcpu='22' cpuset='26'/>
    <vcpupin vcpu='23' cpuset='27'/>
    <vcpupin vcpu='24' cpuset='28'/>
    <vcpupin vcpu='25' cpuset='29'/>
    <vcpupin vcpu='26' cpuset='30'/>
    <vcpupin vcpu='27' cpuset='31'/>
  </cputune>
  <os>
    <type arch='x86_64' machine='pc-i440fx-7.2'>hvm</type>
    <loader readonly='yes' type='pflash'>/usr/share/qemu/ovmf-x64/OVMF_CODE-pure-efi-tpm.fd</loader>
    <nvram>/etc/libvirt/qemu/nvram/966aae06-dea8-d7c4-7dc6-91d9b803b0fa_VARS-pure-efi-tpm.fd</nvram>
  </os>
  <features>
    <acpi/>
    <apic/>
    <hyperv mode='custom'>
      <relaxed state='on'/>
      <vapic state='on'/>
      <spinlocks state='on' retries='8191'/>
      <vendor_id state='on' value='none'/>
    </hyperv>
  </features>
  <cpu mode='host-passthrough' check='none' migratable='on'>
    <topology sockets='1' dies='1' cores='14' threads='2'/>
    <cache mode='passthrough'/>
  </cpu>
  <clock offset='localtime'>
    <timer name='hypervclock' present='yes'/>
    <timer name='hpet' present='no'/>
  </clock>
  <on_poweroff>destroy</on_poweroff>
  <on_reboot>restart</on_reboot>
  <on_crash>restart</on_crash>
  <devices>
    <emulator>/usr/local/sbin/qemu</emulator>
    <disk type='file' device='disk'>
      <driver name='qemu' type='raw' cache='writeback'/>
      <source file='/mnt/exos/trackersexos/vms/Windows11_code/vdisk1.img'/>
      <target dev='hdc' bus='virtio'/>
      <serial>vdisk1</serial>
      <boot order='1'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x0c' function='0x0'/>
    </disk>
    <disk type='file' device='cdrom'>
      <driver name='qemu' type='raw'/>
      <source file='/mnt/exos/trackersexos/vms/isos/Win11_23H2_English_x64v2.iso'/>
      <target dev='hda' bus='sata'/>
      <readonly/>
      <address type='drive' controller='0' bus='0' target='0' unit='0'/>
    </disk>
    <disk type='file' device='cdrom'>
      <driver name='qemu' type='raw'/>
      <source file='/mnt/exos/trackersexos/vms/isos/virtio-win-0.1.248.iso'/>
      <target dev='hdb' bus='sata'/>
      <readonly/>
      <address type='drive' controller='0' bus='0' target='0' unit='1'/>
    </disk>
    <controller type='usb' index='0' model='ich9-ehci1'>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x07' function='0x7'/>
    </controller>
    <controller type='usb' index='0' model='ich9-uhci1'>
      <master startport='0'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x07' function='0x0' multifunction='on'/>
    </controller>
    <controller type='usb' index='0' model='ich9-uhci2'>
      <master startport='2'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x07' function='0x1'/>
    </controller>
    <controller type='usb' index='0' model='ich9-uhci3'>
      <master startport='4'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x07' function='0x2'/>
    </controller>
    <controller type='pci' index='0' model='pci-root'/>
    <controller type='pci' index='1' model='pci-bridge'>
      <model name='pci-bridge'/>
      <target chassisNr='1'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x02' function='0x0'/>
    </controller>
    <controller type='pci' index='2' model='pci-bridge'>
      <model name='pci-bridge'/>
      <target chassisNr='2'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x03' function='0x0'/>
    </controller>
    <controller type='pci' index='3' model='pci-bridge'>
      <model name='pci-bridge'/>
      <target chassisNr='3'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x04' function='0x0'/>
    </controller>
    <controller type='pci' index='4' model='pci-bridge'>
      <model name='pci-bridge'/>
      <target chassisNr='4'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x05' function='0x0'/>
    </controller>
    <controller type='pci' index='5' model='pci-bridge'>
      <model name='pci-bridge'/>
      <target chassisNr='5'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x06' function='0x0'/>
    </controller>
    <controller type='pci' index='6' model='pci-bridge'>
      <model name='pci-bridge'/>
      <target chassisNr='6'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x08' function='0x0'/>
    </controller>
    <controller type='sata' index='0'>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x0a' function='0x0'/>
    </controller>
    <controller type='virtio-serial' index='0'>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x0b' function='0x0'/>
    </controller>
    <interface type='bridge'>
      <mac address='52:54:00:60:7b:9f'/>
      <source bridge='br0'/>
      <model type='virtio-net'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x09' function='0x0'/>
    </interface>
    <serial type='pty'>
      <target type='isa-serial' port='0'>
        <model name='isa-serial'/>
      </target>
    </serial>
    <console type='pty'>
      <target type='serial' port='0'/>
    </console>
    <channel type='unix'>
      <target type='virtio' name='org.qemu.guest_agent.0'/>
      <address type='virtio-serial' controller='0' bus='0' port='1'/>
    </channel>
    <input type='tablet' bus='usb'>
      <address type='usb' bus='0' port='1'/>
    </input>
    <input type='mouse' bus='ps2'/>
    <input type='keyboard' bus='ps2'/>
    <tpm model='tpm-tis'>
      <backend type='emulator' version='2.0' persistent_state='yes'/>
    </tpm>
    <graphics type='vnc' port='-1' autoport='yes' websocket='-1' listen='0.0.0.0' keymap='en-us'>
      <listen type='address' address='0.0.0.0'/>
    </graphics>
    <audio id='1' type='none'/>
    <video>
      <model type='qxl' ram='65536' vram='65536' vgamem='16384' heads='1' primary='yes'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x1e' function='0x0'/>
    </video>
    <hostdev mode='subsystem' type='pci' managed='yes'>
      <driver name='vfio'/>
      <source>
        <address domain='0x0000' bus='0x00' slot='0x02' function='0x3'/>
      </source>
      <address type='pci' domain='0x0000' bus='0x06' slot='0x10' function='0x0'/>
    </hostdev>
    <memballoon model='none'/>
  </devices>
</domain>

This is my current xml and the vm starts, but it is a black screen in VNC. Any kind of help is highly appreciated. Thank you!

marcus-syslog-20240920-0515.zip marcus-diagnostics-20240920-1040.zip

SimonF · September 20, 2024

1 hour ago, mans_ said:

WSA - https://github.com/MustardChef/WSABuilds For WSA to work, nested VM is necessary along with intel igpu. The issue is I am successfully able to do only one at a time and not both together. That is, I am able to pass through igpu via sr-iov or access nested vm with hyper-v enabled in the vm but not both together. How do I accomplish to make both work together?

<?xml version='1.0' encoding='UTF-8'?>
<domain type='kvm'>
  <name>Windows 11_code</name>
  <uuid>966aae06-dea8-d7c4-7dc6-91d9b803b0fa</uuid>
  <metadata>
    <vmtemplate xmlns="unraid" name="Windows 11" icon="windows11.png" os="windowstpm"/>
  </metadata>
  <memory unit='KiB'>46661632</memory>
  <currentMemory unit='KiB'>46661632</currentMemory>
  <memoryBacking>
    <nosharepages/>
  </memoryBacking>
  <vcpu placement='static'>28</vcpu>
  <cputune>
    <vcpupin vcpu='0' cpuset='4'/>
    <vcpupin vcpu='1' cpuset='5'/>
    <vcpupin vcpu='2' cpuset='6'/>
    <vcpupin vcpu='3' cpuset='7'/>
    <vcpupin vcpu='4' cpuset='8'/>
    <vcpupin vcpu='5' cpuset='9'/>
    <vcpupin vcpu='6' cpuset='10'/>
    <vcpupin vcpu='7' cpuset='11'/>
    <vcpupin vcpu='8' cpuset='12'/>
    <vcpupin vcpu='9' cpuset='13'/>
    <vcpupin vcpu='10' cpuset='14'/>
    <vcpupin vcpu='11' cpuset='15'/>
    <vcpupin vcpu='12' cpuset='16'/>
    <vcpupin vcpu='13' cpuset='17'/>
    <vcpupin vcpu='14' cpuset='18'/>
    <vcpupin vcpu='15' cpuset='19'/>
    <vcpupin vcpu='16' cpuset='20'/>
    <vcpupin vcpu='17' cpuset='21'/>
    <vcpupin vcpu='18' cpuset='22'/>
    <vcpupin vcpu='19' cpuset='23'/>
    <vcpupin vcpu='20' cpuset='24'/>
    <vcpupin vcpu='21' cpuset='25'/>
    <vcpupin vcpu='22' cpuset='26'/>
    <vcpupin vcpu='23' cpuset='27'/>
    <vcpupin vcpu='24' cpuset='28'/>
    <vcpupin vcpu='25' cpuset='29'/>
    <vcpupin vcpu='26' cpuset='30'/>
    <vcpupin vcpu='27' cpuset='31'/>
  </cputune>
  <os>
    <type arch='x86_64' machine='pc-i440fx-7.2'>hvm</type>
    <loader readonly='yes' type='pflash'>/usr/share/qemu/ovmf-x64/OVMF_CODE-pure-efi-tpm.fd</loader>
    <nvram>/etc/libvirt/qemu/nvram/966aae06-dea8-d7c4-7dc6-91d9b803b0fa_VARS-pure-efi-tpm.fd</nvram>
  </os>
  <features>
    <acpi/>
    <apic/>
    <hyperv mode='custom'>
      <relaxed state='on'/>
      <vapic state='on'/>
      <spinlocks state='on' retries='8191'/>
      <vendor_id state='on' value='none'/>
    </hyperv>
  </features>
  <cpu mode='host-passthrough' check='none' migratable='on'>
    <topology sockets='1' dies='1' cores='14' threads='2'/>
    <cache mode='passthrough'/>
  </cpu>
  <clock offset='localtime'>
    <timer name='hypervclock' present='yes'/>
    <timer name='hpet' present='no'/>
  </clock>
  <on_poweroff>destroy</on_poweroff>
  <on_reboot>restart</on_reboot>
  <on_crash>restart</on_crash>
  <devices>
    <emulator>/usr/local/sbin/qemu</emulator>
    <disk type='file' device='disk'>
      <driver name='qemu' type='raw' cache='writeback'/>
      <source file='/mnt/exos/trackersexos/vms/Windows11_code/vdisk1.img'/>
      <target dev='hdc' bus='virtio'/>
      <serial>vdisk1</serial>
      <boot order='1'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x0c' function='0x0'/>
    </disk>
    <disk type='file' device='cdrom'>
      <driver name='qemu' type='raw'/>
      <source file='/mnt/exos/trackersexos/vms/isos/Win11_23H2_English_x64v2.iso'/>
      <target dev='hda' bus='sata'/>
      <readonly/>
      <address type='drive' controller='0' bus='0' target='0' unit='0'/>
    </disk>
    <disk type='file' device='cdrom'>
      <driver name='qemu' type='raw'/>
      <source file='/mnt/exos/trackersexos/vms/isos/virtio-win-0.1.248.iso'/>
      <target dev='hdb' bus='sata'/>
      <readonly/>
      <address type='drive' controller='0' bus='0' target='0' unit='1'/>
    </disk>
    <controller type='usb' index='0' model='ich9-ehci1'>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x07' function='0x7'/>
    </controller>
    <controller type='usb' index='0' model='ich9-uhci1'>
      <master startport='0'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x07' function='0x0' multifunction='on'/>
    </controller>
    <controller type='usb' index='0' model='ich9-uhci2'>
      <master startport='2'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x07' function='0x1'/>
    </controller>
    <controller type='usb' index='0' model='ich9-uhci3'>
      <master startport='4'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x07' function='0x2'/>
    </controller>
    <controller type='pci' index='0' model='pci-root'/>
    <controller type='pci' index='1' model='pci-bridge'>
      <model name='pci-bridge'/>
      <target chassisNr='1'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x02' function='0x0'/>
    </controller>
    <controller type='pci' index='2' model='pci-bridge'>
      <model name='pci-bridge'/>
      <target chassisNr='2'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x03' function='0x0'/>
    </controller>
    <controller type='pci' index='3' model='pci-bridge'>
      <model name='pci-bridge'/>
      <target chassisNr='3'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x04' function='0x0'/>
    </controller>
    <controller type='pci' index='4' model='pci-bridge'>
      <model name='pci-bridge'/>
      <target chassisNr='4'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x05' function='0x0'/>
    </controller>
    <controller type='pci' index='5' model='pci-bridge'>
      <model name='pci-bridge'/>
      <target chassisNr='5'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x06' function='0x0'/>
    </controller>
    <controller type='pci' index='6' model='pci-bridge'>
      <model name='pci-bridge'/>
      <target chassisNr='6'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x08' function='0x0'/>
    </controller>
    <controller type='sata' index='0'>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x0a' function='0x0'/>
    </controller>
    <controller type='virtio-serial' index='0'>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x0b' function='0x0'/>
    </controller>
    <interface type='bridge'>
      <mac address='52:54:00:60:7b:9f'/>
      <source bridge='br0'/>
      <model type='virtio-net'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x09' function='0x0'/>
    </interface>
    <serial type='pty'>
      <target type='isa-serial' port='0'>
        <model name='isa-serial'/>
      </target>
    </serial>
    <console type='pty'>
      <target type='serial' port='0'/>
    </console>
    <channel type='unix'>
      <target type='virtio' name='org.qemu.guest_agent.0'/>
      <address type='virtio-serial' controller='0' bus='0' port='1'/>
    </channel>
    <input type='tablet' bus='usb'>
      <address type='usb' bus='0' port='1'/>
    </input>
    <input type='mouse' bus='ps2'/>
    <input type='keyboard' bus='ps2'/>
    <tpm model='tpm-tis'>
      <backend type='emulator' version='2.0' persistent_state='yes'/>
    </tpm>
    <graphics type='vnc' port='-1' autoport='yes' websocket='-1' listen='0.0.0.0' keymap='en-us'>
      <listen type='address' address='0.0.0.0'/>
    </graphics>
    <audio id='1' type='none'/>
    <video>
      <model type='qxl' ram='65536' vram='65536' vgamem='16384' heads='1' primary='yes'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x1e' function='0x0'/>
    </video>
    <hostdev mode='subsystem' type='pci' managed='yes'>
      <driver name='vfio'/>
      <source>
        <address domain='0x0000' bus='0x00' slot='0x02' function='0x3'/>
      </source>
      <address type='pci' domain='0x0000' bus='0x06' slot='0x10' function='0x0'/>
    </hostdev>
    <memballoon model='none'/>
  </devices>
</domain>

This is my current xml and the vm starts, but it is a black screen in VNC. Any kind of help is highly appreciated. Thank you!

marcus-syslog-20240920-0515.zip 30.88 kB · 0 downloads marcus-diagnostics-20240920-1040.zip 194.32 kB · 0 downloads

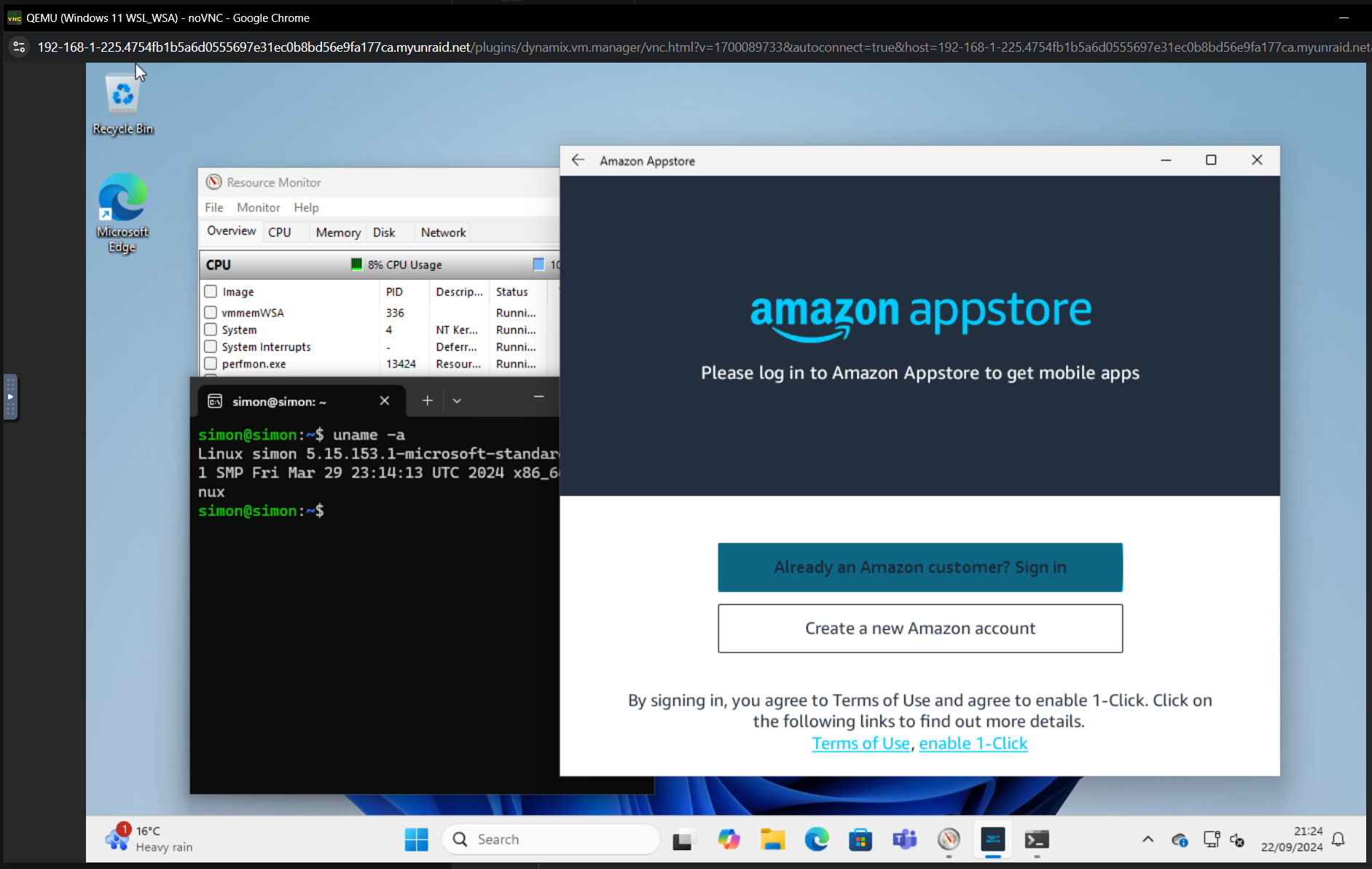

I use the following for my cpu settings to get WSL to work

<cpu mode='custom' match='exact' check='partial'>
<model fallback='allow'>Skylake-Client-noTSX-IBRS</model>
<topology sockets='1' dies='1' clusters='1' cores='4' threads='1'/>
<feature policy='disable' name='mpx'/>
<feature policy='disable' name='hypervisor'/>
<feature policy='require' name='vmx'/>
</cpu>

I believe that Andriod Subsystem needs to have the disk show as SSD rather than HDD.

This needs rotation rate adding to disk but is not support on a virtio bus, needs scsi/sata or ide.

rotation_rate='1'

mans_ · September 20, 2024

6 hours ago, SimonF said:

I use the following for my cpu settings to get WSL to work

<cpu mode='custom' match='exact' check='partial'>
<model fallback='allow'>Skylake-Client-noTSX-IBRS</model>
<topology sockets='1' dies='1' clusters='1' cores='4' threads='1'/>
<feature policy='disable' name='mpx'/>
<feature policy='disable' name='hypervisor'/>
<feature policy='require' name='vmx'/>
</cpu>

I believe that Andriod Subsystem needs to have the disk show as SSD rather than HDD.

This needs rotation rate adding to disk but is not support on a virtio bus, needs scsi/sata or ide.

rotation_rate='1'

Hi! But were you able to pass through intel igpu and get WSL working? I need help with this. WSA needs igpu, nested vm and ssd like you said to work. The error is in the syslog attached and I don't understand it. Like I said, I can only do either one but not both, which is the issue I am facing.

Sep 20 08:49:31 Marcus kernel: i915 0000:00:02.3: [drm] *ERROR* GT0: IOV: Unable to confirm version 1.4 (0000000000000000)
Sep 20 08:49:31 Marcus kernel: i915 0000:00:02.3: [drm] *ERROR* GT0: IOV: Found interface version 0.1.4.1

The above is the error I see in the syslog.

Edited September 20, 2024 by mans_

SimonF · September 20, 2024

16 minutes ago, mans_ said:

Hi! But were you able to pass through intel igpu and get WSL working? I need help with this. WSA needs igpu, nested vm and ssd like you said to work. The error is in the syslog attached and I don't understand it. Like I said, I can only do either one but not both, which is the issue I am facing.

It is difficult to get igpu to work unless you are using sriov in a VM. There was a recent post with a custom bios to use but not tried it.

So have not used igpu + wsl.

mans_ · September 20, 2024

1 minute ago, SimonF said:

It is difficult to get igpu to work unless you are using sriov in a VM. There was a recent post with a custom bios to use but not tried it.

So have not used igpu + wsl.

I am using SR-IOV from unraid CA applications and can successfully pass through igpu independently. But when I use nested VM features like "Virtual Machine Platform Enabled", "Windows Hypervisor Platform Enabled" in the same SR-IOV Windows VM then the VM does not boot and that error is in my previous post.

mans_ · September 20, 2024

10 hours ago, SimonF said:

I use the following for my cpu settings to get WSL to work

<cpu mode='custom' match='exact' check='partial'>
<model fallback='allow'>Skylake-Client-noTSX-IBRS</model>
<topology sockets='1' dies='1' clusters='1' cores='4' threads='1'/>
<feature policy='disable' name='mpx'/>
<feature policy='disable' name='hypervisor'/>
<feature policy='require' name='vmx'/>
</cpu>

I believe that Andriod Subsystem needs to have the disk show as SSD rather than HDD.

This needs rotation rate adding to disk but is not support on a virtio bus, needs scsi/sata or ide.

rotation_rate='1'

There's another issue which I am facing too and very annoying and pissing off.

<cpu mode='host-model' check='partial'>
    <model fallback='allow'>Broadwell-noTSX-IBRS</model>
    <topology sockets='1' dies='1' cores='28' threads='1'/>
    <feature policy='require' name='ss'/>
    <feature policy='require' name='vmx'/>
    <feature policy='require' name='hypervisor'/>
    <feature policy='require' name='tsc_adjust'/>
    <feature policy='require' name='clflushopt'/>
    <feature policy='require' name='clwb'/>
    <feature policy='require' name='sha-ni'/>
    <feature policy='require' name='umip'/>
    <feature policy='require' name='pku'/>
    <feature policy='require' name='waitpkg'/>
    <feature policy='require' name='gfni'/>
    <feature policy='require' name='vaes'/>
    <feature policy='require' name='vpclmulqdq'/>
    <feature policy='require' name='rdpid'/>
    <feature policy='require' name='movdiri'/>
    <feature policy='require' name='movdir64b'/>
    <feature policy='require' name='fsrm'/>
    <feature policy='require' name='md-clear'/>
    <feature policy='require' name='stibp'/>
    <feature policy='require' name='arch-capabilities'/>
    <feature policy='require' name='ssbd'/>
    <feature policy='require' name='avx-vnni'/>
    <feature policy='require' name='xsaves'/>
    <feature policy='require' name='pdpe1gb'/>
    <feature policy='require' name='ibpb'/>
    <feature policy='require' name='ibrs'/>
    <feature policy='require' name='amd-stibp'/>
    <feature policy='require' name='amd-ssbd'/>
    <feature policy='require' name='rdctl-no'/>
    <feature policy='require' name='ibrs-all'/>
    <feature policy='require' name='skip-l1dfl-vmentry'/>
    <feature policy='require' name='mds-no'/>
    <feature policy='require' name='pschange-mc-no'/>
    <feature policy='disable' name='hle'/>
    <feature policy='disable' name='rtm'/>
    <feature policy='disable' name='mpx'/>
  </cpu>

The above is my XML before starting the VM

Below is what it becomes after starting the VM, and it doesn't start the VM. I want all the above features but I believe that can happen only with model fallback "allow" but after staring the VM it turns to "forbid", no matter what. I have a 14900k. The only way I can turn on the VM is to choose qume64 from the GUI but vmx and other features are not enabled that way.

Below is what it becomes after starting the VM, and it doesn't start the VM.

<cpu mode='custom' match='exact' check='full'>
    <model fallback='forbid'>Skylake-Client-IBRS</model>
    <vendor>Intel</vendor>
    <topology sockets='1' dies='1' cores='28' threads='1'/>
    <feature policy='require' name='ss'/>
    <feature policy='require' name='vmx'/>
    <feature policy='require' name='hypervisor'/>
    <feature policy='require' name='tsc_adjust'/>
    <feature policy='require' name='clflushopt'/>
    <feature policy='require' name='clwb'/>
    <feature policy='require' name='sha-ni'/>
    <feature policy='require' name='umip'/>
    <feature policy='require' name='pku'/>
    <feature policy='require' name='waitpkg'/>
    <feature policy='require' name='gfni'/>
    <feature policy='require' name='vaes'/>
    <feature policy='require' name='vpclmulqdq'/>
    <feature policy='require' name='rdpid'/>
    <feature policy='require' name='movdiri'/>
    <feature policy='require' name='movdir64b'/>
    <feature policy='require' name='fsrm'/>
    <feature policy='require' name='md-clear'/>
    <feature policy='require' name='stibp'/>
    <feature policy='require' name='arch-capabilities'/>
    <feature policy='require' name='ssbd'/>
    <feature policy='require' name='avx-vnni'/>
    <feature policy='require' name='xsaves'/>
    <feature policy='require' name='pdpe1gb'/>
    <feature policy='require' name='ibpb'/>
    <feature policy='require' name='ibrs'/>
    <feature policy='require' name='amd-stibp'/>
    <feature policy='require' name='amd-ssbd'/>
    <feature policy='require' name='rdctl-no'/>
    <feature policy='require' name='ibrs-all'/>
    <feature policy='require' name='skip-l1dfl-vmentry'/>
    <feature policy='require' name='mds-no'/>
    <feature policy='require' name='pschange-mc-no'/>
    <feature policy='disable' name='hle'/>
    <feature policy='disable' name='rtm'/>
    <feature policy='disable' name='mpx'/>
  </cpu>

What I mean to say is when I first implemented the fallback=allow code. It automatically chose the features to enable and disable and all were listed. I am not able to make it work again.

<cpu>
<cpu mode='host-model' check='partial'>
   <model fallback='allow'/>
</cpu>

The above is the code I used the first time to enable fallback automatically and all features were enables automatically after starting VM via fallback "allow"

Edited September 20, 2024 by mans_

SimonF · September 20, 2024

30 minutes ago, mans_ said:

There's another issue which I am facing too and very annoying and pissing off.

<cpu mode='host-model' check='partial'>
    <model fallback='allow'>Broadwell-noTSX-IBRS</model>
    <topology sockets='1' dies='1' cores='28' threads='1'/>
    <feature policy='require' name='ss'/>
    <feature policy='require' name='vmx'/>
    <feature policy='require' name='hypervisor'/>
    <feature policy='require' name='tsc_adjust'/>
    <feature policy='require' name='clflushopt'/>
    <feature policy='require' name='clwb'/>
    <feature policy='require' name='sha-ni'/>
    <feature policy='require' name='umip'/>
    <feature policy='require' name='pku'/>
    <feature policy='require' name='waitpkg'/>
    <feature policy='require' name='gfni'/>
    <feature policy='require' name='vaes'/>
    <feature policy='require' name='vpclmulqdq'/>
    <feature policy='require' name='rdpid'/>
    <feature policy='require' name='movdiri'/>
    <feature policy='require' name='movdir64b'/>
    <feature policy='require' name='fsrm'/>
    <feature policy='require' name='md-clear'/>
    <feature policy='require' name='stibp'/>
    <feature policy='require' name='arch-capabilities'/>
    <feature policy='require' name='ssbd'/>
    <feature policy='require' name='avx-vnni'/>
    <feature policy='require' name='xsaves'/>
    <feature policy='require' name='pdpe1gb'/>
    <feature policy='require' name='ibpb'/>
    <feature policy='require' name='ibrs'/>
    <feature policy='require' name='amd-stibp'/>
    <feature policy='require' name='amd-ssbd'/>
    <feature policy='require' name='rdctl-no'/>
    <feature policy='require' name='ibrs-all'/>
    <feature policy='require' name='skip-l1dfl-vmentry'/>
    <feature policy='require' name='mds-no'/>
    <feature policy='require' name='pschange-mc-no'/>
    <feature policy='disable' name='hle'/>
    <feature policy='disable' name='rtm'/>
    <feature policy='disable' name='mpx'/>
  </cpu>

The above is my XML before starting the VM

Below is what it becomes after starting the VM, and it doesn't start the VM. I want all the above features but I believe that can happen only with model fallback "allow" but after staring the VM it turns to "forbid", no matter what. I have a 14900k. The only way I can turn on the VM is to choose qume64 from the GUI but vmx and other features are not enabled that way.

Below is what it becomes after starting the VM, and it doesn't start the VM.

<cpu mode='custom' match='exact' check='full'>
    <model fallback='forbid'>Skylake-Client-IBRS</model>
    <vendor>Intel</vendor>
    <topology sockets='1' dies='1' cores='28' threads='1'/>
    <feature policy='require' name='ss'/>
    <feature policy='require' name='vmx'/>
    <feature policy='require' name='hypervisor'/>
    <feature policy='require' name='tsc_adjust'/>
    <feature policy='require' name='clflushopt'/>
    <feature policy='require' name='clwb'/>
    <feature policy='require' name='sha-ni'/>
    <feature policy='require' name='umip'/>
    <feature policy='require' name='pku'/>
    <feature policy='require' name='waitpkg'/>
    <feature policy='require' name='gfni'/>
    <feature policy='require' name='vaes'/>
    <feature policy='require' name='vpclmulqdq'/>
    <feature policy='require' name='rdpid'/>
    <feature policy='require' name='movdiri'/>
    <feature policy='require' name='movdir64b'/>
    <feature policy='require' name='fsrm'/>
    <feature policy='require' name='md-clear'/>
    <feature policy='require' name='stibp'/>
    <feature policy='require' name='arch-capabilities'/>
    <feature policy='require' name='ssbd'/>
    <feature policy='require' name='avx-vnni'/>
    <feature policy='require' name='xsaves'/>
    <feature policy='require' name='pdpe1gb'/>
    <feature policy='require' name='ibpb'/>
    <feature policy='require' name='ibrs'/>
    <feature policy='require' name='amd-stibp'/>
    <feature policy='require' name='amd-ssbd'/>
    <feature policy='require' name='rdctl-no'/>
    <feature policy='require' name='ibrs-all'/>
    <feature policy='require' name='skip-l1dfl-vmentry'/>
    <feature policy='require' name='mds-no'/>
    <feature policy='require' name='pschange-mc-no'/>
    <feature policy='disable' name='hle'/>
    <feature policy='disable' name='rtm'/>
    <feature policy='disable' name='mpx'/>
  </cpu>

Can you post full xml and will try on my system.

mans_ · September 20, 2024

4 hours ago, SimonF said:

Can you post full xml and will try on my system.

Thank you so much for getting back. The below is the XML after VM is started.

<?xml version='1.0' encoding='UTF-8'?>
<domain type='kvm' id='24'>
  <name>Windows 11_code</name>
  <uuid>966aae06-dea8-d7c4-7dc6-91d9b803b0fa</uuid>
  <metadata>
    <vmtemplate xmlns="unraid" name="Windows 11" icon="windows11.png" os="windowstpm"/>
  </metadata>
  <memory unit='KiB'>46661632</memory>
  <currentMemory unit='KiB'>46661632</currentMemory>
  <memoryBacking>
    <nosharepages/>
  </memoryBacking>
  <vcpu placement='static'>28</vcpu>
  <cputune>
    <vcpupin vcpu='0' cpuset='4'/>
    <vcpupin vcpu='1' cpuset='5'/>
    <vcpupin vcpu='2' cpuset='6'/>
    <vcpupin vcpu='3' cpuset='7'/>
    <vcpupin vcpu='4' cpuset='8'/>
    <vcpupin vcpu='5' cpuset='9'/>
    <vcpupin vcpu='6' cpuset='10'/>
    <vcpupin vcpu='7' cpuset='11'/>
    <vcpupin vcpu='8' cpuset='12'/>
    <vcpupin vcpu='9' cpuset='13'/>
    <vcpupin vcpu='10' cpuset='14'/>
    <vcpupin vcpu='11' cpuset='15'/>
    <vcpupin vcpu='12' cpuset='16'/>
    <vcpupin vcpu='13' cpuset='17'/>
    <vcpupin vcpu='14' cpuset='18'/>
    <vcpupin vcpu='15' cpuset='19'/>
    <vcpupin vcpu='16' cpuset='20'/>
    <vcpupin vcpu='17' cpuset='21'/>
    <vcpupin vcpu='18' cpuset='22'/>
    <vcpupin vcpu='19' cpuset='23'/>
    <vcpupin vcpu='20' cpuset='24'/>
    <vcpupin vcpu='21' cpuset='25'/>
    <vcpupin vcpu='22' cpuset='26'/>
    <vcpupin vcpu='23' cpuset='27'/>
    <vcpupin vcpu='24' cpuset='28'/>
    <vcpupin vcpu='25' cpuset='29'/>
    <vcpupin vcpu='26' cpuset='30'/>
    <vcpupin vcpu='27' cpuset='31'/>
  </cputune>
  <resource>
    <partition>/machine</partition>
  </resource>
  <os>
    <type arch='x86_64' machine='pc-i440fx-7.2'>hvm</type>
    <loader readonly='yes' type='pflash'>/usr/share/qemu/ovmf-x64/OVMF_CODE-pure-efi-tpm.fd</loader>
    <nvram>/etc/libvirt/qemu/nvram/966aae06-dea8-d7c4-7dc6-91d9b803b0fa_VARS-pure-efi-tpm.fd</nvram>
  </os>
  <features>
    <acpi/>
    <apic/>
    <hyperv mode='custom'>
      <relaxed state='on'/>
      <vapic state='on'/>
      <spinlocks state='on' retries='8191'/>
      <vendor_id state='on' value='none'/>
    </hyperv>
  </features>
  <cpu mode='custom' match='exact' check='full'>
    <model fallback='forbid'>qemu64</model>
    <topology sockets='1' dies='1' cores='28' threads='1'/>
    <feature policy='require' name='x2apic'/>
    <feature policy='require' name='hypervisor'/>
    <feature policy='require' name='lahf_lm'/>
    <feature policy='disable' name='svm'/>
  </cpu>
  <clock offset='localtime'>
    <timer name='hypervclock' present='yes'/>
    <timer name='hpet' present='no'/>
  </clock>
  <on_poweroff>destroy</on_poweroff>
  <on_reboot>restart</on_reboot>
  <on_crash>restart</on_crash>
  <devices>
    <emulator>/usr/local/sbin/qemu</emulator>
    <disk type='file' device='disk'>
      <driver name='qemu' type='raw' cache='writeback'/>
      <source file='/mnt/exos/trackersexos/vms/Windows11_code/vdisk1.img' index='3'/>
      <backingStore/>
      <target dev='hdc' bus='virtio'/>
      <serial>vdisk1</serial>
      <boot order='1'/>
      <alias name='virtio-disk2'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x0c' function='0x0'/>
    </disk>
    <disk type='file' device='cdrom'>
      <driver name='qemu' type='raw'/>
      <source file='/mnt/exos/trackersexos/vms/isos/Win11_23H2_English_x64v2.iso' index='2'/>
      <backingStore/>
      <target dev='hda' bus='sata'/>
      <readonly/>
      <alias name='sata0-0-0'/>
      <address type='drive' controller='0' bus='0' target='0' unit='0'/>
    </disk>
    <disk type='file' device='cdrom'>
      <driver name='qemu' type='raw'/>
      <source file='/mnt/exos/trackersexos/vms/isos/virtio-win-0.1.248.iso' index='1'/>
      <backingStore/>
      <target dev='hdb' bus='sata'/>
      <readonly/>
      <alias name='sata0-0-1'/>
      <address type='drive' controller='0' bus='0' target='0' unit='1'/>
    </disk>
    <controller type='pci' index='0' model='pci-root'>
      <alias name='pci.0'/>
    </controller>
    <controller type='pci' index='1' model='pci-bridge'>
      <model name='pci-bridge'/>
      <target chassisNr='1'/>
      <alias name='pci.1'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x02' function='0x0'/>
    </controller>
    <controller type='pci' index='2' model='pci-bridge'>
      <model name='pci-bridge'/>
      <target chassisNr='2'/>
      <alias name='pci.2'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x03' function='0x0'/>
    </controller>
    <controller type='pci' index='3' model='pci-bridge'>
      <model name='pci-bridge'/>
      <target chassisNr='3'/>
      <alias name='pci.3'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x04' function='0x0'/>
    </controller>
    <controller type='pci' index='4' model='pci-bridge'>
      <model name='pci-bridge'/>
      <target chassisNr='4'/>
      <alias name='pci.4'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x05' function='0x0'/>
    </controller>
    <controller type='pci' index='5' model='pci-bridge'>
      <model name='pci-bridge'/>
      <target chassisNr='5'/>
      <alias name='pci.5'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x06' function='0x0'/>
    </controller>
    <controller type='pci' index='6' model='pci-bridge'>
      <model name='pci-bridge'/>
      <target chassisNr='6'/>
      <alias name='pci.6'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x08' function='0x0'/>
    </controller>
    <controller type='sata' index='0'>
      <alias name='sata0'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x0a' function='0x0'/>
    </controller>
    <controller type='virtio-serial' index='0'>
      <alias name='virtio-serial0'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x0b' function='0x0'/>
    </controller>
    <controller type='usb' index='0' model='ich9-ehci1'>
      <alias name='usb'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x07' function='0x7'/>
    </controller>
    <controller type='usb' index='0' model='ich9-uhci1'>
      <alias name='usb'/>
      <master startport='0'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x07' function='0x0' multifunction='on'/>
    </controller>
    <controller type='usb' index='0' model='ich9-uhci2'>
      <alias name='usb'/>
      <master startport='2'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x07' function='0x1'/>
    </controller>
    <controller type='usb' index='0' model='ich9-uhci3'>
      <alias name='usb'/>
      <master startport='4'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x07' function='0x2'/>
    </controller>
    <interface type='bridge'>
      <mac address='52:54:00:60:7b:9f'/>
      <source bridge='br0'/>
      <target dev='vnet20'/>
      <model type='virtio-net'/>
      <alias name='net0'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x09' function='0x0'/>
    </interface>
    <serial type='pty'>
      <source path='/dev/pts/1'/>
      <target type='isa-serial' port='0'>
        <model name='isa-serial'/>
      </target>
      <alias name='serial0'/>
    </serial>
    <console type='pty' tty='/dev/pts/1'>
      <source path='/dev/pts/1'/>
      <target type='serial' port='0'/>
      <alias name='serial0'/>
    </console>
    <channel type='unix'>
      <source mode='bind' path='/var/lib/libvirt/qemu/channel/target/domain-24-Windows 11_code/org.qemu.guest_agent.0'/>
      <target type='virtio' name='org.qemu.guest_agent.0' state='disconnected'/>
      <alias name='channel0'/>
      <address type='virtio-serial' controller='0' bus='0' port='1'/>
    </channel>
    <input type='tablet' bus='usb'>
      <alias name='input0'/>
      <address type='usb' bus='0' port='1'/>
    </input>
    <input type='mouse' bus='ps2'>
      <alias name='input1'/>
    </input>
    <input type='keyboard' bus='ps2'>
      <alias name='input2'/>
    </input>
    <tpm model='tpm-tis'>
      <backend type='emulator' version='2.0' persistent_state='yes'/>
      <alias name='tpm0'/>
    </tpm>
    <graphics type='vnc' port='5900' autoport='yes' websocket='5700' listen='0.0.0.0' keymap='en-us'>
      <listen type='address' address='0.0.0.0'/>
    </graphics>
    <audio id='1' type='none'/>
    <video>
      <model type='qxl' ram='65536' vram='65536' vgamem='16384' heads='1' primary='yes'/>
      <alias name='video0'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x1e' function='0x0'/>
    </video>
    <memballoon model='virtio'>
      <alias name='balloon0'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x0d' function='0x0'/>
    </memballoon>
  </devices>
  <seclabel type='dynamic' model='dac' relabel='yes'>
    <label>+0:+100</label>
    <imagelabel>+0:+100</imagelabel>
  </seclabel>
</domain>

And below is XML before VM started.

<?xml version='1.0' encoding='UTF-8'?>
<domain type='kvm'>
  <name>Windows 11_code</name>
  <uuid>966aae06-dea8-d7c4-7dc6-91d9b803b0fa</uuid>
  <metadata>
    <vmtemplate xmlns="unraid" name="Windows 11" icon="windows11.png" os="windowstpm"/>
  </metadata>
  <memory unit='KiB'>46661632</memory>
  <currentMemory unit='KiB'>46661632</currentMemory>
  <memoryBacking>
    <nosharepages/>
  </memoryBacking>
  <vcpu placement='static'>28</vcpu>
  <cputune>
    <vcpupin vcpu='0' cpuset='4'/>
    <vcpupin vcpu='1' cpuset='5'/>
    <vcpupin vcpu='2' cpuset='6'/>
    <vcpupin vcpu='3' cpuset='7'/>
    <vcpupin vcpu='4' cpuset='8'/>
    <vcpupin vcpu='5' cpuset='9'/>
    <vcpupin vcpu='6' cpuset='10'/>
    <vcpupin vcpu='7' cpuset='11'/>
    <vcpupin vcpu='8' cpuset='12'/>
    <vcpupin vcpu='9' cpuset='13'/>
    <vcpupin vcpu='10' cpuset='14'/>
    <vcpupin vcpu='11' cpuset='15'/>
    <vcpupin vcpu='12' cpuset='16'/>
    <vcpupin vcpu='13' cpuset='17'/>
    <vcpupin vcpu='14' cpuset='18'/>
    <vcpupin vcpu='15' cpuset='19'/>
    <vcpupin vcpu='16' cpuset='20'/>
    <vcpupin vcpu='17' cpuset='21'/>
    <vcpupin vcpu='18' cpuset='22'/>
    <vcpupin vcpu='19' cpuset='23'/>
    <vcpupin vcpu='20' cpuset='24'/>
    <vcpupin vcpu='21' cpuset='25'/>
    <vcpupin vcpu='22' cpuset='26'/>
    <vcpupin vcpu='23' cpuset='27'/>
    <vcpupin vcpu='24' cpuset='28'/>
    <vcpupin vcpu='25' cpuset='29'/>
    <vcpupin vcpu='26' cpuset='30'/>
    <vcpupin vcpu='27' cpuset='31'/>
  </cputune>
  <os>
    <type arch='x86_64' machine='pc-i440fx-7.2'>hvm</type>
    <loader readonly='yes' type='pflash'>/usr/share/qemu/ovmf-x64/OVMF_CODE-pure-efi-tpm.fd</loader>
    <nvram>/etc/libvirt/qemu/nvram/966aae06-dea8-d7c4-7dc6-91d9b803b0fa_VARS-pure-efi-tpm.fd</nvram>
  </os>
  <features>
    <acpi/>
    <apic/>
    <hyperv mode='custom'>
      <relaxed state='on'/>
      <vapic state='on'/>
      <spinlocks state='on' retries='8191'/>
      <vendor_id state='on' value='none'/>
    </hyperv>
  </features>
  <cpu mode='custom' match='exact' check='none'>
    <model fallback='forbid'>qemu64</model>
    <topology sockets='1' dies='1' cores='28' threads='1'/>
  </cpu>
  <clock offset='localtime'>
    <timer name='hypervclock' present='yes'/>
    <timer name='hpet' present='no'/>
  </clock>
  <on_poweroff>destroy</on_poweroff>
  <on_reboot>restart</on_reboot>
  <on_crash>restart</on_crash>
  <devices>
    <emulator>/usr/local/sbin/qemu</emulator>
    <disk type='file' device='disk'>
      <driver name='qemu' type='raw' cache='writeback'/>
      <source file='/mnt/exos/trackersexos/vms/Windows11_code/vdisk1.img'/>
      <target dev='hdc' bus='virtio'/>
      <serial>vdisk1</serial>
      <boot order='1'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x0c' function='0x0'/>
    </disk>
    <disk type='file' device='cdrom'>
      <driver name='qemu' type='raw'/>
      <source file='/mnt/exos/trackersexos/vms/isos/Win11_23H2_English_x64v2.iso'/>
      <target dev='hda' bus='sata'/>
      <readonly/>
      <address type='drive' controller='0' bus='0' target='0' unit='0'/>
    </disk>
    <disk type='file' device='cdrom'>
      <driver name='qemu' type='raw'/>
      <source file='/mnt/exos/trackersexos/vms/isos/virtio-win-0.1.248.iso'/>
      <target dev='hdb' bus='sata'/>
      <readonly/>
      <address type='drive' controller='0' bus='0' target='0' unit='1'/>
    </disk>
    <controller type='pci' index='0' model='pci-root'/>
    <controller type='pci' index='1' model='pci-bridge'>
      <model name='pci-bridge'/>
      <target chassisNr='1'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x02' function='0x0'/>
    </controller>
    <controller type='pci' index='2' model='pci-bridge'>
      <model name='pci-bridge'/>
      <target chassisNr='2'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x03' function='0x0'/>
    </controller>
    <controller type='pci' index='3' model='pci-bridge'>
      <model name='pci-bridge'/>
      <target chassisNr='3'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x04' function='0x0'/>
    </controller>
    <controller type='pci' index='4' model='pci-bridge'>
      <model name='pci-bridge'/>
      <target chassisNr='4'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x05' function='0x0'/>
    </controller>
    <controller type='pci' index='5' model='pci-bridge'>
      <model name='pci-bridge'/>
      <target chassisNr='5'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x06' function='0x0'/>
    </controller>
    <controller type='pci' index='6' model='pci-bridge'>
      <model name='pci-bridge'/>
      <target chassisNr='6'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x08' function='0x0'/>
    </controller>
    <controller type='sata' index='0'>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x0a' function='0x0'/>
    </controller>
    <controller type='virtio-serial' index='0'>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x0b' function='0x0'/>
    </controller>
    <controller type='usb' index='0' model='ich9-ehci1'>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x07' function='0x7'/>
    </controller>
    <controller type='usb' index='0' model='ich9-uhci1'>
      <master startport='0'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x07' function='0x0' multifunction='on'/>
    </controller>
    <controller type='usb' index='0' model='ich9-uhci2'>
      <master startport='2'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x07' function='0x1'/>
    </controller>
    <controller type='usb' index='0' model='ich9-uhci3'>
      <master startport='4'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x07' function='0x2'/>
    </controller>
    <interface type='bridge'>
      <mac address='52:54:00:60:7b:9f'/>
      <source bridge='br0'/>
      <model type='virtio-net'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x09' function='0x0'/>
    </interface>
    <serial type='pty'>
      <target type='isa-serial' port='0'>
        <model name='isa-serial'/>
      </target>
    </serial>
    <console type='pty'>
      <target type='serial' port='0'/>
    </console>
    <channel type='unix'>
      <target type='virtio' name='org.qemu.guest_agent.0'/>
      <address type='virtio-serial' controller='0' bus='0' port='1'/>
    </channel>
    <input type='tablet' bus='usb'>
      <address type='usb' bus='0' port='1'/>
    </input>
    <input type='mouse' bus='ps2'/>
    <input type='keyboard' bus='ps2'/>
    <tpm model='tpm-tis'>
      <backend type='emulator' version='2.0' persistent_state='yes'/>
    </tpm>
    <graphics type='vnc' port='-1' autoport='yes' websocket='-1' listen='0.0.0.0' keymap='en-us'>
      <listen type='address' address='0.0.0.0'/>
    </graphics>
    <audio id='1' type='none'/>
    <video>
      <model type='qxl' ram='65536' vram='65536' vgamem='16384' heads='1' primary='yes'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x1e' function='0x0'/>
    </video>
    <memballoon model='virtio'>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x0d' function='0x0'/>
    </memballoon>
  </devices>
</domain>

What I am trying to achive here is enable and disbale cpu features automatically. I did this by using below XML. First, my VM did not start because I enabled hyperv in the VM. I used the below code and cpu features were enabled and disbled automatically after running VM. I switched to GUI and tried to pass through igpu and after that it was never enabling and disbaling cpu features automatically. I am trying to replicate that and it is never happening again.

What I mean by "enable and disbale cpu features automatically" is when model fallback is allow it automatically chooses features, below is the code that worked.

<cpu>
<cpu mode='host-model' check='partial'>
   <model fallback='allow'/>
</cpu>

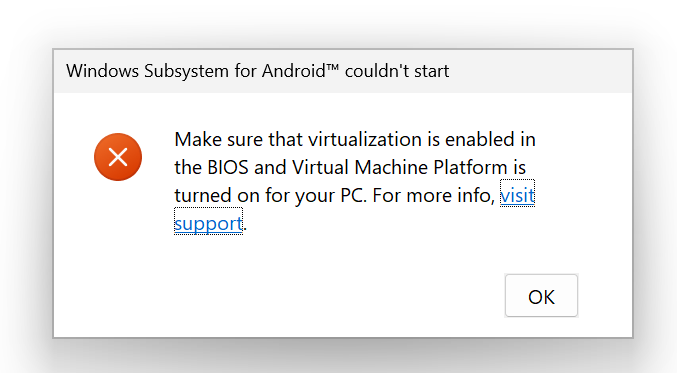

The issue is, please view the attached image. Just because vmx and other options are not enabled in the XML its not working.

At this point, I am just trying to enable vmx and other options to successfully do nested VM. WSA dev on discord said without passing igpu it may work, and there are chances for my rig.

Edited September 20, 2024 by mans_

mans_ · September 22, 2024

Hi @SimonF, did you get time to look into this?

SimonF · September 22, 2024

47 minutes ago, mans_ said:

Hi @SimonF, did you get time to look into this?

Can you confirm which features you are trying to add to the vm?

mans_ · September 22, 2024

1 hour ago, SimonF said:

Can you confirm which features you are trying to add to the vm?

Whichever feature that is necessary for nested VM. I know vmx is one of them

SimonF · September 22, 2024

3 hours ago, mans_ said:

Whichever feature that is necessary for nested VM. I know vmx is one of them

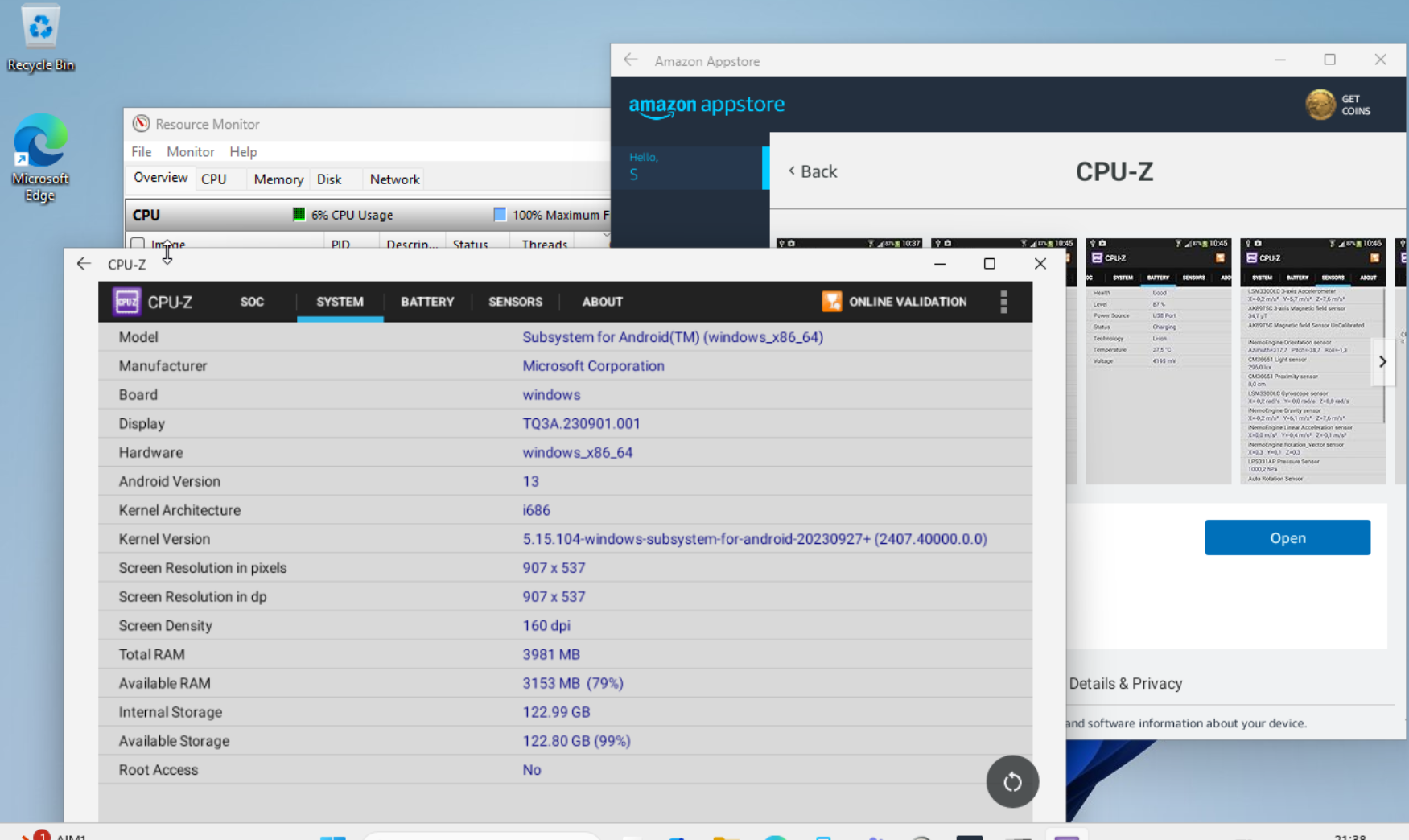

I have WSL2 and Amazon App Store running in W11. Is this what you are looking for? I dont have any physical GPU passed thru just virtual.

This is the XML

  <features>
    <acpi/>
    <apic/>
    <hyperv mode='custom'>
      <relaxed state='on'/>
      <vapic state='on'/>
      <spinlocks state='on' retries='8191'/>
      <vpindex state='on'/>
      <synic state='on'/>
      <stimer state='on'/>
      <vendor_id state='on' value='none'/>
    </hyperv>
  </features>
  <cpu mode='custom' match='exact' check='partial'>
    <model fallback='allow'>Skylake-Client-noTSX-IBRS</model>
    <topology sockets='1' dies='1' clusters='1' cores='4' threads='1'/>
    <feature policy='disable' name='mpx'/>
    <feature policy='disable' name='hypervisor'/>
    <feature policy='require' name='vmx'/>
  </cpu>
  <clock offset='localtime'>
    <timer name='hpet' present='no'/>
    <timer name='hypervclock' present='yes'/>
  </clock>

Issues making Windows Subsystem Android (WSA) work with Unraid

Recommended Posts

mans_

SimonF

mans_

SimonF

mans_

mans_

SimonF

mans_

mans_

SimonF

mans_

SimonF

Join the conversation
