When I hit the cname ha.mydomain.com, I immediately get this.

2024-10-11 16:39:21.730 ERROR (MainThread) [homeassistant.components.http.forwarded] A request from a reverse proxy was received from 172.18.0.1, but your HTTP integration is not set-up for reverse proxies



I think I need to tell the docker, homeassistant, that it's being reverse proxied and it's okay little docker.



That file, /mnt/user/appdata/configuration.yaml

# Loads default set of integrations. Do not remove.
default_config:

# Load frontend themes from the themes folder
frontend:
  themes: !include_dir_merge_named themes

automation: !include automations.yaml
script: !include scripts.yaml
scene: !include scenes.yaml



Doesn't quite feel like the right place to put the "allow proxy" stuff.



Any pointers? thanks!

You need to add this



http:
  # For extra security set this to only accept connections on localhost if NGINX is on the same machine
  # Uncommenting this will mean that you can only reach Home Assistant using the proxy, not directly via IP from other clients.
  # server_host: 127.0.0.1
  use_x_forwarded_for: true
  # You must set the trusted proxy IP address so that Home Assistant will properly accept connections
  # Set this to your NGINX machine IP, or localhost if hosted on the same machine.
  trusted_proxies: <NGINX IP address here, or 127.0.0.1 if hosted on the same machine>



Have a look here : https://community.home-assistant.io/t/reverse-proxy-using-nginx/196954

That definitely did something. My homeassistant unraid docker log is now empty. Now I'm getting a 530 error when I hit the url.



cname setup in cloudflare pointing to my duckdns account. Works swimmingly for other services.







contents of /mnt/user/appdata/homeassistant/configuration.yaml

# Loads default set of integrations. Do not remove.
default_config:

# Load frontend themes from the themes folder
frontend:
  themes: !include_dir_merge_named themes

automation: !include automations.yaml
script: !include scripts.yaml
scene: !include scenes.yaml


#10/12/2024 to get this to work with reverse-proxy NPM on unraid
http:
  # For extra security set this to only accept connections on localhost if NGINX is on the same machine
  # Uncommenting this will mean that you can only reach Home Assistant using the proxy, not directly via IP from other clients.
  server_host: 127.0.0.1
  use_x_forwarded_for: true
  # You must set the trusted proxy IP address so that Home Assistant will properly accept connections
  # Set this to your NGINX machine IP, or localhost if hosted on the same machine.
  trusted_proxies: 192.168.11.2

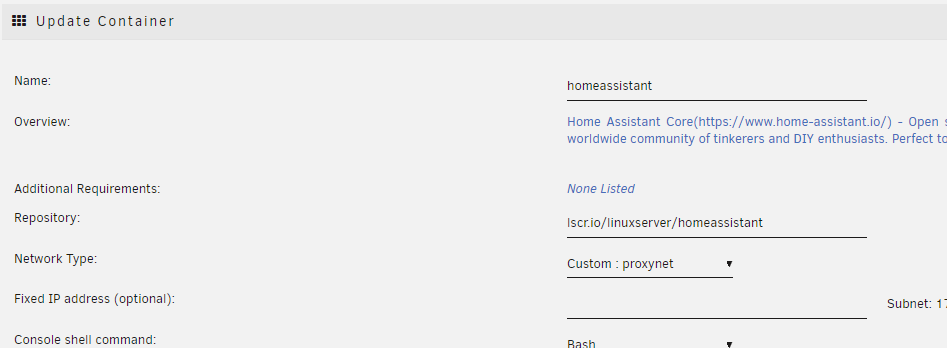

The docker settings, I do have it setup under "proxynet" for a different Network like this:

I tried changing the Network Type: back to Bridge, no changes to the 502 error.



Maybe that has something to do with this? I tried slapping some different ip addresses into the trusted_proxies: field, and got many errors. Looks like either 127.0.0.1, or 192.168.11.2 (ip of server) both work in there.



When I change trusted_proxies: 127.0.0.1

Setting permissions
[custom-init] No custom files found, skipping...
[ls.io-init] done.



 to trusted_proxies: 192.168.11.2

Setting permissions
[custom-init] No custom files found, skipping...
Connection to localhost (127.0.0.1) 8123 port [tcp/*] succeeded!
[ls.io-init] done.

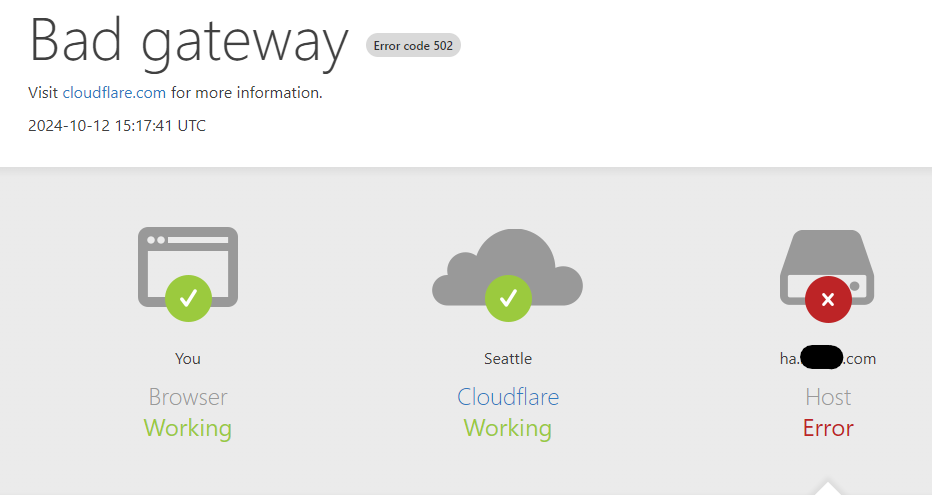

So that's slightly different. But after dinking with all of those, I'm still getting the 502 Bad Gateway error above.



So: progress, but still stuck.

Is 192.168.11.2 your unraid server IP ?

Edited October 15, 20241 yr by deadnote

27 minutes ago, deadnote said:

Does 192.168.11.2 is your unraid server IP ?

Correct. Server static ip is 192.168.11.2

Both NPM and Homeassistant are on custom network "proxynet"
