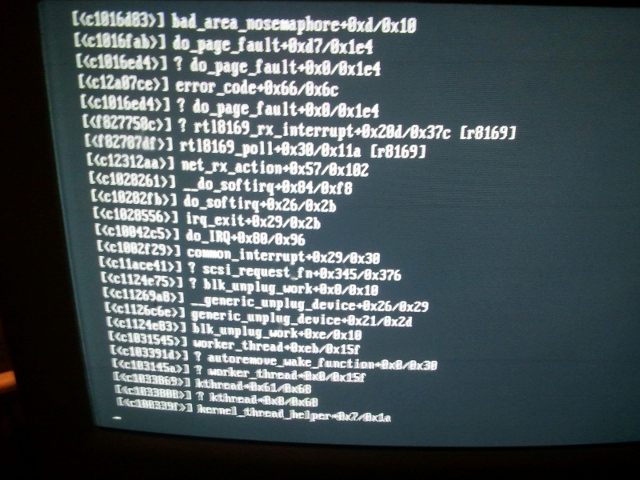

February 26, 201214 yr Hello - Up until yesterday, I've been running 4.7 Basic with 1 2TB parity drive and 1 2TB data drive. Yesterday I added a plus license and 4 more drives - 1 2TB, 1 500G, 1 640G, and 1 500G cache. They had been precleared and added to the array without issue. I thought I'd do a parity check before anything else, and about 5 minutes into the check, I lost access to the server. A visit to the console had the attached error. I rebooted, and the automatic parity check (since the array hadn't been shut down right) did the same thing. So I've cancelled the automatic parity check and I'm just holding my breath for now. I don't even know where to start? I tried to look at the syslog, but it only seemed to be there from the most recent boot - nothing prior. I was thinking I'd remove several of the disks and parity check one at a time, but there has to be another way. And I'm not sure what would happen if I remove all the disks anyway. I'd appreciate any tips or pointers in the right direction.
February 27, 201214 yr Author So after I posted this, I saw a recent similar thread. I've run a long smart test on all of the new drives, and I don't see anything out of place. I can post the logs if somebody wants to see them. hardware specs: MB - BIOSTAR A870U3 AM3 AMD 870 SATA 6Gb/s USB 3.0 ATX AMD Motherboard - http://www.newegg.com/Product/Product.aspx?Item=N82E16813138318 CPU - AMD Athlon II X2 260 Regor 3.2GHz - http://www.newegg.com/Product/Product.aspx?Item=N82E16819103873 RAM - Kingston HyperX Blu 4GB - http://www.newegg.com/Product/Product.aspx?Item=N82E16820104221 PSU - Corsair CX600 - http://www.newegg.com/Product/Product.aspx?Item=N82E16817139028 Parity - HITACHI Deskstar 5K3000 HDS5C3020ALA632 disk 1 - WD wd20ears newly added disks: disk 2 - seagate st2000dl003 disk 3 - WD wd5000aacs disk 4 - WD wd6400aads disk 5 (cache) - wd5000aads any tips?
February 27, 201214 yr Author So based on the "other" parity freeze thread, it looks like I should try a parity check with each of the new disks individually instead of all at once. Am I correct that if I remove the disks from the array, I'll have to pre-clear them again before adding them back?
February 27, 201214 yr So based on the "other" parity freeze thread, it looks like I should try a parity check with each of the new disks individually instead of all at once.That is not possible Am I correct that if I remove the disks from the array, I'll have to pre-clear them again before adding them back? Also not true... If you set a new disk configuration, the old data stays.. (but you immediately lose any prior parity calculation, so it must be re-calculated)
February 27, 201214 yr Author I know I can't pick what drives to parity check - what I mean is - remove 3 of the 4 "new" disks from the array, then run parity. Rinse & repeat for each of the 4 new drives. So my parity checks would be a long sequence of existing parity, existing drive1, new drive2 existing parity, existing drive1, new drive3 existing parity, existing drive1, new drive4 existing parity, existing drive1, new cache drive They new drives are all showing empty in unmenu - so there's no data to save. Do you think this sequence is a worthwhile endeavor? Can I remove 3 (empty) drives and start the array without them to try this? Does it matter at all that the existing drives are not 4k aligned, but the new drives are?
February 27, 201214 yr Author disk2: Statistics for /dev/sdf ST2000DL003-9VT1_5YD3Y73T smartctl -a -d ata /dev/sdf smartctl 5.39.1 2010-01-28 r3054 [i486-slackware-linux-gnu] (local build) Copyright (C) 2002-10 by Bruce Allen, http://smartmontools.sourceforge.net === START OF INFORMATION SECTION === Device Model: ST2000DL003-9VT166 Serial Number: 5YD3Y73T Firmware Version: CC32 User Capacity: 2,000,398,934,016 bytes Device is: Not in smartctl database [for details use: -P showall] ATA Version is: 8 ATA Standard is: ATA-8-ACS revision 4 Local Time is: Mon Feb 27 11:47:34 2012 CST SMART support is: Available - device has SMART capability. SMART support is: Enabled === START OF READ SMART DATA SECTION === SMART overall-health self-assessment test result: PASSED General SMART Values: Offline data collection status: (0x82) Offline data collection activity was completed without error. Auto Offline Data Collection: Enabled. Self-test execution status: ( 0) The previous self-test routine completed without error or no self-test has ever been run. Total time to complete Offline data collection: ( 612) seconds. Offline data collection capabilities: (0x7b) SMART execute Offline immediate. Auto Offline data collection on/off support. Suspend Offline collection upon new command. Offline surface scan supported. Self-test supported. Conveyance Self-test supported. Selective Self-test supported. SMART capabilities: (0x0003) Saves SMART data before entering power-saving mode. Supports SMART auto save timer. Error logging capability: (0x01) Error logging supported. General Purpose Logging supported. Short self-test routine recommended polling time: ( 1) minutes. Extended self-test routine recommended polling time: ( 255) minutes. Conveyance self-test routine recommended polling time: ( 2) minutes. SCT capabilities: (0x30b7) SCT Status supported. SCT Feature Control supported. SCT Data Table supported. SMART Attributes Data Structure revision number: 10 Vendor Specific SMART Attributes with Thresholds: ID# ATTRIBUTE_NAME FLAG VALUE WORST THRESH TYPE UPDATED WHEN_FAILED RAW_VALUE 1 Raw_Read_Error_Rate 0x000f 118 100 006 Pre-fail Always - 194361344 3 Spin_Up_Time 0x0003 093 092 000 Pre-fail Always - 0 4 Start_Stop_Count 0x0032 100 100 020 Old_age Always - 16 5 Reallocated_Sector_Ct 0x0033 100 100 036 Pre-fail Always - 0 7 Seek_Error_Rate 0x000f 100 253 030 Pre-fail Always - 518430 9 Power_On_Hours 0x0032 098 098 000 Old_age Always - 2191 10 Spin_Retry_Count 0x0013 100 100 097 Pre-fail Always - 0 12 Power_Cycle_Count 0x0032 100 100 020 Old_age Always - 11 183 Runtime_Bad_Block 0x0032 100 100 000 Old_age Always - 0 184 End-to-End_Error 0x0032 100 100 099 Old_age Always - 0 187 Reported_Uncorrect 0x0032 100 100 000 Old_age Always - 0 188 Command_Timeout 0x0032 100 100 000 Old_age Always - 0 189 High_Fly_Writes 0x003a 100 100 000 Old_age Always - 0 190 Airflow_Temperature_Cel 0x0022 080 074 045 Old_age Always - 20 (Lifetime Min/Max 6/22) 191 G-Sense_Error_Rate 0x0032 100 100 000 Old_age Always - 0 192 Power-Off_Retract_Count 0x0032 100 100 000 Old_age Always - 9 193 Load_Cycle_Count 0x0032 100 100 000 Old_age Always - 16 194 Temperature_Celsius 0x0022 020 040 000 Old_age Always - 20 (0 6 0 0) 195 Hardware_ECC_Recovered 0x001a 022 022 000 Old_age Always - 194361344 197 Current_Pending_Sector 0x0012 100 100 000 Old_age Always - 0 198 Offline_Uncorrectable 0x0010 100 100 000 Old_age Offline - 0 199 UDMA_CRC_Error_Count 0x003e 200 200 000 Old_age Always - 0 240 Head_Flying_Hours 0x0000 100 253 000 Old_age Offline - 142386755798909 241 Total_LBAs_Written 0x0000 100 253 000 Old_age Offline - 3444462215 242 Total_LBAs_Read 0x0000 100 253 000 Old_age Offline - 4022193937 SMART Error Log Version: 1 No Errors Logged SMART Self-test log structure revision number 1 Num Test_Description Status Remaining LifeTime(hours) LBA_of_first_error # 1 Extended offline Completed without error 00% 2181 - SMART Selective self-test log data structure revision number 1 SPAN MIN_LBA MAX_LBA CURRENT_TEST_STATUS 1 0 0 Not_testing 2 0 0 Not_testing 3 0 0 Not_testing 4 0 0 Not_testing 5 0 0 Not_testing Selective self-test flags (0x0): After scanning selected spans, do NOT read-scan remainder of disk. If Selective self-test is pending on power-up, resume after 0 minute delay. disk3: Statistics for /dev/sdd WDC_WD5000AACS-0_WD-WCASU2872293 smartctl -a -d ata /dev/sdd smartctl 5.39.1 2010-01-28 r3054 [i486-slackware-linux-gnu] (local build) Copyright (C) 2002-10 by Bruce Allen, http://smartmontools.sourceforge.net === START OF INFORMATION SECTION === Model Family: Western Digital Caviar Green family Device Model: WDC WD5000AACS-00ZUB0 Serial Number: WD-WCASU2872293 Firmware Version: 01.01B01 User Capacity: 500,107,862,016 bytes Device is: In smartctl database [for details use: -P show] ATA Version is: 8 ATA Standard is: Exact ATA specification draft version not indicated Local Time is: Mon Feb 27 11:48:55 2012 CST SMART support is: Available - device has SMART capability. SMART support is: Enabled === START OF READ SMART DATA SECTION === SMART overall-health self-assessment test result: PASSED General SMART Values: Offline data collection status: (0x84) Offline data collection activity was suspended by an interrupting command from host. Auto Offline Data Collection: Enabled. Self-test execution status: ( 0) The previous self-test routine completed without error or no self-test has ever been run. Total time to complete Offline data collection: (12780) seconds. Offline data collection capabilities: (0x7b) SMART execute Offline immediate. Auto Offline data collection on/off support. Suspend Offline collection upon new command. Offline surface scan supported. Self-test supported. Conveyance Self-test supported. Selective Self-test supported. SMART capabilities: (0x0003) Saves SMART data before entering power-saving mode. Supports SMART auto save timer. Error logging capability: (0x01) Error logging supported. General Purpose Logging supported. Short self-test routine recommended polling time: ( 2) minutes. Extended self-test routine recommended polling time: ( 149) minutes. Conveyance self-test routine recommended polling time: ( 5) minutes. SCT capabilities: (0x303f) SCT Status supported. SCT Feature Control supported. SCT Data Table supported. SMART Attributes Data Structure revision number: 16 Vendor Specific SMART Attributes with Thresholds: ID# ATTRIBUTE_NAME FLAG VALUE WORST THRESH TYPE UPDATED WHEN_FAILED RAW_VALUE 1 Raw_Read_Error_Rate 0x000f 200 200 051 Pre-fail Always - 0 3 Spin_Up_Time 0x0003 153 153 021 Pre-fail Always - 5308 4 Start_Stop_Count 0x0032 096 096 000 Old_age Always - 4728 5 Reallocated_Sector_Ct 0x0033 200 200 140 Pre-fail Always - 0 7 Seek_Error_Rate 0x000e 200 200 051 Old_age Always - 0 9 Power_On_Hours 0x0032 056 056 000 Old_age Always - 32768 10 Spin_Retry_Count 0x0012 100 100 051 Old_age Always - 0 11 Calibration_Retry_Count 0x0012 100 100 051 Old_age Always - 0 12 Power_Cycle_Count 0x0032 100 100 000 Old_age Always - 121 192 Power-Off_Retract_Count 0x0032 200 200 000 Old_age Always - 75 193 Load_Cycle_Count 0x0032 009 009 000 Old_age Always - 573458 194 Temperature_Celsius 0x0022 130 093 000 Old_age Always - 17 196 Reallocated_Event_Count 0x0032 200 200 000 Old_age Always - 0 197 Current_Pending_Sector 0x0012 200 200 000 Old_age Always - 0 198 Offline_Uncorrectable 0x0010 200 200 000 Old_age Offline - 0 199 UDMA_CRC_Error_Count 0x003e 200 200 000 Old_age Always - 0 200 Multi_Zone_Error_Rate 0x0008 200 200 051 Old_age Offline - 0 SMART Error Log Version: 1 No Errors Logged SMART Self-test log structure revision number 1 Num Test_Description Status Remaining LifeTime(hours) LBA_of_first_error # 1 Extended offline Completed without error 00% 32755 - # 2 Short offline Completed without error 00% 30799 - # 3 Short offline Completed without error 00% 30775 - # 4 Short offline Completed without error 00% 30751 - # 5 Short offline Completed without error 00% 30727 - # 6 Extended offline Completed without error 00% 30710 - # 7 Short offline Completed without error 00% 30703 - # 8 Short offline Completed without error 00% 30680 - # 9 Short offline Completed without error 00% 30656 - #10 Short offline Completed without error 00% 30632 - #11 Short offline Completed without error 00% 30608 - #12 Short offline Completed without error 00% 30584 - #13 Short offline Completed without error 00% 30560 - #14 Extended offline Completed without error 00% 30542 - #15 Short offline Completed without error 00% 30536 - #16 Short offline Completed without error 00% 30513 - #17 Short offline Completed without error 00% 30489 - #18 Short offline Completed without error 00% 30465 - #19 Short offline Completed without error 00% 30441 - #20 Short offline Completed without error 00% 30417 - #21 Short offline Completed without error 00% 30393 - SMART Selective self-test log data structure revision number 1 SPAN MIN_LBA MAX_LBA CURRENT_TEST_STATUS 1 0 0 Not_testing 2 0 0 Not_testing 3 0 0 Not_testing 4 0 0 Not_testing 5 0 0 Not_testing Selective self-test flags (0x0): After scanning selected spans, do NOT read-scan remainder of disk. If Selective self-test is pending on power-up, resume after 0 minute delay.
February 27, 201214 yr Author disk4: Statistics for /dev/sde WDC_WD6400AADS-0_WD-WCAV52930059 smartctl -a -d ata /dev/sde smartctl 5.39.1 2010-01-28 r3054 [i486-slackware-linux-gnu] (local build) Copyright (C) 2002-10 by Bruce Allen, http://smartmontools.sourceforge.net === START OF INFORMATION SECTION === Device Model: WDC WD6400AADS-00M2B0 Serial Number: WD-WCAV52930059 Firmware Version: 01.00A01 User Capacity: 640,135,028,736 bytes Device is: Not in smartctl database [for details use: -P showall] ATA Version is: 8 ATA Standard is: Exact ATA specification draft version not indicated Local Time is: Mon Feb 27 11:50:44 2012 CST SMART support is: Available - device has SMART capability. SMART support is: Enabled === START OF READ SMART DATA SECTION === SMART overall-health self-assessment test result: PASSED General SMART Values: Offline data collection status: (0x82) Offline data collection activity was completed without error. Auto Offline Data Collection: Enabled. Self-test execution status: ( 0) The previous self-test routine completed without error or no self-test has ever been run. Total time to complete Offline data collection: (12360) seconds. Offline data collection capabilities: (0x7b) SMART execute Offline immediate. Auto Offline data collection on/off support. Suspend Offline collection upon new command. Offline surface scan supported. Self-test supported. Conveyance Self-test supported. Selective Self-test supported. SMART capabilities: (0x0003) Saves SMART data before entering power-saving mode. Supports SMART auto save timer. Error logging capability: (0x01) Error logging supported. General Purpose Logging supported. Short self-test routine recommended polling time: ( 2) minutes. Extended self-test routine recommended polling time: ( 145) minutes. Conveyance self-test routine recommended polling time: ( 5) minutes. SCT capabilities: (0x303f) SCT Status supported. SCT Feature Control supported. SCT Data Table supported. SMART Attributes Data Structure revision number: 16 Vendor Specific SMART Attributes with Thresholds: ID# ATTRIBUTE_NAME FLAG VALUE WORST THRESH TYPE UPDATED WHEN_FAILED RAW_VALUE 1 Raw_Read_Error_Rate 0x002f 200 200 051 Pre-fail Always - 0 3 Spin_Up_Time 0x0027 099 097 021 Pre-fail Always - 8050 4 Start_Stop_Count 0x0032 099 099 000 Old_age Always - 1281 5 Reallocated_Sector_Ct 0x0033 200 200 140 Pre-fail Always - 0 7 Seek_Error_Rate 0x002e 200 200 000 Old_age Always - 0 9 Power_On_Hours 0x0032 084 084 000 Old_age Always - 12338 10 Spin_Retry_Count 0x0032 100 100 000 Old_age Always - 0 11 Calibration_Retry_Count 0x0032 100 253 000 Old_age Always - 0 12 Power_Cycle_Count 0x0032 100 100 000 Old_age Always - 58 192 Power-Off_Retract_Count 0x0032 200 200 000 Old_age Always - 45 193 Load_Cycle_Count 0x0032 165 165 000 Old_age Always - 105054 194 Temperature_Celsius 0x0022 127 103 000 Old_age Always - 20 196 Reallocated_Event_Count 0x0032 200 200 000 Old_age Always - 0 197 Current_Pending_Sector 0x0032 200 200 000 Old_age Always - 0 198 Offline_Uncorrectable 0x0030 200 200 000 Old_age Offline - 0 199 UDMA_CRC_Error_Count 0x0032 200 200 000 Old_age Always - 0 200 Multi_Zone_Error_Rate 0x0008 200 200 000 Old_age Offline - 0 SMART Error Log Version: 1 No Errors Logged SMART Self-test log structure revision number 1 Num Test_Description Status Remaining LifeTime(hours) LBA_of_first_error # 1 Extended offline Completed without error 00% 12321 - # 2 Short offline Completed without error 00% 10381 - # 3 Short offline Completed without error 00% 10357 - # 4 Short offline Completed without error 00% 10333 - # 5 Short offline Completed without error 00% 10310 - # 6 Short offline Completed without error 00% 10286 - # 7 Short offline Completed without error 00% 10262 - # 8 Extended offline Completed without error 00% 10244 - # 9 Short offline Completed without error 00% 10239 - #10 Short offline Completed without error 00% 10215 - #11 Short offline Completed without error 00% 10191 - #12 Short offline Completed without error 00% 10167 - #13 Short offline Completed without error 00% 10143 - #14 Short offline Completed without error 00% 10120 - #15 Short offline Completed without error 00% 10096 - #16 Extended offline Completed without error 00% 10080 - #17 Short offline Completed without error 00% 10072 - #18 Short offline Completed without error 00% 10049 - #19 Short offline Completed without error 00% 10025 - #20 Short offline Completed without error 00% 10001 - #21 Short offline Completed without error 00% 9977 - SMART Selective self-test log data structure revision number 1 SPAN MIN_LBA MAX_LBA CURRENT_TEST_STATUS 1 0 0 Not_testing 2 0 0 Not_testing 3 0 0 Not_testing 4 0 0 Not_testing 5 0 0 Not_testing Selective self-test flags (0x0): After scanning selected spans, do NOT read-scan remainder of disk. If Selective self-test is pending on power-up, resume after 0 minute delay. cache: SMART status Info for /dev/sdb smartctl 5.39.1 2010-01-28 r3054 [i486-slackware-linux-gnu] (local build) Copyright (C) 2002-10 by Bruce Allen, http://smartmontools.sourceforge.net === START OF INFORMATION SECTION === Model Family: Western Digital Caviar Green family Device Model: WDC WD5000AADS-00M2B0 Serial Number: WD-WMAV52211376 Firmware Version: 01.00A01 User Capacity: 500,107,862,016 bytes Device is: In smartctl database [for details use: -P show] ATA Version is: 8 ATA Standard is: Exact ATA specification draft version not indicated Local Time is: Mon Feb 27 11:51:27 2012 CST SMART support is: Available - device has SMART capability. SMART support is: Enabled === START OF READ SMART DATA SECTION === SMART overall-health self-assessment test result: PASSED General SMART Values: Offline data collection status: (0x82) Offline data collection activity was completed without error. Auto Offline Data Collection: Enabled. Self-test execution status: ( 0) The previous self-test routine completed without error or no self-test has ever been run. Total time to complete Offline data collection: (9960) seconds. Offline data collection capabilities: (0x7b) SMART execute Offline immediate. Auto Offline data collection on/off support. Suspend Offline collection upon new command. Offline surface scan supported. Self-test supported. Conveyance Self-test supported. Selective Self-test supported. SMART capabilities: (0x0003) Saves SMART data before entering power-saving mode. Supports SMART auto save timer. Error logging capability: (0x01) Error logging supported. General Purpose Logging supported. Short self-test routine recommended polling time: ( 2) minutes. Extended self-test routine recommended polling time: ( 118) minutes. Conveyance self-test routine recommended polling time: ( 5) minutes. SCT capabilities: (0x3037) SCT Status supported. SCT Feature Control supported. SCT Data Table supported. SMART Attributes Data Structure revision number: 16 Vendor Specific SMART Attributes with Thresholds: ID# ATTRIBUTE_NAME FLAG VALUE WORST THRESH TYPE UPDATED WHEN_FAILED RAW_VALUE 1 Raw_Read_Error_Rate 0x002f 200 200 051 Pre-fail Always - 0 3 Spin_Up_Time 0x0027 162 162 021 Pre-fail Always - 7858 4 Start_Stop_Count 0x0032 099 099 000 Old_age Always - 1242 5 Reallocated_Sector_Ct 0x0033 200 200 140 Pre-fail Always - 0 7 Seek_Error_Rate 0x002e 200 200 000 Old_age Always - 0 9 Power_On_Hours 0x0032 084 084 000 Old_age Always - 12028 10 Spin_Retry_Count 0x0032 100 100 000 Old_age Always - 0 11 Calibration_Retry_Count 0x0032 100 253 000 Old_age Always - 0 12 Power_Cycle_Count 0x0032 100 100 000 Old_age Always - 56 192 Power-Off_Retract_Count 0x0032 200 200 000 Old_age Always - 44 193 Load_Cycle_Count 0x0032 165 165 000 Old_age Always - 105388 194 Temperature_Celsius 0x0022 127 102 000 Old_age Always - 20 196 Reallocated_Event_Count 0x0032 200 200 000 Old_age Always - 0 197 Current_Pending_Sector 0x0032 200 200 000 Old_age Always - 0 198 Offline_Uncorrectable 0x0030 200 200 000 Old_age Offline - 0 199 UDMA_CRC_Error_Count 0x0032 200 200 000 Old_age Always - 0 200 Multi_Zone_Error_Rate 0x0008 200 200 000 Old_age Offline - 0 SMART Error Log Version: 1 No Errors Logged SMART Self-test log structure revision number 1 Num Test_Description Status Remaining LifeTime(hours) LBA_of_first_error # 1 Extended offline Completed without error 00% 12026 - # 2 Short offline Completed without error 00% 10067 - # 3 Short offline Completed without error 00% 10043 - # 4 Short offline Completed without error 00% 10019 - # 5 Short offline Completed without error 00% 9996 - # 6 Short offline Completed without error 00% 9972 - # 7 Conveyance offline Completed without error 00% 9954 - # 8 Extended offline Completed without error 00% 9954 - # 9 Short offline Completed without error 00% 9948 - #10 Short offline Completed without error 00% 9924 - #11 Short offline Completed without error 00% 9901 - #12 Short offline Completed without error 00% 9877 - #13 Short offline Completed without error 00% 9853 - #14 Short offline Completed without error 00% 9829 - #15 Short offline Completed without error 00% 9806 - #16 Conveyance offline Completed without error 00% 9788 - #17 Extended offline Completed without error 00% 9787 - #18 Short offline Completed without error 00% 9782 - #19 Short offline Completed without error 00% 9758 - #20 Short offline Completed without error 00% 9735 - #21 Short offline Completed without error 00% 9711 - SMART Selective self-test log data structure revision number 1 SPAN MIN_LBA MAX_LBA CURRENT_TEST_STATUS 1 0 0 Not_testing 2 0 0 Not_testing 3 0 0 Not_testing 4 0 0 Not_testing 5 0 0 Not_testing Selective self-test flags (0x0): After scanning selected spans, do NOT read-scan remainder of disk. If Selective self-test is pending on power-up, resume after 0 minute delay.
February 27, 201214 yr Alignment does not matter. You can try testing the way you mention. I would run tests with 5 drives and try to build and then check parity. Each test remove a different drive.
February 28, 201214 yr That depends on the version: 4.7: enter "initconfig" 5.0: Click on "New Config" under Util
February 28, 201214 yr Author 4.7, fwiw.. To confirm - that won't erase any data on the "real" disk1, right? It'll just re-do the parity drive?
