Im very new to servers, previously ESXI 7 was on my server it was working fine and i installed the software onto the USB. but now using the UNRAID tool the server skips over boot from USB and doesn't seem to recognize it at all.

I have wiped my drives and set them to RAID 0

I have looked online as much as possible but cannot find an answer.

Edited November 11, 20241 yr by BooM141

Post a photo showing the boot menu options.

Not related to your boot problems, but RAID controllers are NOT recommended for many reasons.

8 minutes ago, trurl said:

Not related to your boot problems, but RAID controllers are NOT recommended for many reasons.

Doesn't RAID 0 disable that?

1 hour ago, JorgeB said:

Post a photo showing the boot menu options.

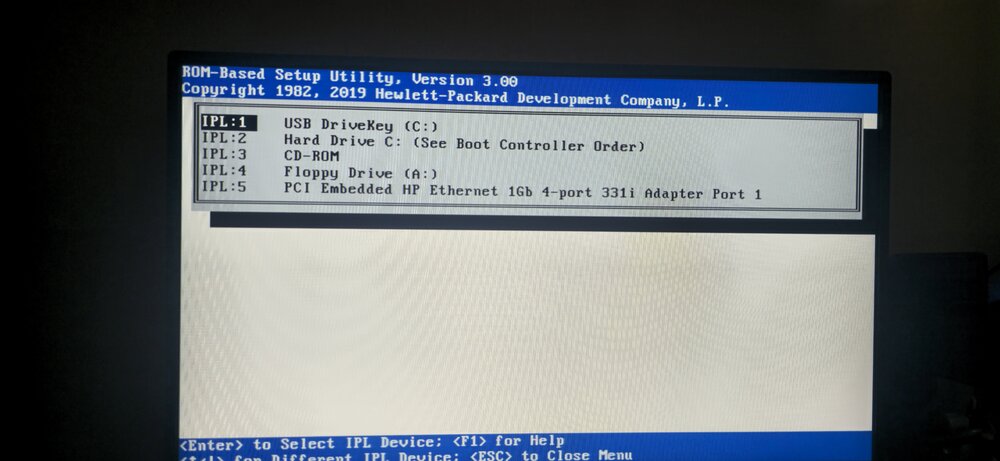

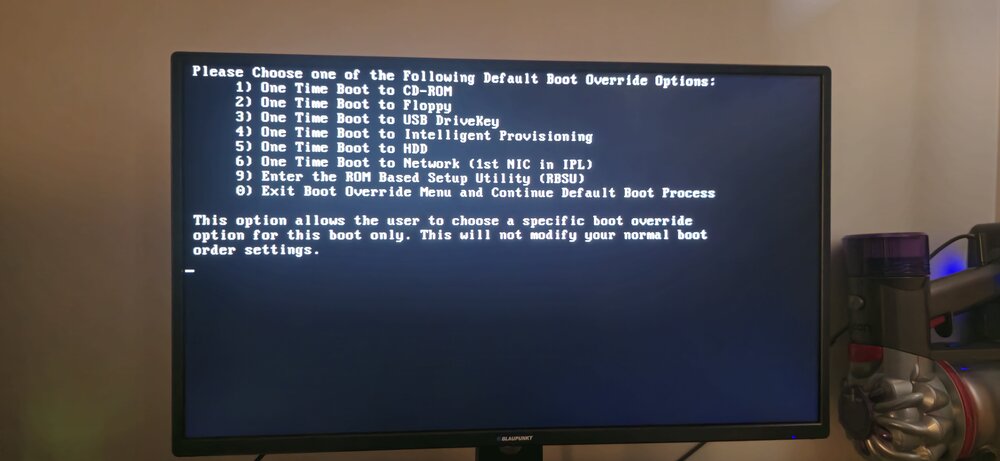

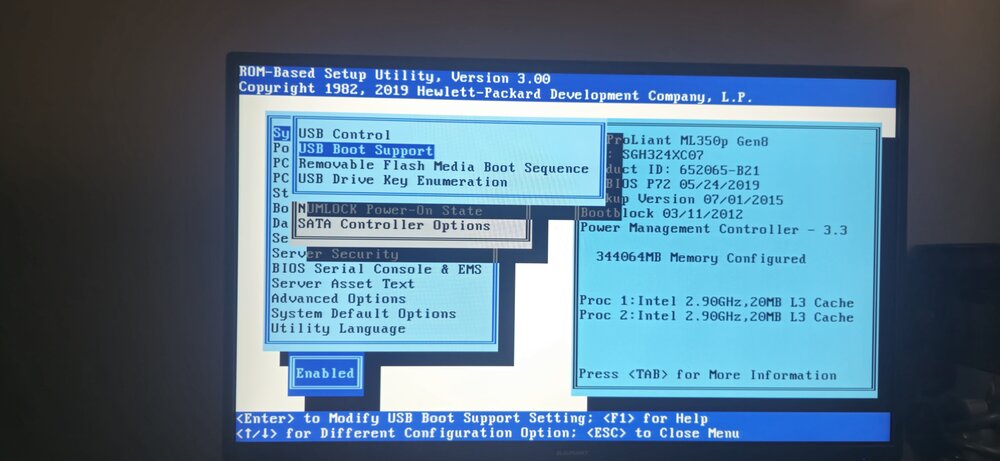

PSA below. It all looks right to me, I'm really not sure. I have seen secure boot needs to be off however I cannot find that option.

Edited November 11, 20241 yr by BooM141

Looks like there's no UEFI support yet, try booting that flash drive in a different PC to confirm it's booting, and make sure you are booting legacy, it may boot UEFI and not legacy.

46 minutes ago, JorgeB said:

Looks like there's no UEFI support yet, try booting that flash drive in a different PC to confirm it's booting, and make sure you are booting legacy, it may boot UEFI and not legacy.

just to make sure, booting legacy is adding the Tilda (EFI~). I have attempted and still no good unfortunately

Edited November 11, 20241 yr by BooM141

Nope, if the flash drive was correctly created, it always supports legacy boot, EFI/EFI- is only relevant for UEFI boot.

10 hours ago, JorgeB said:

Looks like there's no UEFI support yet, try booting that flash drive in a different PC to confirm it's booting, and make sure you are booting legacy, it may boot UEFI and not legacy.

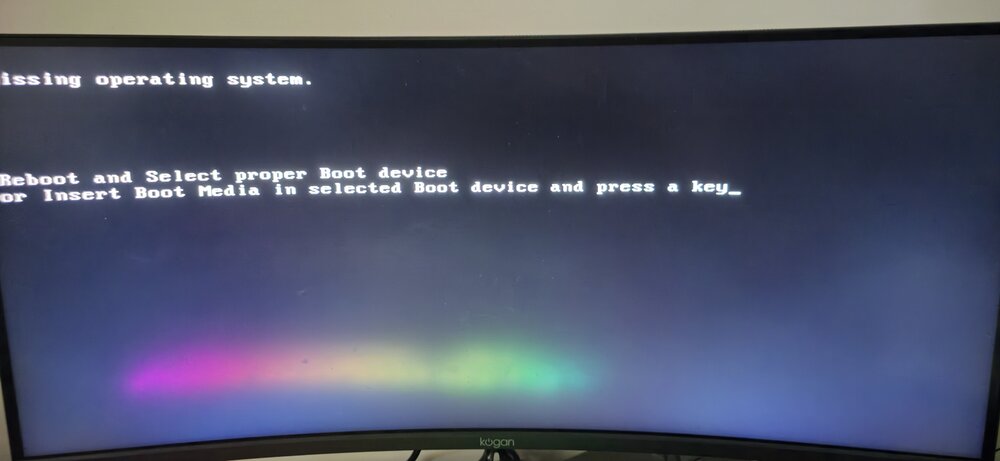

I attempted to boot from the USB on my main rig and this is the error I get. I re ran make bootable.bat and the issue persists

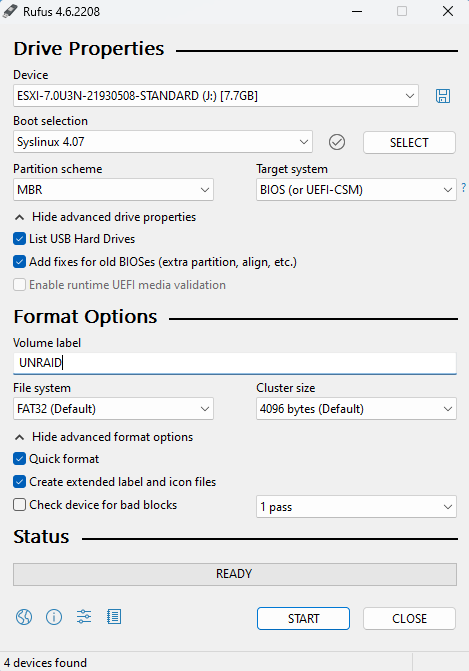

Solved, use manual method. Created a bootable USB using rufus. PSA below for the options used
