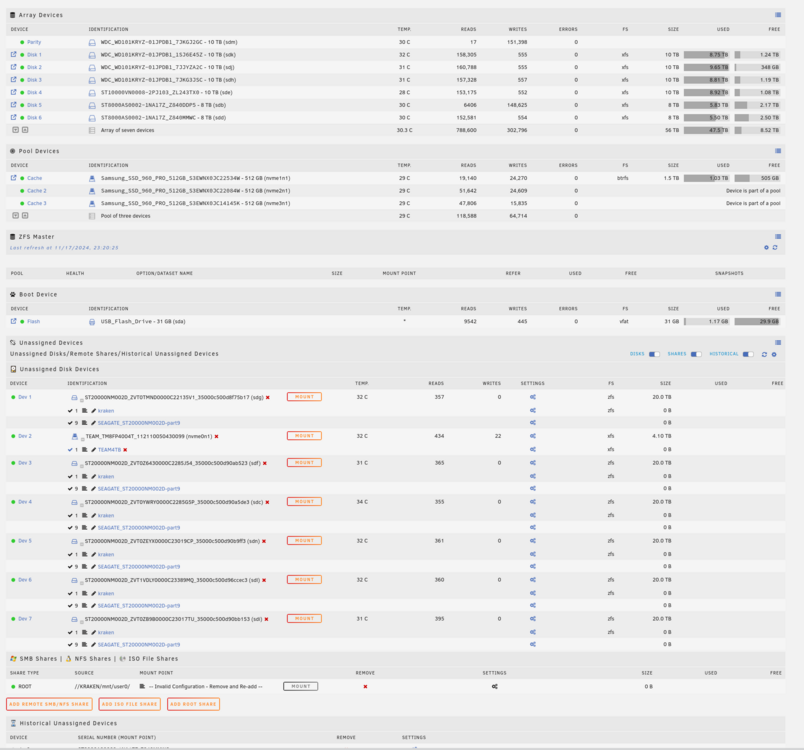

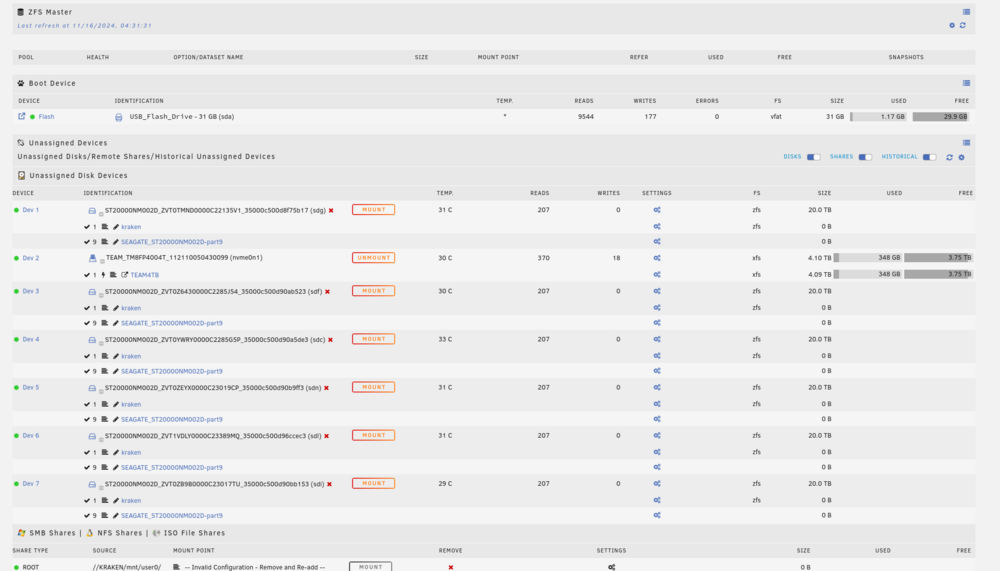

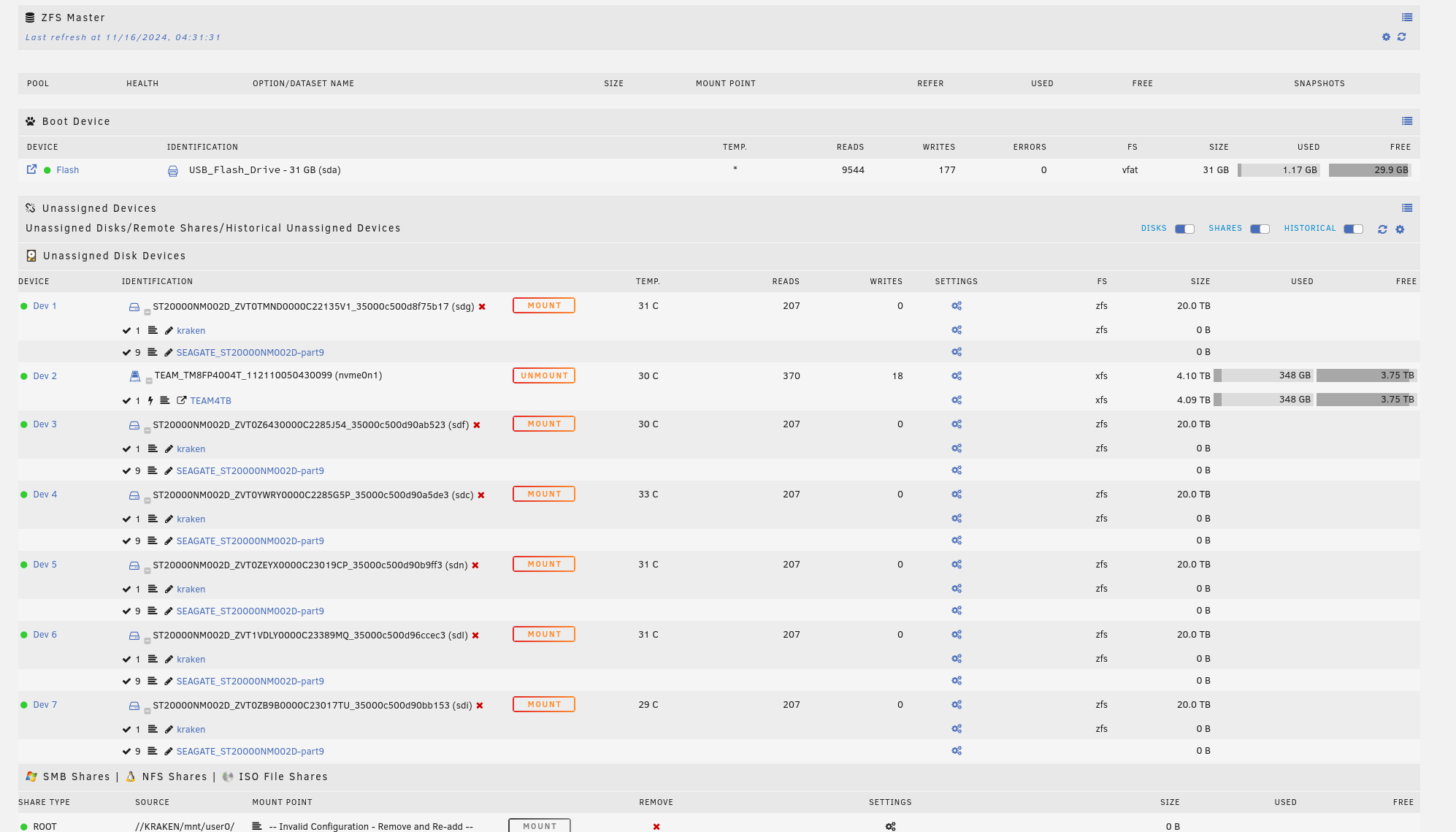

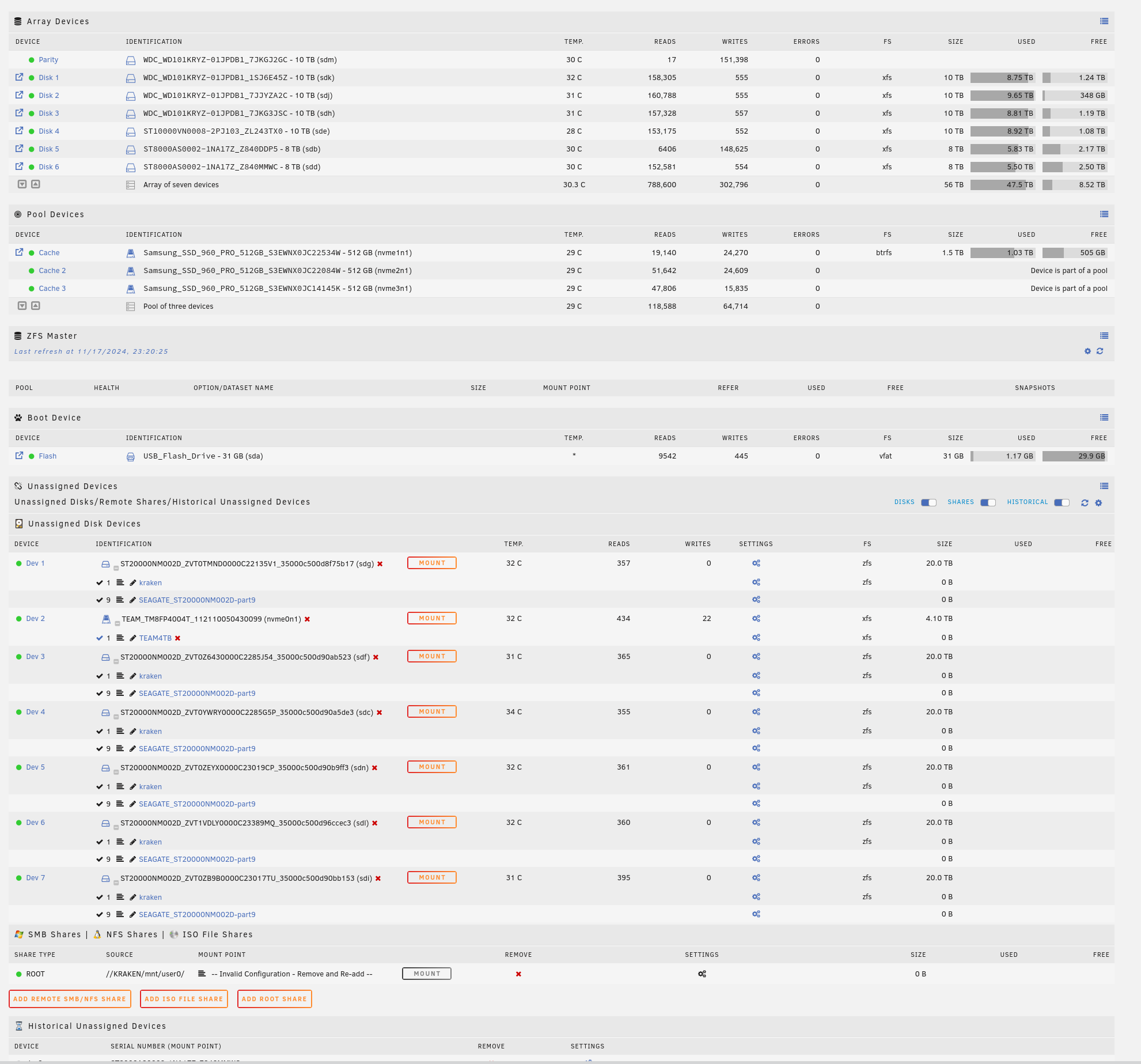

November 17, 20241 yr Hello, I have just done unraid update cause my computer was off for 1 year, unrade 6.12.13. after the update to the new OS from the older one the ZFS is no longer showing my drives and i cant connect or see my data. I am not sure what do do to fix this. I even downgraded to Version 6.11.5 2022-11-20 and the ZFS MASTER ICON showed up but when I started the array it went away and I dont see my drives of the info in the display page. How do I get my zpool back and to show up?
November 17, 20241 yr Author pool: kraken id: 9609983686449282400 state: ONLINE action: The pool can be imported using its name or numeric identifier. config: kraken ONLINE mirror-0 ONLINE scsi-35000c500d90bb153 ONLINE scsi-35000c500d96ccec3 ONLINE mirror-1 ONLINE scsi-35000c500d90b9ff3 ONLINE scsi-35000c500d90a5de3 ONLINE mirror-2 ONLINE scsi-35000c500d90ab523 ONLINE scsi-35000c500d8f75b17 ONLINE DIAGNOSTICS + /config copy all *.cfg files, go file and the super.dat file. These are configuration files. + /config/shares copy all *.cfg files. These are user share settings files. + Syslog file(s) copy the current syslog file and any previous existing syslog files. + System save output of the following commands: lsscsi, lspci, lsusb, free, lsof, ps, ethtool & ifconfig. display of iommu groups. display of command line parameters (e.g. pcie acs override, pci stubbing, etc). save system variables. + SMART reports save a SMART report of each individual disk present in your system. + Docker save files docker.log, libvirtd.log, libvirt/qemu/*.log and vfio-pci.
November 18, 20241 yr Author 3 hours ago, JorgeB said: You didn't post the diagnostics zip, attach it here. sorry i thought that was the info I posted. here is the file kraken-diagnostics-20241118-0703.zip
November 18, 20241 yr Community Expert There's no pool in the GUI for those devices, to see the devices order, do this: zpool import kraken then type zpool status -LP then zpool export kraken Post the output from zpool status -LP here
November 18, 20241 yr Author 2 hours ago, JorgeB said: There's no pool in the GUI for those devices, to see the devices order, do this: zpool import kraken then type zpool status -LP then zpool export kraken Post the output from zpool status -LP here root@KRAKEN:~# zpool status -LP pool: kraken state: ONLINE scan: scrub in progress since Sat Nov 16 00:19:01 2024 319G scanned at 12.7G/s, 12K issued at 491B/s, 54.4T total 0B repaired, 0.00% done, no estimated completion time config: NAME STATE READ WRITE CKSUM kraken ONLINE 0 0 0 mirror-0 ONLINE 0 0 0 /dev/sdi1 ONLINE 0 0 0 /dev/sdl1 ONLINE 0 0 0 mirror-1 ONLINE 0 0 0 /dev/sdn1 ONLINE 0 0 0 /dev/sdc1 ONLINE 0 0 0 mirror-2 ONLINE 0 0 0 /dev/sdf1 ONLINE 0 0 0 /dev/sdg1 ONLINE 0 0 0
November 18, 20241 yr Community Expert Make sure the pool was exported as mentioned above with: zpool export kraken Then create a new pool with 6 slots using the GUI, assign all the devices in the same order as the zpool status output: sdi sdl sdn etc Leave the filesystem for the pool set to auto, don't change anything, start the array and Unraid should import the pool
November 18, 20241 yr Author 34 minutes ago, JorgeB said: Make sure the pool was exported as mentioned above with: zpool export kraken Then create a new pool with 6 slots using the GUI, assign all the devices in the same order as the zpool status output: sdi sdl sdn etc Leave the filesystem for the pool set to auto, don't change anything, start the array and Unraid should import the pool how do I know what are to put then in, I used 3 sets of mirror. Also im waiting on the move to finih before stopping the array. whn I ad the 6 drive do i ad then : kraken ONLINE mirror-0 ONLINE scsi-35000c500d90bb153 ONLINE : disk1 scsi-35000c500d96ccec3 ONLINE: disk2 mirror-1 ONLINE scsi-35000c500d90b9ff3 ONLINE : disk 3 scsi-35000c500d90a5de3 ONLINE: disk 4 mirror-2 ONLINE scsi-35000c500d90ab523 ONLINE disk 5 scsi-35000c500d8f75b17 ONLINE disk 6? or I just put them in any order and the pool will auto detect the order?
November 18, 20241 yr Community Expert 55 minutes ago, diehard2k9 said: kraken ONLINE 0 0 0 mirror-0 ONLINE 0 0 0 /dev/sdi1 ONLINE 0 0 0 /dev/sdl1 ONLINE 0 0 0 mirror-1 ONLINE 0 0 0 /dev/sdn1 ONLINE 0 0 0 /dev/sdc1 ONLINE 0 0 0 mirror-2 ONLINE 0 0 0 /dev/sdf1 ONLINE 0 0 0 /dev/sdg1 ONLINE 0 0 0 This order.

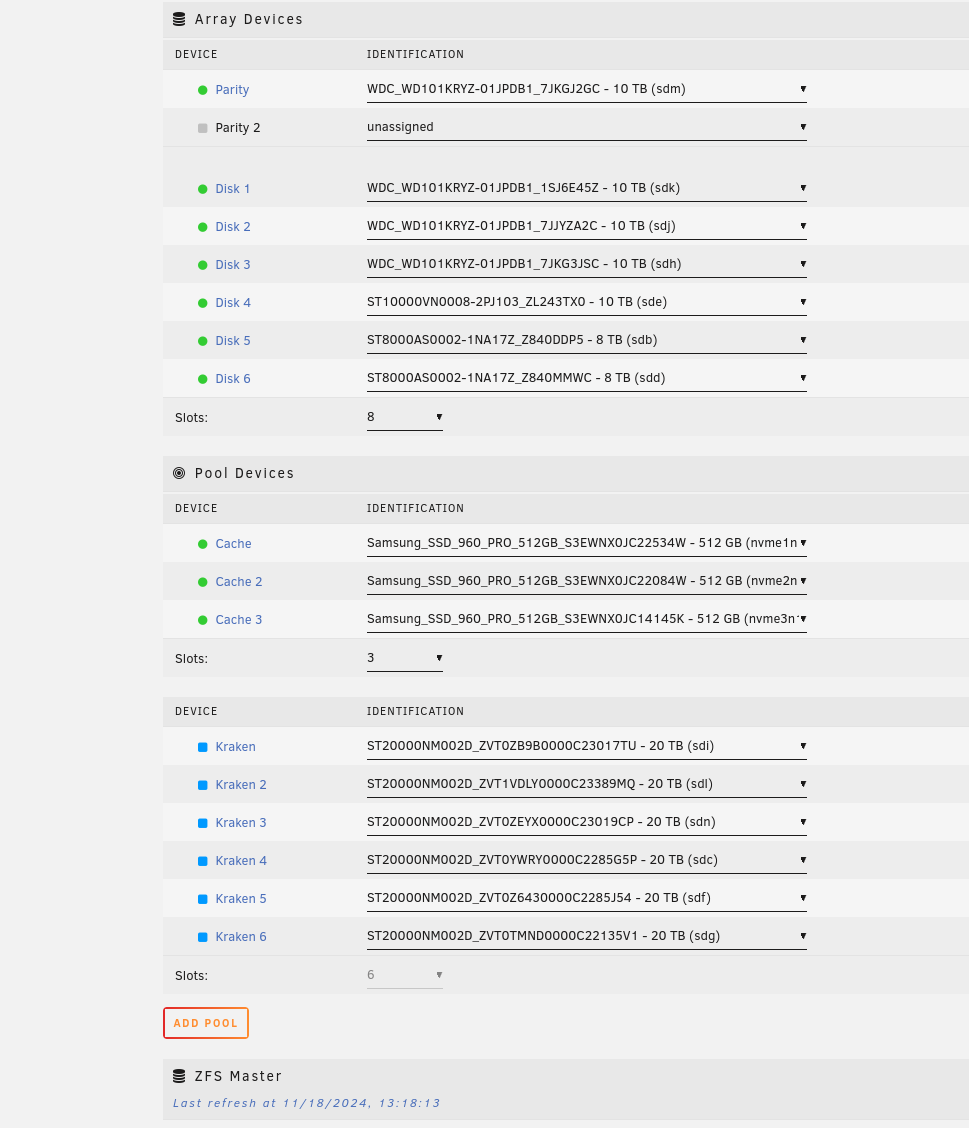

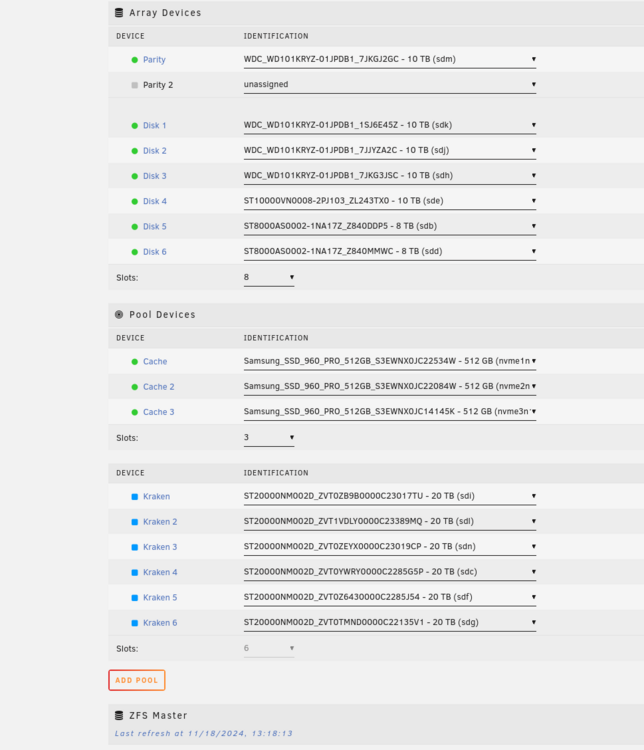

November 18, 20241 yr Author 1 hour ago, JorgeB said: This order. How do I do that order when all i see are the disk? or is this the correct order?

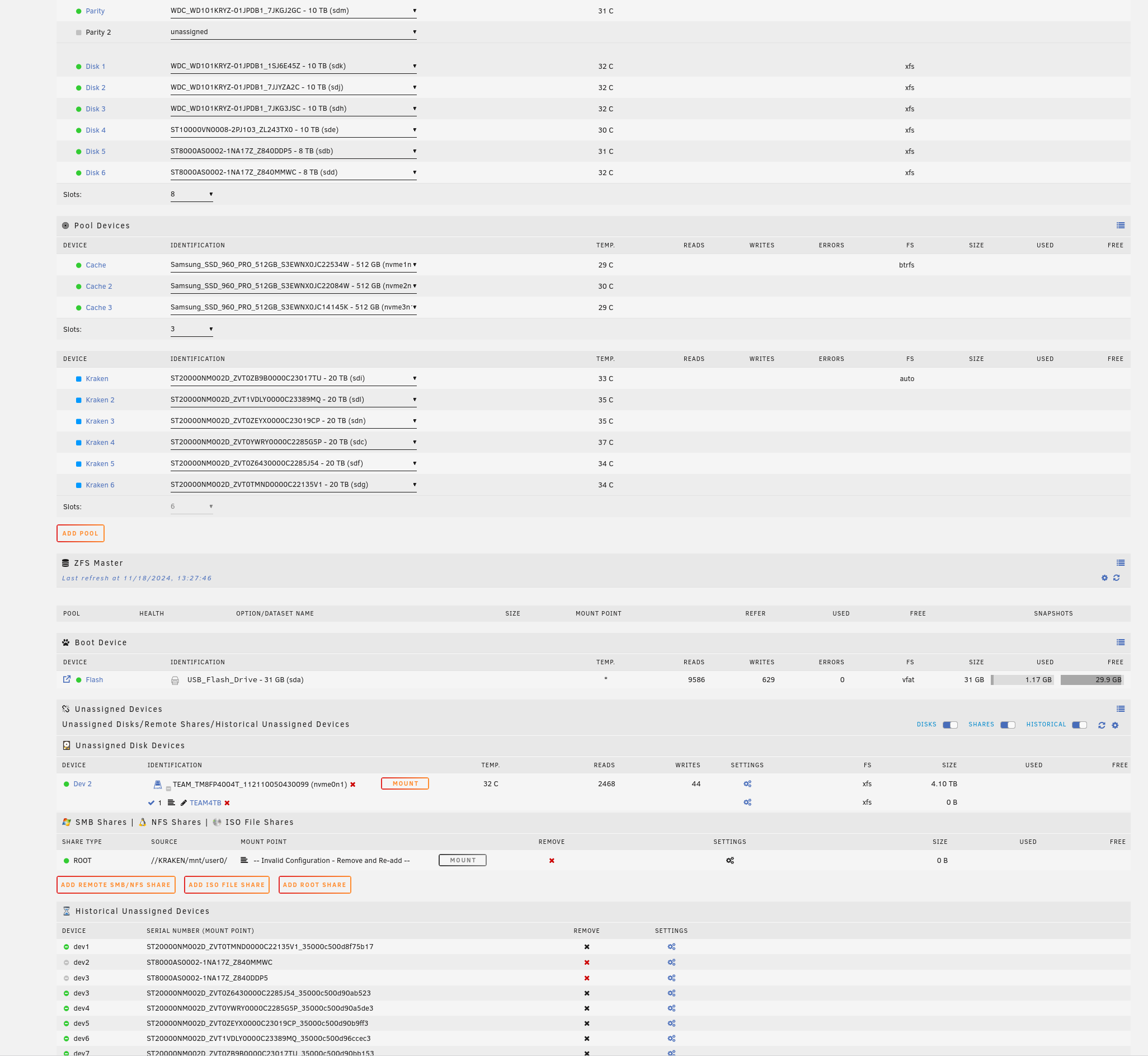

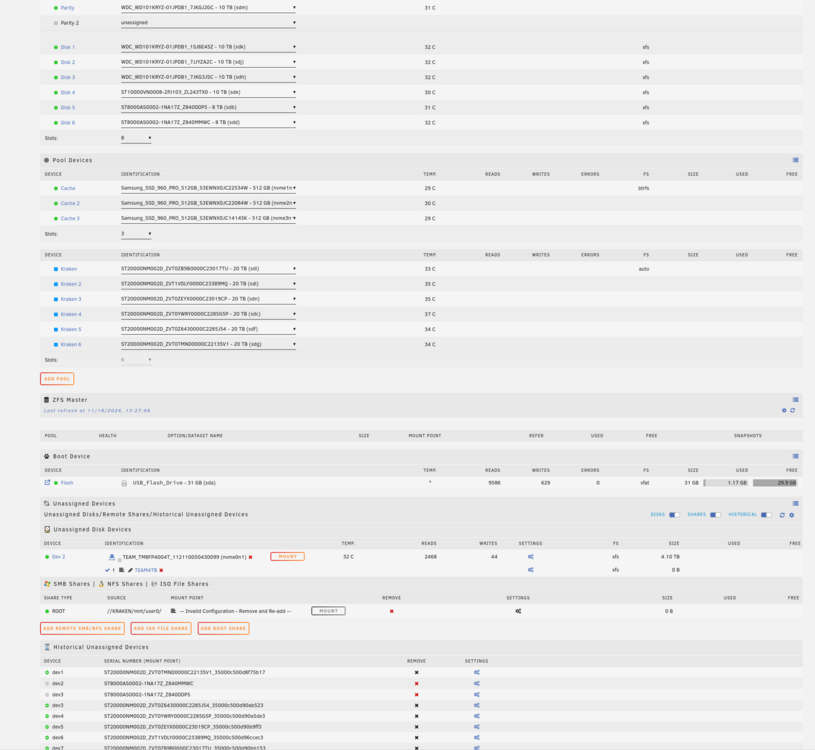

November 18, 20241 yr Author 2 minutes ago, JorgeB said: And yes, it looks correct. ok, well they removed the drives from unassign. all I do it start the array and the zfs mirros that I had should show up? the add pool button was not under zfs manager but will add my zfs mirrors and i wont lose my data? before and after let me know if this is correct and I should start the array to get my zfs pool going?

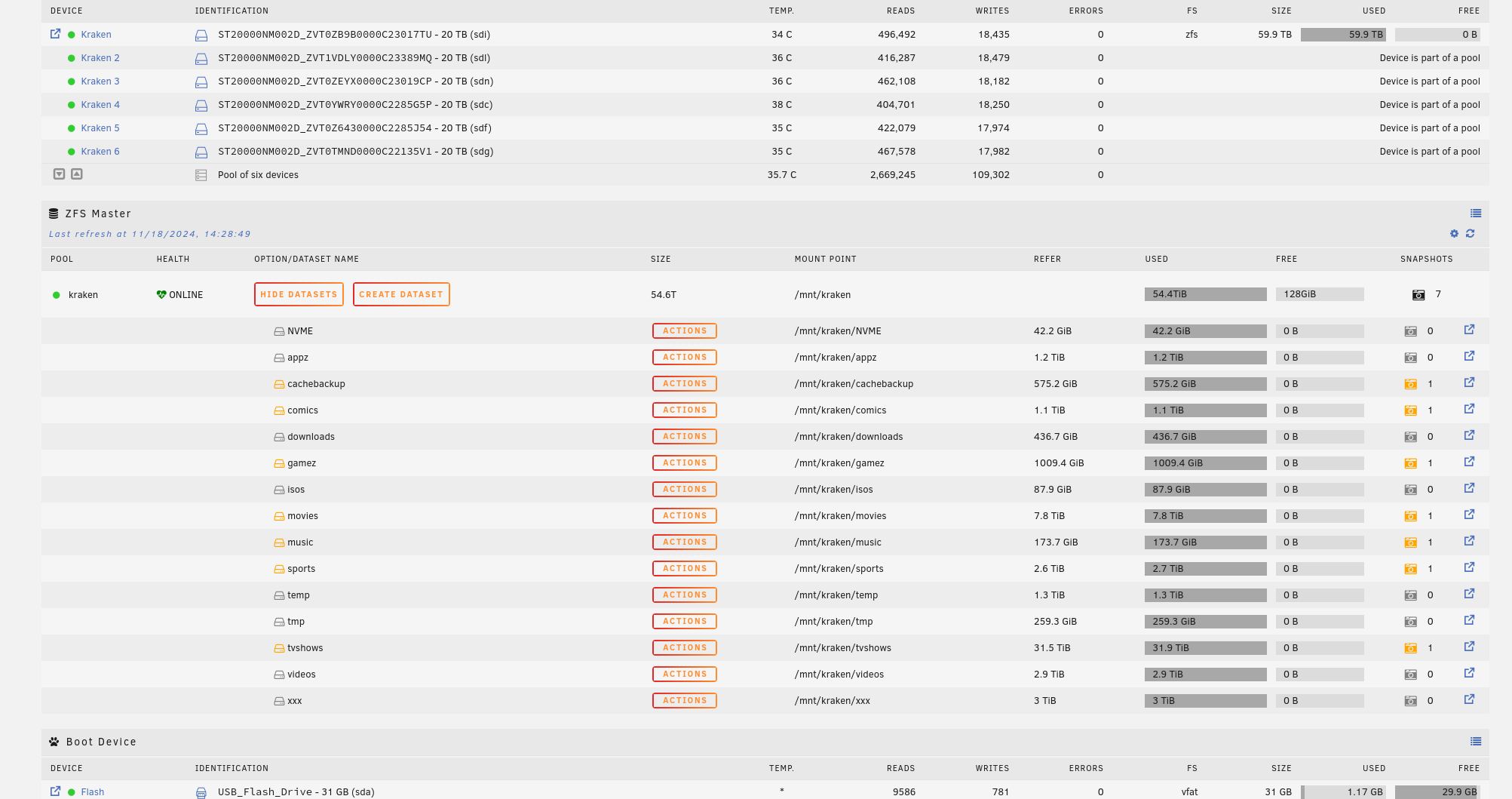

November 18, 20241 yr Author 46 minutes ago, JorgeB said: Just start the array with the new pool assigned. okay array start and I can see the zfs pool from unraid, I cant seem to connect to them from my other computer like i did before. the scrub button and the zfs master button are nothere ? do I have to create new link shares ?
November 19, 20241 yr Community Expert 13 hours ago, diehard2k9 said: I cant seem to connect to them from my other computer like i did before Go to shares and make sure they are exported. 13 hours ago, diehard2k9 said: the scrub button Click on the pool and scroll down to the scrub section. 13 hours ago, diehard2k9 said: zfs master button That's a plugin, you will need to ask in the plugin support thread.
