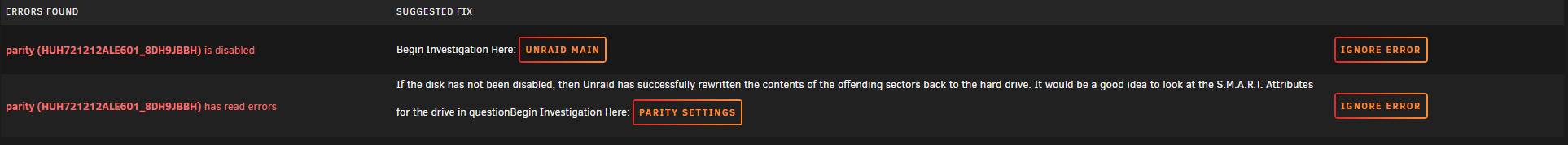

December 23, 20241 yr I discovered through fix common problems that my parity drive has been disabled. I recently replaced this drive. I ordered several on black friday from Amazon. It looks like I got used drives instead of new. I don't mind used drives in general, but not for backups or recovery drives. I have a few questions as I am not new to NAS / Unraid, but I am not an expert either. Is this a real issue? Is it a replace it now issue, or do I have some time? I have posted the full disk log below; the issue that caught my eye is: 9 Power_On_Hours -O--CK 100 100 --- - 38556 (1,606 days, I've only had it less than a month) 232 Perc_Avail_Resrvd_Space PO--CK 100 100 004 - 100 (Outside threshold) Any help or info you can offer is greatly appreciated. smartctl 7.4 2023-08-01 r5530 [x86_64-linux-6.1.118-Unraid] (local build) Copyright (C) 2002-23, Bruce Allen, Christian Franke, www.smartmontools.org === START OF INFORMATION SECTION === Model Family: Marvell based SanDisk SSDs Device Model: SanDisk SDSSDH31024G Serial Number: 200949800808 LU WWN Device Id: 5 001b44 8b13ddf77 Firmware Version: X6107000 User Capacity: 1,024,209,543,168 bytes [1.02 TB] Sector Size: 512 bytes logical/physical Rotation Rate: Solid State Device Form Factor: 2.5 inches TRIM Command: Available, deterministic, zeroed Device is: In smartctl database 7.3/5625 ATA Version is: ACS-4 T13/BSR INCITS 529 revision 5 SATA Version is: SATA 3.3, 6.0 Gb/s (current: 6.0 Gb/s) Local Time is: Mon Dec 23 18:07:05 2024 EST SMART support is: Available - device has SMART capability. SMART support is: Enabled AAM feature is: Unavailable APM level is: 128 (minimum power consumption without standby) Rd look-ahead is: Enabled Write cache is: Enabled DSN feature is: Unavailable ATA Security is: Disabled, frozen [SEC2] Wt Cache Reorder: Unavailable === START OF READ SMART DATA SECTION === SMART overall-health self-assessment test result: PASSED General SMART Values: Offline data collection status: (0x00) Offline data collection activity was never started. Auto Offline Data Collection: Disabled. Self-test execution status: ( 0) The previous self-test routine completed without error or no self-test has ever been run. Total time to complete Offline data collection: ( 0) seconds. Offline data collection capabilities: (0x11) SMART execute Offline immediate. No Auto Offline data collection support. Suspend Offline collection upon new command. No Offline surface scan supported. Self-test supported. No Conveyance Self-test supported. No Selective Self-test supported. SMART capabilities: (0x0003) Saves SMART data before entering power-saving mode. Supports SMART auto save timer. Error logging capability: (0x01) Error logging supported. General Purpose Logging supported. Short self-test routine recommended polling time: ( 2) minutes. Extended self-test routine recommended polling time: ( 10) minutes. SMART Attributes Data Structure revision number: 4 Vendor Specific SMART Attributes with Thresholds: ID# ATTRIBUTE_NAME FLAGS VALUE WORST THRESH FAIL RAW_VALUE 5 Reallocated_Sector_Ct -O--CK 100 100 --- - 0 9 Power_On_Hours -O--CK 100 100 --- - 38556 12 Power_Cycle_Count -O--CK 100 100 --- - 104 165 Total_Write/Erase_Count -O--CK 100 100 --- - 739110949622 166 Min_W/E_Cycle -O--CK 100 100 --- - 4 167 Min_Bad_Block/Die -O--CK 100 100 --- - 85 168 Maximum_Erase_Cycle -O--CK 100 100 --- - 127 169 Total_Bad_Block -O--CK 100 100 --- - 976 170 Unknown_Marvell_Attr -O--CK 100 100 --- - 0 171 Program_Fail_Count -O--CK 100 100 --- - 0 172 Erase_Fail_Count -O--CK 100 100 --- - 0 173 Avg_Write/Erase_Count -O--CK 100 100 --- - 66 174 Unexpect_Power_Loss_Ct -O--CK 100 100 --- - 63 184 End-to-End_Error -O--CK 100 100 --- - 0 187 Reported_Uncorrect -O--CK 100 100 --- - 0 188 Command_Timeout -O--CK 100 100 --- - 0 194 Temperature_Celsius -O---K 078 037 --- - 22 (Min/Max 16/37) 199 SATA_CRC_Error -O--CK 100 100 --- - 0 230 Perc_Write/Erase_Count -O--CK 100 100 --- - 2374 1596 2374 232 Perc_Avail_Resrvd_Space PO--CK 100 100 004 - 100 233 Total_NAND_Writes_GiB -O--CK 100 100 --- - 68892 234 Perc_Write/Erase_Ct_BC -O--CK 100 100 --- - 79329 241 Total_Writes_GiB ----CK 253 253 --- - 68638 242 Total_Reads_GiB ----CK 253 253 --- - 50594 244 Thermal_Throttle -O--CK 000 100 --- - 0 ||||||_ K auto-keep |||||__ C event count ||||___ R error rate |||____ S speed/performance ||_____ O updated online |______ P prefailure warning General Purpose Log Directory Version 1 SMART Log Directory Version 1 [multi-sector log support] Address Access R/W Size Description 0x00 GPL,SL R/O 1 Log Directory 0x01 SL R/O 1 Summary SMART error log 0x02 SL R/O 2 Comprehensive SMART error log 0x03 GPL R/O 1 Ext. Comprehensive SMART error log 0x04 GPL,SL R/O 8 Device Statistics log 0x06 SL R/O 1 SMART self-test log 0x07 GPL R/O 1 Extended self-test log 0x10 GPL R/O 1 NCQ Command Error log 0x11 GPL R/O 1 SATA Phy Event Counters log 0x30 GPL,SL R/O 9 IDENTIFY DEVICE data log 0x80-0x9f GPL,SL R/W 16 Host vendor specific log 0xde GPL VS 8 Device vendor specific log SMART Extended Comprehensive Error Log Version: 1 (1 sectors) No Errors Logged SMART Extended Self-test Log Version: 1 (1 sectors) No self-tests have been logged. [To run self-tests, use: smartctl -t] Selective Self-tests/Logging not supported SCT Commands not supported Device Statistics (GP Log 0x04) Page Offset Size Value Flags Description 0x01 ===== = = === == General Statistics (rev 1) == 0x01 0x008 4 104 --- Lifetime Power-On Resets 0x01 0x010 4 0 --- Power-on Hours 0x01 0x018 6 143944377444 --- Logical Sectors Written 0x01 0x020 6 717087176 --- Number of Write Commands 0x01 0x028 6 106104560133 --- Logical Sectors Read 0x01 0x030 6 683311817 --- Number of Read Commands 0x07 ===== = = === == Solid State Device Statistics (rev 1) == 0x07 0x008 1 6 N-- Percentage Used Endurance Indicator |||_ C monitored condition met ||__ D supports DSN |___ N normalized value Pending Defects log (GP Log 0x0c) not supported SATA Phy Event Counters (GP Log 0x11) ID Size Value Description 0x0001 4 0 Command failed due to ICRC error 0x0002 4 0 R_ERR response for data FIS 0x0005 4 0 R_ERR response for non-data FIS 0x000a 4 19 Device-to-host register FISes sent due to a COMRESET
December 24, 20241 yr Community Expert Solution It's logged as a disk problem, but there's no SMART since the disk dropped offline (the report you posted above is from an SSD), check/replace cables for parity and post new diags.
December 24, 20241 yr Author It seems to have answered my question itself. The cables are fine, but the drive has become unresponsive. Replaced it with a spare drive and it is currently performing a parity rebuild. It seems the drive was either defective or died. I was unable to get SMART or any data logs due to the drive failure and being unable to reconnect to the drive. Thank you for your help. Edited December 24, 20241 yr by Eryrok
