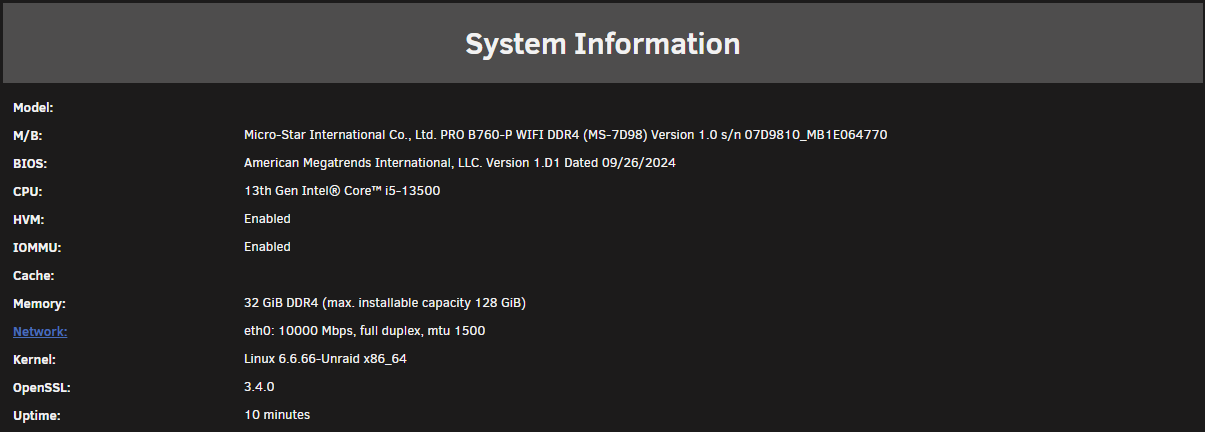

December 24, 20241 yr I have just noticed, that unraid is reporting the RAM as only 32GB, I thought this was strange so went into BIOS and checked, 64GB was showing... Reseated RAM sticks, checked again and 64GB showing. Boot to unraid 7.0.0-rc.2 and memory showing 32GB server-diagnostics-20241224-1100.zip Not sure if this something related to unraid, bios or bad a memory module... Diagnostics attached.
December 24, 20241 yr Community Expert It's just a display issue, possibly a BIOS/DMI bug, but Unraid is using the 64GB: total used free shared buff/cache available Mem: 62Gi 31Gi 12Gi 790Mi 20Gi 30Gi Swap: 0B 0B 0B Total: 62Gi 31Gi 12Gi
December 24, 20241 yr Author 9 hours ago, JorgeB said: It's just a display issue, possibly a BIOS/DMI bug, but Unraid is using the 64GB: total used free shared buff/cache available Mem: 62Gi 31Gi 12Gi 790Mi 20Gi 30Gi Swap: 0B 0B 0B Total: 62Gi 31Gi 12Gi That's good to know, I checked the bios and it's only latest version. Not sure what DMI is tbf but to be fair don't know how long it has been displaying like that. Not been on v7 for too long.
January 16, 20251 yr Author On 12/24/2024 at 11:07 AM, JorgeB said: It's just a display issue, possibly a BIOS/DMI bug, but Unraid is using the 64GB: total used free shared buff/cache available Mem: 62Gi 31Gi 12Gi 790Mi 20Gi 30Gi Swap: 0B 0B 0B Total: 62Gi 31Gi 12Gi This doesnt make sense, it cant be BIOS issue as its the same version when it was previously working. Also cleared settings to default for good measure. Still not showing correctly. Has to be a bug but dont fancy rolling back to v6 now that I am on v7.0.0
March 11, 20251 yr Author This has crept back in since 7.0.1, it appeared to have fixed itself in v7.0.0

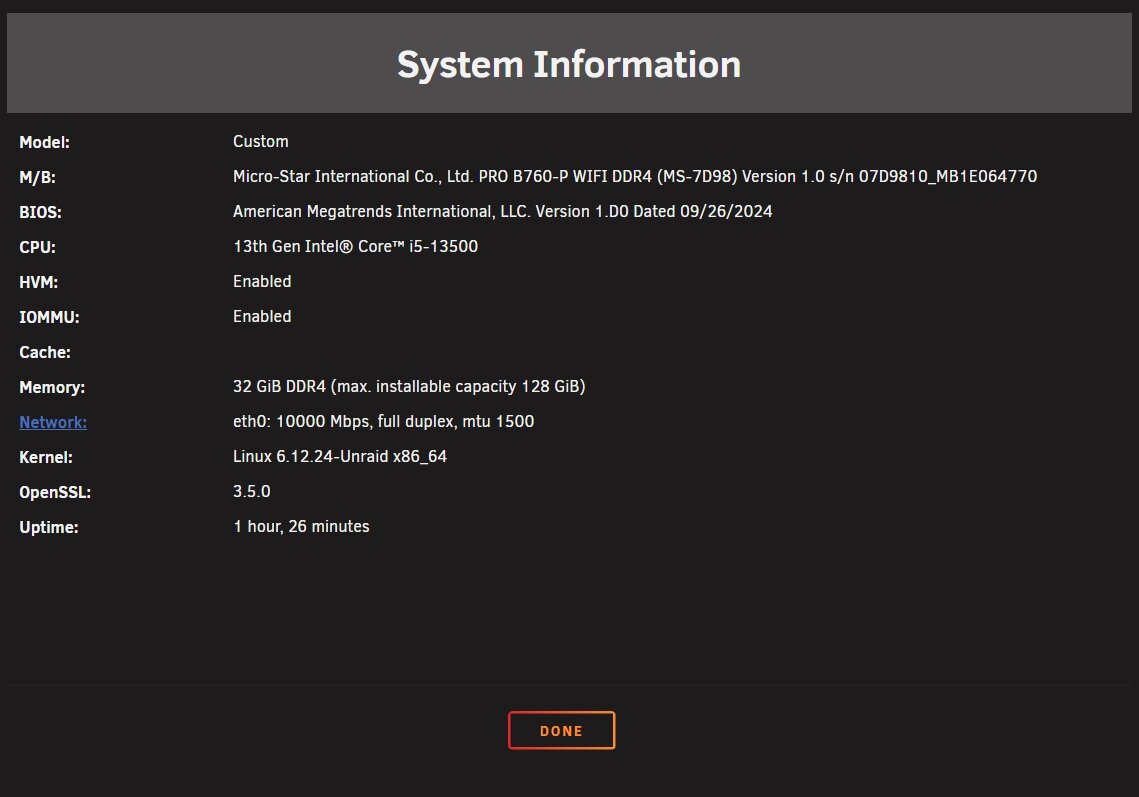

June 26, 20251 yr Author Still seeing this issue and its annoying, got the latest bios version installed, defaulted bios settings moved ram slots but still only showing half the memory.Anyone else having this issue or just me?root@Server:~# lshw -class memory *-firmware:0 description: BIOS vendor: American Megatrends International, LLC. physical id: 1 version: 1.D0 date: 09/26/2024 size: 64KiB capacity: 32MiB capabilities: pci upgrade shadowing cdboot bootselect socketedrom edd int13floppynec int13floppytoshiba int13floppy360 int13floppy1200 int13floppy720 int13floppy2880 int5printscreen int9keyboard int14serial int17printer int10video acpi usb biosbootspecification uefi *-memory description: System Memory physical id: 3a slot: System board or motherboard size: 64GiB *-bank:0 description: [empty] physical id: 0 slot: Controller0-DIMMA1 *-bank:1 description: DIMM DDR4 Synchronous 3200 MHz (0.3 ns) product: CT32G4DFD832A.M16FF vendor: Crucial Technology physical id: 1 serial: E7F10F79 slot: Controller0-DIMMA2 size: 32GiB width: 64 bits clock: 3200MHz (0.3ns) *-firmware:1 description: BIOS physical id: 3d5c size: 8KiB capacity: 64KiB *-firmware:2 description: BIOS physical id: 2 size: 1MiB *-firmware:3 description: BIOS physical id: 3 size: 1MiB *-firmware:4 description: BIOS physical id: 4 size: 1MiB *-firmware:5 description: BIOS physical id: 5 size: 1MiB *-firmware:6 description: BIOS physical id: 6 size: 1MiB capabilities: edd *-firmware:7 description: BIOS physical id: 7 size: 1MiB *-firmware:8 description: BIOS physical id: 9 size: 1MiB *-firmware:9 description: BIOS physical id: a size: 1023KiB *-firmware:10 description: BIOS physical id: b size: 1MiB *-firmware:11 description: BIOS physical id: 8 size: 1MiB *-firmware:12 description: BIOS physical id: c size: 1MiB *-firmware:13 description: BIOS physical id: d size: 1MiB *-firmware:14 description: BIOS physical id: e size: 1MiB *-firmware:15 description: BIOS physical id: f size: 1MiB *-firmware:16 description: BIOS physical id: 10 size: 1MiB *-firmware:17 description: BIOS physical id: 11 size: 1MiB *-firmware:18 description: BIOS physical id: 12 size: 1MiB *-firmware:19 description: BIOS physical id: 13 size: 1MiB *-firmware:20 description: BIOS physical id: 14 size: 1MiB *-firmware:21 description: BIOS physical id: 15 size: 1MiB *-firmware:22 description: BIOS physical id: 16 size: 1MiB *-firmware:23 description: BIOS physical id: 17 size: 1MiB *-firmware:24 description: BIOS physical id: 18 size: 1MiB *-firmware:25 description: BIOS physical id: 19 size: 1MiB *-firmware:26 description: BIOS physical id: 1a size: 1MiB *-firmware:27 description: BIOS physical id: 1b size: 1MiB *-firmware:28 description: BIOS physical id: 1c size: 1MiB *-firmware:29 description: BIOS physical id: 1d size: 1MiB *-firmware:30 description: BIOS physical id: 1e size: 1MiB capabilities: bootselect socketedrom int13floppy360 int13floppy720 int13floppy2880 int5printscreen int9keyboard int17printer int10video *-firmware:31 description: BIOS physical id: 1f size: 1MiB capabilities: eisa pcmcia pnp apm upgrade vesa escd socketedrom pcmciaboot edd int13floppytoshiba int13floppy360 int5printscreen int14serial int17printer int10video *-firmware:32 description: BIOS physical id: 20 size: 1MiB capacity: 7MiB *-firmware:33 description: BIOS physical id: 21 size: 578KiB capacity: 7488KiB capabilities: isa mca eisa pcmcia pnp apm upgrade vesa escd pcmciaboot edd int13floppytoshiba int13floppy360 int5printscreen int9keyboard int17printer int10video *-firmware:34 description: BIOS vendor: Crucial Technology physical id: 22 size: 558KiB capacity: 7MiB *-firmware:35 description: BIOS vendor: TPM 2.0 physical id: 6f43 size: 578KiB capacity: 6976KiB capabilities: mca eisa pnp shadowing vesa escd bootselect int13floppynec int13floppytoshiba int13floppy720 int5printscreen int9keyboard int17printer *-firmware:36 description: BIOS physical id: 23 size: 1MiB *-firmware:37 description: BIOS physical id: 24 size: 1MiB *-firmware:38 description: BIOS physical id: 25 size: 1MiB capabilities: int13floppy720 int13floppy2880 int10video *-firmware:39 description: BIOS physical id: 26 size: 1MiB capabilities: pcmcia pnp escd bootselect socketedrom pcmciaboot edd int13floppytoshiba int13floppy360 int13floppy2880 int5printscreen int9keyboard int17printer int10video *-firmware:40 description: BIOS physical id: 27 size: 1MiB capacity: 4352KiB *-firmware:41 description: BIOS physical id: 28 size: 756KiB capacity: 7104KiB capabilities: isa mca eisa pnp shadowing vesa escd bootselect socketedrom pcmciaboot edd int13floppytoshiba int13floppy360 int5printscreen int9keyboard int17printer int10video *-firmware:42 description: BIOS physical id: 29 size: 582KiB capacity: 7360KiB *-firmware:43 description: BIOS physical id: 4300 size: 566KiB capacity: 6976KiB *-firmware:44 description: BIOS physical id: 6e6f size: 590KiB capacity: 6528KiB capabilities: isa mca eisa pcmcia shadowing vesa bootselect pcmciaboot edd int13floppytoshiba int5printscreen int10video usb ls120boot zipboot *-firmware:45 description: BIOS physical id: 3f1f size: 1MiB capacity: 16MiB *-firmware:46 description: BIOS physical id: 2a size: 1MiB capabilities: int13floppy720 int13floppy2880 int9keyboard int17printer *-firmware:47 description: BIOS physical id: 2b size: 1MiB capabilities: pcmcia pnp upgrade vesa bootselect socketedrom pcmciaboot edd int13floppynec int10video *-firmware:48 description: BIOS physical id: 2c size: 1MiB capacity: 2816KiB *-firmware:49 description: BIOS physical id: 2d size: 852KiB capacity: 4160KiB capabilities: pcmcia upgrade escd socketedrom pcmciaboot edd int13floppy360 int5printscreen int14serial int10video *-firmware:50 description: BIOS physical id: 0 size: 767KiB capacity: 4736KiB *-firmware:51 description: BIOS vendor: 2021-05-15T00:00:00Z physical id: 2b00 version: ? size: 732KiB capacity: 5440KiB capabilities: eisa pnp int13floppy2880 int14serial *-firmware:52 description: BIOS physical id: 401f size: 686KiB capabilities: pnp shadowing int9keyboard int14serial int10video netboot *-cache:0 description: L1 cache physical id: 49 slot: L1 Cache size: 288KiB capacity: 288KiB capabilities: synchronous internal write-back data configuration: level=1 *-cache:1 description: L1 cache physical id: 4a slot: L1 Cache size: 192KiB capacity: 192KiB capabilities: synchronous internal write-back instruction configuration: level=1 *-cache:2 description: L2 cache physical id: 4b slot: L2 Cache size: 7680KiB capacity: 7680KiB capabilities: synchronous internal write-back unified configuration: level=2 *-cache:3 description: L3 cache physical id: 4c slot: L3 Cache size: 24MiB capacity: 24MiB capabilities: synchronous internal write-back unified configuration: level=3 *-cache:4 description: L1 cache physical id: 4d slot: L1 Cache size: 256KiB capacity: 256KiB capabilities: synchronous internal write-back data root@Server:~# lshw -class memory *-firmware:0 description: BIOS vendor: American Megatrends International, LLC. physical id: 1 version: 1.D0 date: 09/26/2024 size: 64KiB capacity: 32MiB capabilities: pci upgrade shadowing cdboot bootselect socketedrom edd int13floppynec int13floppytoshiba int13floppy360 int13floppy1200 int13floppy720 int13floppy2880 int5printscreen int9keyboard int14serial int17printer int10video acpi usb biosbootspecification uefi *-memory description: System Memory physical id: 3a slot: System board or motherboard size: 64GiB *-bank:0 description: [empty] physical id: 0 slot: Controller0-DIMMA1 *-bank:1 description: DIMM DDR4 Synchronous 3200 MHz (0.3 ns) product: CT32G4DFD832A.M16FF vendor: Crucial Technology physical id: 1 serial: E7F10F79 slot: Controller0-DIMMA2 size: 32GiB width: 64 bits clock: 3200MHz (0.3ns) *-firmware:1 description: BIOS physical id: 3d5c size: 8KiB capacity: 64KiB *-firmware:2 description: BIOS physical id: 2 size: 1MiB *-firmware:3 description: BIOS physical id: 3 size: 1MiB *-firmware:4 description: BIOS physical id: 4 size: 1MiB *-firmware:5 description: BIOS physical id: 5 size: 1MiB *-firmware:6 description: BIOS physical id: 6 size: 1MiB capabilities: edd *-firmware:7 description: BIOS physical id: 7 size: 1MiB *-firmware:8 description: BIOS physical id: 9 size: 1MiB *-firmware:9 description: BIOS physical id: a size: 1023KiB *-firmware:10 description: BIOS physical id: b size: 1MiB *-firmware:11 description: BIOS physical id: 8 size: 1MiB *-firmware:12 description: BIOS physical id: c size: 1MiB *-firmware:13 description: BIOS physical id: d size: 1MiB *-firmware:14 description: BIOS physical id: e size: 1MiB *-firmware:15 description: BIOS physical id: f size: 1MiB *-firmware:16 description: BIOS physical id: 10 size: 1MiB *-firmware:17 description: BIOS physical id: 11 size: 1MiB *-firmware:18 description: BIOS physical id: 12 size: 1MiB *-firmware:19 description: BIOS physical id: 13 size: 1MiB *-firmware:20 description: BIOS physical id: 14 size: 1MiB *-firmware:21 description: BIOS physical id: 15 size: 1MiB *-firmware:22 description: BIOS physical id: 16 size: 1MiB *-firmware:23 description: BIOS physical id: 17 size: 1MiB *-firmware:24 description: BIOS physical id: 18 size: 1MiB *-firmware:25 description: BIOS physical id: 19 size: 1MiB *-firmware:26 description: BIOS physical id: 1a size: 1MiB *-firmware:27 description: BIOS physical id: 1b size: 1MiB *-firmware:28 description: BIOS physical id: 1c size: 1MiB *-firmware:29 description: BIOS physical id: 1d size: 1MiB *-firmware:30 description: BIOS physical id: 1e size: 1MiB capabilities: bootselect socketedrom int13floppy360 int13floppy720 int13floppy2880 int5printscreen int9keyboard int17printer int10video *-firmware:31 description: BIOS physical id: 1f size: 1MiB capabilities: eisa pcmcia pnp apm upgrade vesa escd socketedrom pcmciaboot edd int13floppytoshiba int13floppy360 int5printscreen int14serial int17printer int10video *-firmware:32 description: BIOS physical id: 20 size: 1MiB capacity: 7MiB *-firmware:33 description: BIOS physical id: 21 size: 578KiB capacity: 7488KiB capabilities: isa mca eisa pcmcia pnp apm upgrade vesa escd pcmciaboot edd int13floppytoshiba int13floppy360 int5printscreen int9keyboard int17printer int10video *-firmware:34 description: BIOS vendor: Crucial Technology physical id: 22 size: 558KiB capacity: 7MiB *-firmware:35 description: BIOS vendor: TPM 2.0 physical id: 6f43 size: 578KiB capacity: 6976KiB capabilities: mca eisa pnp shadowing vesa escd bootselect int13floppynec int13floppytoshiba int13floppy720 int5printscreen int9keyboard int17printer *-firmware:36 description: BIOS physical id: 23 size: 1MiB *-firmware:37 description: BIOS physical id: 24 size: 1MiB *-firmware:38 description: BIOS physical id: 25 size: 1MiB capabilities: int13floppy720 int13floppy2880 int10video *-firmware:39 description: BIOS physical id: 26 size: 1MiB capabilities: pcmcia pnp escd bootselect socketedrom pcmciaboot edd int13floppytoshiba int13floppy360 int13floppy2880 int5printscreen int9keyboard int17printer int10video *-firmware:40 description: BIOS physical id: 27 size: 1MiB capacity: 4352KiB *-firmware:41 description: BIOS physical id: 28 size: 756KiB capacity: 7104KiB capabilities: isa mca eisa pnp shadowing vesa escd bootselect socketedrom pcmciaboot edd int13floppytoshiba int13floppy360 int5printscreen int9keyboard int17printer int10video *-firmware:42 description: BIOS physical id: 29 size: 582KiB capacity: 7360KiB *-firmware:43 description: BIOS physical id: 4300 size: 566KiB capacity: 6976KiB *-firmware:44 description: BIOS physical id: 6e6f size: 590KiB capacity: 6528KiB capabilities: isa mca eisa pcmcia shadowing vesa bootselect pcmciaboot edd int13floppytoshiba int5printscreen int10video usb ls120boot zipboot *-firmware:45 description: BIOS physical id: 3f1f size: 1MiB capacity: 16MiB *-firmware:46 description: BIOS physical id: 2a size: 1MiB capabilities: int13floppy720 int13floppy2880 int9keyboard int17printer *-firmware:47 description: BIOS physical id: 2b size: 1MiB capabilities: pcmcia pnp upgrade vesa bootselect socketedrom pcmciaboot edd int13floppynec int10video *-firmware:48 description: BIOS physical id: 2c size: 1MiB capacity: 2816KiB *-firmware:49 description: BIOS physical id: 2d size: 852KiB capacity: 4160KiB capabilities: pcmcia upgrade escd socketedrom pcmciaboot edd int13floppy360 int5printscreen int14serial int10video *-firmware:50 description: BIOS physical id: 0 size: 767KiB capacity: 4736KiB *-firmware:51 description: BIOS vendor: 2021-05-15T00:00:00Z physical id: 2b00 version: ? size: 732KiB capacity: 5440KiB capabilities: eisa pnp int13floppy2880 int14serial *-firmware:52 description: BIOS physical id: 401f size: 686KiB capabilities: pnp shadowing int9keyboard int14serial int10video netboot *-cache:0 description: L1 cache physical id: 49 slot: L1 Cache size: 288KiB capacity: 288KiB capabilities: synchronous internal write-back data configuration: level=1 *-cache:1 description: L1 cache physical id: 4a slot: L1 Cache size: 192KiB capacity: 192KiB capabilities: synchronous internal write-back instruction configuration: level=1 *-cache:2 description: L2 cache physical id: 4b slot: L2 Cache size: 7680KiB capacity: 7680KiB capabilities: synchronous internal write-back unified configuration: level=2 *-cache:3 description: L3 cache physical id: 4c slot: L3 Cache size: 24MiB capacity: 24MiB capabilities: synchronous internal write-back unified configuration: level=3 *-cache:4 description: L1 cache physical id: 4d slot: L1 Cache size: 256KiB capacity: 256KiB capabilities: synchronous internal write-back data configuration: level=1 *-cache:5 description: L1 cache physical id: 4e slot: L1 Cache size: 512KiB capacity: 512KiB capabilities: synchronous internal write-back instruction configuration: level=1 *-cache:6 description: L2 cache physical id: 4f slot: L2 Cache size: 4MiB capacity: 4MiB capabilities: synchronous internal write-back unified configuration: level=2 *-cache:7 description: L3 cache physical id: 50 slot: L3 Cache size: 24MiB capacity: 24MiB capabilities: synchronous internal write-back unified configuration: level=3 *-memory UNCLAIMED description: RAM memory product: Raptor Lake-S PCH Shared SRAM vendor: Intel Corporation physical id: 14.2 bus info: pci@0000:00:14.2 version: 11 width: 64 bits clock: 33MHz (30.3ns) capabilities: pm cap_list configuration: latency=0 resources: iomemory:610-60f iomemory:610-60f memory:6101124000-6101127fff memory:610112a000-610112afff root@Server:~# Edited June 26, 20251 yr by bally12345 added lshw -class memory result
June 26, 20251 yr Author Think I might have found the issueYannick's Tech Blog: Modding a Dell Perc 6 / Dell H310 / Dell H710 (other LSI 1078 or 9223-8i based) SAS RaidcontrollerAlso confirmed working on the folowing cards:IBM SR M1115Dell Perc5Dell H310And probably all other LSI 1078 and LSI 9223-8i bases controllers. Edited June 26, 20251 yr by bally12345
June 28, 20251 yr Author Solution Narrowed it down to CoreFreq plugin, removed it and that sorted everything!
