Unraid 7.0.0 br0 in VM not working -> Intel E810-XXVDA2

I updated mi Unraid Server from version 6 to version 7.0.0. After this, i wasn't able to connect to the network within my virtual machines. Docker still works without a problem.

I have the following specs:

Network Card: Intel E810-XXVDA2 SFP28 (25gb MM Fiber)

Mainboard: ASUS Pro WS W680-ACE IPMI

CPU: 14900K

RAM: 4x Micron 32GB DDR5-4800 ECC UDIMM Rx8 CL40

Switch: Unifi USW-Pro-Aggregation

Router: Pfsense

if i switch from br0 to virbr0 it works but for me it isn't practical because I want to acces my AMP Gameserver (debian), Windows 10/11 and Homeassistant by reverse proxying over pfsense HAProxy.

At the moment i can't replace the network Card, because im not at home.

I have a second server (Supermicro H12SSL-CT, AMD EPYC 7402 24-Core, Broadcom BCM57414 NetXtreme-E 10Gb/25Gb) that works without a hitch.

I can add aditional Information but I don't know what's important in my case.

I'd be grateful for any help you can give me. I sucks to not have a game server durring my hollidays (I don't want to go outside

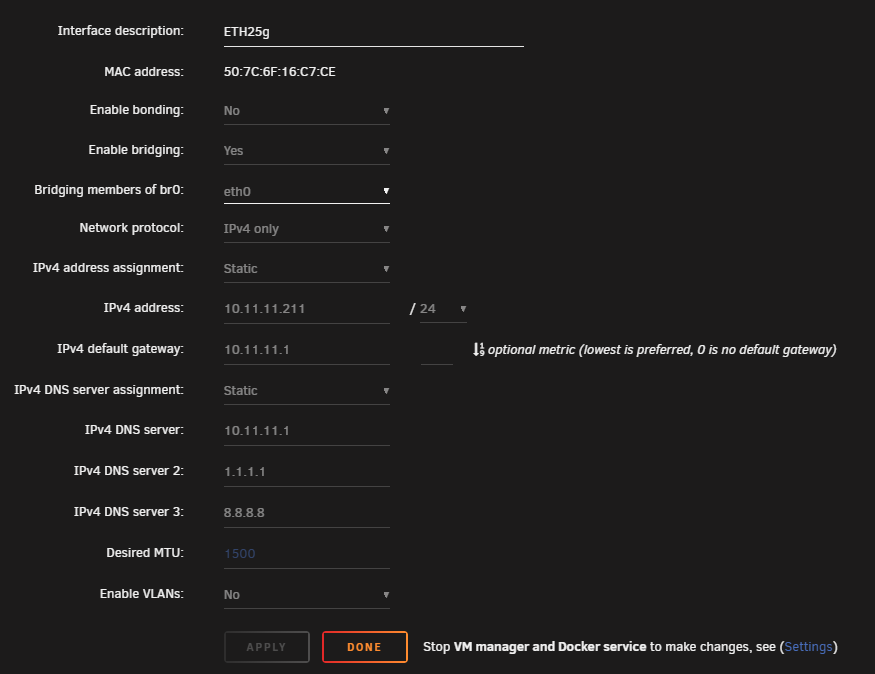

Network Settings global

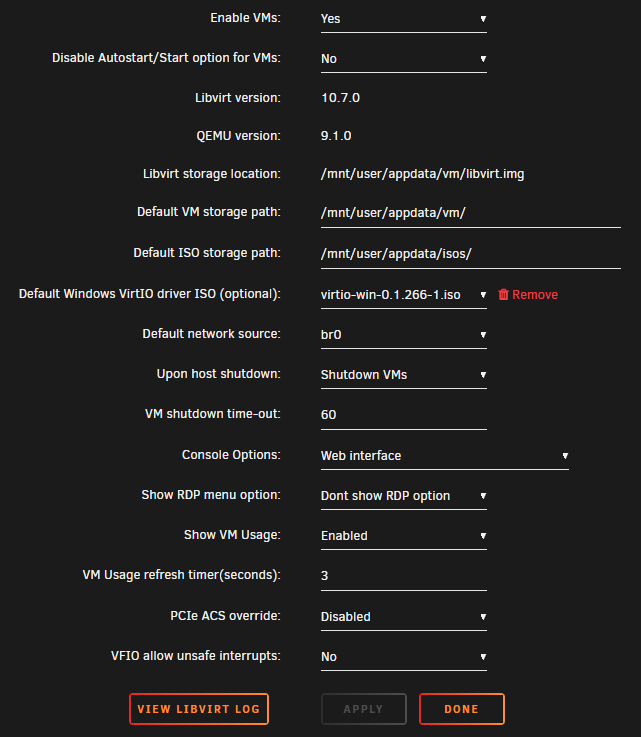

VM settings global

Edited January 19, 20251 yr by Zoakivoor
visual correction
