January 20, 20251 yr Hi I have replaced a 4TB WD RED with a 12TB WD RED and the ETA is on completion is over 3 days. Write speeds are only around 40MB/s - Quick chat on discord suggests this is slower than normal. I have an Intel i5-13500, Docker and VM services are stopped. Was really expecting maybe a 1.5 days for rebuild to take place? Diagnostics attached. server-diagnostics-20250120-1604.zip
January 20, 20251 yr Community Expert Nothing obvious logged, could be a slow disk or bandwidth problem, run the diskspeed container test, both the disks and controller tests.
January 20, 20251 yr Author 9 minutes ago, JorgeB said: Nothing obvious logged, could be a slow disk or bandwidth problem, run the diskspeed container test, both the disks and controller tests. It is what it is... If I have to wait 3 days fine but just wanted to make sure nothing wrong
January 20, 20251 yr @bally12345 Two days ago I replaced an 8TB parity drive with a 12TB WD Red. Parity sync took 25 hours which is in line with the 16-17 hours it took with the 8TB drive. Three days seems excessive unless, as noted, you have a bandwidth constraint somewhere in your system. Edited January 20, 20251 yr by Hoopster
January 20, 20251 yr Author 2 minutes ago, Hoopster said: @bally12345 Two days ago I replaced an 8TB parity drive with a 12TB WD Red. Parity sync took 25 hours which is in line with the 16-17 hours it took with the 8TB drive. Three days seems excessive unless, as noted, you have a bandwidth constraint somewhere in your system. Could the ETA just be incorrect? I have a Supermicro 826 chasis with Supermicro blackplane and LSI SAS 9201-8i... Going to leave it running and see if it actually takes 3 days or is done quicker.
January 20, 20251 yr 3 minutes ago, bally12345 said: Could the ETA just be incorrect? I have a Supermicro 826 chasis with Supermicro blackplane and LSI SAS 9201-8i... Going to leave it running and see if it actually takes 3 days or is done quicker. When I did it, it did start out with a high estimate. It really picks up about 10% through. I think the average speed when it was done was reported at around 135 MB/s

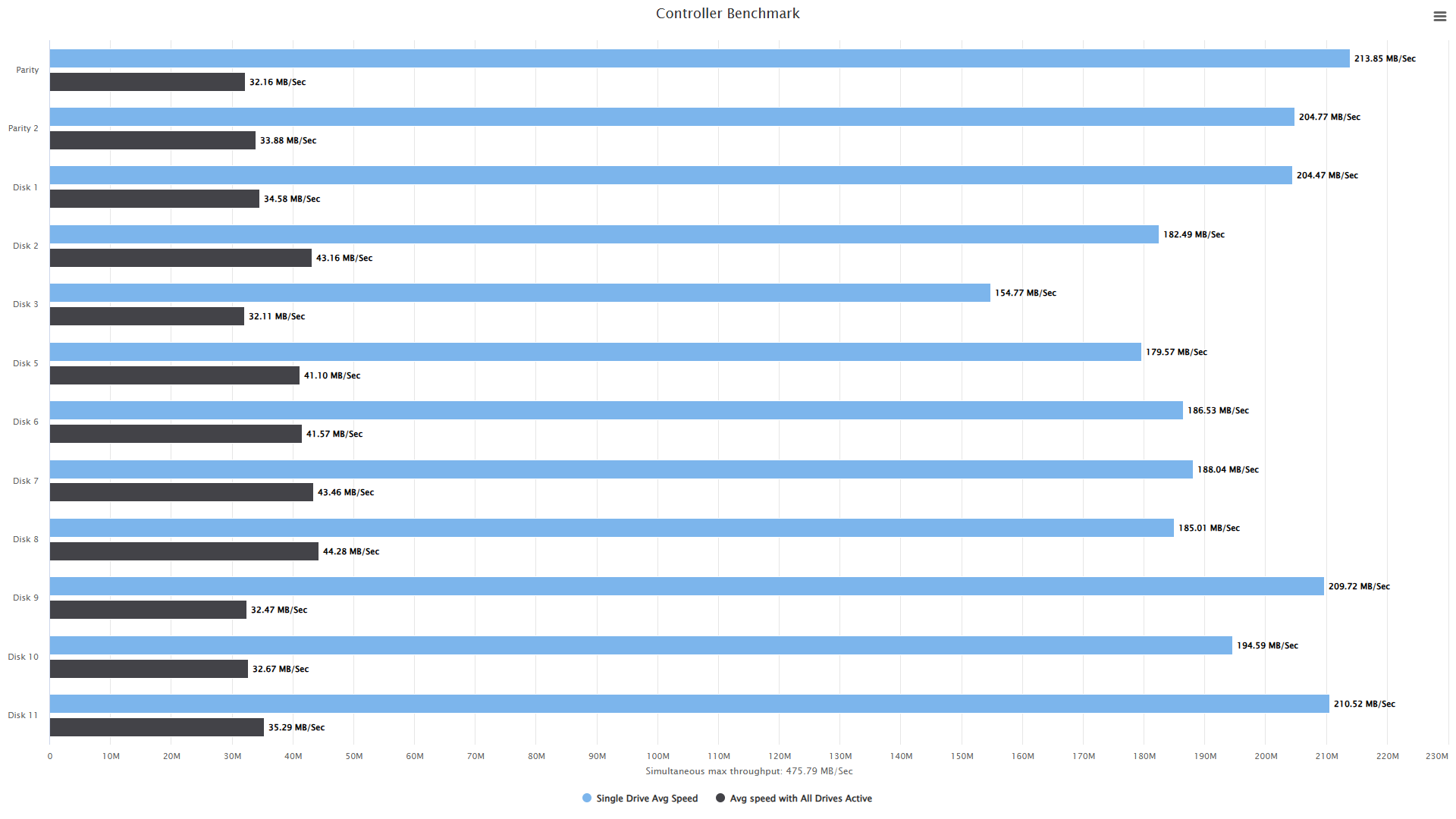

January 20, 20251 yr Community Expert The diskspeed test confirms that there is a big bottleneck with the controller, post the output from: lspci -d 1000: -vv
January 20, 20251 yr Author 13 minutes ago, JorgeB said: The diskspeed test confirms that there is a big bottleneck with the controller, post the output from: lspci -d 1000: -vv root@Server:~# lspci -d 1000: -vv 04:00.0 Serial Attached SCSI controller: Broadcom / LSI SAS2008 PCI-Express Fusion-MPT SAS-2 [Falcon] (rev 03) Subsystem: Broadcom / LSI 9211-8i Control: I/O- Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx+ Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- Latency: 0, Cache Line Size: 64 bytes Interrupt: pin A routed to IRQ 18 IOMMU group: 17 Region 0: I/O ports at 3000 [disabled] [size=256] Region 1: Memory at 82600000 (64-bit, non-prefetchable) [size=16K] Region 3: Memory at 82580000 (64-bit, non-prefetchable) [size=256K] Expansion ROM at 82100000 [disabled] [size=512K] Capabilities: [50] Power Management version 3 Flags: PMEClk- DSI- D1+ D2+ AuxCurrent=0mA PME(D0-,D1-,D2-,D3hot-,D3cold-) Status: D0 NoSoftRst+ PME-Enable- DSel=0 DScale=0 PME- Capabilities: [68] Express (v2) Endpoint, IntMsgNum 0 DevCap: MaxPayload 4096 bytes, PhantFunc 0, Latency L0s <64ns, L1 <1us ExtTag+ AttnBtn- AttnInd- PwrInd- RBE+ FLReset+ SlotPowerLimit 0W TEE-IO- DevCtl: CorrErr+ NonFatalErr+ FatalErr+ UnsupReq+ RlxdOrd+ ExtTag+ PhantFunc- AuxPwr- NoSnoop+ FLReset- MaxPayload 256 bytes, MaxReadReq 512 bytes DevSta: CorrErr+ NonFatalErr- FatalErr- UnsupReq+ AuxPwr- TransPend- LnkCap: Port #0, Speed 5GT/s, Width x8, ASPM L0s, Exit Latency L0s <64ns ClockPM- Surprise- LLActRep- BwNot- ASPMOptComp- LnkCtl: ASPM Disabled; RCB 64 bytes, LnkDisable- CommClk+ ExtSynch- ClockPM- AutWidDis- BWInt- AutBWInt- LnkSta: Speed 5GT/s, Width x1 (downgraded) TrErr- Train- SlotClk+ DLActive- BWMgmt- ABWMgmt- DevCap2: Completion Timeout: Range BC, TimeoutDis+ NROPrPrP- LTR- 10BitTagComp- 10BitTagReq- OBFF Not Supported, ExtFmt- EETLPPrefix- EmergencyPowerReduction Not Supported, EmergencyPowerReductionInit- FRS- TPHComp- ExtTPHComp- AtomicOpsCap: 32bit- 64bit- 128bitCAS- DevCtl2: Completion Timeout: 50us to 50ms, TimeoutDis- AtomicOpsCtl: ReqEn- IDOReq- IDOCompl- LTR- EmergencyPowerReductionReq- 10BitTagReq- OBFF Disabled, EETLPPrefixBlk- LnkCtl2: Target Link Speed: 5GT/s, EnterCompliance- SpeedDis- Transmit Margin: Normal Operating Range, EnterModifiedCompliance- ComplianceSOS- Compliance Preset/De-emphasis: -6dB de-emphasis, 0dB preshoot LnkSta2: Current De-emphasis Level: -6dB, EqualizationComplete- EqualizationPhase1- EqualizationPhase2- EqualizationPhase3- LinkEqualizationRequest- Retimer- 2Retimers- CrosslinkRes: unsupported Capabilities: [d0] Vital Product Data pcilib: sysfs_read_vpd: read failed: No such device Not readable Capabilities: [a8] MSI: Enable- Count=1/1 Maskable- 64bit+ Address: 0000000000000000 Data: 0000 Capabilities: [c0] MSI-X: Enable+ Count=15 Masked- Vector table: BAR=1 offset=00002000 PBA: BAR=1 offset=00003800 Capabilities: [100 v1] Advanced Error Reporting UESta: DLP- SDES- TLP- FCP- CmpltTO- CmpltAbrt- UnxCmplt- RxOF- MalfTLP- ECRC- UnsupReq- ACSViol- UncorrIntErr- BlockedTLP- AtomicOpBlocked- TLPBlockedErr- PoisonTLPBlocked- DMWrReqBlocked- IDECheck- MisIDETLP- PCRC_CHECK- TLPXlatBlocked- UEMsk: DLP- SDES- TLP- FCP- CmpltTO- CmpltAbrt- UnxCmplt- RxOF- MalfTLP- ECRC- UnsupReq- ACSViol- UncorrIntErr- BlockedTLP- AtomicOpBlocked- TLPBlockedErr- PoisonTLPBlocked- DMWrReqBlocked- IDECheck- MisIDETLP- PCRC_CHECK- TLPXlatBlocked- UESvrt: DLP+ SDES+ TLP- FCP+ CmpltTO- CmpltAbrt- UnxCmplt- RxOF+ MalfTLP+ ECRC- UnsupReq- ACSViol- UncorrIntErr- BlockedTLP- AtomicOpBlocked- TLPBlockedErr- PoisonTLPBlocked- DMWrReqBlocked- IDECheck- MisIDETLP- PCRC_CHECK- TLPXlatBlocked- CESta: RxErr- BadTLP- BadDLLP- Rollover- Timeout- AdvNonFatalErr- CorrIntErr- HeaderOF- CEMsk: RxErr- BadTLP- BadDLLP- Rollover- Timeout- AdvNonFatalErr+ CorrIntErr- HeaderOF- AERCap: First Error Pointer: 00, ECRCGenCap+ ECRCGenEn- ECRCChkCap+ ECRCChkEn- MultHdrRecCap- MultHdrRecEn- TLPPfxPres- HdrLogCap- HeaderLog: 00000000 00000000 00000000 00000000 Capabilities: [138 v1] Power Budgeting <?> Capabilities: [150 v1] Single Root I/O Virtualization (SR-IOV) IOVCap: Migration- 10BitTagReq- IntMsgNum 0 IOVCtl: Enable- Migration- Interrupt- MSE- ARIHierarchy+ 10BitTagReq- IOVSta: Migration- Initial VFs: 16, Total VFs: 16, Number of VFs: 0, Function Dependency Link: 00 VF offset: 1, stride: 1, Device ID: 0072 Supported Page Size: 00000553, System Page Size: 00000001 Region 0: Memory at 00000000825c0000 (64-bit, non-prefetchable) Region 2: Memory at 0000000082180000 (64-bit, non-prefetchable) VF Migration: offset: 00000000, BIR: 0 Capabilities: [190 v1] Alternative Routing-ID Interpretation (ARI) ARICap: MFVC- ACS-, Next Function: 0 ARICtl: MFVC- ACS-, Function Group: 0 Kernel driver in use: mpt3sas Kernel modules: mpt3sas root@Server:~#
January 20, 20251 yr Author 9 minutes ago, bally12345 said: root@Server:~# lspci -d 1000: -vv 04:00.0 Serial Attached SCSI controller: Broadcom / LSI SAS2008 PCI-Express Fusion-MPT SAS-2 [Falcon] (rev 03) Subsystem: Broadcom / LSI 9211-8i Control: I/O- Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx+ Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- Latency: 0, Cache Line Size: 64 bytes Interrupt: pin A routed to IRQ 18 IOMMU group: 17 Region 0: I/O ports at 3000 [disabled] [size=256] Region 1: Memory at 82600000 (64-bit, non-prefetchable) [size=16K] Region 3: Memory at 82580000 (64-bit, non-prefetchable) [size=256K] Expansion ROM at 82100000 [disabled] [size=512K] Capabilities: [50] Power Management version 3 Flags: PMEClk- DSI- D1+ D2+ AuxCurrent=0mA PME(D0-,D1-,D2-,D3hot-,D3cold-) Status: D0 NoSoftRst+ PME-Enable- DSel=0 DScale=0 PME- Capabilities: [68] Express (v2) Endpoint, IntMsgNum 0 DevCap: MaxPayload 4096 bytes, PhantFunc 0, Latency L0s <64ns, L1 <1us ExtTag+ AttnBtn- AttnInd- PwrInd- RBE+ FLReset+ SlotPowerLimit 0W TEE-IO- DevCtl: CorrErr+ NonFatalErr+ FatalErr+ UnsupReq+ RlxdOrd+ ExtTag+ PhantFunc- AuxPwr- NoSnoop+ FLReset- MaxPayload 256 bytes, MaxReadReq 512 bytes DevSta: CorrErr+ NonFatalErr- FatalErr- UnsupReq+ AuxPwr- TransPend- LnkCap: Port #0, Speed 5GT/s, Width x8, ASPM L0s, Exit Latency L0s <64ns ClockPM- Surprise- LLActRep- BwNot- ASPMOptComp- LnkCtl: ASPM Disabled; RCB 64 bytes, LnkDisable- CommClk+ ExtSynch- ClockPM- AutWidDis- BWInt- AutBWInt- LnkSta: Speed 5GT/s, Width x1 (downgraded) TrErr- Train- SlotClk+ DLActive- BWMgmt- ABWMgmt- DevCap2: Completion Timeout: Range BC, TimeoutDis+ NROPrPrP- LTR- 10BitTagComp- 10BitTagReq- OBFF Not Supported, ExtFmt- EETLPPrefix- EmergencyPowerReduction Not Supported, EmergencyPowerReductionInit- FRS- TPHComp- ExtTPHComp- AtomicOpsCap: 32bit- 64bit- 128bitCAS- DevCtl2: Completion Timeout: 50us to 50ms, TimeoutDis- AtomicOpsCtl: ReqEn- IDOReq- IDOCompl- LTR- EmergencyPowerReductionReq- 10BitTagReq- OBFF Disabled, EETLPPrefixBlk- LnkCtl2: Target Link Speed: 5GT/s, EnterCompliance- SpeedDis- Transmit Margin: Normal Operating Range, EnterModifiedCompliance- ComplianceSOS- Compliance Preset/De-emphasis: -6dB de-emphasis, 0dB preshoot LnkSta2: Current De-emphasis Level: -6dB, EqualizationComplete- EqualizationPhase1- EqualizationPhase2- EqualizationPhase3- LinkEqualizationRequest- Retimer- 2Retimers- CrosslinkRes: unsupported Capabilities: [d0] Vital Product Data pcilib: sysfs_read_vpd: read failed: No such device Not readable Capabilities: [a8] MSI: Enable- Count=1/1 Maskable- 64bit+ Address: 0000000000000000 Data: 0000 Capabilities: [c0] MSI-X: Enable+ Count=15 Masked- Vector table: BAR=1 offset=00002000 PBA: BAR=1 offset=00003800 Capabilities: [100 v1] Advanced Error Reporting UESta: DLP- SDES- TLP- FCP- CmpltTO- CmpltAbrt- UnxCmplt- RxOF- MalfTLP- ECRC- UnsupReq- ACSViol- UncorrIntErr- BlockedTLP- AtomicOpBlocked- TLPBlockedErr- PoisonTLPBlocked- DMWrReqBlocked- IDECheck- MisIDETLP- PCRC_CHECK- TLPXlatBlocked- UEMsk: DLP- SDES- TLP- FCP- CmpltTO- CmpltAbrt- UnxCmplt- RxOF- MalfTLP- ECRC- UnsupReq- ACSViol- UncorrIntErr- BlockedTLP- AtomicOpBlocked- TLPBlockedErr- PoisonTLPBlocked- DMWrReqBlocked- IDECheck- MisIDETLP- PCRC_CHECK- TLPXlatBlocked- UESvrt: DLP+ SDES+ TLP- FCP+ CmpltTO- CmpltAbrt- UnxCmplt- RxOF+ MalfTLP+ ECRC- UnsupReq- ACSViol- UncorrIntErr- BlockedTLP- AtomicOpBlocked- TLPBlockedErr- PoisonTLPBlocked- DMWrReqBlocked- IDECheck- MisIDETLP- PCRC_CHECK- TLPXlatBlocked- CESta: RxErr- BadTLP- BadDLLP- Rollover- Timeout- AdvNonFatalErr- CorrIntErr- HeaderOF- CEMsk: RxErr- BadTLP- BadDLLP- Rollover- Timeout- AdvNonFatalErr+ CorrIntErr- HeaderOF- AERCap: First Error Pointer: 00, ECRCGenCap+ ECRCGenEn- ECRCChkCap+ ECRCChkEn- MultHdrRecCap- MultHdrRecEn- TLPPfxPres- HdrLogCap- HeaderLog: 00000000 00000000 00000000 00000000 Capabilities: [138 v1] Power Budgeting <?> Capabilities: [150 v1] Single Root I/O Virtualization (SR-IOV) IOVCap: Migration- 10BitTagReq- IntMsgNum 0 IOVCtl: Enable- Migration- Interrupt- MSE- ARIHierarchy+ 10BitTagReq- IOVSta: Migration- Initial VFs: 16, Total VFs: 16, Number of VFs: 0, Function Dependency Link: 00 VF offset: 1, stride: 1, Device ID: 0072 Supported Page Size: 00000553, System Page Size: 00000001 Region 0: Memory at 00000000825c0000 (64-bit, non-prefetchable) Region 2: Memory at 0000000082180000 (64-bit, non-prefetchable) VF Migration: offset: 00000000, BIR: 0 Capabilities: [190 v1] Alternative Routing-ID Interpretation (ARI) ARICap: MFVC- ACS-, Next Function: 0 ARICtl: MFVC- ACS-, Function Group: 0 Kernel driver in use: mpt3sas Kernel modules: mpt3sas root@Server:~# So the obvious thing that sticks out to me is LnkSta: Speed 5GT/s, Width x1 (downgraded) Is it safe to cancel the rebuild and check the controller is seated correctly or even move it to another slot and start the rebuild again as its only completed just over 6%
January 20, 20251 yr Community Expert 13 minutes ago, bally12345 said: Speed 5GT/s, Width x1 (downgraded) This is the problem, it's only linking at x1, it should be x8, check the slot speed you have the HBA installed in.

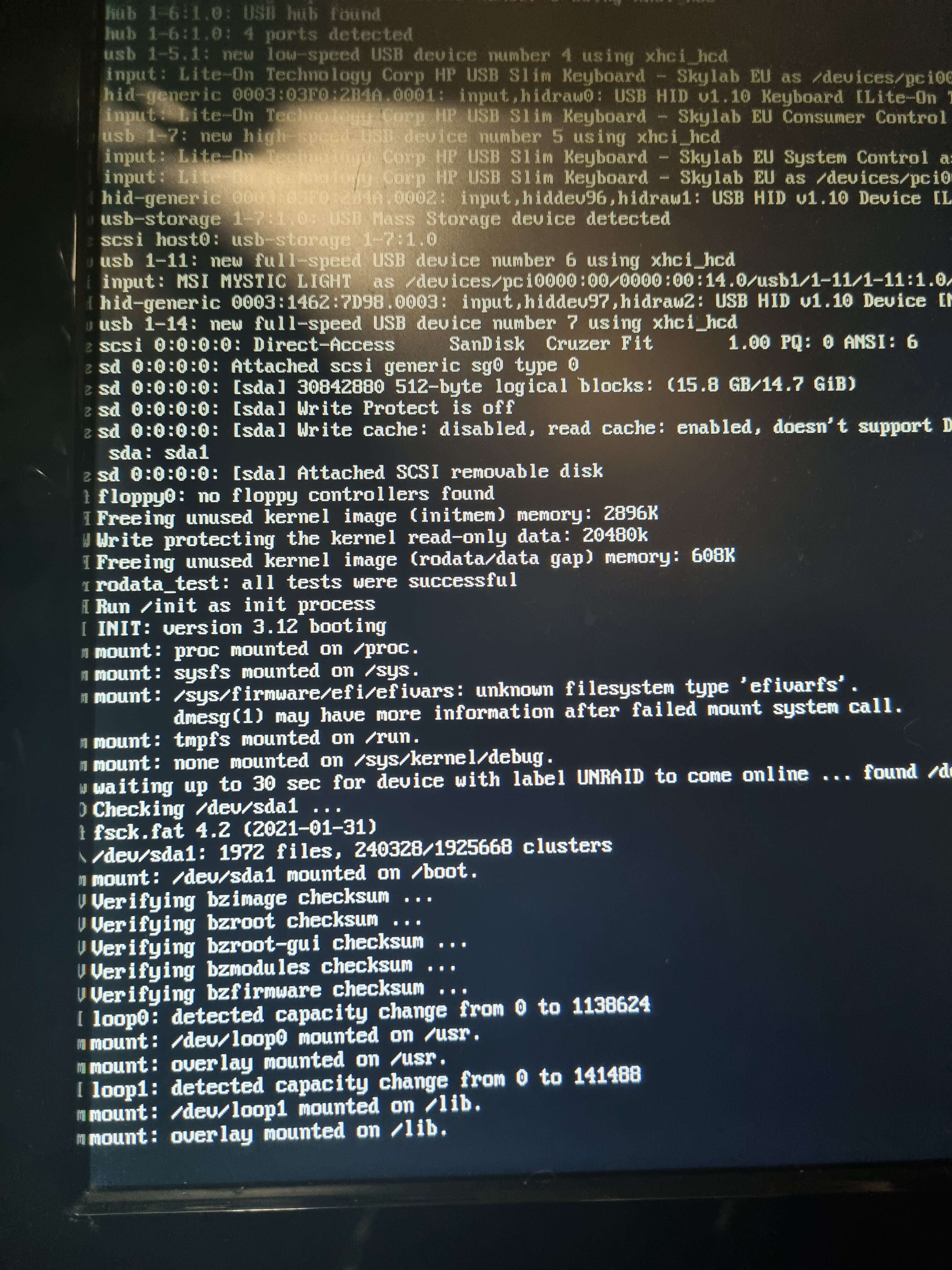

January 20, 20251 yr Author 57 minutes ago, JorgeB said: This is the problem, it's only linking at x1, it should be x8, check the slot speed you have the HBA installed in. Not sure what's going on but Unraid won't boot into OS. Seems to stall at "mount: overlay mounted on /lib" Any suggestions? Edited January 20, 20251 yr by bally12345 Added image
January 20, 20251 yr Author Removed all pci devices, which disconnects the controller too and still can't boot unraid even in safe mode... Do I need recreate the USB or has something else gone wrong? The USB is a SanDisk Cruzer Fit 16 GB from 2018 so pretty old now I guess.
January 20, 20251 yr Author Created a new test usb with trial and that works, so will try restore backup of USB and hopefully that will get me back on track!
January 20, 20251 yr Author Restored back up of the flash drive on new usb and same! Stops at mount: overlay mounted on /lib Back to square one... Not sure what to do next so will be shutting down and calling it a night until 2mw.
January 21, 20251 yr Community Expert You can try redoing the flash drive, backup the current one first and then recreate it using the USB tool and just restore the bare minimum, like the key, super.dat and the pools folder for the assignments, also copy the docker user templates folder (\config\plugins\dockerMan\templates-user), if all works you can then reconfigure the server or try restoring a few config files at a time from the backup to see if you can find the culprit.
January 21, 20251 yr Author 1 hour ago, JorgeB said: You can try redoing the flash drive, backup the current one first and then recreate it using the USB tool and just restore the bare minimum, like the key, super.dat and the pools folder for the assignments, also copy the docker user templates folder (\config\plugins\dockerMan\templates-user), if all works you can then reconfigure the server or try restoring a few config files at a time from the backup to see if you can find the culprit. Can this be done by simply copying the files to flash after mounting/export it to smb or do you have to shut down server each time?

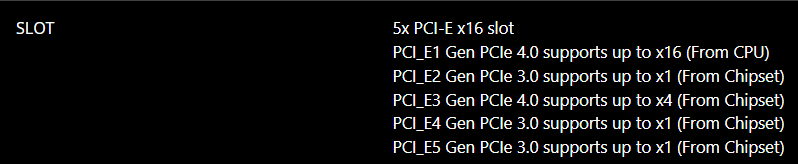

January 21, 20251 yr Author Copied all the config folder over from back up and everything is looking ok, not started the array yet but have also noticed the issue I was having with half the RAM showing has disappeared too. I have ordered a new USB from amazon which will be delivered today, just incase it was a failing USB drive. Do I need to copy any of the other files or folders over? Also running lspci -d 1000: -vv is now giving me LnkSta: Speed 5GT/s, Width x4 (downgraded) which is better than x1 but seems my motherboard doenst support x8 root@Server:~# lspci -d 1000: -vv 05:00.0 Serial Attached SCSI controller: Broadcom / LSI SAS2008 PCI-Express Fusion-MPT SAS-2 [Falcon] (rev 03) Subsystem: Broadcom / LSI 9211-8i Control: I/O- Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx+ Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- Latency: 0, Cache Line Size: 64 bytes Interrupt: pin A routed to IRQ 16 IOMMU group: 19 Region 0: I/O ports at 3000 [disabled] [size=256] Region 1: Memory at 80dc0000 (64-bit, non-prefetchable) [size=16K] Region 3: Memory at 80980000 (64-bit, non-prefetchable) [size=256K] Expansion ROM at 80900000 [disabled] [size=512K] Capabilities: [50] Power Management version 3 Flags: PMEClk- DSI- D1+ D2+ AuxCurrent=0mA PME(D0-,D1-,D2-,D3hot-,D3cold-) Status: D0 NoSoftRst+ PME-Enable- DSel=0 DScale=0 PME- Capabilities: [68] Express (v2) Endpoint, IntMsgNum 0 DevCap: MaxPayload 4096 bytes, PhantFunc 0, Latency L0s <64ns, L1 <1us ExtTag+ AttnBtn- AttnInd- PwrInd- RBE+ FLReset+ SlotPowerLimit 0W TEE-IO- DevCtl: CorrErr+ NonFatalErr+ FatalErr+ UnsupReq+ RlxdOrd+ ExtTag+ PhantFunc- AuxPwr- NoSnoop+ FLReset- MaxPayload 256 bytes, MaxReadReq 512 bytes DevSta: CorrErr+ NonFatalErr- FatalErr- UnsupReq+ AuxPwr- TransPend- LnkCap: Port #0, Speed 5GT/s, Width x8, ASPM L0s, Exit Latency L0s <64ns ClockPM- Surprise- LLActRep- BwNot- ASPMOptComp- LnkCtl: ASPM Disabled; RCB 64 bytes, LnkDisable- CommClk+ ExtSynch- ClockPM- AutWidDis- BWInt- AutBWInt- LnkSta: Speed 5GT/s, Width x4 (downgraded) TrErr- Train- SlotClk+ DLActive- BWMgmt- ABWMgmt- DevCap2: Completion Timeout: Range BC, TimeoutDis+ NROPrPrP- LTR- 10BitTagComp- 10BitTagReq- OBFF Not Supported, ExtFmt- EETLPPrefix- EmergencyPowerReduction Not Supported, EmergencyPowerReductionInit- FRS- TPHComp- ExtTPHComp- AtomicOpsCap: 32bit- 64bit- 128bitCAS- DevCtl2: Completion Timeout: 50us to 50ms, TimeoutDis- AtomicOpsCtl: ReqEn- IDOReq- IDOCompl- LTR- EmergencyPowerReductionReq- 10BitTagReq- OBFF Disabled, EETLPPrefixBlk- LnkCtl2: Target Link Speed: 5GT/s, EnterCompliance- SpeedDis- Transmit Margin: Normal Operating Range, EnterModifiedCompliance- ComplianceSOS- Compliance Preset/De-emphasis: -6dB de-emphasis, 0dB preshoot LnkSta2: Current De-emphasis Level: -6dB, EqualizationComplete- EqualizationPhase1- EqualizationPhase2- EqualizationPhase3- LinkEqualizationRequest- Retimer- 2Retimers- CrosslinkRes: unsupported Capabilities: [d0] Vital Product Data pcilib: sysfs_read_vpd: read failed: No such device Not readable Capabilities: [a8] MSI: Enable- Count=1/1 Maskable- 64bit+ Address: 0000000000000000 Data: 0000 Capabilities: [c0] MSI-X: Enable+ Count=15 Masked- Vector table: BAR=1 offset=00002000 PBA: BAR=1 offset=00003800 Capabilities: [100 v1] Advanced Error Reporting UESta: DLP- SDES- TLP- FCP- CmpltTO- CmpltAbrt- UnxCmplt- RxOF- MalfTLP- ECRC- UnsupReq- ACSViol- UncorrIntErr- BlockedTLP- AtomicOpBlocked- TLPBlockedErr- PoisonTLPBlocked- DMWrReqBlocked- IDECheck- MisIDETLP- PCRC_CHECK- TLPXlatBlocked- UEMsk: DLP- SDES- TLP- FCP- CmpltTO- CmpltAbrt- UnxCmplt- RxOF- MalfTLP- ECRC- UnsupReq- ACSViol- UncorrIntErr- BlockedTLP- AtomicOpBlocked- TLPBlockedErr- PoisonTLPBlocked- DMWrReqBlocked- IDECheck- MisIDETLP- PCRC_CHECK- TLPXlatBlocked- UESvrt: DLP+ SDES+ TLP- FCP+ CmpltTO- CmpltAbrt- UnxCmplt- RxOF+ MalfTLP+ ECRC- UnsupReq- ACSViol- UncorrIntErr- BlockedTLP- AtomicOpBlocked- TLPBlockedErr- PoisonTLPBlocked- DMWrReqBlocked- IDECheck- MisIDETLP- PCRC_CHECK- TLPXlatBlocked- CESta: RxErr- BadTLP- BadDLLP- Rollover- Timeout- AdvNonFatalErr- CorrIntErr- HeaderOF- CEMsk: RxErr- BadTLP- BadDLLP- Rollover- Timeout- AdvNonFatalErr+ CorrIntErr- HeaderOF- AERCap: First Error Pointer: 00, ECRCGenCap+ ECRCGenEn- ECRCChkCap+ ECRCChkEn- MultHdrRecCap- MultHdrRecEn- TLPPfxPres- HdrLogCap- HeaderLog: 00000000 00000000 00000000 00000000 Capabilities: [138 v1] Power Budgeting <?> Capabilities: [150 v1] Single Root I/O Virtualization (SR-IOV) IOVCap: Migration- 10BitTagReq- IntMsgNum 0 IOVCtl: Enable- Migration- Interrupt- MSE- ARIHierarchy+ 10BitTagReq- IOVSta: Migration- Initial VFs: 16, Total VFs: 16, Number of VFs: 0, Function Dependency Link: 00 VF offset: 1, stride: 1, Device ID: 0072 Supported Page Size: 00000553, System Page Size: 00000001 Region 0: Memory at 0000000080dc4000 (64-bit, non-prefetchable) Region 2: Memory at 00000000809c0000 (64-bit, non-prefetchable) VF Migration: offset: 00000000, BIR: 0 Capabilities: [190 v1] Alternative Routing-ID Interpretation (ARI) ARICap: MFVC- ACS-, Next Function: 0 ARICtl: MFVC- ACS-, Function Group: 0 Kernel driver in use: mpt3sas Kernel modules: mpt3sas root@Server:~# Edited January 21, 20251 yr by bally12345

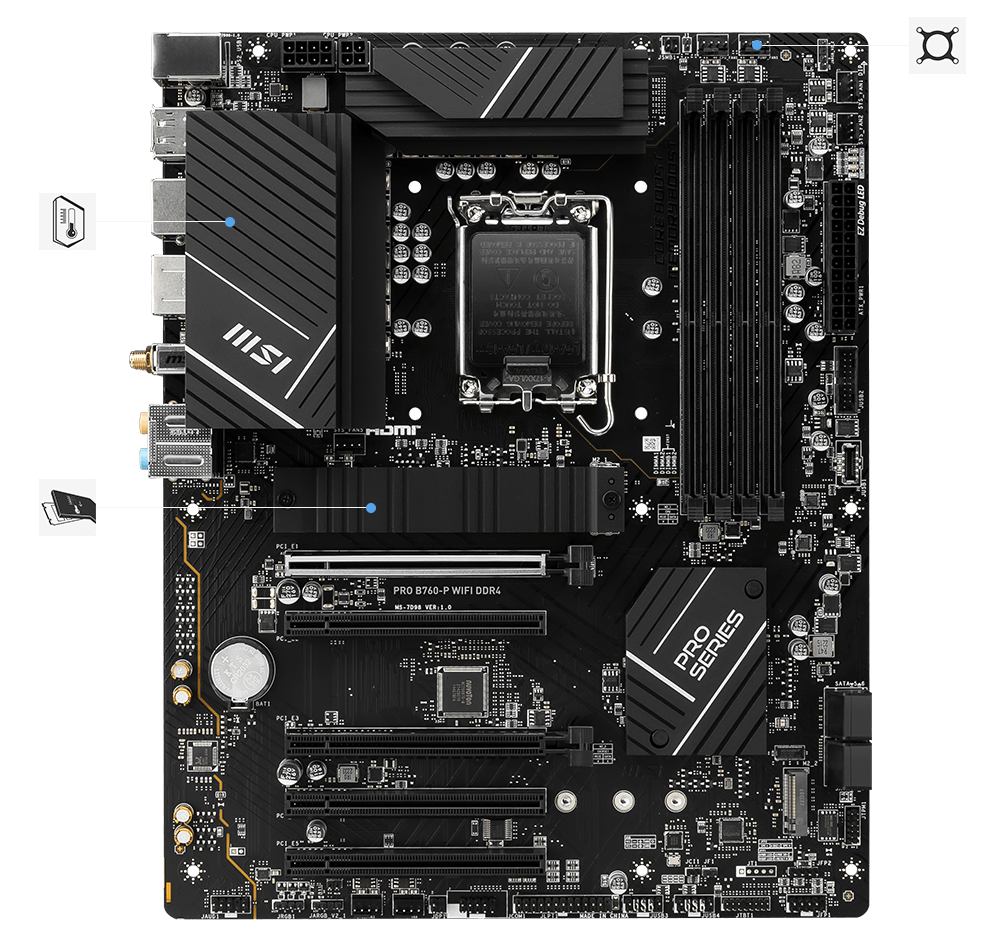

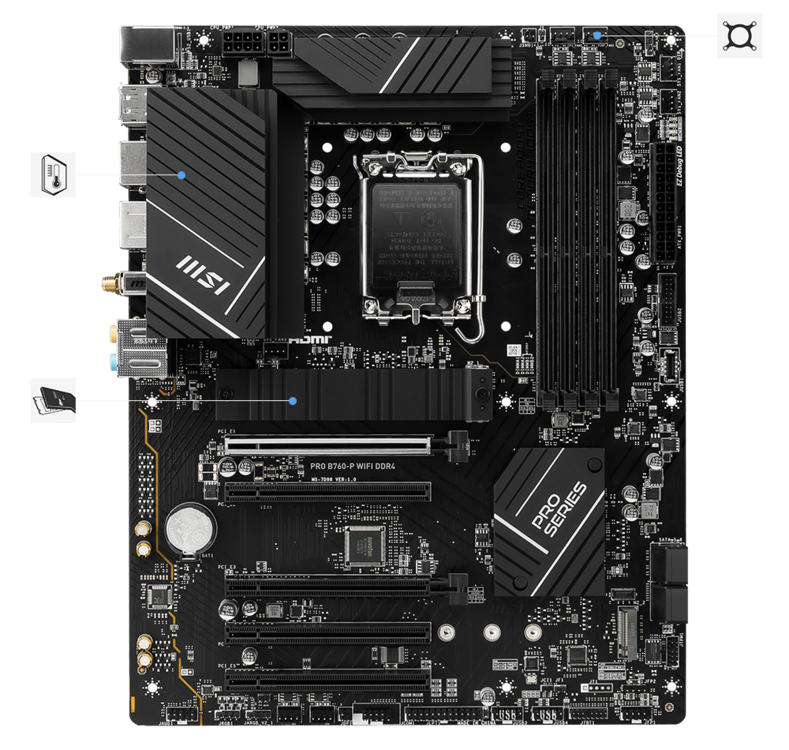

January 21, 20251 yr Community Expert 27 minutes ago, bally12345 said: seems my motherboard doenst support x8 It should if you use the x16 CPU slot, though x4 it's not bad.
January 21, 20251 yr Author 2 hours ago, JorgeB said: It should if you use the x16 CPU slot, though x4 it's not bad. So maybe dumb question but that has GTX 1650 low profile card in the x16 slot I don't use much other than passing through to a Win11 VM... Is it better to swap em and maximise disk speed.
January 21, 20251 yr Community Expert I would bet negligible difference in performance on a 1650 in an x4 slot.

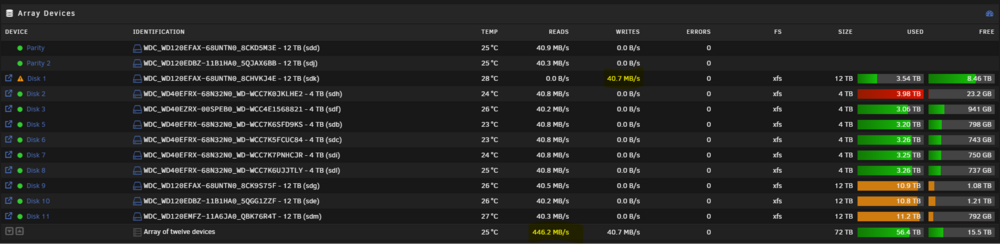

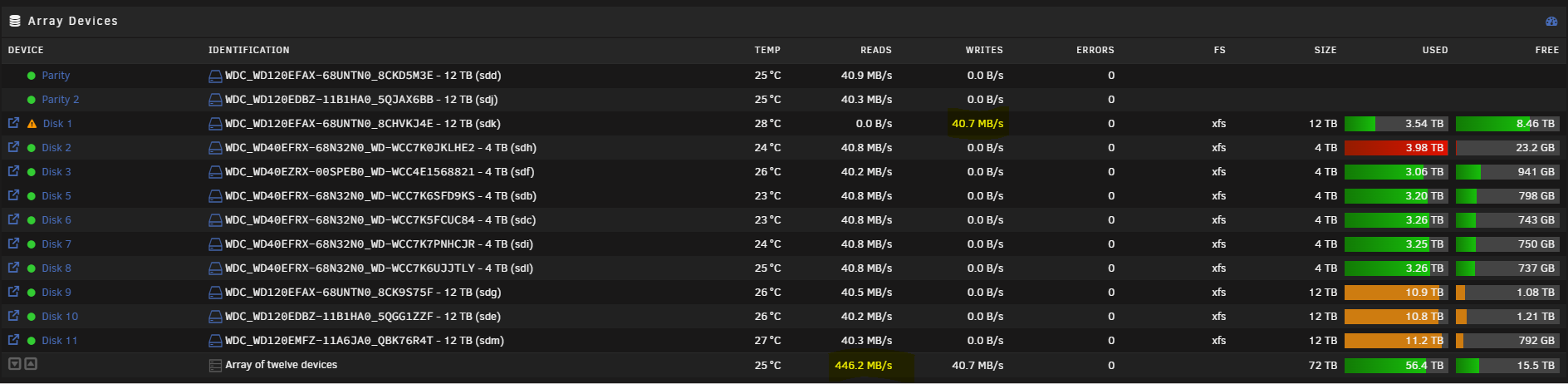

January 21, 20251 yr Author 3 hours ago, Veah said: I would bet negligible difference in performance on a 1650 in an x4 slot. Thanks, might swap it over after rebuild has compelted and everything stable. The rebuild looking much better now I have a feeling that something went a bit wrong during upgrade to v7.0.0 as previously memory was showing incorrectly and it wouldnt boot after reboot. Got a new USB Drive and transferred licence over and everything starts as it should. Probably had a failing usb drive that had some corruption or something. Thanks @JorgeB for all the replies too, appriciate it
January 26, 20251 yr Author Swapped over the GFX card with the LSI controller and now showing as LnkSta: Speed 5GT/s, Width x8 I would 100% prefer faster disk io over the GFX card so hopefully everything will run much better from now. Just need to remember to change the binding for the GPU passthru to VM and should be sorted!
