March 10, 20251 yr So just to start off i am aware USB JBOD devices are not recommend however i have been using my current setup with issues on Unraid 6 for a number of years. After upgrading to version 7 I am having an issue where my two pool drives are both visible but only one can be mounted or loaded into a new config the other drive appears in the device list but cannot be mounted with configured both theses drives are in a usb 3.1 JBOD yolltamaster drive enclosure that i have been using with no issues for 12 months and it all goes back to working if i downgrade to 6.12. I believe this error is the likely cause but i'm not sure how to go about fixing it. "Read SCT Status failed: scsi error device will be ready soon Wt Cache Reorder: Unknown (SCT Feature Control command failed)' I've also attached full diagnostics therepository-diagnostics-20250310-1718.zip
March 10, 20251 yr Author 1 hour ago, JorgeB said: Post the output from lsusb -vt Here you go /: Bus 001.Port 001: Dev 001, Class=root_hub, Driver=xhci_hcd/1p, 480M ID 1d6b:0002 Linux Foundation 2.0 root hub /: Bus 002.Port 001: Dev 001, Class=root_hub, Driver=xhci_hcd/3p, 20000M/x2 ID 1d6b:0003 Linux Foundation 3.0 root hub /: Bus 003.Port 001: Dev 001, Class=root_hub, Driver=xhci_hcd/12p, 480M ID 1d6b:0002 Linux Foundation 2.0 root hub |__ Port 001: Dev 002, If 0, Class=Hub, Driver=hub/4p, 480M ID 2109:2822 VIA Labs, Inc. |__ Port 003: Dev 005, If 0, Class=Hub, Driver=hub/4p, 480M ID 2109:2822 VIA Labs, Inc. |__ Port 009: Dev 003, If 0, Class=Mass Storage, Driver=usb-storage, 480M ID 058f:6387 Alcor Micro Corp. Flash Drive |__ Port 010: Dev 004, If 0, Class=Wireless, Driver=btusb, 480M ID 0e8d:c616 MediaTek Inc. |__ Port 010: Dev 004, If 1, Class=Wireless, Driver=btusb, 480M ID 0e8d:c616 MediaTek Inc. |__ Port 010: Dev 004, If 2, Class=Wireless, Driver=[none], 480M ID 0e8d:c616 MediaTek Inc. /: Bus 004.Port 001: Dev 001, Class=root_hub, Driver=xhci_hcd/4p, 10000M ID 1d6b:0003 Linux Foundation 3.0 root hub |__ Port 001: Dev 002, If 0, Class=Hub, Driver=hub/4p, 10000M ID 2109:0822 VIA Labs, Inc. |__ Port 003: Dev 003, If 0, Class=Hub, Driver=hub/4p, 10000M ID 2109:0822 VIA Labs, Inc. |__ Port 001: Dev 004, If 0, Class=Mass Storage, Driver=uas, 10000M ID 2109:0715 VIA Labs, Inc. VL817 SATA Adaptor |__ Port 002: Dev 005, If 0, Class=Mass Storage, Driver=uas, 10000M ID 2109:0715 VIA Labs, Inc. VL817 SATA Adaptor |__ Port 003: Dev 006, If 0, Class=Mass Storage, Driver=uas, 10000M ID 2109:0715 VIA Labs, Inc. VL817 SATA Adaptor
March 10, 20251 yr Community Expert Solution Go to the syslinux config, and add a USB quirk after /bzroot, like the example below, but with 2109:0715:u
March 10, 20251 yr Author 26 minutes ago, JorgeB said: Go to the syslinux config, and add a USB quirk after /bzroot, like the example below, but with 2109:0715:u The seems to have done the trick I orginally had it on a new line which did not work. But moving it to the same line got it working. What does usb_storage.quirks do?
March 10, 20251 yr Community Expert Unraid 7.x includes a new USB driver, which should be faster and also supports trim, but some devices try to use and don't really support it, that quirk makes v7.x use the older USB storage driver that was used with 6.12
March 10, 20251 yr Author 52 minutes ago, JorgeB said: Unraid 7.x includes a new USB driver, which should be faster and also supports trim, but some devices try to use and don't really support it, that quirk makes v7.x use the older USB storage driver that was used with 6.12 That makes sense thanks for all your help
August 31, 2025Aug 31 On 3/10/2025 at 12:28 PM, JorgeB said:Gehen Sie zur syslinux-Konfiguration und fügen Sie eine USB-Macke nach /bzroot hinzu, wie im folgenden Beispiel, jedoch mit 2109:0715:u Morning, I have the same problem.Here’s my output—could you also tell me what the values would be for me?I’d rather not do something wrong and break something right away.Installed is a CENMATE 4-bay external enclosure.root@Tower:~# lsusb -vt/: Bus 001.Port 001: Dev 001, Class=root_hub, Driver=xhci_hcd/12p, 480MID 1d6b:0002 Linux Foundation 2.0 root hub|__ Port 001: Dev 002, If 0, Class=Hub, Driver=hub/5p, 480MID 0bda:5423 Realtek Semiconductor Corp.|__ Port 002: Dev 005, If 0, Class=Vendor Specific Class, Driver=cp210x, 12MID 1b1f:c020 eQ-3 Entwicklung GmbH HmIP-RFUSB|__ Port 003: Dev 003, If 0, Class=Mass Storage, Driver=usb-storage, 480MID 058f:6387 Alcor Micro Corp. Flash Drive/: Bus 002.Port 001: Dev 001, Class=root_hub, Driver=xhci_hcd/4p, 10000MID 1d6b:0003 Linux Foundation 3.0 root hub|__ Port 003: Dev 002, If 0, Class=Hub, Driver=hub/4p, 10000MID 0bda:0423 Realtek Semiconductor Corp.|__ Port 001: Dev 003, If 0, Class=Mass Storage, Driver=uas, 10000MID 04e8:61fb Samsung Electronics Co., Ltd|__ Port 003: Dev 004, If 0, Class=Mass Storage, Driver=uas, 5000MID 152d:0567 JMicron Technology Corp. / JMicron USA Technology Corp. JMS567 SATA 6Gb/s bridge Edited August 31, 2025Aug 31 by SvensenDE
August 31, 2025Aug 31 Community Expert The enclosure should be 152d:0567. If you also want to use the regular USB storage driver for the Samsung SSD also add 04e8:61fb, so for both it would be:usb_storage.quirks=152d:0567:u,04e8:61fb:u
August 31, 2025Aug 31 28 minutes ago, JorgeB said:The enclosure should be 152d:0567. If you also want to use the regular USB storage driver for the Samsung SSD also add 04e8:61fb, so for both it would be:usb_storage.quirks=152d:0567:u,04e8:61fb:uSo, the Samsung SSD was already working before.This is about the HDD, and I think this here is “JMicron Technology Corp. / JMicron USA Technology Corp. JMS567 SATA 6Gb/s bridge”. Edited August 31, 2025Aug 31 by SvensenDE
August 31, 2025Aug 31 Community Expert 57 minutes ago, SvensenDE said:This is about the HDDJust add that one then: usb_storage.quirks=152d:0567:u
August 31, 2025Aug 31 I will test this as soon as the parity test is completed, otherwise it will start over.Once it is completed, I will test it and report back.
September 1, 2025Sep 1 11 hours ago, JorgeB said:Just add that one then: usb_storage.quirks=152d:0567:uGood morning from Germany,Thank you very much for your help, it worked.

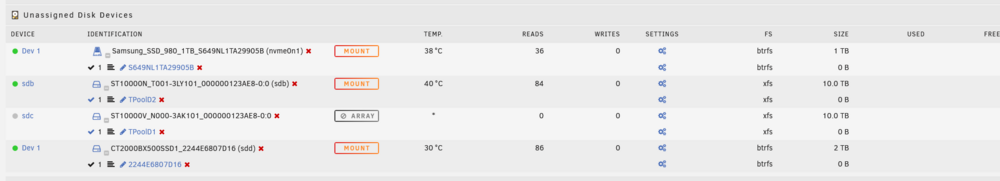

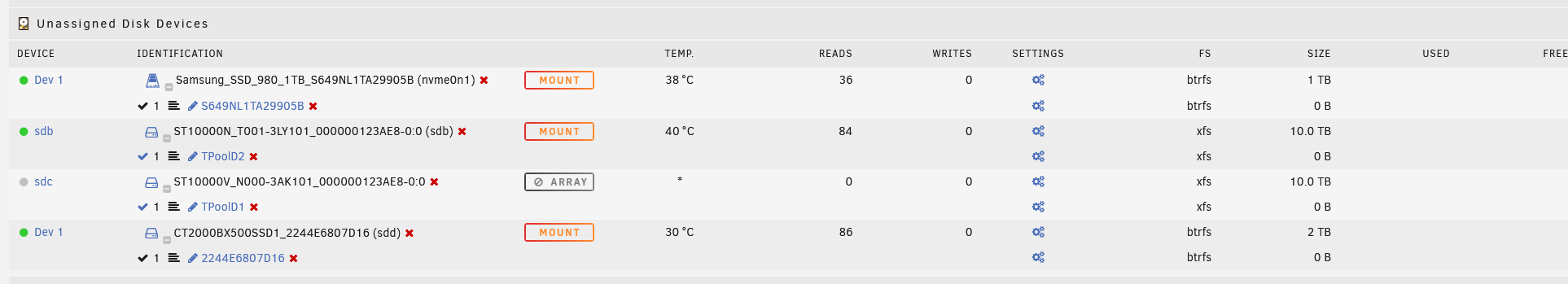

November 29, 2025Nov 29 I solved this problem in 7.1.4, and now, after updating to 7.2.2 I am having the same problem again, but just with one HDD.LOOK: https://ibb.co/JR64QFQMI did this in 7.1.4., but now it is generating problem with one hdd: I ran lsusb and confirmed that both of my USB enclosures report the same chipset and USB ID: 2109:0715 (VIA Labs, Inc. VL817 SATA Adaptor). So it looks like both enclosures share this VID:PID. I’ll go into the Syslinux Configuration in Unraid (Main > Flash > Syslinux Configuration) and modify the append line to: append initrd=/bzroot usb_storage.quirks=2109:0715:u, then save and reboot.
November 30, 2025Nov 30 5 hours ago, JorgeB said:Please post the diagnostics and the output from lsusb -vtI am back in 7.1.4. because nothing worked on 7.2.2. Probably i will update on the future, but i need stability right now. Is it possible that the quirk doesn't work on this new version? It was strange the problem, just one hdd and not the rest. I use two fantec cases, and the problem was with just one disk. Thanks.
November 30, 2025Nov 30 Community Expert 54 minutes ago, Theonor said:Is it possible that the quirk doesn't work on this new version?It should still work, but would need the diags and that output to see what's going on.
January 19Jan 19 hey guys, i need some help with my Orico Macdata 5-bay das.I'm using it on an hp elitedesk g2 mini with unraid, but i have a big issue with duplicate serial IDs.The das uses the VIA VL817 chip (ID 2109:0715) and i've already tried the "quirk" fix but it didn't change the serials...Also, right now it's running at 480M (usb 2.0) even though it's a usb-c connection. i have a new usb 3.2 cable coming tomorrow to see if more speed helps, but i'm worried about the serials.Here are some commands i ran:root@tender:~# lsusb Bus 001 Device 001: ID 1d6b:0002 Linux Foundation 2.0 root hub Bus 001 Device 002: ID 8087:0a2b Intel Corp. Bluetooth wireless interface Bus 001 Device 004: ID ffff:5678 USB Disk 2.0 Bus 001 Device 016: ID 2109:2822 VIA Labs, Inc. USB2.0 Hub Bus 001 Device 017: ID 2109:0715 VIA Labs, Inc. VL817 SATA Adaptor Bus 001 Device 018: ID 2109:2822 VIA Labs, Inc. USB2.0 Hub Bus 001 Device 019: ID 2109:0715 VIA Labs, Inc. VL817 SATA Adaptor Bus 001 Device 020: ID 2109:0715 VIA Labs, Inc. VL817 SATA Adaptor Bus 001 Device 021: ID 2109:0715 VIA Labs, Inc. VL817 SATA Adaptor Bus 002 Device 001: ID 1d6b:0003 Linux Foundation 3.0 root hub root@tender:~# lsusb -vt /: Bus 001.Port 001: Dev 001, Class=root_hub, Driver=xhci_hcd/16p, 480M ID 1d6b:0002 Linux Foundation 2.0 root hub |__ Port 007: Dev 002, If 0, Class=Wireless, Driver=[none], 12M ID 8087:0a2b Intel Corp. Bluetooth wireless interface |__ Port 007: Dev 002, If 1, Class=Wireless, Driver=[none], 12M ID 8087:0a2b Intel Corp. Bluetooth wireless interface |__ Port 009: Dev 016, If 0, Class=Hub, Driver=hub/4p, 480M ID 2109:2822 VIA Labs, Inc. |__ Port 002: Dev 017, If 0, Class=Mass Storage, Driver=usb-storage, 480M ID 2109:0715 VIA Labs, Inc. VL817 SATA Adaptor |__ Port 003: Dev 018, If 0, Class=Hub, Driver=hub/4p, 480M ID 2109:2822 VIA Labs, Inc. |__ Port 001: Dev 019, If 0, Class=Mass Storage, Driver=usb-storage, 480M ID 2109:0715 VIA Labs, Inc. VL817 SATA Adaptor |__ Port 002: Dev 020, If 0, Class=Mass Storage, Driver=usb-storage, 480M ID 2109:0715 VIA Labs, Inc. VL817 SATA Adaptor |__ Port 003: Dev 021, If 0, Class=Mass Storage, Driver=usb-storage, 480M ID 2109:0715 VIA Labs, Inc. VL817 SATA Adaptor |__ Port 013: Dev 004, If 0, Class=Mass Storage, Driver=usb-storage, 480M ID ffff:5678 /: Bus 002.Port 001: Dev 001, Class=root_hub, Driver=xhci_hcd/10p, 5000M ID 1d6b:0003 Linux Foundation 3.0 root hub root@tender:~# cat /proc/cmdline BOOT_IMAGE=/bzimage initrd=/bzroot usb_storage.quirks=2109:0715:u root@tender:~# ls -l /dev/disk/by-id/ total 0 lrwxrwxrwx 1 root root 9 Jan 19 23:34 ata-CT500BX500SSD1_2428E8BAE1BC -> ../../sdc lrwxrwxrwx 1 root root 10 Jan 19 23:34 ata-CT500BX500SSD1_2428E8BAE1BC-part1 -> ../../sdc1 lrwxrwxrwx 1 root root 9 Jan 19 23:51 ata-ST4000VN006-3CW104_WW690QV5 -> ../../sdf lrwxrwxrwx 1 root root 10 Jan 19 23:51 ata-ST4000VN006-3CW104_WW690QV5-part1 -> ../../sdf1 lrwxrwxrwx 1 root root 9 Jan 19 23:51 usb-ST4000VN_006-3CW104_000000123AE8-0:0 -> ../../sde lrwxrwxrwx 1 root root 10 Jan 19 23:51 usb-ST4000VN_006-3CW104_000000123AE8-0:0-part1 -> ../../sde1 lrwxrwxrwx 1 root root 9 Jan 19 23:34 usb-VendorCo_ProductCode_56146AFE0BBF0F71-0:0 -> ../../sda lrwxrwxrwx 1 root root 10 Jan 19 23:34 usb-VendorCo_ProductCode_56146AFE0BBF0F71-0:0-part1 -> ../../sda1 lrwxrwxrwx 1 root root 9 Jan 19 23:51 usb-WDC_WD40_EZRZ-00GXCB0_000000123AE8-0:0 -> ../../sdg lrwxrwxrwx 1 root root 10 Jan 19 23:51 usb-WDC_WD40_EZRZ-00GXCB0_000000123AE8-0:0-part1 -> ../../sdg1 lrwxrwxrwx 1 root root 9 Jan 19 23:51 wwn-0x5000c501137ed164 -> ../../sdf lrwxrwxrwx 1 root root 10 Jan 19 23:51 wwn-0x5000c501137ed164-part1 -> ../../sdf1 lrwxrwxrwx 1 root root 9 Jan 19 23:34 wwn-0x500a0751e8bae1bc -> ../../sdc lrwxrwxrwx 1 root root 10 Jan 19 23:34 wwn-0x500a0751e8bae1bc-part1 -> ../../sdc1There is any way to force this orico das to show the real serials on linux? on windows it works fine and i can see all individual drives...Please let me know,!Many thanks :)Ps: i'm on the latest unraid 7.2.3
