Hi! I've been "using" (read started and basically let it run) unraid for going on 4 yrs and thought it was time to swap out the old sata cache ssd for a nvme drive. However I think I messed up.



After some searching I followed a reddit post that seemed straight forward. I added the new nvme drive to the cache pool and let it balance. When it was done I stopped the array and unassigned the old ssd and restarted the array. After a while I stopped the array again to change the slots back to 1 but I can't. And now here I am where the array won't start with the error "Wrong pool state". I can't change the slot count to 1 either.



I looked at the thread by @FrForget and @JorgeB but I don't think I have the same issue. I included diagnostics and a screenshot of the cmd line asked in that thread.



What do I do now? Thanks.



edi-diagnostics-20250322-1456.zip

Edited March 22, 20251 yr by Wim
Added link to mentioned forum thread.







it looks like you have a btrfs mirroed cahced pool





You have removed the disk and unassgiend the didk And you see the new disk unrer unasigned disks?

?



As you should go to settings and stop VMs, stop Dockers, and stop LXC if running to turn off. If enabled turn off array auto start.

you should be at the step to start the arrary with the missing disk and to turn off the machine. remove the drive and install teh new drive.

Then at the reboot Main > start screen select the new disk start the array and format the new disk.

17 minutes ago, bmartino1 said:

it looks like you have a btrfs mirroed cahced pool





You have removed the disk and unassgiend the didk And you see the new disk unrer unasigned disks?

?



As you should go to settings and stop VMs, stop Dockers, and stop LXC if running to turn off. If enabled turn off array auto start.

you should be at the step to start the arrary with the missing disk and to turn off the machine. remove the drive and install teh new drive.

Then at the reboot Main > start screen select the new disk start the array and format the new disk.

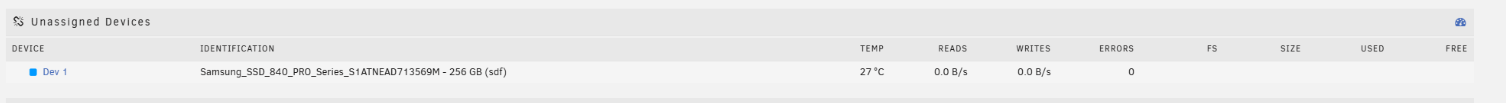

So to clarify the Samsung 840 Pro that is currently unassigned is the OLD drive. The drive currently assigned as Cache 2, Kingston 2 TB, is the NEW drive.



What I've done so far is the following

1. I added the new drive to the pool and let them go through the balance process.

2. When that was done I stopped the array and unassigned the old Samsung 840 Pro.

3. I then started the array again and waited a while before stopping the array to change back to 1 slot.

This is pretty much where I am now. As it is currently I can not start the array and can not change back to 1 slot.



Should I "move" the new drive to the first position sort of like this and then click "Yes, I Want to do this"?



Watching the video you posted, I guess that is the process I should've used instead of this one which at first glance seemed more straight forward...

There's currently a bug with 7.0.x fore removing btrfs raid1 devices, you must use the CLI, first reimport the pool with the remaining device:



on main click on the first device for that pool and then "remove pool"
back on main, create a new pool with the same name and 1 slot
assign the remaining pool device, leave the filesystem set to auto
start the array to import the pool



Then post new diags





3 minutes ago, JorgeB said:

There's currently a bug with 7.0.x fore removing btrfs raid1 devices, you must use the CLI, first reimport the pool with the remaining device:



on main click on the first device for that pool and then "remove pool"
back on main, create a new pool with the same name and 1 slot
assign the remaining pool device, leave the filesystem set to auto
start the array to import the pool



Then post new diags





Hi @JorgeB! Thanks for taking the time. Here are the diags after doing what you suggested. Linking a screenshot as well of what it looks like currently.



edi-diagnostics-20250323-1129.zip

@JorgeB Side note, would an update to 7.1 help or is that a bad idea at this stage until my current issue is sorted out?

If you can add the device back, you could then upgrade to 7.1 and remove it using the GUI, but it's not complicated to remove it using the GUI, I can post the instructions if you prefer that.

Oh okay, I think I'd prefer to sort it out before updating then. So what are the next steps if we continue where we left off yesterday?

With the array running type:



btrfs dev remove missing /mnt/cache



That should be quick, and when done, stop the array and reimport the pool again just like before, and you should be all set.

That did it, awesome! Thanks a bunch for all the help.
