I have a new-to-me Dell 730xd that is excruciatingly slow for everything and need some help and guidance to improve its performance as I obviously have done it wrong.

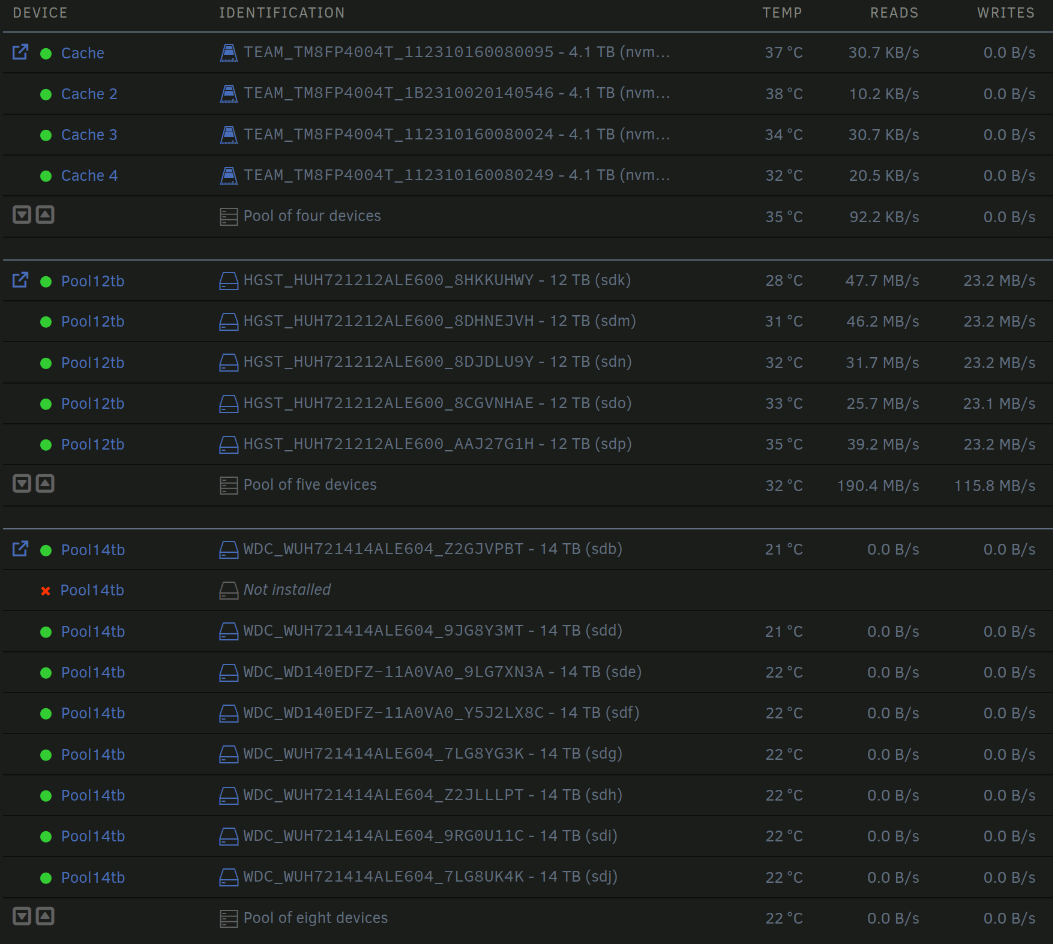

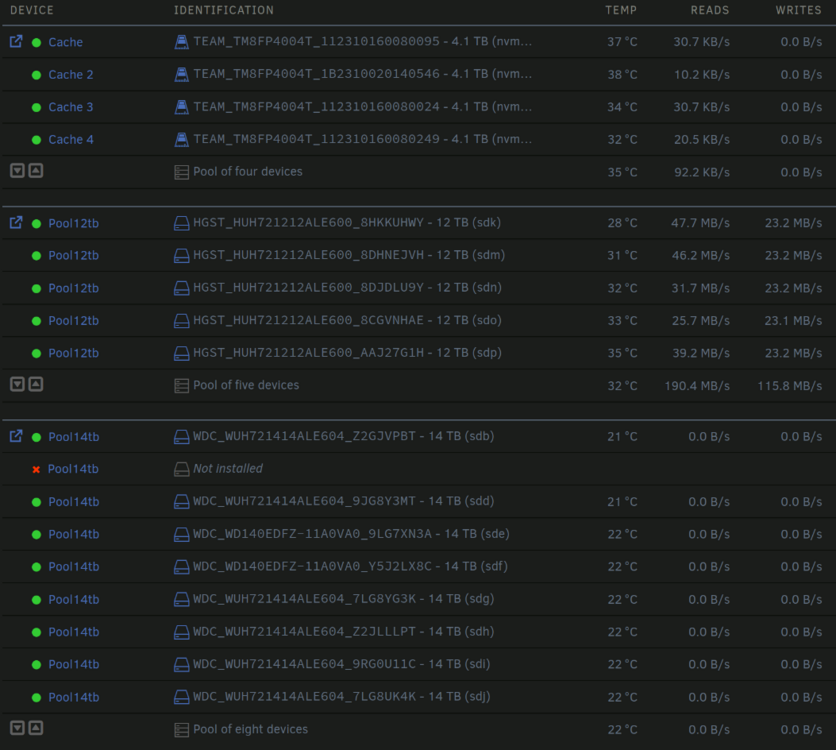

Attached is a screenshot of my current setup. I understand my server is slow because almost nothing is using my SSD cache pool but hitting the disk arrays directly; my 4 NVME drives are being ignored, so sad. The reason for this is two-fold:

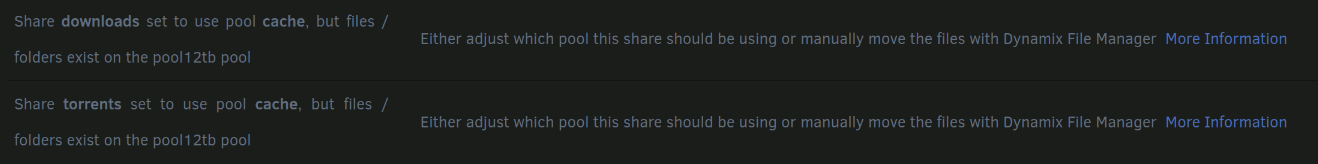

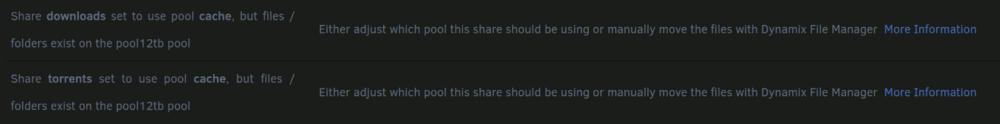

1. The Fix Common Problems plug-in would report an issue with the share being set to pool12TB but files existing on cache and needing to be moved.
2. When connected via NFS, I would receive messages about the file/directory had gone away, bad/changed fd (file descriptor?), and other nuisances making the share unusable.

Is there any way to be able to get the benefits of the SSDs on the two disk pools? I am happy to change the setup to different filesystems and/or configurations to get better performance.


49 minutes ago, daemon_of_chaos said:

The Fix Common Problems plug-in would report an issue with the share being set to pool12TB but files existing on cache and needing to be moved.

That should only happen if the share is misconfigured.



50 minutes ago, daemon_of_chaos said:

When connected via NFS

Not recommended to use NFS with the mover, or you will likely get stale file errors, if possible use SMB, if not use a fast raidz pool.



12 minutes ago, JorgeB said:

That should only happen if the share is misconfigured.

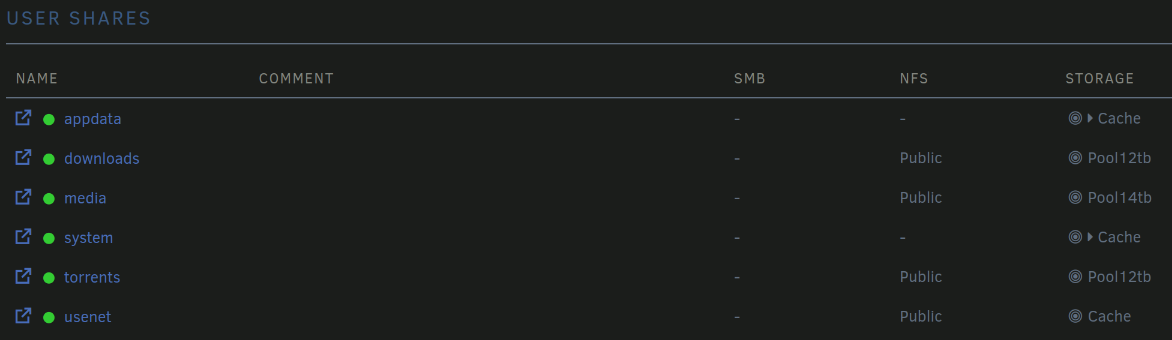

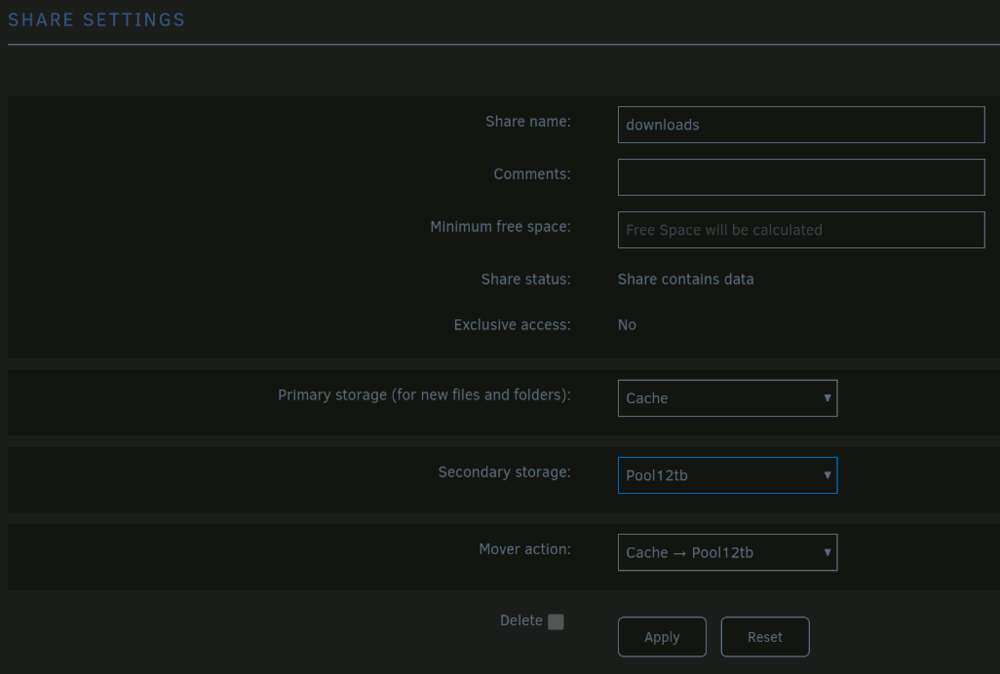

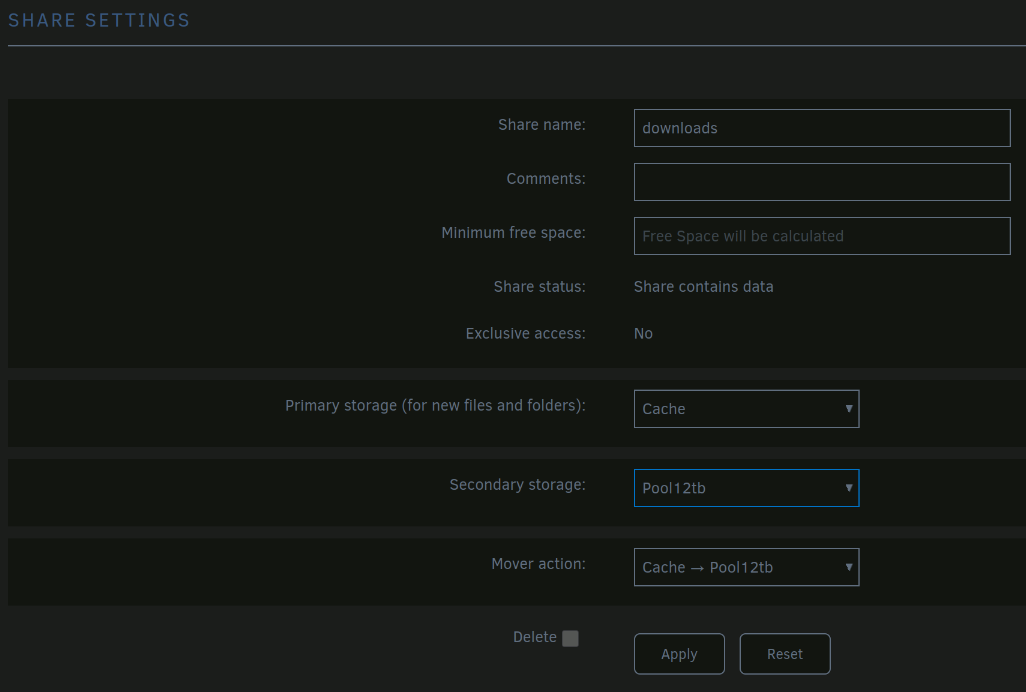

For the share issue I have attached a screenshot of the configuration that was used. Can you advise what the misconfiguration would be?





12 minutes ago, JorgeB said:

Not recommended to use NFS with the mover, or you will likely get stale file errors, if possible use SMB, if not use a fast raidz pool.



All 3 pools are raidz1. Is that not not considered a fast raidz pool?





Edited April 16, 20251 yr by daemon_of_chaos

1 minute ago, daemon_of_chaos said:

unable to break out the quotes into different sections

Select the text to be quoted, then Quote selection should appear, click on it.

1 minute ago, trurl said:

Select the text to be quoted, then Quote selection should appear, click on it.

Thank you! That was maddening to work through.

39 minutes ago, daemon_of_chaos said:

For the share issue I have attached a screenshot of the configuration that was used. Can you advise what the misconfiguration would be?

That looks OK, post the diagnostics.



39 minutes ago, daemon_of_chaos said:

All 3 pools are raidz1. Is that not not considered a fast raidz pool?

It will depend on the use case, raidz1 has the iops of one drive, so for some use cases striped mirrors will perform better.

12 minutes ago, JorgeB said:

That looks OK, post the diagnostics.

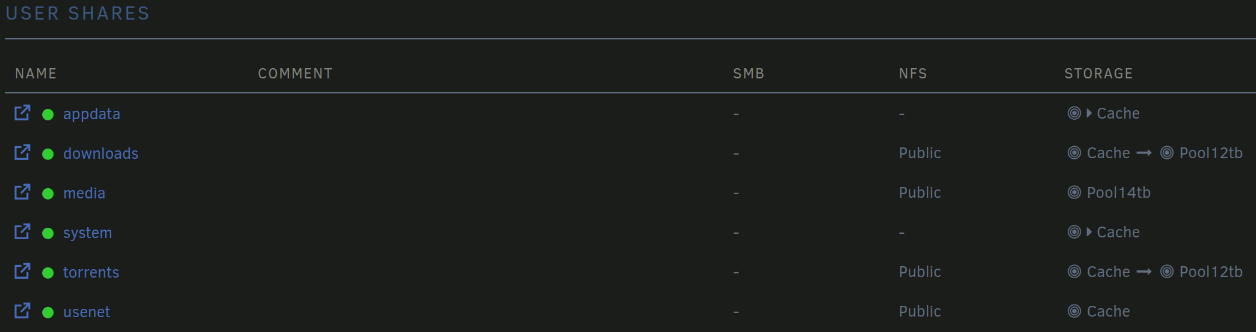

Diagnostics and updated screenshots attached.



nasxd-diagnostics-20250416-0958.zip







12 minutes ago, JorgeB said:

It will depend on the use case, raidz1 has the iops of one drive, so for some use cases striped mirrors will perform better.

Is something other than mirrors a possibility? I cannot currently afford to lose that much drive space.







Edited April 16, 20251 yr by daemon_of_chaos

Apr 16 09:57:24 nasXD root: Fix Common Problems: Warning: Share downloads set to use pool cache, but files / folders exist on the pool12tb pool ** Ignored



This looks like a FCP bug, probably still doesn't allow for shares with pools as primary and secondary, recommend making a report in the existing plugin support thread.



56 minutes ago, daemon_of_chaos said:

Is something other than mirrors a possibility?

What are you isng the pool for?

19 minutes ago, JorgeB said:

What are you using the pool for?

The "pool12TB" is for ISO torrent downloading and seeding along with general downloads.

The "pool14TB" is my Plex media.



I am currently rebuilding my library, which is the reason that speed is an issue. I expect to have >100TB on "pool14TB" upon completion of the rebuild.

For media, raidz should be fine, assuming there won't be many simultaneous users, if that happens, an HDD pool can have trouble with ransom access, and like mentioned, raidz pool has the same iops as a single HDD.



For seeding should also be fine, for torrent downloads, I would recommend using a single SSD formatted XFS, COW filesystems are not great for torrent downloading because they need to copy and write every block that has a change, which happens a lot with torrents, and then move the data to the main pool for seeding.
