Hi guys,



So, I have a dual NVMe SSD btrfs cache pool that has been running fine for at least a couple of years now.

Well... it was, until earlier this morning (although only just got a mail for it).



Now, with a drive failure I know can remove it and re-add it if think it's cables or something.

What can I try with an NVMe drive? Reboot? Stop/start array?



Is it toast and RMA time?



I have this message in the logs that could be a clue?


May 20 05:36:11 monty kernel: nvme nvme0: controller is down; will reset: CSTS=0xffffffff, PCI_STATUS=0xffff
May 20 05:36:11 monty kernel: nvme nvme0: Does your device have a faulty power saving mode enabled?
May 20 05:36:11 monty kernel: nvme nvme0: Try "nvme_core.default_ps_max_latency_us=0 pcie_aspm=off pcie_port_pm=off" and report a bug

Not sure how to check the power profile when it's disabled though.



Appreciate any help!



Cheers,

Pacman

monty-diagnostics-20250520-1315.zip

1 hour ago, SudoPacman said:

Try "nvme_core.default_ps_max_latency_us=0 pcie_aspm=off pcie_port_pm=off"

Add this to syslinux.cfg, for the boot option you are using, then retest.

Thanks, I'll try.

Will the disabled drive be re-enabled automatically or do I need to do something?

Ah. Rebooted and the drive is not there so the array has not started...

I guess I change the pool to a single drive and start it and then stop and see if re-appears?

Started the array, and everything is running.

Think my drive might be hosed though, since not showing in unassigned devices.

Pool looks like this:

You typically need to power cycle the server to get the device back, just rebooting won't be enough.

@JorgeB

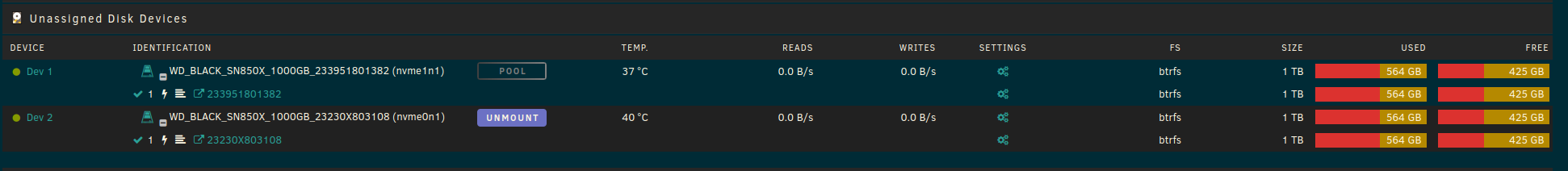

Okay power cycled and the old drive has appeared in unassigned devices, so that's good.

However, the other cache drive, that is part of a RAID1, is now showing as unmountable!

I do have a backup, but would rather avoid having to restore if possible!

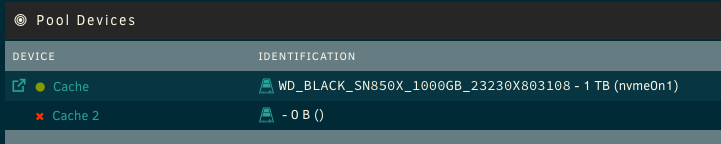

When I stop the array the cache shows as a single slot.

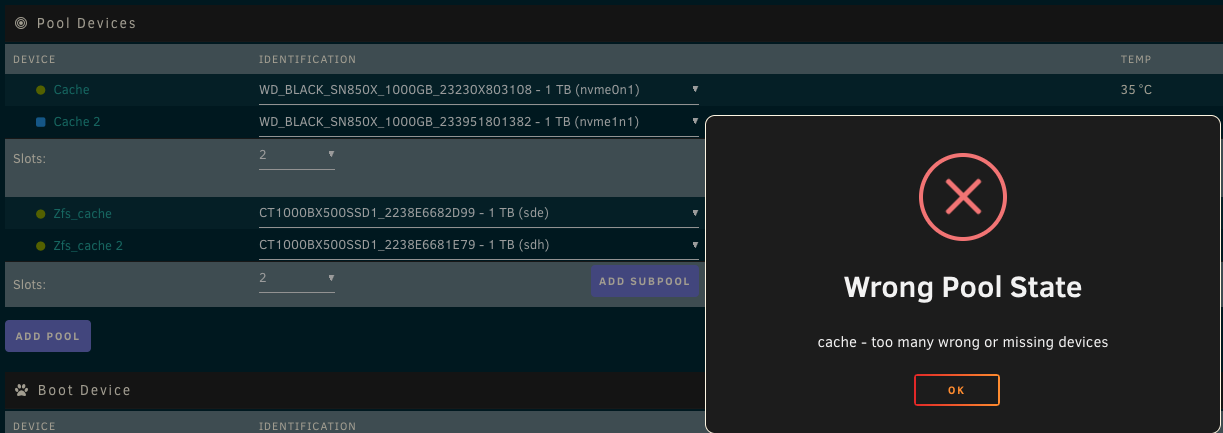

If I change to 2 slots and add the drive in it will not let me start the array. I get the following:

What's my next step please?

Cheers!

Post the output from

btrfs fi show

@JorgeB

Okay, removed the second drive and changed slots back to 1.

Output from btrfs fi show gives:

Label: none  uuid: 057dcd04-fb86-434a-be64-ee1d0bf433eb
	Total devices 1 FS bytes used 416.00KiB
	devid    1 size 1.00GiB used 126.38MiB path /dev/loop2

Label: none  uuid: ebee1354-a882-4fbd-8b63-3d6a56422b17
	Total devices 2 FS bytes used 530.13GiB
	devid    2 size 931.51GiB used 561.03GiB path /dev/nvme0n1p1
	devid    3 size 931.51GiB used 527.03GiB path /dev/nvme1n1p1

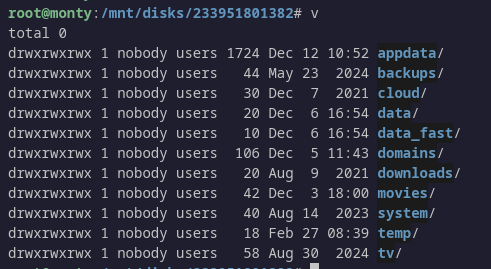

Interestingly, if I mount the supposedly failed drive in unassigned devices I can access it and it seems ok...

If I try and stop the array and switch one drive for the other it shows the one that failed as disabled.

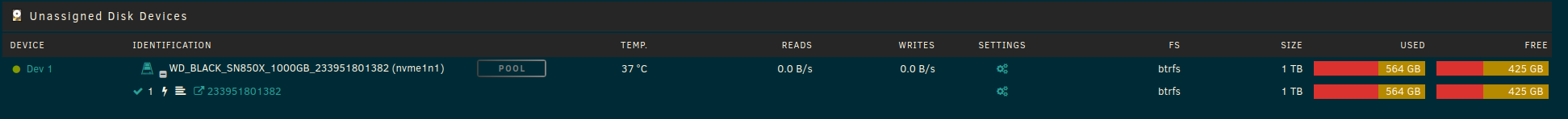

If I remove both but do snot start the array I can mount them both...

Interestingly, one shows up as Pool...

Ahh, clicked on cache and have managed to remove the pool. I'll try and re-add it now.

Okay, removed the pool, and re-created it.

Little bit nervy since wasn't sure if was going to wipe it, but seems to have come back up okay...

Now have a warning:

Event: Unraid Cache disk message
Subject: Warning [MONTY] -  pool BTRFS too many profiles (You can ignore this warning when a pool balance operation is in progress)
Description: WD_BLACK_SN850X_1000GB_23230X803108 (nvme0n1)
Importance: warning

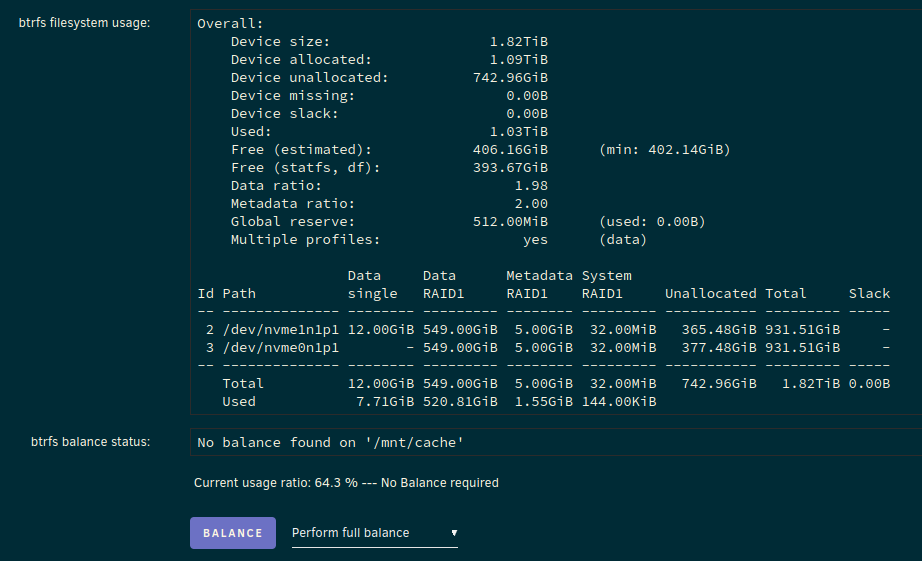

Do I need to do a rebalance or something?

Hmm, is this not in RAID1 anymore?

Balance the pool to raid1
