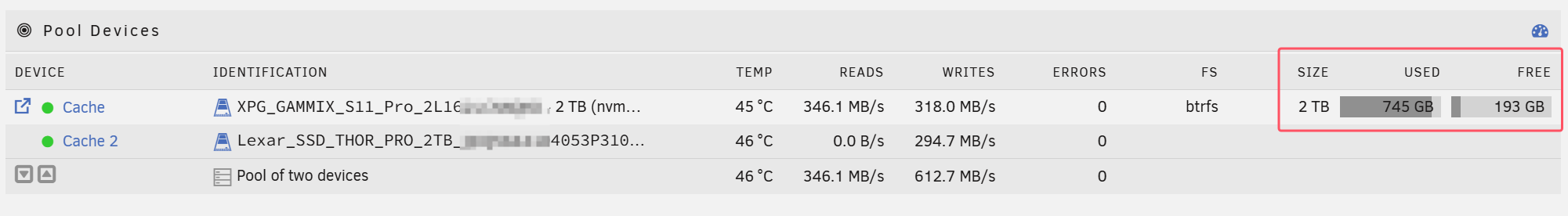

Why does my cache pool use two 2T SSD with only 1T of available space?

Featured Replies


Edited by Bili

  • Bili changed the title to Why does my cache pool use two 2T SSD with only 1T of available space?
  • Author
12 minutes ago, JorgeB said:

Wait for the balance to finish and post the diagnostics.

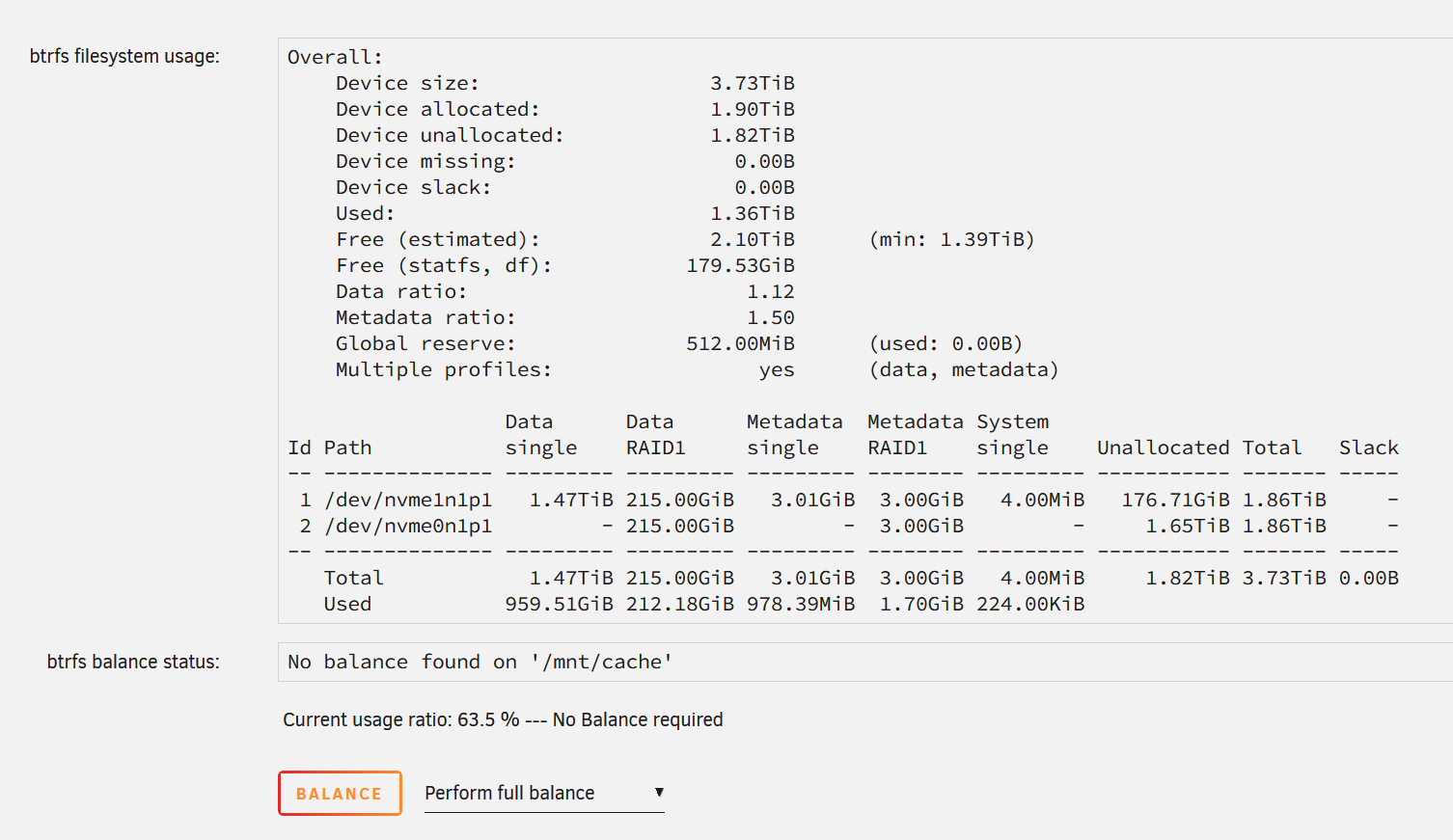

Balance finished,thank you.

Edited by Bili

  • Author

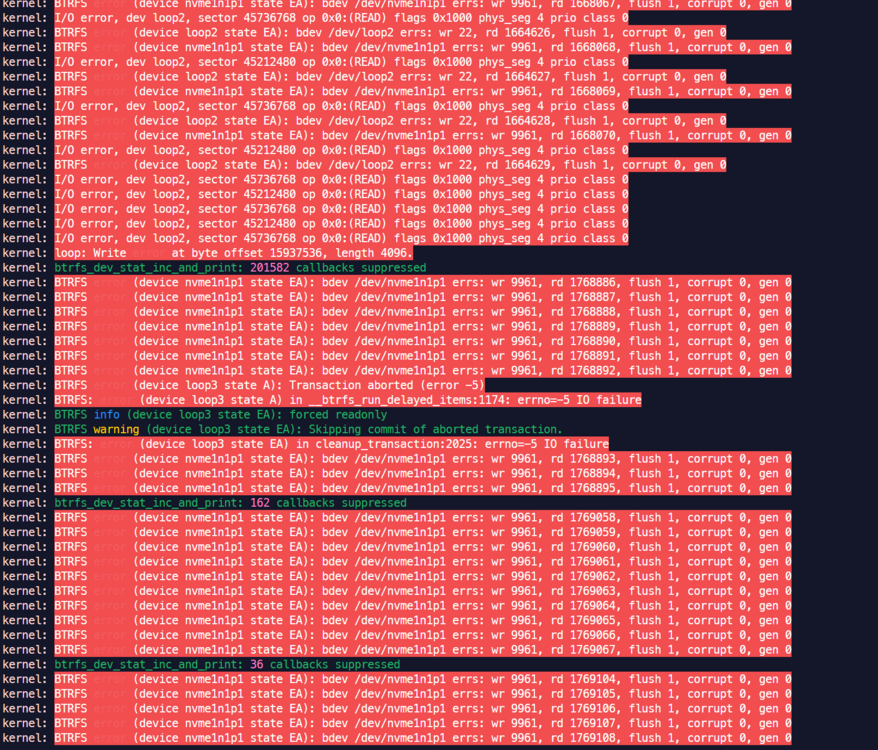

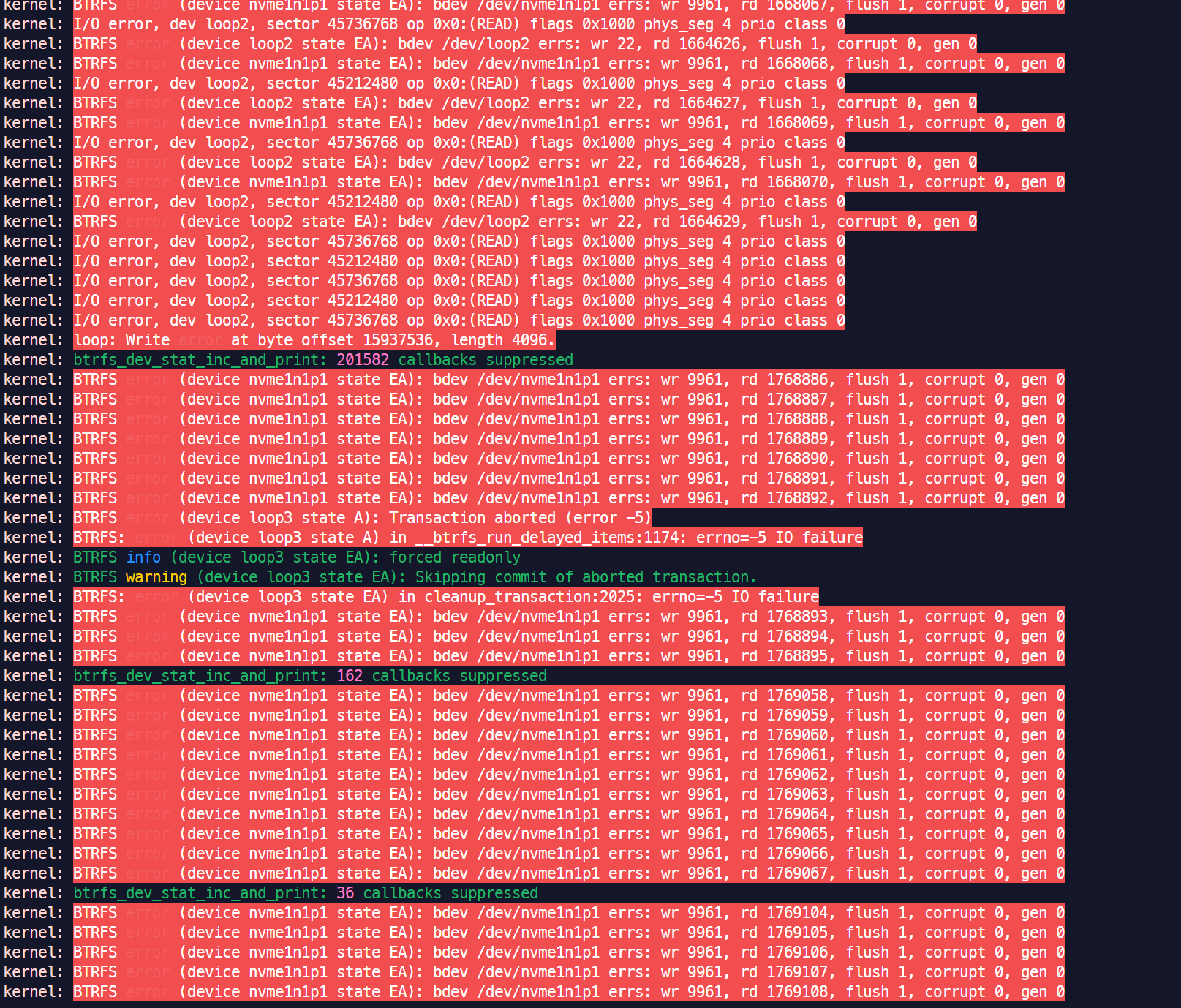

There are some errors reported,Is the SSD dead ?

  • Community Expert

Balanced aborted because one of the SSDs appears to be failing:

Jun 4 20:00:34 NBOX kernel: nvme1n1: I/O Cmd(0x2) @ LBA 3508508896, 512 blocks, I/O Error (sct 0x2 / sc 0x81) MORE

Jun 4 20:00:34 NBOX kernel: critical medium error, dev nvme1n1, sector 3508508896 op 0x0:(READ) flags 0x84700 phys_seg 64 prio class 0

Jun 4 20:00:34 NBOX kernel: nvme1n1: I/O Cmd(0x2) @ LBA 3508509152, 8 blocks, I/O Error (sct 0x2 / sc 0x81) MORE

Jun 4 20:00:34 NBOX kernel: critical medium error, dev nvme1n1, sector 3508509152 op 0x0:(READ) flags 0x0 phys_seg 1 prio class 0

Jun 4 20:00:36 NBOX kernel: BTRFS info (device nvme1n1p1): balance: ended with status: -5

Run an extended SMART test on it.

  • Author
10 hours ago, JorgeB said:

Balanced aborted because one of the SSDs appears to be failing:

Jun 4 20:00:34 NBOX kernel: nvme1n1: I/O Cmd(0x2) @ LBA 3508508896, 512 blocks, I/O Error (sct 0x2 / sc 0x81) MORE

Jun 4 20:00:34 NBOX kernel: critical medium error, dev nvme1n1, sector 3508508896 op 0x0:(READ) flags 0x84700 phys_seg 64 prio class 0

Jun 4 20:00:34 NBOX kernel: nvme1n1: I/O Cmd(0x2) @ LBA 3508509152, 8 blocks, I/O Error (sct 0x2 / sc 0x81) MORE

Jun 4 20:00:34 NBOX kernel: critical medium error, dev nvme1n1, sector 3508509152 op 0x0:(READ) flags 0x0 phys_seg 1 prio class 0

Jun 4 20:00:36 NBOX kernel: BTRFS info (device nvme1n1p1): balance: ended with status: -5

Run an extended SMART test on it.

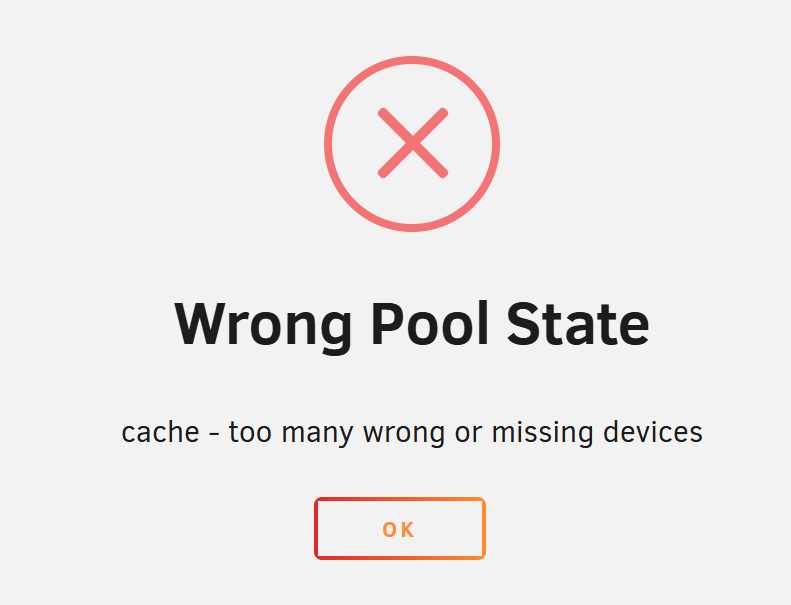

I have basically confirmed that SSD1 is faulty. My SSD2 is newly installed and has not successfully completed the balance operation before. I plan to recover data from backup, How can I start the Array with only SSD2 after removing SSD1? Currently, there is this prompt: Wrong Pool State.image.png

nbox-smart-20250605-0839.zip

Edited by Bili

  • Author
3 hours ago, Bili said:

I have basically confirmed that SSD1 is faulty. My SSD2 is newly installed and has not successfully completed the balance operation before. I plan to recover data from backup, How can I start the Array with only SSD2 after removing SSD1? Currently, there is this prompt: Wrong Pool State.image.png

nbox-smart-20250605-0839.zip

SSD1 is currently in read-only state. I plan to fully copy the contents of /mnt/cache to /mnt/disk6, then unmount SSD1, and finally start the array. Is this feasible?

  • Community Expert

You cannot remove a pool device, since the pool is not fully raid1, try to copy what you can then recreate the pool with a new device.
