Backstory:

I have used Unraid for over a year now and have loved every second of it. I have a 1 parity 1 disk array for media and non-essential files as well as a raidz1 ZFS pool of 3 disks for essential, non-replaceable files. I began building a secondary server to do a full ZFS backup and recently upgraded mobo/CPU/RAM to a 13600K 64GB build and put the older parts into the new build. It definitely runs hotter than the 11700K that was in it originally and I had been trying settings in the BIOS to decrease the thermals a little bit.

After leaving for a trip I came back to my server's HDMI output frozen on the CLI. Summer temperatures had increased quite a bit and without me present to turn on the AC, I think it may have temperature throttled and frozen - with no other way to clean shutdown, I had to do an unclean one.

Upon boot, I noticed that the array's disk 1 had the "disk disabled, contents emulated" warning. Reading the docs, as my parity drive was green I followed the instructions to stop the array, unassign disk 1, start the array, stop the array, reassign disk 1, and allow the rebuild. As the rebuild occurred, I noticed that there were hundreds of thousands of errors detected - regardless, I allowed that to finish. At this stage, my ZFS pool still appeared accessible.

After completion, I clean shutdown the server. I had read that when an anomalous amount of errors show up, it could be a power/cable issue. So, I tried a different power supply and swapped around the same SATA cables. On boot, disk 1 still had the red x next to it with "disk disabled, contents emulated". As the parity check began, it was now throwing millions of errors - on top of that the ZFS pool was now showing "unmountable filesystem". Worried that continuing on would make the situation worse, I stopped the parity check.

I did short SMART tests on every drive and all of them show no errors present. I have also tried to reset the BIOS settings to default and start Unraid in safe mode. The errors are still present, so for fear of making things worse, I have had the server off ever since.

Summary:

After what I assume was a temperature-related freeze that forced me to do an unclean shutdown, my array disk began to throw an unfathomable amount of errors and my ZFS pool now has the "unmountable filesystem" error. Aside from the attempted rebuild of the array disk, no disks were added or removed at any point. I have read some topics in the forums about the ZFS "unmountable filesystem" message and I am preparing for the worst as I was not able to make a complete backup. I am willing to try anything to recover those files, particularly in the ZFS pool.

The only things I have not tried yet are new SATA cables, new PSU cables, or to try the drives in a completely different system - afraid to make matters worse, I ask for your guidance on what to attempt.

Attached are the only diagnostics I have from the incident until now - 1) before and 2) after the ZFS pool error.

Thank you so much.

diagnostics-20250618-1914.zip diagnostics-20250619-2241.zip

Post the output from zpool import

  pool: zfs
    id: 7309137661249448615
 state: FAULTED
status: The pool metadata is corrupted.
action: The pool cannot be imported due to damaged devices or data.
   see: https://openzfs.github.io/openzfs-docs/msg/ZFS-8000-72
config:

        zfs         FAULTED  corrupted data
          raidz1-0  ONLINE
            sdd1    ONLINE
            sde1    ONLINE
            sdb1    ONLINE

I've read in some of the other topics you've helped people with that this isn't a good sign... Thank you @JorgeB for your tireless efforts and appreciate your advice on any and all possible solutions to recover the data.

15 hours ago, snoopsterj said:

that this isn't a good sign

It's not, post the output from

zdb -l /dev/sdd1

zdb -l /dev/sde1

zdb -l /dev/sdb1

17 hours ago, JorgeB said:

zdb -l /dev/sdd1

------------------------------------
LABEL 0
------------------------------------
    version: 5000
    name: 'zfs'
    state: 0
    txg: 12890430
    pool_guid: 7309137661249448615
    errata: 0
    hostname: 'HANAS'
    top_guid: 14933383044364559588
    guid: 14735230153452969955
    vdev_children: 1
    vdev_tree:
        type: 'raidz'
        id: 0
        guid: 14933383044364559588
        nparity: 1
        metaslab_array: 256
        metaslab_shift: 34
        ashift: 12
        asize: 24004675239936
        is_log: 0
        create_txg: 4
        children[0]:
            type: 'disk'
            id: 0
            guid: 3043909946775875430
            path: '/dev/sdf1'
            whole_disk: 0
            create_txg: 4
        children[1]:
            type: 'disk'
            id: 1
            guid: 13346540553548002612
            path: '/dev/sdc1'
            whole_disk: 0
            create_txg: 4
        children[2]:
            type: 'disk'
            id: 2
            guid: 14735230153452969955
            path: '/dev/sdd1'
            whole_disk: 0
            create_txg: 4
    features_for_read:
        com.delphix:hole_birth
        com.delphix:embedded_data
    labels = 0 1 2 3

17 hours ago, JorgeB said:

zdb -l /dev/sde1

------------------------------------
LABEL 0
------------------------------------
    version: 5000
    name: 'zfs'
    state: 0
    txg: 12890430
    pool_guid: 7309137661249448615
    errata: 0
    hostname: 'HANAS'
    top_guid: 14933383044364559588
    guid: 3043909946775875430
    vdev_children: 1
    vdev_tree:
        type: 'raidz'
        id: 0
        guid: 14933383044364559588
        nparity: 1
        metaslab_array: 256
        metaslab_shift: 34
        ashift: 12
        asize: 24004675239936
        is_log: 0
        create_txg: 4
        children[0]:
            type: 'disk'
            id: 0
            guid: 3043909946775875430
            path: '/dev/sdf1'
            whole_disk: 0
            create_txg: 4
        children[1]:
            type: 'disk'
            id: 1
            guid: 13346540553548002612
            path: '/dev/sdc1'
            whole_disk: 0
            create_txg: 4
        children[2]:
            type: 'disk'
            id: 2
            guid: 14735230153452969955
            path: '/dev/sdd1'
            whole_disk: 0
            create_txg: 4
    features_for_read:
        com.delphix:hole_birth
        com.delphix:embedded_data
    labels = 0 1 2 3

17 hours ago, JorgeB said:

zdb -l /dev/sdb1

------------------------------------
LABEL 0
------------------------------------
    version: 5000
    name: 'zfs'
    state: 1
    txg: 12891656
    pool_guid: 7309137661249448615
    errata: 0
    hostname: 'HANAS'
    top_guid: 14933383044364559588
    guid: 13346540553548002612
    vdev_children: 1
    vdev_tree:
        type: 'raidz'
        id: 0
        guid: 14933383044364559588
        nparity: 1
        metaslab_array: 256
        metaslab_shift: 34
        ashift: 12
        asize: 24004675239936
        is_log: 0
        create_txg: 4
        children[0]:
            type: 'disk'
            id: 0
            guid: 3043909946775875430
            path: '/dev/sdf1'
            whole_disk: 0
            create_txg: 4
        children[1]:
            type: 'disk'
            id: 1
            guid: 13346540553548002612
            path: '/dev/sdc1'
            whole_disk: 0
            create_txg: 4
        children[2]:
            type: 'disk'
            id: 2
            guid: 14735230153452969955
            path: '/dev/sdd1'
            whole_disk: 0
            DTL: 1152
            create_txg: 4
    features_for_read:
        com.delphix:hole_birth
        com.delphix:embedded_data
    labels = 0 1 2 3

7 hours ago, snoopsterj said:

txg: 12890430

7 hours ago, snoopsterj said:

txg: 12890430

7 hours ago, snoopsterj said:

txg: 12891656

One of the disks is on a much recent txg, this doesn't make much sense for a raidz1 pool, if it was one device being on an older one, it could happen if one of them dropped offline.

Try offlining that device temporarily with:

echo 1 > /sys/block/sdb/device/delete

Then post the output from zpool import again

20 hours ago, JorgeB said:

Then post the output from zpool import again

  pool: zfs
    id: 7309137661249448615
 state: FAULTED
status: One or more devices contains corrupted data.
action: The pool cannot be imported due to damaged devices or data.
        The pool may be active on another system, but can be imported using
        the '-f' flag.
   see: https://openzfs.github.io/openzfs-docs/msg/ZFS-8000-5E
config:

        zfs         FAULTED  corrupted data
          raidz1-0  DEGRADED
            sde1    ONLINE
            sdc1    UNAVAIL
            sdd1    ONLINE

Try zpool import -F zfs

Note that if it works you may lose the last txgs, so some data, each txg typically represents 5 seconds of new data

If that doesn't work, you may add X to try more extreme measures to go back to a possibly good txg zpool import -FX zfs

11 hours ago, JorgeB said:

Try zpool import -F zfs

Thank you for the caution and commands - looks like it worked and zpool status returns the following:

  pool: zfs
 state: DEGRADED
status: One or more devices could not be used because the label is missing or
        invalid.  Sufficient replicas exist for the pool to continue
        functioning in a degraded state.
action: Replace the device using 'zpool replace'.
   see: https://openzfs.github.io/openzfs-docs/msg/ZFS-8000-4J
config:

        NAME                      STATE     READ WRITE CKSUM
        zfs                       DEGRADED     0     0     0
          raidz1-0                DEGRADED     0     0     0
            sde1                  ONLINE       0     0     0
            13346540553548002612  UNAVAIL      0     0     0  was /dev/sdc1
            sdd1                  ONLINE       0     0     0

errors: No known data errors

Please advise on the proper procedure to re-online and replace - I read the linked doc but lack the confidence due to the risk of further data loss. Your ongoing help is much appreciated @JorgeB!

If the pool contents look OK, reboot to bring the other device back, before array start wipe the other device with wipefs -a /dev/sdX then add it back to the pool in place of the missing device, any doubts let me know.

I forgot to mention that you first need to import the degrade pool using the GUI, with the other devucestill offline, or wiped, let me know if you need the steps for that.

28 minutes ago, JorgeB said:

If the pool contents look OK, reboot to bring the other device back, before array start wipe the other device with wipefs -a /dev/sdX then add it back to the pool in place of the missing device, any doubts let me know.

Is there any way to view ZFS shares/directory/structure without mounting the array? I ask because I am a beginner to ZFS datasets and my most important files is the Pictures share, of which I want to be fully certain I can recover before wiping anything. Looking at the list below, I am uncertain now how the Pictures share was setup, though I am sure it was on the ZFS pool as confirmed in my diagnostics files. I used the command zfs list and it returned the following:

zfs                   5.76T  8.65T  3.76T  /mnt/zfs
zfs/Documents         2.35G  8.65T  2.35G  /mnt/zfs/Documents
zfs/Immich             457G  8.65T   457G  /mnt/zfs/Immich
zfs/Paperless         54.2M  8.65T  54.2M  /mnt/zfs/Paperless
zfs/Projects           471G  8.65T   471G  /mnt/zfs/Projects
zfs/Receipts          6.18M  8.65T  6.18M  /mnt/zfs/Receipts
zfs/Time Machine      1016G  8.65T  1016G  /mnt/zfs/Time Machine
zfs/Unraid Backup      101G  8.65T   101G  /mnt/zfs/Unraid Backup
zfs/appdata            128K  8.65T   128K  /mnt/zfs/appdata
zfs/domains            128K  8.65T   128K  /mnt/zfs/domains
zfs/iCloud             128K  8.65T   128K  /mnt/zfs/iCloud
zfs/nextcloud         9.63M  8.65T  9.63M  /mnt/zfs/nextcloud
zfs/nextcloud-backup   128K  8.65T   128K  /mnt/zfs/nextcloud-backup
zfs/system             128K  8.65T   128K  /mnt/zfs/system

The above appears to match my diagnostics /system/df.txt file - is this what you mean by verifying pool contents or is there more I can do to verify?

4 minutes ago, JorgeB said:

I forgot to mention that you first need to import the degrade pool using the GUI, with the other devucestill offline, or wiped, let me know if you need the steps for that.

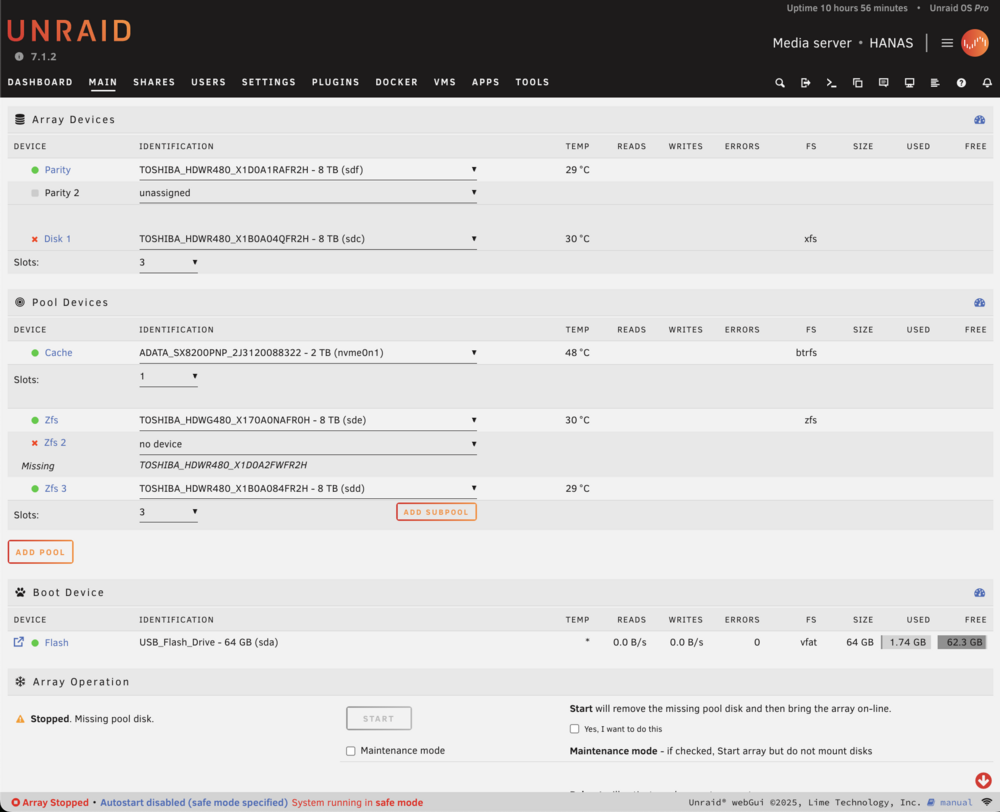

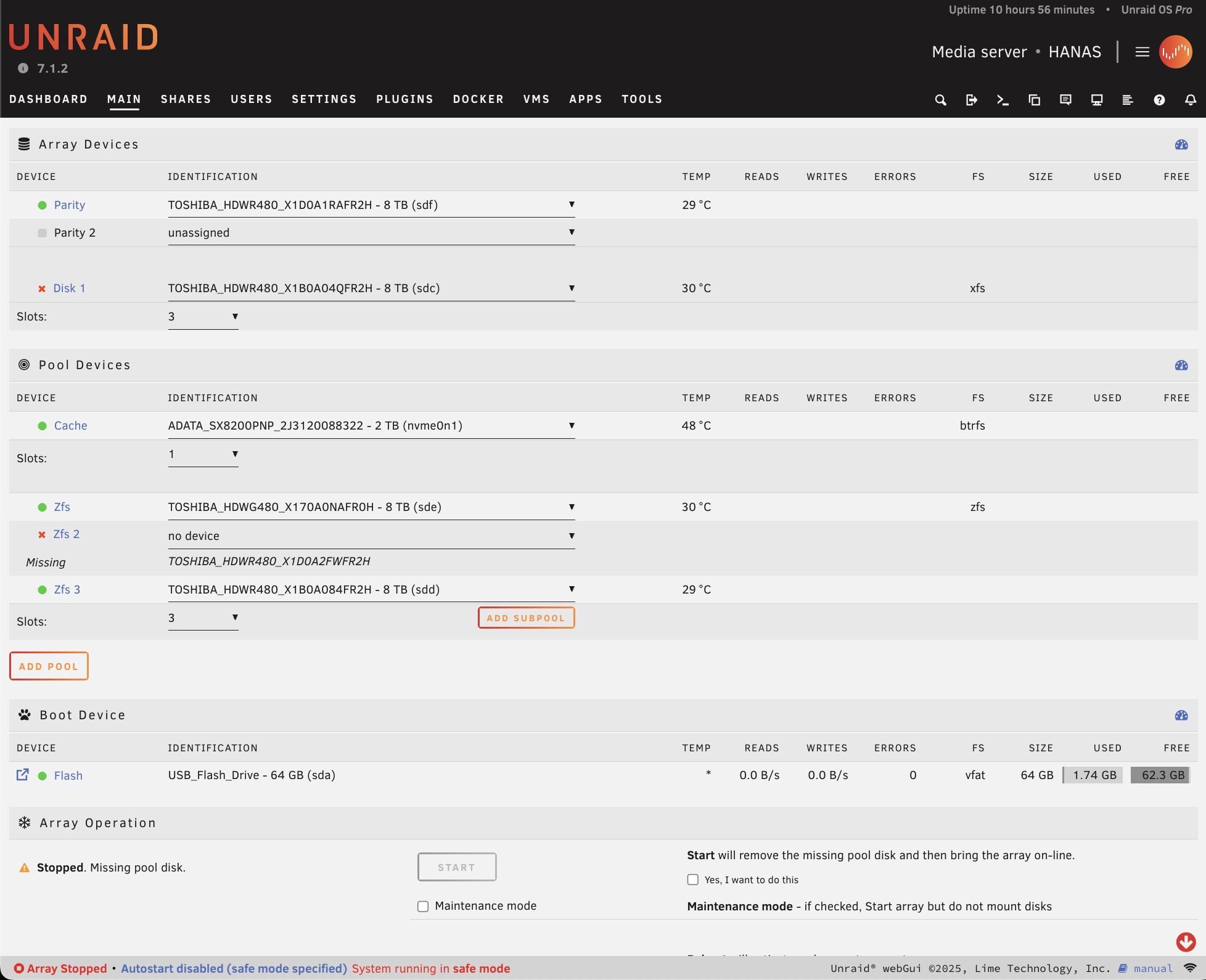

I have attached a screenshot of the current GUI. I will remain in safe mode until explicitly advised to do otherwise - but is it correct to say that my screenshot indicates to having followed your instructions correctly and that the next step will be to bring the array online?

Note that Disk 1 in the array is still disabled - this was the one showing millions of errors. If I need to bring the array online to begin resilvering the ZFS pool, please advise on how best to approach fixing Disk 1 as I imagine the parity check will be launched as soon as the array is started. Thank you again.

You can use the file manager or the CLI to browse /mnt/zfs to check the pool contents.

Regarding the array and pool, for now, do this, click the first pool device and then click "remove pool", we will import it back later, also unassign disk1, then start the array and post new diags.

8 hours ago, JorgeB said:

You can use the file manager or the CLI to browse /mnt/zfs to check the pool contents.

Regarding the array and pool, for now, do this, click the first pool device and then click "remove pool", we will import it back later, also unassign disk1, then start the array and post new diags.

Perfect - I used Midnight Commander and it looks good.

I have removed the pool, unassigned disk1, and started the array. New diags attached.

diagnostics-20250625-0942.zip

Emulated disk1 is mounting, and SMART for the actual disk looks OK, so assuming contents also look correct I would recommend rebuilding on top:

https://docs.unraid.net/unraid-os/manual/storage-management#rebuilding-a-drive-onto-itself

Regarding the pool, you can do this:

• export the pool zpool export zfs

• on Main add a new pool with the same name and 2 slots

• assign both pool disks (sde and sdd), order doesn't matter

• start the array and the pool should be imported degraded

• disable array auto start (Settings - Disk Settings)

• reboot to bring the other pool disk back, wipe is with wipefs -a /dev/sdX

• assign it to the missing pool disk slot

• start array to begin resilvering (you can also reassign disk1 in this step, to rebuild the array at the same time)

Any issues post new diags.

Hi @JorgeB ,

I am pleased to report that everything seems to be back to where it was after the array rebuild and zfs resilvering. The only remaining questions I might have are 1) whether I should enable Write corrections to parity or run a check first with it disabled and 2) what you theorize may have led to both the array disk1 and zfs disk dropping and if there is anything else I can do to minimize chances of this happening again.

Otherwise, I've marked this topic as solved. Thank you for your patience, concise instructions, and just your general prolific force in these forums. It boggles my mind how you're able to write the replies with such great speed, frequency, and clarity despite helping multiple users at once.

Please let me know if there's any tangible way I can recognize your efforts - god knows you've alleviated a lot of stress for me and others before. I love this community and I'll do my best to give back with my limited knowledge!

1 hour ago, snoopsterj said:

1) whether I should enable Write corrections to parity or run a check first with it disabled

Generally, I recommend leaving write corrections enabled, though in this case, it should never find any errors.

1 hour ago, snoopsterj said:

2) what you theorize may have led to both the array disk1 and zfs disk dropping and if there is anything else I can do to minimize chances of this happening again.

Difficult to say, the syslog might have helped, at least for the array issue, there must have been a write error to disk1 somewhere, though most likely unrelated to the disk itself, the pool is more difficult to guess, I can't see how just one member from a raidz1 pool could have a much newer txg (transaction group), since a raidz pool could not have been running with a single device, so possible something corrupted the zfs metadata for that disk, or maybe there's some obscure zfs bug.

1 hour ago, snoopsterj said:

Please let me know if there's any tangible way I can recognize your efforts - god knows you've alleviated a lot of stress for me and others before. I love this community and I'll do my best to give back with my limited knowledge!

It's in my signature, if you don't have that visible, you can use this link, thanks:

Donations / Beer money

@JorgeB apologies for bothering you again.

I have been using and monitoring my server for the last few days and it has been very stable. To decrease my odds of encountering the previous data loss scare again, I even put PL1 and PL2 limits of 65W and 125W respectively from the BIOS to ensure the CPU doesn't get too hot - I tested quite thoroughly with the array stopped using the CoreFreq plugin and it didn't skip a beat.

Today, I noticed a couple of alerts in the GUI that was something along the lines of disk read error for one of my array disks and another disk that didn't seem to fully match any of my disk serials. They showed up under Unassigned Disks and as I still have the array autostart set to off, I proceeded to safely shutdown. As an additional precaution, I updated my BIOS to the latest version and started up again.

This time, it showed that my Zfs disk sde was spundown, so I ran zpool status and got the following:

  pool: zfs
 state: ONLINE
status: One or more devices are faulted in response to persistent errors.
        Sufficient replicas exist for the pool to continue functioning in a
        degraded state.
action: Replace the faulted device, or use 'zpool clear' to mark the device
        repaired.
  scan: resilvered 2.88T in 06:42:02 with 0 errors on Wed Jun 25 17:22:00 2025
config:

        NAME        STATE     READ WRITE CKSUM
        zfs         ONLINE       0     0     0
          raidz1-0  ONLINE       0     0     0
            sde1    FAULTED     18   124     1  too many errors
            sdb1    ONLINE       0     0     0
            sdd1    ONLINE       0     0     0

errors: No known data errors

I tried zfs list and all the paths seem to show up fine.

Could you please advise next steps? Last time it was sdb that had the txg mismatch. Diags attached.

Thank you again so much - I've enabled signatures now and will be sending a thank you your way!

diagnostics-20250630-2247.zip

Jun 30 22:35:19 HANAS kernel: ata8: link is slow to respond, please be patient (ready=0)

Jun 30 22:35:23 HANAS kernel: ata8: SATA link down (SStatus 0 SControl 3F0)

Jun 30 22:35:23 HANAS kernel: ata8.00: disable device

sde dropped offline, also see issues with other disks:

Jun 30 22:35:25 HANAS kernel: ata7: SATA link down (SStatus 0 SControl 300)

Jun 30 22:35:25 HANAS kernel: ata11: SATA link down (SStatus 0 SControl 300)

Jun 30 22:35:30 HANAS kernel: ata8: limiting SATA link speed to 1.5 Gbps

Jun 30 22:35:30 HANAS kernel: ata7: SATA link down (SStatus 0 SControl 300)

Jun 30 22:35:30 HANAS kernel: ata7: limiting SATA link speed to <unknown>

Jun 30 22:35:36 HANAS kernel: ata7: link is slow to respond, please be patient (ready=0)

Jun 30 22:35:36 HANAS kernel: ata11: link is slow to respond, please be patient (ready=0)

Jun 30 22:35:36 HANAS kernel: ata8: link is slow to respond, please be patient (ready=0)

Jun 30 22:35:40 HANAS kernel: ata7: SATA link up 6.0 Gbps (SStatus 133 SControl 3F0)

Jun 30 22:35:51 HANAS kernel: ata6: SATA link down (SStatus 0 SControl 300)

Jun 30 22:35:56 HANAS kernel: ata11: link is slow to respond, please be patient (ready=0)

Jun 30 22:35:56 HANAS kernel: ata6: hard resetting link

Jun 30 22:35:56 HANAS kernel: ata8: link is slow to respond, please be patient (ready=0)

Jun 30 22:35:57 HANAS kernel: ata6: SATA link down (SStatus 0 SControl 300)

Jun 30 22:35:57 HANAS kernel: ata6: limiting SATA link speed to <unknown>

Jun 30 22:35:57 HANAS kernel: ata6: hard resetting link

Looks more like power/connection issues, check/replace cables for these disks, especially if using any power splitters

ata6 is sdc

ata7 is sdd

ata8 is sde

ata11 is sdf

Thank you @JorgeB again for your continuous help.

Your diagnosis reminded me of a blog post I came across while in panic mode at the beginning of this saga and I will link it here in case anybody else is using a Jonsbo N1 case:

https://ericswpark.com/blog/2025/2025-03-04-i-nearly-lost-my-entire-server/

The case in question has a backplane powered by 2 x molex connectors - which in turn powers 5 x HDDs. I am using a Corsair SF600 Platinum PSU which should give me plenty of overhead but, as the author of the blog theorizes, the one cable that's typically included which goes from the PSU to 4 x molex connectors likely is not high enough gauge for the initial spin-up of the disks and exceeds its rated wattage - albeit temporarily. This could explain why all of a sudden only one of my ZFS drives dropped despite working well for over a year: over-wattage --> heat --> loosening of the cable over time and at some point the contacts come loose - causing a voltage drop and hence dropping a drive.

I grabbed the identical cable from a similar Corsair SFX PSU in my main PC and after attaching a total of 2 x PSU to molex connectors to the backplane (for clarity, one molex connector per cable is plugged into the backplane, leaving the respective leftover 3 x molex connectors vacant), all my disks are all green. New syslog.txt seems to show SATA links (with exception of the vacant ones) healthy.

I am currently running a parity check with corrections writing unchecked. zpool status returns the following:

  pool: zfs
 state: ONLINE
status: One or more devices has experienced an unrecoverable error.  An
        attempt was made to correct the error.  Applications are unaffected.
action: Determine if the device needs to be replaced, and clear the errors
        using 'zpool clear' or replace the device with 'zpool replace'.
   see: https://openzfs.github.io/openzfs-docs/msg/ZFS-8000-9P
  scan: resilvered 8.87M in 00:00:01 with 0 errors on Wed Jul  2 21:01:26 2025
config:

        NAME        STATE     READ WRITE CKSUM
        zfs         ONLINE       0     0     0
          raidz1-0  ONLINE       0     0     0
            sde1    ONLINE       0     0     2
            sdb1    ONLINE       0     0     0
            sdd1    ONLINE       0     0     2

errors: No known data errors

In this case, is it safe to use the zpool clear command? Also, will it be safe to begin writing corrections to parity again? New diags attached.

diagnostics-20250702-2104.zip

2 hours ago, snoopsterj said:

is it safe to use the zpool clear command?

Yes, then recommend scrubbing the pool.

2 hours ago, snoopsterj said:

Also, will it be safe to begin writing corrections to parity again?

Yes.

Diags look OK for now, no ATA errors.

I have used zpool clear and zpool scrub finished earlier this morning.

zpool status returns this now:

pool: zfs
 state: ONLINE
status: Some supported and requested features are not enabled on the pool.
        The pool can still be used, but some features are unavailable.
action: Enable all features using 'zpool upgrade'. Once this is done,
        the pool may no longer be accessible by software that does not support
        the features. See zpool-features(7) for details.
  scan: scrub repaired 0B in 05:11:00 with 0 errors on Fri Jul  4 00:04:56 2025
config:

        NAME        STATE     READ WRITE CKSUM
        zfs         ONLINE       0     0     0
          raidz1-0  ONLINE       0     0     0
            sde1    ONLINE       0     0     0
            sdb1    ONLINE       0     0     0
            sdd1    ONLINE       0     0     0

errors: No known data errors

I found another thread where you suggested the user do zpool upgrade and it returns this:

This system supports ZFS pool feature flags.

All pools are formatted using feature flags.


Some supported features are not enabled on the following pools. Once a
feature is enabled the pool may become incompatible with software
that does not support the feature. See zpool-features(7) for details.

Note that the pool 'compatibility' feature can be used to inhibit
feature upgrades.

POOL  FEATURE
---------------
zfs
      zilsaxattr
      head_errlog
      blake3
      block_cloning
      vdev_zaps_v2
      redaction_list_spill
      raidz_expansion
      fast_dedup
      longname
      large_microzap

I created this zpool with Unraid - do you have any advice on best practices for upgrading ZFS versions? I'm currently on 2.3.1-1 and I'm wary of new releases of any new software. Some of the features seem quite helpful for decreasing resource overhead but my main concern is uptime and data protection/integrity. Thanks!

Upgrading the pool is very low risk IMHO, I've upgraded all of mine some time ago, just be aware that after upgrading them, you won't be able to downgrade to an Unraid release that uses a previous major OpenZFS release.
