Good day, everyone,

First-time poster here and first-time Unraid user.
I've been going ham setting up Docker (so cool!) on my system, and I've, predictably, made the usual mistakes. Some I noticed and fixed, others I simply cannot track down even with the help of Chat GPT or previous forums replies.

I have the Jellyfin/Jellyseer/Prowler/Radarr/Sonarr/qBittorrent-vpn combo, and all was well functionality-wise except that Radarr and Sonarr appear to be dragging the torrent downloads into their vDisk /downloads instead of passing them to the disk share where they should live. (Only Sonarr is showing as a higher vDisk image rn because I tried reinstalling Radarr, but both were showing the same issue).

I have checked the paths about 6 different times, and they seem to be completely sensible to me, yet nothing seems to change, and I keep getting vDisk warnings. I understand the Local Path /donwlaods part of Radarr and Sonarr is probably the issue, but I fail to see how else they should be set up. Any help would be welcome!

Radarr

Remote Path: /data/movies
Local Path: /downloads

Sonarr

Remote Path: /data/tv
Local Path: /downloads

qBittorrent

Default Save Path: /data/Downloads

With /data/tv and data/movies paths assigned to each category.

Fix Common Problems

Errors: No errors found by "Fix Common Problems".

Warnings: Share appdata set to cache-only, but files/folders exist on the array (probably suspicious :)

Dock Image Size User Script Output

##################################################################################
List of Image, Container and docker volume size.
##################################################################################

There are 23 Images taking up ......22.52GB
There are 22 Containers taking up ......10.87GB
There are 5 Local Volumes taking up ......68.27MB
There are 0 Build Cache taking up ......0B

##################################################################################
List of containers showing size and virtual size
##################################################################################

First size is the writable layers of the container (Virtual size is writable and read only layers)

22.8kB (virtual 1.2GB) Is being taken up by ......... josh5/unmanic:latest
22.9kB (virtual 205MB) Is being taken up by ......... lscr.io/linuxserver/sonarr
9.55GB (virtual 9.76GB) Is being taken up by ......... lscr.io/linuxserver/radarr
524MB (virtual 3.82GB) Is being taken up by ......... ghcr.io/haveagitgat/tdarr
259MB (virtual 3.16GB) Is being taken up by ......... ghcr.io/haveagitgat/tdarr_node
0B (virtual 1.43GB) Is being taken up by ......... fallenbagel/jellyseerr:latest
1.14MB (virtual 1.8GB) Is being taken up by ......... binhex/arch-qbittorrentvpn
28.4MB (virtual 121MB) Is being taken up by ......... pihole/pihole
20.1kB (virtual 53.6MB) Is being taken up by ......... ghcr.io/dan-online/autopulse:latest
14.1kB (virtual 2.29GB) Is being taken up by ......... photoprism/photoprism
0B (virtual 1.3GB) Is being taken up by ......... viktorstrate/photoview
101B (virtual 79.2MB) Is being taken up by ......... lnxd/github-backup
110kB (virtual 162MB) Is being taken up by ......... bitnami/redis:latest
533B (virtual 1e+03MB) Is being taken up by ......... ghcr.io/immich-app/postgres:16-vectorchord0.3.0-pgvectors0.3.0
78.3kB (virtual 766MB) Is being taken up by ......... ghcr.io/ich777/microsoft-edge
85.5MB (virtual 3.04GB) Is being taken up by ......... ghcr.io/imagegenius/immich
22.9kB (virtual 181MB) Is being taken up by ......... lscr.io/linuxserver/prowlarr
95.4kB (virtual 1.25GB) Is being taken up by ......... jellyfin/jellyfin:latest
52.3kB (virtual 591MB) Is being taken up by ......... jlesage/filebot
22.3kB (virtual 435MB) Is being taken up by ......... lscr.io/linuxserver/duplicati
115MB (virtual 314MB) Is being taken up by ......... aronmarinelli/bitwarden-secure-sync:latest
307MB (virtual 1.82GB) Is being taken up by ......... ghcr.io/binhex/arch-flaresolverr

##################################################################################
List of containers in size order
##################################################################################

3290MB - ghcr.io/haveagitgat/tdarr
2950MB - ghcr.io/imagegenius/immich
2900MB - ghcr.io/haveagitgat/tdarr_node
2290MB - photoprism/photoprism
1930MB - ghcr.io/binhex/arch-sonarr
1800MB - binhex/arch-qbittorrentvpn
1520MB - ghcr.io/binhex/arch-flaresolverr
1430MB - fallenbagel/jellyseerr
1300MB - viktorstrate/photoview
1250MB - jellyfin/jellyfin
1200MB - josh5/unmanic
766MB - ghcr.io/ich777/microsoft-edge
591MB - jlesage/filebot
435MB - lscr.io/linuxserver/duplicati
207MB - lscr.io/linuxserver/radarr
205MB - lscr.io/linuxserver/sonarr
199MB - aronmarinelli/bitwarden-secure-sync
181MB - lscr.io/linuxserver/prowlarr
162MB - bitnami/redis
92.7MB - pihole/pihole
79.2MB - lnxd/github-backup
53.6MB - ghcr.io/dan-online/autopulse
1e+03MB - ghcr.io/immich-app/postgres

##################################################################################
List of docker volumes, the container which they are connected to their size
##################################################################################

ID 2c6481c532e69badfdb679b6ac416e44b9a61ab186095b45c0c805887db0da72
This volume connected to immich has a size of 0

ID 3d03c803878c526d0875d93bd7cf4dc61d8e99754815be89a5b8535a4a63eae9
This volume connected to has a size of 0

ID 706fc0bd5a518b4e00ff41ef6082794cf95b785175126a897ad32267b1e9168e
This volume connected to Jellyfin has a size of 71M

ID cce6a4a7a58b560e3df3542f74c551487e7e2f3bc91f81da4b48c41c86cd404d
This volume connected to has a size of 0

ID dac398339dd2778fb8d510810e731ccce9ff2da97d95edff6362a6cb1eb32d63
This volume connected to duplicati has a size of 0


##################################################################################

nas-diagnostics-20250624-1413.zip

Not entirely clear what you mean by "remote" and "local" path. Usually we talk about container and host paths.

Post docker run for radarr

1 hour ago, trurl said:

Not entirely clear what you mean by "remote" and "local" path. Usually we talk about container and host paths.

Post docker run for radarr

Hi trurl,

Thanks for your reply.

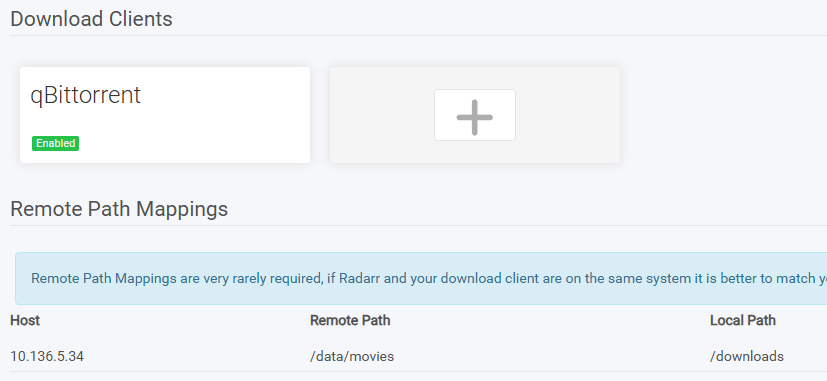

By local/remote paths, I am referring to the settings that need to be set within Radar and Sonarr under the Settings > Download Clients > Remote Path Mappings.

docker run
  -d
  --name='radarr'
  --net='bridge'
  --pids-limit 2048
  -e TZ="Europe/London"
  -e HOST_OS="Unraid"
  -e HOST_HOSTNAME="NAS"
  -e HOST_CONTAINERNAME="radarr"
  -e 'PUID'='99'
  -e 'PGID'='100'
  -e 'UMASK'='022'
  -l net.unraid.docker.managed=dockerman
  -l net.unraid.docker.webui='http://[IP]:[PORT:7878]/system/status'
  -l net.unraid.docker.icon=''
  -p '7878:7878/tcp'
  -v '/mnt/user/Media/Movies/':'/movies':'rw'
  -v '/mnt/user/Media/Downloads/':'/downloads':'rw'
  -v '/mnt/user/appdata/radarr':'/config':'rw' 'lscr.io/linuxserver/radarr'


b30a11edc6f240fe092422a43beaa809f36b2ee3dad0b501963393077cb93fb0

The command finished successfully!

docker run
  -d
  --name='sonarr'
  --net='bridge'
  --pids-limit 2048
  -e TZ="Europe/London"
  -e HOST_OS="Unraid"
  -e HOST_HOSTNAME="NAS"
  -e HOST_CONTAINERNAME="sonarr"
  -e 'PUID'='99'
  -e 'PGID'='100'
  -e 'UMASK'='022'
  -l net.unraid.docker.managed=dockerman
  -l net.unraid.docker.webui='http://[IP]:[PORT:8989]/system/status'
  -l net.unraid.docker.icon='

'
  -p '8989:8989/tcp'
  -v '/mnt/user/Media/TV/':'/tv':'rw'
  -v '/mnt/user/Media/Downloads/':'/downloads':'rw'
  -v '/mnt/user/appdata/sonarr':'/config':'rw' 'lscr.io/linuxserver/sonarr'


8b7e1bdf363c46283b0f8e06c3ae328f038e1e6ad5fcb9b42357d260a16a5ee6

The command finished successfully!

Edited June 24, 20251 yr by CommonMan

There is no mapping for /data, so anything written to that path is internal to the container which would explain why it grows in size. Normally one would expect /data to be mapped to a location on the the host to avoid this happening.

Post a docker run output for sonarr and radarr

as you should have something similar to

Unraid users don't typically use the "remote path mappings" within sonarr/radarr. To my understanding remote path mappings are for when sonarr/radarr are ran separate from the storage media.

Edited June 24, 20251 yr by MowMdown
