June 25, 20251 yr Woke up to alerts on my server looks like disk1 has 1922 errors and has been disabled and contents emulated.Server kernel: md: disk1 write error, sector=11070194240server-diagnostics-20250625-1030.zipWill be looking for a new replacement drive today but not sure if I need to do anything with a disabled drive or can I replace as normal?
June 25, 20251 yr Community Expert Looks like it dropped offline, check the cable/connections, reboot and post new diagnostics
June 25, 20251 yr Author 41 minutes ago, Michael_P said:Looks like it dropped offline, check the cable/connections, reboot and post new diagnosticsStill appears the same, removed all the trays and put the back in, rechecked cable going to the LSI SAS 9201-8i nothing out the ordinary cable wise.server-diagnostics-20250625-1204.zip new diags attached
June 25, 20251 yr Community Expert 4 minutes ago, bally12345 said:Still appears the same, removed all the trays and put the back in, rechecked cable going to the LSI SAS 9201-8i nothing out the ordinary cable wise.server-diagnostics-20250625-1204.zip new diags attachedIt's showing up now at least - there's 25 re-allocated sectors on it so at a minimum I'd run a long SMART test on it, but if it was under warranty I'd have it replaced.
June 25, 20251 yr Author 3 minutes ago, Michael_P said:It's showing up now at least - there's 25 re-allocated sectors on it so at a minimum I'd run a long SMART test on it, but if it was under warranty I'd have it replaced.Out of warranty, so will have to go to the junk heap, got a replacement coming tomorrow.server-smart-20250625-1218.zip Edited June 25, 20251 yr by bally12345 smart results added
June 25, 20251 yr Author 7 minutes ago, bally12345 said:Out of warranty, so will have to go to the junk heap, got a replacement coming tomorrow.server-smart-20250625-1218.zipJust noticed the test compelted as after 10%Last SMART test result: Completed: servo/seek failure
June 25, 20251 yr Community Expert 18 minutes ago, bally12345 said:Just noticed the test compelted as after 10%Last SMART test result: Completed: servo/seek failureYeah, I'm not sure that was really an issue - only another extended test would be sure. Personally, even if it passed I'd send it to backup duty due the reallocated sectors.

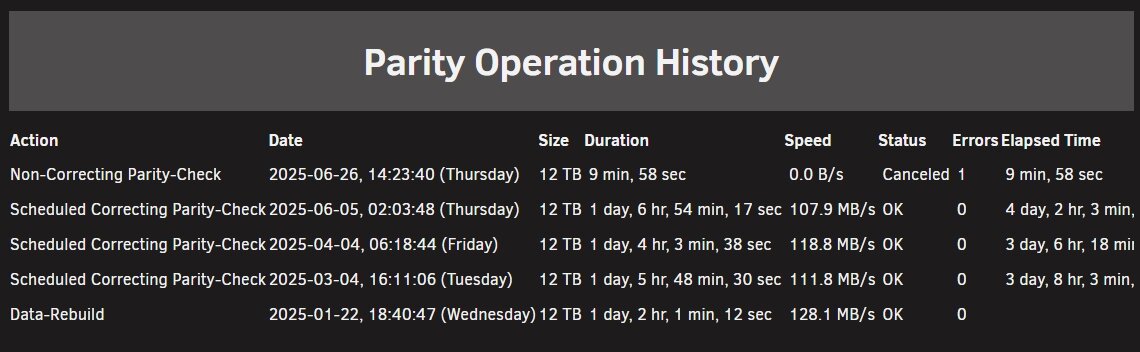

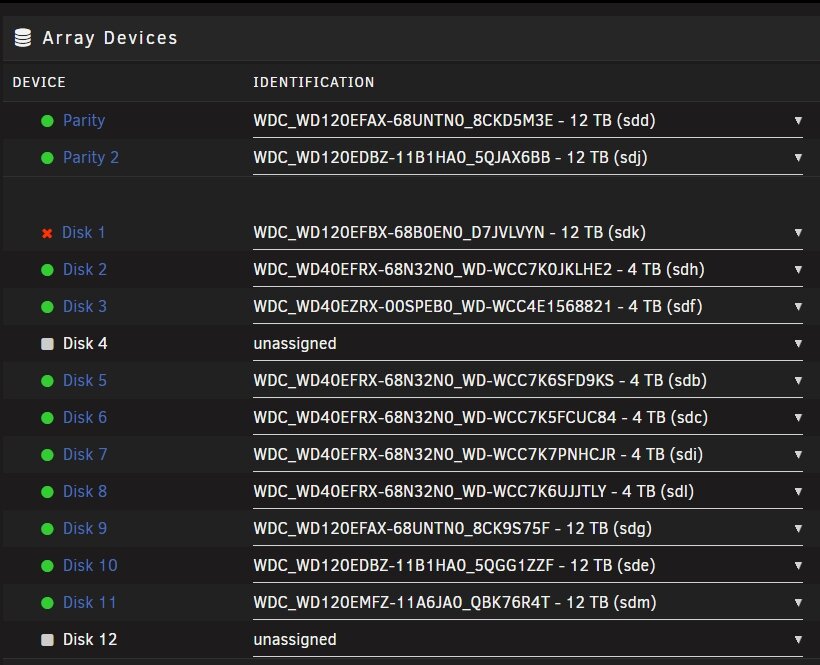

June 26, 20251 yr Author Replaced disk but something happened and all the drives went offline, the disk rebuild paused, so went shutdown and went back to check everything and started server up again. But now it doesnt seem to be rebuilding the disk. I have just stopped the array.server-diagnostics-20250626-1437.zipDo I need to set disk1 back to no device start array, stop array then assign the new 12TB drive?
June 26, 20251 yr Community Expert Looks like the HBA lost contact with the expander, all disks dropped at the same time.Before starting to rebuild again, make sure emulated disk1 is mounting, also worth check/reconnect the cables to the expander.
June 26, 20251 yr Author 11 minutes ago, JorgeB said:Looks like the HBA lost contact with the expander, all disks dropped at the same time.Before starting to rebuild again, make sure emulated disk1 is mounting, also worth check/reconnect the cables to the expander.Checked all the connections and removed and added the HBA card back in. I think the breakout cable was loose this is now clicked in.The disk is available and emulated and has option to spin down but dont see how to start rebuild.
June 26, 20251 yr Author 17 minutes ago, bally12345 said:Checked all the connections and removed and added the HBA card back in. I think the breakout cable was loose this is now clicked in.The disk is available and emulated and has option to spin down but dont see how to start rebuild.Ok got it, drive is rebuilding!Thanks
