Hello everyone,

I have a problem with starting the ZFS pool in mirror (where there are config, docker, vm, and some folders that haven't been backed up).

This is my system (now):

I successfully updated from version 6.12 to 7.1.4 last Thursday.

The pools all seemed fine after the update reboot. Subsequently, the parity check started and the web page was no longer reachable. I was also unable to access via ssh.

I powered off and restarted the server, and perhaps this was the problem.

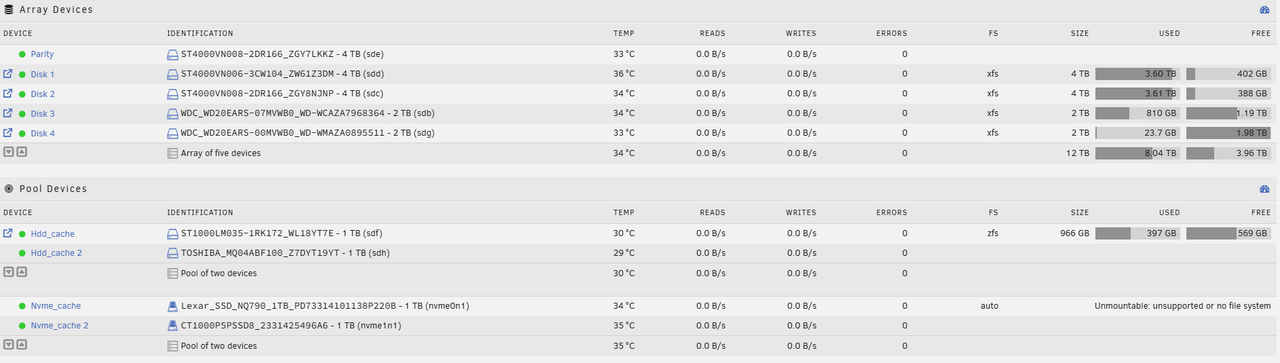

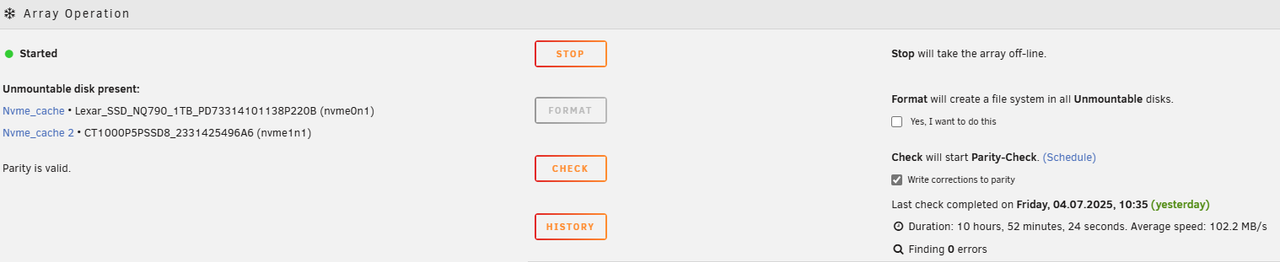

The "WRONG CONFIGURATION" message appeared and the array did not start.

I did some research on the forum and found the following solution: - remove the pool - recreate it with the same name - reassign the devices - leave the file system set to auto - start the array.

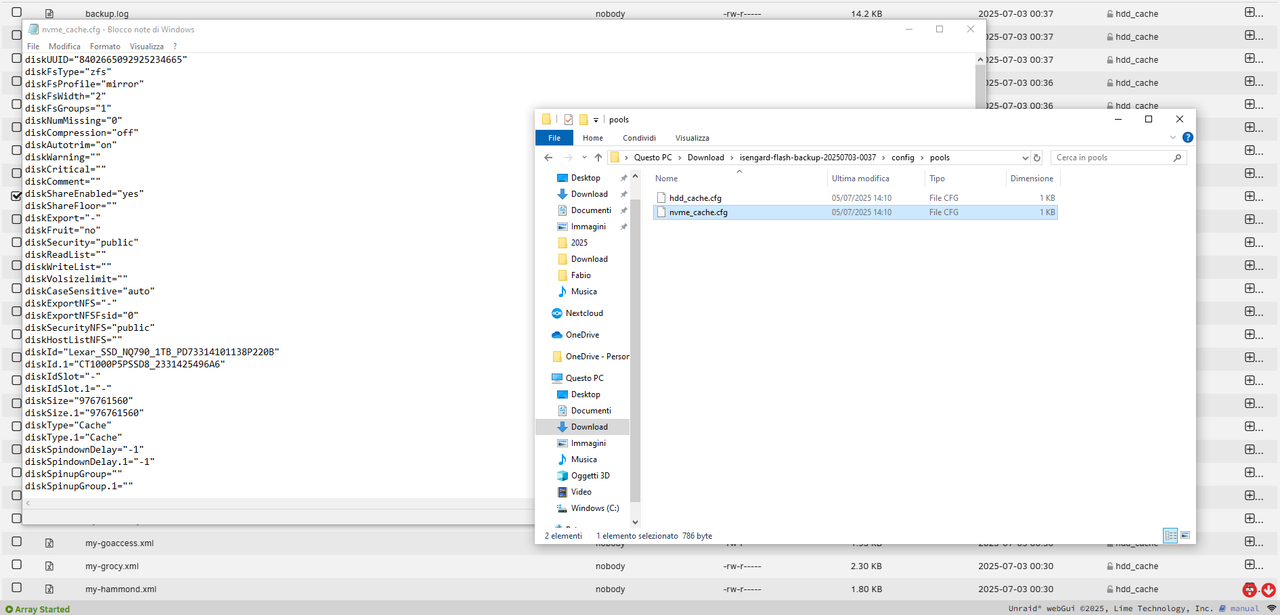

I did this, now the system starts, but the config folders are moved to the HDD_CACHE pool, which doesn't have issues. Instead, the nvme_cache pool, where there are data and the cfg with docker and vm, gives an error of unmountable: unsupported or no file system.

I did this check anchd tried:

zpool status:

root@ISENGARD:~# zpool status

pool: hdd_cache

state: ONLINE

status: Some supported and requested features are not enabled on the pool.

The pool can still be used, but some features are unavailable.

action: Enable all features using 'zpool upgrade'. Once this is done,

the pool may no longer be accessible by software that does not support

the features. See zpool-features(7) for details.

scan: resilvered 217G in 06:01:30 with 0 errors on Tue Oct 8 03:19:42 2024

config:

NAME STATE READ WRITE CKSUM

hdd_cache ONLINE 0 0 0

mirror-0 ONLINE 0 0 0

sdf1 ONLINE 0 0 0

sdh1 ONLINE 0 0 0

errors: No known data errors

zpool export:

root@ISENGARD:~# zpool export nvme_cache

cannot open 'nvme_cache': no such pool

root@ISENGARD:~#

fdisk -l on /dev :

root@ISENGARD:~# fdisk -l /dev/nvme0n1

Disk /dev/nvme0n1: 931.51 GiB, 1000204886016 bytes, 1953525168 sectors

Disk model: Lexar SSD NQ790 1TB

Units: sectors of 1 * 512 = 512 bytes

Sector size (logical/physical): 512 bytes / 512 bytes

I/O size (minimum/optimal): 512 bytes / 512 bytes

root@ISENGARD:~# fdisk -l /dev/nvme1n1

Disk /dev/nvme1n1: 931.51 GiB, 1000204886016 bytes, 1953525168 sectors

Disk model: CT1000P5PSSD8

Units: sectors of 1 * 512 = 512 bytes

Sector size (logical/physical): 512 bytes / 512 bytes

I/O size (minimum/optimal): 512 bytes / 512 bytes

Disklabel type: dos

Disk identifier: 0x00000000

Device Boot Start End Sectors Size Id Type

/dev/nvme1n1p1 2048 1953525167 1953523120 931.5G 83 Linux

Maybe the first disk (nvme0n1) now is corrupted. I've tried a switch drive (remove pool, assign the nvme1n1 on first and nvme0n1 on second) but notingh change.

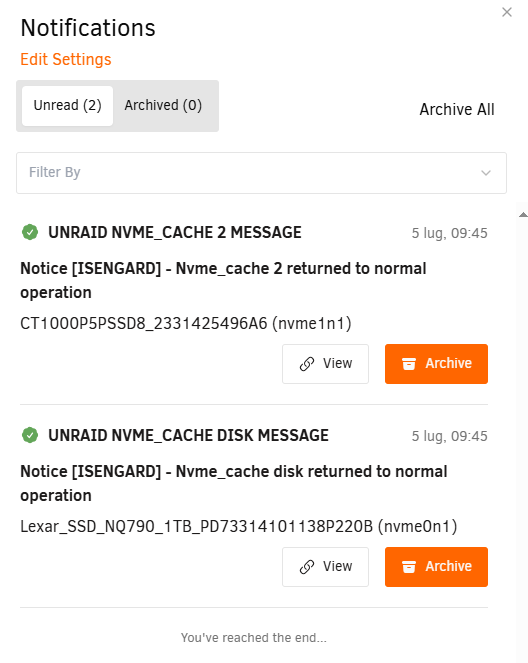

I also another alert in gui popups

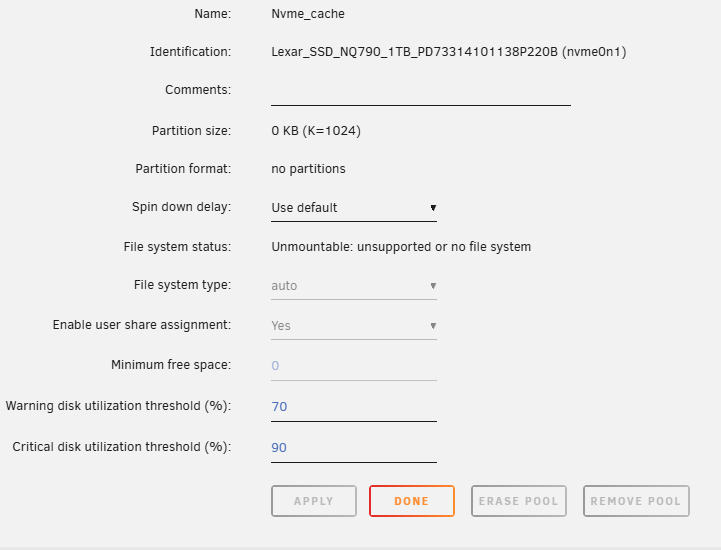

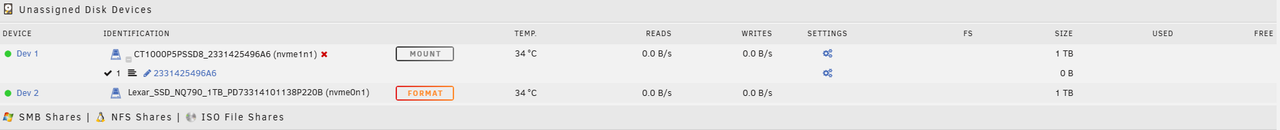

If unmount the array and remove the assign, i see a only one label of nvme1n1

I have a docker,vm backups but i didn't save the last data of few directory (about 65GB) of nextcloud directory into this nvme pool.

What i need to do now, for recover zfs pool and the system turn on work correctly?

Do I need to go back to 6.12? Am I at risk of not starting the entire array?

If it is not possible to recover the nvme_cache zpool, I could recreate it from scratch. I recover the folder that I did not save and easily restore the docker containers and the VMs?

Thanks Fabio

1 hour ago, Spa said:

fdisk -l /dev/nvme0n1

This device is missing the partition, but something else is going one, since zpool import should still find the pool by the other device, post the output from zdb -l /dev/nvme1n1p1

For the other device, type sfdisk /dev/nvme0n1 then type 2048 and hit enter and post the results, don't type anything else for now

Thanks @JorgeB
i tried but nothing

root@ISENGARD:~# zpool import zdb -l /dev/nvme1n1p1

cannot import 'zdb': no such pool available

ZDB IS CORRECT?

I tried also

root@ISENGARD:~# zpool import nvme_cache -l /dev/nvme1n1p1

cannot import 'nvme_cache': no such pool available

Maybe i need to invert the disk ( nvme1n1p1 first and nvme0n1 second) ..

Or set ZFS RAID in mirror and not AUTO ?

root@ISENGARD:~# sfdisk /dev/nvme0n1 2048

sfdisk: /dev/nvme0n1: cannot modify partition 2049: no partition table was found

Edited July 5, 20251 yr by Spa

3 minutes ago, Spa said:

zdb -l /dev/nvme1n1p1

The command is just this.

3 minutes ago, Spa said:

sfdisk /dev/nvme0n1

This one is also only this, only after hitting enter, do you type 2048 and enter again

Thanks @JorgeB , my wife distracted me for lunch lol

So it's no good?

root@ISENGARD:~# zdb -l /dev/nvme1n1p1

failed to unpack label 0

failed to unpack label 1

failed to unpack label 2

failed to unpack label 3

root@ISENGARD:~# sfdisk /dev/nvme0n1

Welcome to sfdisk (util-linux 2.41).

Changes will remain in memory only, until you decide to write them.

Be careful before using the write command.

Checking that no-one is using this disk right now ... OK

Disk /dev/nvme0n1: 931.51 GiB, 1000204886016 bytes, 1953525168 sectors

Disk model: Lexar SSD NQ790 1TB

Units: sectors of 1 * 512 = 512 bytes

Sector size (logical/physical): 512 bytes / 512 bytes

I/O size (minimum/optimal): 512 bytes / 512 bytes

sfdisk is going to create a new 'dos' disk label.

Use 'label: <name>' before you define a first partition

to override the default.

Type 'help' to get more information.

>>> 2048

Created a new DOS (MBR) disklabel with disk identifier 0x24c1a6de.

Created a new partition 1 of type 'Linux' and of size 931.5 GiB.

/dev/nvme0n1p1 : 2048 1953525167 (931.5G) Linux

Hit CTRL + C to abort sfdisk, then try again sfdisk /dev/nvme0n1 but now type 64 and enter, and post the results once more

Thanks, i've tried once @JorgeB

root@ISENGARD:~# fdisk -l /dev/nvme0n1

Disk /dev/nvme0n1: 931.51 GiB, 1000204886016 bytes, 1953525168 sectors

Disk model: Lexar SSD NQ790 1TB

Units: sectors of 1 * 512 = 512 bytes

Sector size (logical/physical): 512 bytes / 512 bytes

I/O size (minimum/optimal): 512 bytes / 512 bytes

root@ISENGARD:~# sfdisk /dev/nvme0n1

Welcome to sfdisk (util-linux 2.41).

Changes will remain in memory only, until you decide to write them.

Be careful before using the write command.

Checking that no-one is using this disk right now ... OK

Disk /dev/nvme0n1: 931.51 GiB, 1000204886016 bytes, 1953525168 sectors

Disk model: Lexar SSD NQ790 1TB

Units: sectors of 1 * 512 = 512 bytes

Sector size (logical/physical): 512 bytes / 512 bytes

I/O size (minimum/optimal): 512 bytes / 512 bytes

sfdisk is going to create a new 'dos' disk label.

Use 'label: <name>' before you define a first partition

to override the default.

Type 'help' to get more information.

>>> 64

Created a new DOS (MBR) disklabel with disk identifier 0xd3741430.

Created a new partition 1 of type 'Linux' and of size 931.5 GiB.

/dev/nvme0n1p1 : 64 1953525167 (931.5G) Linux

/dev/nvme0n1p2:

Edited July 5, 20251 yr by Spa

Maybe i need to try to load and mount the nvme1n1 in the first disk ?

I think that the nvme0n1 is corrupted

Not sure what happened to the pool, but I'm afraid it's gone, there's no zfs label on the device still with a partition, and there's no previous zfs signature on the device without a partition, so you will need to recreate the pool and restore the data from a backup, if there's no backup, you can try running a file recovery app like UFS explorer to see if it can still find anything.

Can i try to load nvme1n1 in a single pool (not mirror) ? It's a choice?

You can try, but it's not going to work since there's no zfs label on that device.

I try another check

root@ISENGARD:~# sudo lsblk -o NAME,FSTYPE,SIZE,MOUNTPOINT,LABEL

NAME FSTYPE SIZE MOUNTPOINT LABEL

loop0 squashfs 579.8M /usr

loop1 squashfs 169.8M /lib

loop2 btrfs 20G /var/lib/docker

loop3 btrfs 1G /etc/libvirt

sda 14.3G

└─sda1 vfat 14.3G /boot UNRAID

sdb 1.8T

└─sdb1 xfs 1.8T

sdc 3.6T

└─sdc1 xfs 3.6T

sdd 3.6T

└─sdd1 xfs 3.6T

sde 3.6T

└─sde1 3.6T

sdf 931.5G

└─sdf1 zfs_member 931.5G hdd_cache

sdg 1.8T

└─sdg1 xfs 1.8T

sdh 931.5G

└─sdh1 zfs_member 931.5G hdd_cache

md1p1 3.6T /mnt/disk1

md2p1 3.6T /mnt/disk2

md3p1 1.8T /mnt/disk3

md4p1 1.8T /mnt/disk4

nvme0n1 931.5G

nvme1n1 931.5G

└─nvme1n1p1 931.5G

Maybe only is working correctly now: nvme1n1 931.5G

└─nvme1n1p1 931.5G

So i think that i can work with this drive for recover data

root@ISENGARD:~# zdb -lu /dev/nvme1n1p1

failed to unpack label 0

------------------------------------

LABEL 0 (Bad label cksum)

------------------------------------

Uberblock[0]

magic = 0000000000bab10c

version = 5000

txg = 33025216

guid_sum = 4363292035905203671

timestamp = 1751576516 UTC = Thu Jul 3 23:01:56 2025

bp = DVA[0]=<0:6a3e22a000:1000> DVA[1]=<0:788fd58000:1000> DVA[2]=<0:764 9178000:1000> [L0 DMU objset] fletcher4 uncompressed unencrypted LE contiguous u nique triple size=1000L/1000P birth=33025216L/33025216P fill=218 cksum=000000035 4bbf825:00000cd599cc4b73:0018c0d6777aaa92:1fdce8cff1ceb06e

mmp_magic = 00000000a11cea11

mmp_delay = 0

mmp_valid = 0

checkpoint_txg = 0

raidz_reflow state=0 off=0

labels = 0 1 2 3

Uberblock[4]

magic = 0000000000bab10c

version = 5000

txg = 33025217

guid_sum = 4363292035905203671

timestamp = 1751576521 UTC = Thu Jul 3 23:02:01 2025

bp = DVA[0]=<0:70c465c000:1000> DVA[1]=<0:6e110d5000:1000> DVA[2]=<0:764 c249000:1000> [L0 DMU objset] fletcher4 uncompressed unencrypted LE contiguous u nique triple size=1000L/1000P birth=33025217L/33025217P fill=218 cksum=00000003e a6050ca:00000f166bd1d9dc:001d19a8b80f81a2:257594817e111257

mmp_magic = 00000000a11cea11

mmp_delay = 0

mmp_valid = 0

checkpoint_txg = 0

raidz_reflow state=0 off=0

labels = 0 1 2 3

Uberblock[8]

magic = 0000000000bab10c

version = 5000

txg = 33025186

guid_sum = 4363292035905203671

timestamp = 1751576362 UTC = Thu Jul 3 22:59:22 2025

bp = DVA[0]=<0:6a003af000:1000> DVA[1]=<0:788dc2d000:1000> DVA[2]=<0:763 f0a1000:1000> [L0 DMU objset] fletcher4 uncompressed unencrypted LE contiguous u nique triple size=1000L/1000P birth=33025186L/33025186P fill=226 cksum=00000003f e7a1a75:00000f64dddff27d:001db2d4d13bedc4:263d1a42009d2a83

mmp_magic = 00000000a11cea11

mmp_delay = 0

mmp_valid = 0

checkpoint_txg = 0

raidz_reflow state=0 off=0

labels = 0 1 2 3

Uberblock[12]

magic = 0000000000bab10c

version = 5000

txg = 33025219

guid_sum = 4363292035905203671

timestamp = 1751576531 UTC = Thu Jul 3 23:02:11 2025

bp = DVA[0]=<0:6a4111a000:1000> DVA[1]=<0:788fdb0000:1000> DVA[2]=<0:764 cb9b000:1000> [L0 DMU objset] fletcher4 uncompressed unencrypted LE contiguous u nique triple size=1000L/1000P birth=33025219L/33025219P fill=217 cksum=000000040 5e3a7b7:00000f816a492f6b:001de9dd221cf928:2683e5b00943423a

mmp_magic = 00000000a11cea11

mmp_delay = 0

mmp_valid = 0

checkpoint_txg = 0

raidz_reflow state=0 off=0

labels = 0 1 2 3

Uberblock[16]

magic = 0000000000bab10c

version = 5000

txg = 33025220

guid_sum = 4363292035905203671

timestamp = 1751576536 UTC = Thu Jul 3 23:02:16 2025

bp = DVA[0]=<0:6a4413c000:1000> DVA[1]=<0:788fed4000:1000> DVA[2]=<0:764 cbb7000:1000> [L0 DMU objset] fletcher4 uncompressed unencrypted LE contiguous u nique triple size=1000L/1000P birth=33025220L/33025220P fill=217 cksum=00000003e aa0ee27:00000f15e748eada:001d15d27b581a5a:256d08c7f223a5ad

mmp_magic = 00000000a11cea11

mmp_delay = 0

mmp_valid = 0

checkpoint_txg = 0

raidz_reflow state=0 off=0

labels = 0 1 2 3

Uberblock[20]

magic = 0000000000bab10c

version = 5000

txg = 33025221

guid_sum = 4363292035905203671

timestamp = 1751576541 UTC = Thu Jul 3 23:02:21 2025

bp = DVA[0]=<0:6a47733000:1000> DVA[1]=<0:7890516000:1000> DVA[2]=<0:764 cbfc000:1000> [L0 DMU objset] fletcher4 uncompressed unencrypted LE contiguous u nique triple size=1000L/1000P birth=33025221L/33025221P fill=217 cksum=000000040 24685e3:00000f7377ed4341:001dceecde1d3dbd:26612cc6f1465e74

mmp_magic = 00000000a11cea11

mmp_delay = 0

mmp_valid = 0

checkpoint_txg = 0

raidz_reflow state=0 off=0

labels = 0 1 2 3

Uberblock[24]

magic = 0000000000bab10c

version = 5000

txg = 33025190

guid_sum = 4363292035905203671

timestamp = 1751576383 UTC = Thu Jul 3 22:59:43 2025

bp = DVA[0]=<0:70c40fd000:1000> DVA[1]=<0:6e10d3a000:1000> DVA[2]=<0:764 0067000:1000> [L0 DMU objset] fletcher4 uncompressed unencrypted LE contiguous u nique triple size=1000L/1000P birth=33025190L/33025190P fill=227 cksum=00000003b 6e26b95:00000e50164cd9ec:001b9b50c64b4d67:2389b71f152a08f5

mmp_magic = 00000000a11cea11

mmp_delay = 0

mmp_valid = 0

checkpoint_txg = 0

raidz_reflow state=0 off=0

labels = 0 1 2 3

Uberblock[28]

magic = 0000000000bab10c

version = 5000

txg = 33025191

guid_sum = 4363292035905203671

timestamp = 1751576388 UTC = Thu Jul 3 22:59:48 2025

bp = DVA[0]=<0:70c4127000:1000> DVA[1]=<0:6e10d64000:1000> DVA[2]=<0:764 0095000:1000> [L0 DMU objset] fletcher4 uncompressed unencrypted LE contiguous u nique triple size=1000L/1000P birth=33025191L/33025191P fill=228 cksum=000000035 91eae4e:00000ce846504107:0018e838f5284e24:2013de9751e6c4e8

mmp_magic = 00000000a11cea11

mmp_delay = 0

mmp_valid = 0

checkpoint_txg = 0

raidz_reflow state=0 off=0

labels = 0 1 2 3

Uberblock[32]

magic = 0000000000bab10c

version = 5000

txg = 33025192

guid_sum = 4363292035905203671

timestamp = 1751576393 UTC = Thu Jul 3 22:59:53 2025

bp = DVA[0]=<0:70c4175000:1000> DVA[1]=<0:6e10d87000:1000> DVA[2]=<0:764 03ab000:1000> [L0 DMU objset] fletcher4 uncompressed unencrypted LE contiguous u nique triple size=1000L/1000P birth=33025192L/33025192P fill=229 cksum=00000002f 59f20f6:00000b6a7149a3d5:00160ad2ab106d4d:1c67cdbc05f0711b

mmp_magic = 00000000a11cea11

mmp_delay = 0

mmp_valid = 0

checkpoint_txg = 0

raidz_reflow state=0 off=0

labels = 0 1 2 3

Uberblock[36]

magic = 0000000000bab10c

version = 5000

txg = 33025193

guid_sum = 4363292035905203671

timestamp = 1751576398 UTC = Thu Jul 3 22:59:58 2025

bp = DVA[0]=<0:70c4186000:1000> DVA[1]=<0:6e10d98000:1000> DVA[2]=<0:764 0762000:1000> [L0 DMU objset] fletcher4 uncompressed unencrypted LE contiguous u nique triple size=1000L/1000P birth=33025193L/33025193P fill=229 cksum=000000030 f9061f3:00000bcfe76f099e:0016d15972c942e1:1d6aed706b0086bb

mmp_magic = 00000000a11cea11

mmp_delay = 0

mmp_valid = 0

checkpoint_txg = 0

raidz_reflow state=0 off=0

labels = 0 1 2 3

Uberblock[40]

magic = 0000000000bab10c

version = 5000

txg = 33025194

guid_sum = 4363292035905203671

timestamp = 1751576403 UTC = Thu Jul 3 23:00:03 2025

bp = DVA[0]=<0:6a0dca8000:1000> DVA[1]=<0:788e43d000:1000> DVA[2]=<0:764 0935000:1000> [L0 DMU objset] fletcher4 uncompressed unencrypted LE contiguous u nique triple size=1000L/1000P birth=33025194L/33025194P fill=229 cksum=00000003a 7642410:00000e14bc4242b7:001b297fbc86f0d5:22f8093a907871dd

mmp_magic = 00000000a11cea11

mmp_delay = 0

mmp_valid = 0

checkpoint_txg = 0

raidz_reflow state=0 off=0

labels = 0 1 2 3

Uberblock[44]

magic = 0000000000bab10c

version = 5000

txg = 33025195

guid_sum = 4363292035905203671

timestamp = 1751576408 UTC = Thu Jul 3 23:00:08 2025

bp = DVA[0]=<0:70c422b000:1000> DVA[1]=<0:6e10df2000:1000> DVA[2]=<0:764 0945000:1000> [L0 DMU objset] fletcher4 uncompressed unencrypted LE contiguous u nique triple size=1000L/1000P birth=33025195L/33025195P fill=229 cksum=000000046 e82b74a:0000111028310b7c:0020e27bbde41975:2a4c2492b1118d9a

mmp_magic = 00000000a11cea11

mmp_delay = 0

mmp_valid = 0

checkpoint_txg = 0

raidz_reflow state=0 off=0

labels = 0 1 2 3

Uberblock[48]

magic = 0000000000bab10c

version = 5000

txg = 33025196

guid_sum = 4363292035905203671

timestamp = 1751576413 UTC = Thu Jul 3 23:00:13 2025

bp = DVA[0]=<0:70c4286000:1000> DVA[1]=<0:6e10e4d000:1000> DVA[2]=<0:764 0b00000:1000> [L0 DMU objset] fletcher4 uncompressed unencrypted LE contiguous u nique triple size=1000L/1000P birth=33025196L/33025196P fill=229 cksum=000000036 e7c75fc:00000d3ce259b448:00198fbfc97694e3:20f105410789eb42

mmp_magic = 00000000a11cea11

mmp_delay = 0

mmp_valid = 0

checkpoint_txg = 0

raidz_reflow state=0 off=0

labels = 0 1 2 3

Uberblock[52]

magic = 0000000000bab10c

version = 5000

txg = 33025197

guid_sum = 4363292035905203671

timestamp = 1751576419 UTC = Thu Jul 3 23:00:19 2025

bp = DVA[0]=<0:70c42c5000:1000> DVA[1]=<0:6e10e8c000:1000> DVA[2]=<0:764 0c32000:1000> [L0 DMU objset] fletcher4 uncompressed unencrypted LE contiguous u nique triple size=1000L/1000P birth=33025197L/33025197P fill=229 cksum=000000037 b41a067:00000d6b454f8cd1:0019e3d4612d64cb:215662a8fddd1d8a

mmp_magic = 00000000a11cea11

mmp_delay = 0

mmp_valid = 0

checkpoint_txg = 0

raidz_reflow state=0 off=0

labels = 0 1 2 3

Uberblock[56]

magic = 0000000000bab10c

version = 5000

txg = 33025198

guid_sum = 4363292035905203671

timestamp = 1751576424 UTC = Thu Jul 3 23:00:24 2025

bp = DVA[0]=<0:70c42f4000:1000> DVA[1]=<0:6e10ebb000:1000> DVA[2]=<0:764 1606000:1000> [L0 DMU objset] fletcher4 uncompressed unencrypted LE contiguous u nique triple size=1000L/1000P birth=33025198L/33025198P fill=230 cksum=00000002e 4474edd:00000b2a492ad961:001594318d512d8b:1bd5a1486bb42fea

mmp_magic = 00000000a11cea11

mmp_delay = 0

mmp_valid = 0

checkpoint_txg = 0

raidz_reflow state=0 off=0

labels = 0 1 2 3

Uberblock[60]

magic = 0000000000bab10c

version = 5000

txg = 33025199

guid_sum = 4363292035905203671

timestamp = 1751576429 UTC = Thu Jul 3 23:00:29 2025

bp = DVA[0]=<0:70c4308000:1000> DVA[1]=<0:6e10ecf000:1000> DVA[2]=<0:764 1b37000:1000> [L0 DMU objset] fletcher4 uncompressed unencrypted LE contiguous u nique triple size=1000L/1000P birth=33025199L/33025199P fill=226 cksum=000000044 1712880:00001063651b37c4:001f97040513bf61:28a3ba5b51e3bafd

mmp_magic = 00000000a11cea11

mmp_delay = 0

mmp_valid = 0

checkpoint_txg = 0

raidz_reflow state=0 off=0

labels = 0 1 2 3

Uberblock[64]

magic = 0000000000bab10c

version = 5000

txg = 33025200

guid_sum = 4363292035905203671

timestamp = 1751576434 UTC = Thu Jul 3 23:00:34 2025

bp = DVA[0]=<0:6a247ad000:1000> DVA[1]=<0:788e75f000:1000> DVA[2]=<0:764 202d000:1000> [L0 DMU objset] fletcher4 uncompressed unencrypted LE contiguous u nique triple size=1000L/1000P birth=33025200L/33025200P fill=225 cksum=000000031 afaa67f:00000bf8cf1608d3:00171a60813c0eb5:1dc17970c2f59c24

mmp_magic = 00000000a11cea11

mmp_delay = 0

mmp_valid = 0

checkpoint_txg = 0

raidz_reflow state=0 off=0

labels = 0 1 2 3

Uberblock[68]

magic = 0000000000bab10c

version = 5000

txg = 33025201

guid_sum = 4363292035905203671

timestamp = 1751576439 UTC = Thu Jul 3 23:00:39 2025

bp = DVA[0]=<0:6a24d7a000:1000> DVA[1]=<0:788e764000:1000> DVA[2]=<0:764 24b2000:1000> [L0 DMU objset] fletcher4 uncompressed unencrypted LE contiguous u nique triple size=1000L/1000P birth=33025201L/33025201P fill=223 cksum=00000002e 5f7dc47:00000b2e45f15b13:001597113178af6d:1bd3317306f42168

mmp_magic = 00000000a11cea11

mmp_delay = 0

mmp_valid = 0

checkpoint_txg = 0

raidz_reflow state=0 off=0

labels = 0 1 2 3

Uberblock[72]

magic = 0000000000bab10c

version = 5000

txg = 33025202

guid_sum = 4363292035905203671

timestamp = 1751576444 UTC = Thu Jul 3 23:00:44 2025

bp = DVA[0]=<0:70c438e000:1000> DVA[1]=<0:6e10f55000:1000> DVA[2]=<0:764 2c17000:1000> [L0 DMU objset] fletcher4 uncompressed unencrypted LE contiguous u nique triple size=1000L/1000P birth=33025202L/33025202P fill=221 cksum=00000003c d9e5a06:00000ea7ea9837eb:001c451e19ff417c:2464c20caa6c5343

mmp_magic = 00000000a11cea11

mmp_delay = 0

mmp_valid = 0

checkpoint_txg = 0

raidz_reflow state=0 off=0

labels = 0 1 2 3

Uberblock[76]

magic = 0000000000bab10c

version = 5000

txg = 33025203

guid_sum = 4363292035905203671

timestamp = 1751576449 UTC = Thu Jul 3 23:00:49 2025

bp = DVA[0]=<0:6a2a3cf000:1000> DVA[1]=<0:788e8d2000:1000> DVA[2]=<0:764 2dab000:1000> [L0 DMU objset] fletcher4 uncompressed unencrypted LE contiguous u nique triple size=1000L/1000P birth=33025203L/33025203P fill=222 cksum=000000034 a8db36f:00000cb29059d4cf:0018853fe28a96f0:1f9a5d17e709fe32

mmp_magic = 00000000a11cea11

mmp_delay = 0

mmp_valid = 0

checkpoint_txg = 0

raidz_reflow state=0 off=0

labels = 0 1 2 3

Uberblock[80]

magic = 0000000000bab10c

version = 5000

txg = 33025204

guid_sum = 4363292035905203671

timestamp = 1751576454 UTC = Thu Jul 3 23:00:54 2025

bp = DVA[0]=<0:6a2a6b3000:1000> DVA[1]=<0:788e9d0000:1000> DVA[2]=<0:764 2e88000:1000> [L0 DMU objset] fletcher4 uncompressed unencrypted LE contiguous u nique triple size=1000L/1000P birth=33025204L/33025204P fill=222 cksum=000000030 59ddf9c:00000ba7dc6aadb1:001680dc968cbbf6:1cff320011310395

mmp_magic = 00000000a11cea11

mmp_delay = 0

mmp_valid = 0

checkpoint_txg = 0

raidz_reflow state=0 off=0

labels = 0 1 2 3

Uberblock[84]

magic = 0000000000bab10c

version = 5000

txg = 33025205

guid_sum = 4363292035905203671

timestamp = 1751576460 UTC = Thu Jul 3 23:01:00 2025

bp = DVA[0]=<0:70c44a3000:1000> DVA[1]=<0:6e10faa000:1000> DVA[2]=<0:764 38ae000:1000> [L0 DMU objset] fletcher4 uncompressed unencrypted LE contiguous u nique triple size=1000L/1000P birth=33025205L/33025205P fill=222 cksum=000000041 a51d7d7:00000fcb423e884b:001e6ef7dee4debb:27235b0c5f3353dc

mmp_magic = 00000000a11cea11

mmp_delay = 0

mmp_valid = 0

checkpoint_txg = 0

raidz_reflow state=0 off=0

labels = 0 1 2 3

Uberblock[88]

magic = 0000000000bab10c

version = 5000

txg = 33025206

guid_sum = 4363292035905203671

timestamp = 1751576465 UTC = Thu Jul 3 23:01:05 2025

bp = DVA[0]=<0:6a2aeb7000:1000> DVA[1]=<0:788eeda000:1000> DVA[2]=<0:764 478a000:1000> [L0 DMU objset] fletcher4 uncompressed unencrypted LE contiguous u nique triple size=1000L/1000P birth=33025206L/33025206P fill=221 cksum=000000036 c3eafc3:00000d359ffa4e22:0019845efffed90d:20e5b5548d5e0c30

mmp_magic = 00000000a11cea11

mmp_delay = 0

mmp_valid = 0

checkpoint_txg = 0

raidz_reflow state=0 off=0

labels = 0 1 2 3

Uberblock[92]

magic = 0000000000bab10c

version = 5000

txg = 33025207

guid_sum = 4363292035905203671

timestamp = 1751576470 UTC = Thu Jul 3 23:01:10 2025

bp = DVA[0]=<0:6a2be12000:1000> DVA[1]=<0:788efaf000:1000> DVA[2]=<0:764 6bb3000:1000> [L0 DMU objset] fletcher4 uncompressed unencrypted LE contiguous u nique triple size=1000L/1000P birth=33025207L/33025207P fill=222 cksum=000000038 9e15a51:00000da338bb4e3e:001a4efc361a6057:21df5b122b6a6c1e

mmp_magic = 00000000a11cea11

mmp_delay = 0

mmp_valid = 0

checkpoint_txg = 0

raidz_reflow state=0 off=0

labels = 0 1 2 3

Uberblock[96]

magic = 0000000000bab10c

version = 5000

txg = 33025208

guid_sum = 4363292035905203671

timestamp = 1751576475 UTC = Thu Jul 3 23:01:15 2025

bp = DVA[0]=<0:6a2dd05000:1000> DVA[1]=<0:788f01a000:1000> DVA[2]=<0:764 6bc0000:1000> [L0 DMU objset] fletcher4 uncompressed unencrypted LE contiguous u nique triple size=1000L/1000P birth=33025208L/33025208P fill=222 cksum=00000002f d8d0d97:00000b8a0e4a7b55:001649cec6247518:1cbb6d429a7bc6f6

mmp_magic = 00000000a11cea11

mmp_delay = 0

mmp_valid = 0

checkpoint_txg = 0

raidz_reflow state=0 off=0

labels = 0 1 2 3

Uberblock[100]

magic = 0000000000bab10c

version = 5000

txg = 33025209

guid_sum = 4363292035905203671

timestamp = 1751576480 UTC = Thu Jul 3 23:01:20 2025

bp = DVA[0]=<0:70c452e000:1000> DVA[1]=<0:6e11008000:1000> DVA[2]=<0:764 6c4e000:1000> [L0 DMU objset] fletcher4 uncompressed unencrypted LE contiguous u nique triple size=1000L/1000P birth=33025209L/33025209P fill=223 cksum=000000040 e72ed3a:00000fa1ccfb7ad8:001e272fe1a34ca7:26d161c52320c93c

mmp_magic = 00000000a11cea11

mmp_delay = 0

mmp_valid = 0

checkpoint_txg = 0

raidz_reflow state=0 off=0

labels = 0 1 2 3

Uberblock[104]

magic = 0000000000bab10c

version = 5000

txg = 33025210

guid_sum = 4363292035905203671

timestamp = 1751576485 UTC = Thu Jul 3 23:01:25 2025

bp = DVA[0]=<0:6a36a78000:1000> DVA[1]=<0:788f39e000:1000> DVA[2]=<0:764 70be000:1000> [L0 DMU objset] fletcher4 uncompressed unencrypted LE contiguous u nique triple size=1000L/1000P birth=33025210L/33025210P fill=223 cksum=000000036 fa88b04:00000d4073086d98:001994cedc4a37a9:20f53770d28f62ce

mmp_magic = 00000000a11cea11

mmp_delay = 0

mmp_valid = 0

checkpoint_txg = 0

raidz_reflow state=0 off=0

labels = 0 1 2 3

Uberblock[108]

magic = 0000000000bab10c

version = 5000

txg = 33025211

guid_sum = 4363292035905203671

timestamp = 1751576490 UTC = Thu Jul 3 23:01:30 2025

bp = DVA[0]=<0:70c459f000:1000> DVA[1]=<0:6e11039000:1000> DVA[2]=<0:764 7fcc000:1000> [L0 DMU objset] fletcher4 uncompressed unencrypted LE contiguous u nique triple size=1000L/1000P birth=33025211L/33025211P fill=220 cksum=00000003b ede38ed:00000e6c009f52db:001bcbb6f74cfe79:23c1139004b785b4

mmp_magic = 00000000a11cea11

mmp_delay = 0

mmp_valid = 0

checkpoint_txg = 0

raidz_reflow state=0 off=0

labels = 0 1 2 3

Uberblock[112]

magic = 0000000000bab10c

version = 5000

txg = 33025212

guid_sum = 4363292035905203671

timestamp = 1751576495 UTC = Thu Jul 3 23:01:35 2025

bp = DVA[0]=<0:70c45ab000:1000> DVA[1]=<0:6e11044000:1000> DVA[2]=<0:764 811d000:1000> [L0 DMU objset] fletcher4 uncompressed unencrypted LE contiguous u nique triple size=1000L/1000P birth=33025212L/33025212P fill=220 cksum=000000036 d20662a:00000d36ce60c8c9:0019826d32b77eb9:20ddd6151495c0fc

mmp_magic = 00000000a11cea11

mmp_delay = 0

mmp_valid = 0

checkpoint_txg = 0

raidz_reflow state=0 off=0

labels = 0 1 2 3

Uberblock[116]

magic = 0000000000bab10c

version = 5000

txg = 33025213

guid_sum = 4363292035905203671

timestamp = 1751576501 UTC = Thu Jul 3 23:01:41 2025

bp = DVA[0]=<0:70c45bf000:1000> DVA[1]=<0:6e11058000:1000> DVA[2]=<0:764 864c000:1000> [L0 DMU objset] fletcher4 uncompressed unencrypted LE contiguous u nique triple size=1000L/1000P birth=33025213L/33025213P fill=221 cksum=000000034 11304bd:00000c8c0a8d0a7c:0018372645887212:1f310184e64def18

mmp_magic = 00000000a11cea11

mmp_delay = 0

mmp_valid = 0

checkpoint_txg = 0

raidz_reflow state=0 off=0

labels = 0 1 2 3

Uberblock[120]

magic = 0000000000bab10c

version = 5000

txg = 33025214

guid_sum = 4363292035905203671

timestamp = 1751576506 UTC = Thu Jul 3 23:01:46 2025

bp = DVA[0]=<0:6a39a14000:1000> DVA[1]=<0:788fd0c000:1000> DVA[2]=<0:764 887a000:1000> [L0 DMU objset] fletcher4 uncompressed unencrypted LE contiguous u nique triple size=1000L/1000P birth=33025214L/33025214P fill=220 cksum=00000002f 67d80b3:00000b720185e1dd:001621746d50ae0a:1c8f2d045e5f1887

mmp_magic = 00000000a11cea11

mmp_delay = 0

mmp_valid = 0

checkpoint_txg = 0

raidz_reflow state=0 off=0

labels = 0 1 2 3

Uberblock[124]

magic = 0000000000bab10c

version = 5000

txg = 33025215

guid_sum = 4363292035905203671

timestamp = 1751576511 UTC = Thu Jul 3 23:01:51 2025

bp = DVA[0]=<0:70c45ed000:1000> DVA[1]=<0:6e11086000:1000> DVA[2]=<0:764 89c9000:1000> [L0 DMU objset] fletcher4 uncompressed unencrypted LE contiguous u nique triple size=1000L/1000P birth=33025215L/33025215P fill=219 cksum=00000003b da0792e:00000e6aaad132d3:001bcfb62b8c3d44:23ce94acd84fda50

mmp_magic = 00000000a11cea11

mmp_delay = 0

mmp_valid = 0

checkpoint_txg = 0

raidz_reflow state=0 off=0

labels = 0 1 2 3

failed to unpack label 1

failed to unpack label 2

failed to unpack label 3

root@ISENGARD:~#

Edited July 5, 20251 yr by Spa

@JorgeB i'm trying a trick, and recover some information
I download the lastest flash backup, extract and see some files

I Can see a pool cgf .. how can import in somewhere o something ? Can it helps?

Thanks

Also @JorgeB i did a mistake

i didn't export pool before remove and recreate!!

What can i do now?

@JorgeB ?

Restoring the pool cfg won't make any different, the command above shows that the zfs label is corrupt, you may still be able to recover some data with a file recovery app like UFS explorer.

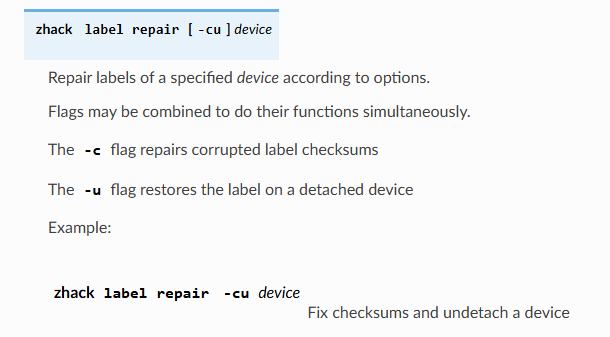

It may also be worth trying the label repair option from zhack, but I have zero experience with that, though not much to lose at this point:

https://openzfs.github.io/openzfs-docs/man/v2.2/1/zhack.1.html

I've tried but nothing .. i check my backup and luckly i did a big backups 2 months ago .. it's good

In the end, i created new pool and restored all docker and data

I never did a VM backup :( so i'll create my two virtual machine

Thanks for help!!

Sorry @JorgeB ,

what it's safe to do for HDD_CACHE ?

in terminal, type zpool upgrade?

Thanks Fabio

root@ISENGARD:~# zpool status

pool: hdd_cache

state: ONLINE

status: Some supported and requested features are not enabled on the pool.

The pool can still be used, but some features are unavailable.

action: Enable all features using 'zpool upgrade'. Once this is done,

the pool may no longer be accessible by software that does not support

the features. See zpool-features(7) for details.

scan: resilvered 217G in 06:01:30 with 0 errors on Tue Oct 8 03:19:42 2024

config:

NAME STATE READ WRITE CKSUM

hdd_cache ONLINE 0 0 0

mirror-0 ONLINE 0 0 0

sdf1 ONLINE 0 0 0

sdh1 ONLINE 0 0 0

errors: No known data errors

pool: nvme_cache

state: ONLINE

scan: resilvered 399K in 00:00:00 with 0 errors on Sat Jul 5 19:10:20 2025

config:

NAME STATE READ WRITE CKSUM

nvme_cache ONLINE 0 0 0

mirror-0 ONLINE 0 0 0

nvme1n1p1 ONLINE 0 0 0

nvme0n1p1 ONLINE 0 0 0

errors: No known data errors

root@ISENGARD:~#

You can upgrade the pool, just note that it woin0't work if you downgrade Unraid.
