Hi all,

I have a Beelink MEMini with 64GB built-in eMMC storage that I'd like to use as an unassigned device in Unraid for local backups (flash drive, appdata, etc.).

The issue: The eMMC doesn't appear in lsblk or anywhere else in Unraid - it's completely invisible to the system.

However: The same eMMC works perfectly when I boot Fedora 42 from it, so the hardware is functional.

What I've checked:

- BIOS/UEFI settings (no obvious eMMC disable/enable options)

- lsblk and dmesg | grep mmc show nothing

- Appears to be a kernel module/driver issue

Goal: Mount the eMMC as an unassigned device while keeping Fedora installed on it (only one OS boots at a time, so no conflict).

Has anyone successfully gotten eMMC storage recognized in Unraid on mini PCs? Any specific kernel modules I should try loading?

System: Beelink MEMini, Intel N150, Unraid 7.1.4

Thanks!

AFAIK Unraid doesn't have any EMMC drivers. Hasn't showed on the couple of machines I've tested.

10 hours ago, stefhartog said:

eMMC

This is not supported by Unraid.

That's too bad, thanks for the responses though!

Is this possible now with eMMC support being added in 7.2?

It may be, it should detect most recent eMMC devices.

I have the beelink me mini and does not detect the emmc.

Please post the diagnostics.

Hi, i run the script that was posted on another thread and the read out is:

Script location: /tmp/user.scripts/tmpScripts/EMMC/script
Note that closing this window will abort the execution of this script
=== eMMC/SD Card Information ===

✅ MMC/eMMC support detected (device enumerated; drivers may be built-in, so lsmod can be empty).
Device: /dev/mmcblk0
----------------------------------------
Type: eMMC (MMC)
Model: DV4064
Vendor: Kingston
Manufacturer ID: 0x000045
OEM ID: 0x0100
Serial Number: 0x528d5332
Manufacturing Date: 05/2024
Firmware Revision: 0x5243333042303037
Hardware Revision: 0x0
Capacity: 58.24 GB (59640 MB)
Erase Size: 512 KB
Preferred Erase Size: 4096 KB
Partitions:
- mmcblk0p1: 100.0 MB
- mmcblk0p2: 16.0 MB
- mmcblk0p3: 1024.0 MB
- mmcblk0p4: 58499.0 MB
Mount Status: Not mounted
Life Time: 0x01 0x01
Pre-EOL Info: Normal

Total devices found: 1

But does not show up in main devices or anywhere is something i am not doing correctly?

2 hours ago, Gadgetman said:

But does not show up in main devices or anywhere is something i am not doing correctly?

It's normal, that part hasn't been done yet. It's recognised, and should be usable in the future when that becomes a possiblity.

5 minutes ago, Kilrah said:

It's normal, that part hasn't been done yet. It's recognised, and should be usable in the future when that becomes a possiblity.

ok thank you

20 hours ago, Gadgetman said:

But does not show up in main devices or anywhere is something i am not doing correctly?

This is expected; it may be usable with 7.3, for a boot device or normal pool.

Has anyone tried to boot on the beelink memini emmc using 7.3 beta?

Yes Installed the beta but don't see my emmc drive as unassigned device, but it's here, i even could mouont partition 1... it's standard windows installed on it as it was from factory. I'll see if i changed boot device to USB stick, maybe that helps...

=== eMMC/SD Card Information ===

✅ MMC/eMMC support detected (device enumerated; drivers may be built-in, so lsmod can be empty).
Device: /dev/mmcblk0
----------------------------------------
Type: eMMC (MMC)
Model: DV4064
Vendor: Kingston
Manufacturer ID: 0x000045
OEM ID: 0x0100
Serial Number: 0x8b5ba232
Manufacturing Date: 05/2024
Firmware Revision: 0x5243333042303037
Hardware Revision: 0x0
Capacity: 58.24 GB (59640 MB)
Erase Size: 512 KB
Preferred Erase Size: 4096 KB
Partitions:
- mmcblk0p1: 100.0 MB
- mmcblk0p2: 16.0 MB
- mmcblk0p3: 1024.0 MB
- mmcblk0p4: 58499.0 MB
Mount Status: Mounted
Mount Point: /mnt/disks/emmc
/mnt/disks/emmc
Life Time: 0x01 0x01
Pre-EOL Info: Normal

Total devices found: 1

Does it show up in the Wizard as a boot pool option?

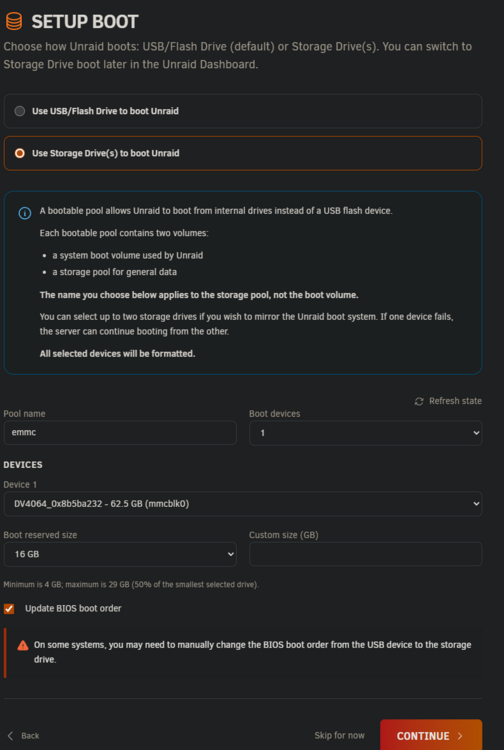

Oh yeah, it was there when i started the wizard. Thought i need to see it as unassigned drive:

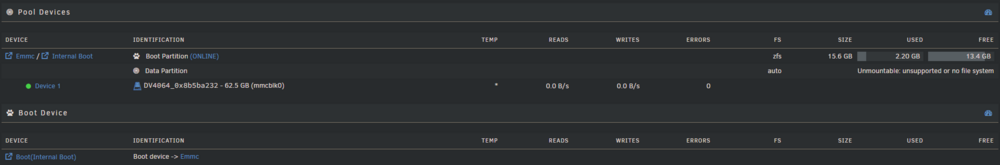

Migration done, closed wizard and rebooted, now i see it here, named it as "emmc":

Need to format the data partition with the remaining storage. 🤓

Very nice, they should mention it that emmc is not shown as unassigned but will be used in the wizard!

Else, very nice job! 👏

This is excellent news. Thank you for taking the plunge and testing it out!
