I have attached my logs to this topic and have ran this command:

dd if=/dev/sdh bs=512 count=1 | od -Ax -x

1+0 records in

1+0 records out

000000 0000 0000 0000 0000 0000 0000 0000 0000

512 bytes copied, 1.1198e-05 s, 45.7 MB/s*

0001c0 0002 ffee ffff 0001 0000 ffff ffff 0000

0001d0 0000 0000 0000 0000 0000 0000 0000 0000

*

0001f0 0000 0000 0000 0000 0000 0000 0000 aa55

000200

I am currently have been running this command, after stopping my array and putting it in maintenance mode. I ahve been running this command, for the past 8 hours:
xfs_repair -v /dev/sdh (20 TB drive)

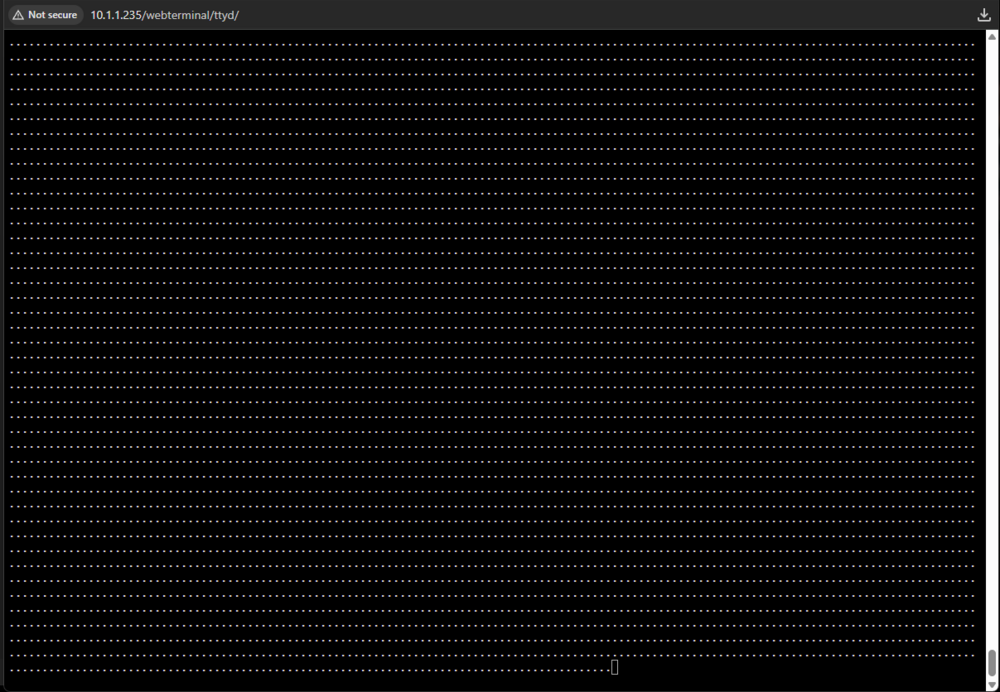

It talked about finding a secondary superblock... and all I see this... over and over

sithlord-syslog-20250903-1228.zip

The command you used is wrong because you have used the wrong device name. and even if it worked would have invalidated any parity.

You should run this from the GUI as it would then automatically select the correct device name and it would then keep also avoid invalidating parity.

15 minutes ago, itimpi said:

The command you used is wrong because you have used the wrong device name. and even if it worked would have invalidated any parity.

You should run this from the GUI as it would then automatically select the correct device name and it would then keep also avoid invalidating parity.

What (and how) command should I have run from the GUI? Could you provide a step by step detail, please?

Doesn't really matter, but sdh is 18TB. Please post the complete diagnostics and the output from wipefs /dev/md8p1 (with the array started)

Just now, JorgeB said:

Doesn't really matter, but sdh is 18TB. Please post the complete diagnostics and the output from wipefs /dev/md8p1 (with the array started)

wipefs /dev/md8p1 listed no output with array started
should I have used wipefs /dev/sdh? (Disk 8 is issue and it is 18 TB not 20 sorry)

Parity	ST20000NM004E-3HR103_ZX213CM2 - 20 TB (sdk)	33 °C	83.2 MB/s	83.2 MB/s	0
Disk 1	ST18000NM000J-2TV103_ZR50LQTA - 18 TB (sdd)	32 °C	0.0 B/s	0.0 B/s	0	xfs	18 TB	8.87 TB	9.13 TB
Disk 2	ST18000NM000J-2TV103_ZR51F7Y3 - 18 TB (sdf)	31 °C	0.0 B/s	0.0 B/s	0	xfs	18 TB	8.75 TB	9.25 TB
Disk 3	ST18000NM000J-2TV103_ZR58W9FF - 18 TB (sdg)	32 °C	83.4 MB/s	82.2 MB/s	0	xfs	18 TB	5.13 TB	12.9 TB
Disk 4	ST18000NM000J-2TV103_ZR51ALH8 - 18 TB (sdl)	32 °C	0.0 B/s	0.0 B/s	0	xfs	18 TB	126 GB	17.9 TB
Disk 5	HGST_HUH721010ALE600_7PGVSM3C - 10 TB (sde)	30 °C	0.0 B/s	0.0 B/s	0	xfs	10 TB	69.7 GB	9.93 TB
Disk 6	HGST_HUH721010ALE600_7PGRN7BG - 10 TB (sdj)	30 °C	0.0 B/s	0.0 B/s	0	xfs	10 TB	69.7 GB	9.93 TB
Disk 7	ST20000NM004E-3HR103_ZX212P46 - 20 TB (sdi)	34 °C	0.0 B/s	0.0 B/s	0	xfs	20 TB	139 GB	19.9 TB
Disk 8	ST18000NM003D-3DL103_ZVT7BXT7 - 18 TB (sdh)	37 °C	0.0 B/s	0.0 B/s	0	auto	Unmountable: unsupported or no file system

Here is the diag filesithlord-diagnostics-20250903-0657.zip

26 minutes ago, StangSCT69 said:

wipefs /dev/md8p1 listed no output with array started

That confirms there's no filesystem signature on that partition, is this a new disk or a disk that had data before and was rebuilt, or did something else happen?

8 minutes ago, JorgeB said:

That confirms there's no filesystem signature on that disk, is this a new disk or a disk that had data before and was rebuilt, or did something else happen?

Thank you for looking into this concern for me. This was an exisiting disk that had data on it and was working. It stopped sometime over the weekend and displayed that error. (Unmountable: unsupported or no file system") I have not done a rebuild and I did a smart test and it passed

Something wiped the filesystem signature from the partition; that is not normal, try running xfs_repair on the partition to see if it finds a backup superblock.

If it doesn't find one after an hour or so, the only other option is running a file recovery app like UFS Explorer; the free trial should show if it can recover any data.

With the array started, type:

xfs_repair /dev/md8p1

1 hour ago, JorgeB said:

Something wiped the filesystem signature from the partition; that is not normal, try running xfs_repair on the partition to see if it finds a backup superblock.

If it doesn't find one after an hour or so, the only other option is running a file recovery app like UFS Explorer; the free trial should show if it can recover any data.

With the array started, type:

xfs_repair /dev/md8p1

I assume that I will need to stop the array and then start it in maintenance mode first before I run xfs_repair /dev/md8p1

Is that correct? Also, what is the difference between /dev/md8p1 and /dev/sdh? Is sdh the ind disk and md8p1 the array?

20 minutes ago, StangSCT69 said:

I assume that I will need to stop the array and then start it in maintenance mode first before I run xfs_repair /dev/md8p1

No need since the disk is not mounted.

20 minutes ago, StangSCT69 said:

Also, what is the difference between /dev/md8p1 and /dev/sdh? Is sdh the ind disk and md8p1 the array?

md8p1 is the partition on disk8, sdh is the whole disk. It would not work even in normal circumstances. /dev/sdh1 would work, but would not keep parity in sync during the repair.

1 hour ago, JorgeB said:

No need since the disk is not mounted.

md8p1 is the partition on disk8, sdh is the whole disk. It would not work even in normal circumstances. /dev/sdh1 would work, but would not keep parity in sync during the repair.

Thank you so much!

Wish me luck!

xfs_repair /dev/md8p1

Phase 1 - find and verify superblock...

bad primary superblock - bad magic number !!!

attempting to find secondary superblock...

...............................................

will check when I get back home!

It did not work, so since this is a single disk failure, I think I will just attempt to rebuild the drive after formatting it, @JorgeB is that ok?

I did some digging and went down this path and it seems to be working...

xfs_repair -n /dev/md8 /dev/md8: No such file or directory fatal error -- couldn't initialize XFS library

lsblk -o NAME,SIZE,FSTYPE,MOUNTPOINT NAME SIZE FSTYPE MOUNTPOINT loop0 579.8M squashfs /usr loop1 169.8M squashfs /lib loop2 64G btrfs /var/lib/docker sda 14.6T ├─sda1 200M vfat └─sda2 14.6T ntfs sdb 119.5G └─sdb1 119.5G vfat /boot sdc 14.6T ├─sdc1 200M vfat └─sdc2 14.6T ntfs sdd 16.4T └─sdd1 16.4T xfs sde 9.1T └─sde1 9.1T xfs sdf 16.4T └─sdf1 16.4T xfs sdg 16.4T └─sdg1 16.4T xfs sdh 16.4T └─sdh1 16.4T sdi 18.2T └─sdi1 18.2T xfs sdj 9.1T └─sdj1 9.1T xfs sdk 18.2T └─sdk1 18.2T xfs sdl 16.4T └─sdl1 16.4T xfs md1p1 16.4T /mnt/disk1 md2p1 16.4T /mnt/disk2 md3p1 16.4T /mnt/disk3 md4p1 16.4T /mnt/disk4 md5p1 9.1T /mnt/disk5 md6p1 9.1T /mnt/disk6 md7p1 18.2T /mnt/disk7 md8p1 16.4T nvme1n1 3.6T └─nvme1n1p1 3.6T btrfs /mnt/fetching nvme2n1 1.8T └─nvme2n1p1 1.8T btrfs /mnt/cache nvme0n1 476.9G └─nvme0n1p1 476.9G btrfs /mnt/vmdisk

xfs_repair -n /dev/sdh1
/dev/sdh1: No such file or directory
fatal error -- couldn't initialize XFS library

wipefs -a /dev/sdh1
wipefs: error: /dev/sdh1: probing initialization failed: No such file or directory

Parted /dev/sdh print
Model: ATA ST18000NM003D-3D (scsi)
Disk /dev/sdh: 18.0TB
Sector size (logical/physical): 512B/4096B
Partition Table: gpt
Disk Flags:
Number Start End Size File system Name Flags 1 32.8kB 18.0TB 18.0TB

At this point, I decicded to try to rebuild... I think I see what happened... the system crashed ad casued this system to act up...

I have set the disk to no device and then selected this... Start will disable the missing disk and then bring the array on-line. Install a replacement disk as soon as possible. Yes, I want to do this

Reassign Disk 8 and Trigger Rebuild

1. Stop the array again.

2. Go back to the Disk 8 dropdown and reassign your drive: ST18000NM003D-3DL103_ZVT7BXT7 (sdh)

3. Scroll down and click Start.

4. Unraid should now detect that Disk 8 is “wrong” and offer to rebuild it from parity.

As soon as I set the drive to ST18000NM003D-3DL103_ZVT7BXT7 (sdh) It now says: "All existing data on this device will be OVERWRITTEN when array is Started" When I started it, I see "Started Stop will take the array off-line. Disabled -- Parity operation is running Unmountable disk present: Disk 8 • ST18000NM003D-3DL103_ZVT7BXT7 (sdh) Format will create a file system in all Unmountable disks. Yes, I want to do this Data-Rebuild in progress."

I see this... tail -f /var/log/syslog Sep 3 18:36:57 SITHLORD kernel: docker0: port 4(vethd3c2eb8) entered blocking state Sep 3 18:36:57 SITHLORD kernel: docker0: port 4(vethd3c2eb8) entered forwarding state Sep 3 18:36:57 SITHLORD rc.docker: tautulli: started successfully! Sep 3 18:36:57 SITHLORD rc.docker: tautulli: wait 30 seconds Sep 3 18:36:58 SITHLORD Parity Check Tuning: No restart information present Sep 3 18:36:58 SITHLORD tips.and.tweaks: Tweaks Applied Sep 3 18:36:58 SITHLORD unassigned.devices: Mounting 'Auto Mount' Remote Shares... Sep 3 18:36:58 SITHLORD unassigned.devices: Using Gateway '10.1.1.1' for Remote Shares. Sep 3 18:36:58 SITHLORD unassigned.devices: Waiting 5 secs before mounting Remote Shares... Sep 3 18:37:06 SITHLORD reload_services: execute queued job 18 Sep 3 18:37:27 SITHLORD rc.docker: binhex-jackett: started successfully! Sep 3 18:37:27 SITHLORD rc.docker: binhex-radarr: started successfully! Sep 3 18:37:28 SITHLORD rc.docker: binhex-radarr-cartoons: started successfully! Sep 3 18:37:28 SITHLORD rc.docker: binhex-radarr4k: started successfully! Sep 3 18:37:28 SITHLORD rc.docker: binhex-sonarr: started successfully! Sep 3 18:37:28 SITHLORD rc.docker: SonnarAnime: started successfully! Sep 3 18:37:28 SITHLORD rc.docker: binhex-lidarr: started successfully! Sep 3 18:37:28 SITHLORD rc.docker: Containers started. Sep 3 18:37:28 SITHLORD rc.docker: firefox: started successfully!

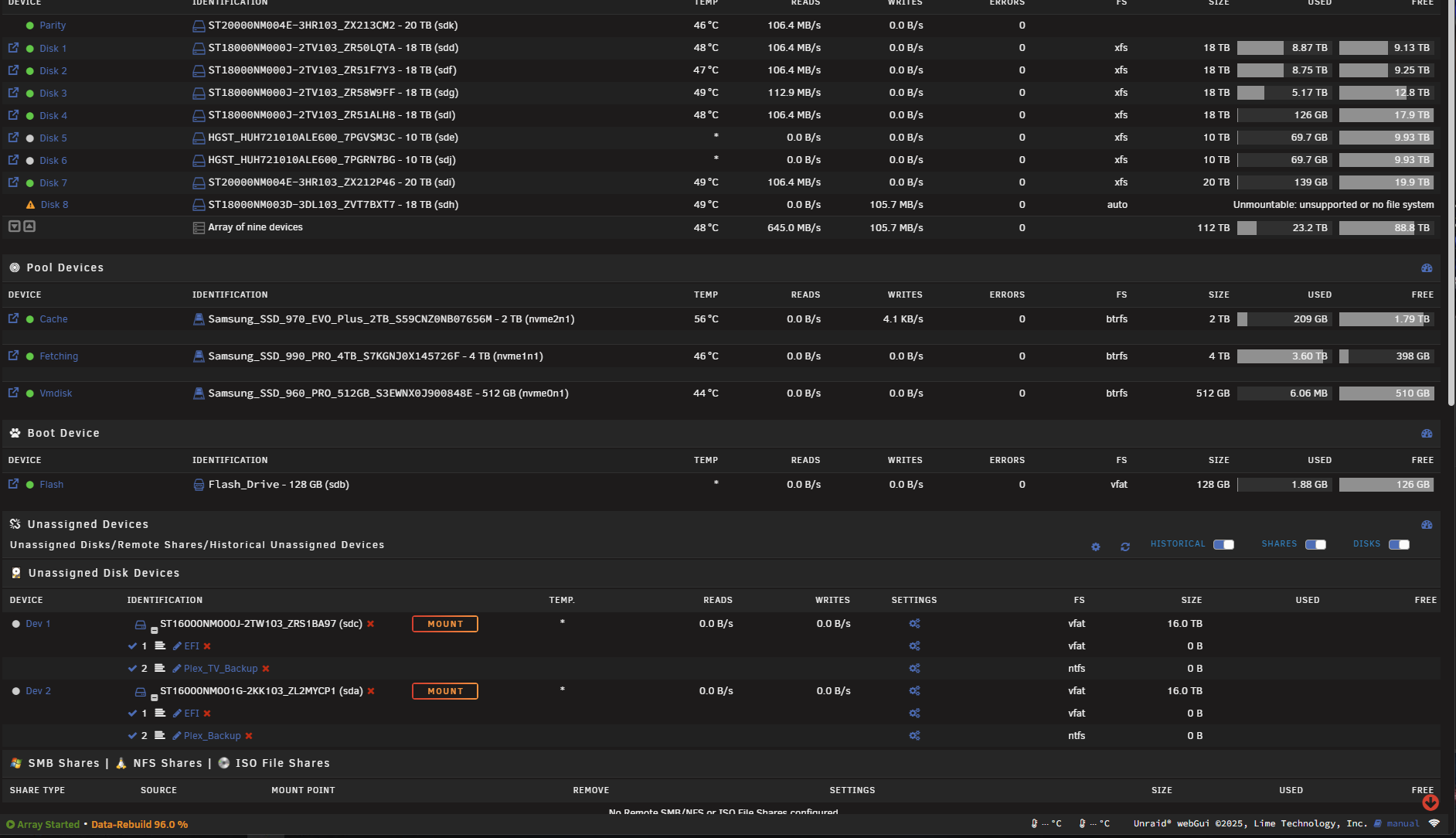

I am seeing the data being rebuilt. If this fails then I know what to do next... again thank you for you help @JorgeB I really appreciate it

So far we are looking good:

tail -f /var/log/syslog

Sep 3 18:37:28 SITHLORD rc.docker: binhex-radarr-cartoons: started successfully!

Sep 3 18:37:28 SITHLORD rc.docker: binhex-radarr4k: started successfully!

Sep 3 18:37:28 SITHLORD rc.docker: binhex-sonarr: started successfully!

Sep 3 18:37:28 SITHLORD rc.docker: SonnarAnime: started successfully!

Sep 3 18:37:28 SITHLORD rc.docker: binhex-lidarr: started successfully!

Sep 3 18:37:28 SITHLORD rc.docker: Containers started.

Sep 3 18:37:28 SITHLORD rc.docker: firefox: started successfully!

Sep 3 18:51:42 SITHLORD Parity Check Tuning: Parity Sync/Data Rebuild detected

Sep 3 18:52:01 SITHLORD emhttpd: spinning down /dev/sdc

Sep 3 18:52:01 SITHLORD emhttpd: spinning down /dev/sda

5 hours ago, StangSCT69 said:

I am seeing the data being rebuilt.

Is the emulated disk mounting?

Sorry @JorgeB for the late reply.... I was sick yesterday and the drive is still rebuilding... it is at 96% done. I did buy a new 20 TB drive in the event this one fails

tail -f /var/log/syslog

Sep 4 21:54:32 SITHLORD shfs: share cache full

Sep 4 21:54:33 SITHLORD shfs: share cache full

Sep 4 21:54:33 SITHLORD shfs: share cache full

Sep 4 22:49:15 SITHLORD emhttpd: spinning down /dev/sdj

Sep 4 22:49:15 SITHLORD emhttpd: spinning down /dev/sde

Sep 4 23:28:26 SITHLORD shfs: share cache full

Sep 5 00:46:21 SITHLORD shfs: share cache full

Sep 5 00:46:21 SITHLORD shfs: share cache full

Sep 5 00:54:13 SITHLORD shfs: share cache full

Sep 5 00:56:31 SITHLORD shfs: share cache full

Edited September 5, 2025Sep 5 by StangSCT69

cat /proc/mdstat

sbName=/boot/config/super.dat

sbVersion=2.9.27

sbCreated=1719958472

sbUpdated=1757030496

sbEvents=143

sbState=1

sbNumDisks=10

sbLabel=090C-1000-0370-423100000190

sbSynced=1757030496

sbSynced2=0

sbSyncErrs=0

sbSyncExit=0

mdVersion=2.9.35

mdState=STARTED

mdNumDisks=9

mdNumDisabled=1

mdNumReplaced=0

mdNumInvalid=2

mdNumMissing=0

mdNumWrong=0

mdNumNew=0

mdSwapP=0

mdSwapQ=0

mdResyncAction=recon D8

mdResyncSize=17578328012

mdResyncCorr=1

mdResync=17578328012

mdResyncPos=17167986392

mdResyncDt=31

mdResyncDb=3686536

diskNumber.0=0

diskName.0=

diskSize.0=19531825100

diskState.0=7

diskId.0=ST20000NM004E-3HR103_ZX213CM2

rdevNumber.0=0

rdevStatus.0=DISK_OK

rdevName.0=sdk

rdevOffset.0=64

rdevSize.0=19531825100

rdevId.0=ST20000NM004E-3HR103_ZX213CM2

rdevReads.0=4293934077

rdevWrites.0=1939279

rdevNumErrors.0=0

diskNumber.1=1

diskName.1=md1p1

diskSize.1=17578328012

diskState.1=7

diskId.1=ST18000NM000J-2TV103_ZR50LQTA

rdevNumber.1=1

rdevStatus.1=DISK_OK

rdevName.1=sdd

rdevOffset.1=64

rdevSize.1=17578328012

rdevId.1=ST18000NM000J-2TV103_ZR50LQTA

rdevReads.1=4292533033

rdevWrites.1=522

rdevNumErrors.1=0

diskNumber.2=2

diskName.2=md2p1

diskSize.2=17578328012

diskState.2=7

diskId.2=ST18000NM000J-2TV103_ZR51F7Y3

rdevNumber.2=2

rdevStatus.2=DISK_OK

rdevName.2=sdf

rdevOffset.2=64

rdevSize.2=17578328012

rdevId.2=ST18000NM000J-2TV103_ZR51F7Y3

rdevReads.2=4292133229

rdevWrites.2=522

rdevNumErrors.2=0

diskNumber.3=3

diskName.3=md3p1

diskSize.3=17578328012

diskState.3=7

diskId.3=ST18000NM000J-2TV103_ZR58W9FF

rdevNumber.3=3

rdevStatus.3=DISK_OK

rdevName.3=sdg

rdevOffset.3=64

rdevSize.3=17578328012

rdevId.3=ST18000NM000J-2TV103_ZR58W9FF

rdevReads.3=4428485691

rdevWrites.3=1936143

rdevNumErrors.3=0

diskNumber.4=4

diskName.4=md4p1

diskSize.4=17578328012

diskState.4=7

diskId.4=ST18000NM000J-2TV103_ZR51ALH8

rdevNumber.4=4

rdevStatus.4=DISK_OK

rdevName.4=sdl

rdevOffset.4=64

rdevSize.4=17578328012

rdevId.4=ST18000NM000J-2TV103_ZR51ALH8

rdevReads.4=4291998477

rdevWrites.4=523

rdevNumErrors.4=0

diskNumber.5=5

diskName.5=md5p1

diskSize.5=9766436812

diskState.5=7

diskId.5=HGST_HUH721010ALE600_7PGVSM3C

rdevNumber.5=5

rdevStatus.5=DISK_OK

rdevName.5=sde

rdevOffset.5=64

rdevSize.5=9766436812

rdevId.5=HGST_HUH721010ALE600_7PGVSM3C

rdevReads.5=2441609974

rdevWrites.5=523

rdevNumErrors.5=0

diskNumber.6=6

diskName.6=md6p1

diskSize.6=9766436812

diskState.6=7

diskId.6=HGST_HUH721010ALE600_7PGRN7BG

rdevNumber.6=6

rdevStatus.6=DISK_OK

rdevName.6=sdj

rdevOffset.6=64

rdevSize.6=9766436812

rdevId.6=HGST_HUH721010ALE600_7PGRN7BG

rdevReads.6=2441609974

rdevWrites.6=523

rdevNumErrors.6=0

diskNumber.7=7

diskName.7=md7p1

diskSize.7=19531825100

diskState.7=7

diskId.7=ST20000NM004E-3HR103_ZX212P46

rdevNumber.7=7

rdevStatus.7=DISK_OK

rdevName.7=sdi

rdevOffset.7=64

rdevSize.7=19531825100

rdevId.7=ST20000NM004E-3HR103_ZX212P46

rdevReads.7=4291998551

rdevWrites.7=523

rdevNumErrors.7=0

diskNumber.8=8

diskName.8=md8p1

diskSize.8=17578328012

diskState.8=6

diskId.8=ST18000NM003D-3DL103_ZVT7BXT7

rdevNumber.8=8

rdevStatus.8=DISK_INVALID

rdevName.8=sdh

rdevOffset.8=64

rdevSize.8=17578328012

rdevId.8=ST18000NM003D-3DL103_ZVT7BXT7

rdevReads.8=97

rdevWrites.8=4291996738

rdevNumErrors.8=0

diskNumber.9=9

diskName.9=

diskSize.9=0

diskState.9=0

diskId.9=

rdevNumber.9=9

rdevStatus.9=DISK_NP

rdevName.9=

rdevOffset.9=0

rdevSize.9=0

rdevId.9=

rdevReads.9=0

rdevWrites.9=0

rdevNumErrors.9=0

diskNumber.10=10

diskName.10=

diskSize.10=0

diskState.10=0

diskId.10=

rdevNumber.10=10

rdevStatus.10=DISK_NP

rdevName.10=

rdevOffset.10=0

rdevSize.10=0

rdevId.10=

rdevReads.10=0

rdevWrites.10=0

rdevNumErrors.10=0

diskNumber.11=11

diskName.11=

diskSize.11=0

diskState.11=0

diskId.11=

rdevNumber.11=11

rdevStatus.11=DISK_NP

rdevName.11=

rdevOffset.11=0

rdevSize.11=0

rdevId.11=

rdevReads.11=0

rdevWrites.11=0

rdevNumErrors.11=0

diskNumber.12=12

diskName.12=

diskSize.12=0

diskState.12=0

diskId.12=

rdevNumber.12=12

rdevStatus.12=DISK_NP

rdevName.12=

rdevOffset.12=0

rdevSize.12=0

rdevId.12=

rdevReads.12=0

rdevWrites.12=0

rdevNumErrors.12=0

diskNumber.13=13

diskName.13=

diskSize.13=0

diskState.13=0

diskId.13=

rdevNumber.13=13

rdevStatus.13=DISK_NP

rdevName.13=

rdevOffset.13=0

rdevSize.13=0

rdevId.13=

rdevReads.13=0

rdevWrites.13=0

rdevNumErrors.13=0

diskNumber.14=14

diskName.14=

diskSize.14=0

diskState.14=0

diskId.14=

rdevNumber.14=14

rdevStatus.14=DISK_NP

rdevName.14=

rdevOffset.14=0

rdevSize.14=0

rdevId.14=

rdevReads.14=0

rdevWrites.14=0

rdevNumErrors.14=0

diskNumber.15=15

diskName.15=

diskSize.15=0

diskState.15=0

diskId.15=

rdevNumber.15=15

rdevStatus.15=DISK_NP

rdevName.15=

rdevOffset.15=0

rdevSize.15=0

rdevId.15=

rdevReads.15=0

rdevWrites.15=0

rdevNumErrors.15=0

diskNumber.16=16

diskName.16=

diskSize.16=0

diskState.16=0

diskId.16=

rdevNumber.16=16

rdevStatus.16=DISK_NP

rdevName.16=

rdevOffset.16=0

rdevSize.16=0

rdevId.16=

rdevReads.16=0

rdevWrites.16=0

rdevNumErrors.16=0

diskNumber.17=17

diskName.17=

diskSize.17=0

diskState.17=0

diskId.17=

rdevNumber.17=17

rdevStatus.17=DISK_NP

rdevName.17=

rdevOffset.17=0

rdevSize.17=0

rdevId.17=

rdevReads.17=0

rdevWrites.17=0

rdevNumErrors.17=0

diskNumber.18=18

diskName.18=

diskSize.18=0

diskState.18=0

diskId.18=

rdevNumber.18=18

rdevStatus.18=DISK_NP

rdevName.18=

rdevOffset.18=0

rdevSize.18=0

rdevId.18=

rdevReads.18=0

rdevWrites.18=0

rdevNumErrors.18=0

diskNumber.19=19

diskName.19=

diskSize.19=0

diskState.19=0

diskId.19=

rdevNumber.19=19

rdevStatus.19=DISK_NP

rdevName.19=

rdevOffset.19=0

rdevSize.19=0

rdevId.19=

rdevReads.19=0

rdevWrites.19=0

rdevNumErrors.19=0

diskNumber.20=20

diskName.20=

diskSize.20=0

diskState.20=0

diskId.20=

rdevNumber.20=20

rdevStatus.20=DISK_NP

rdevName.20=

rdevOffset.20=0

rdevSize.20=0

rdevId.20=

rdevReads.20=0

rdevWrites.20=0

rdevNumErrors.20=0

diskNumber.21=21

diskName.21=

diskSize.21=0

diskState.21=0

diskId.21=

rdevNumber.21=21

rdevStatus.21=DISK_NP

rdevName.21=

rdevOffset.21=0

rdevSize.21=0

rdevId.21=

rdevReads.21=0

rdevWrites.21=0

rdevNumErrors.21=0

diskNumber.22=22

diskName.22=

diskSize.22=0

diskState.22=0

diskId.22=

rdevNumber.22=22

rdevStatus.22=DISK_NP

rdevName.22=

rdevOffset.22=0

rdevSize.22=0

rdevId.22=

rdevReads.22=0

rdevWrites.22=0

rdevNumErrors.22=0

diskNumber.23=23

diskName.23=

diskSize.23=0

diskState.23=0

diskId.23=

rdevNumber.23=23

rdevStatus.23=DISK_NP

rdevName.23=

rdevOffset.23=0

rdevSize.23=0

rdevId.23=

rdevReads.23=0

rdevWrites.23=0

rdevNumErrors.23=0

diskNumber.24=24

diskName.24=

diskSize.24=0

diskState.24=0

diskId.24=

rdevNumber.24=24

rdevStatus.24=DISK_NP

rdevName.24=

rdevOffset.24=0

rdevSize.24=0

rdevId.24=

rdevReads.24=0

rdevWrites.24=0

rdevNumErrors.24=0

diskNumber.25=25

diskName.25=

diskSize.25=0

diskState.25=0

diskId.25=

rdevNumber.25=25

rdevStatus.25=DISK_NP

rdevName.25=

rdevOffset.25=0

rdevSize.25=0

rdevId.25=

rdevReads.25=0

rdevWrites.25=0

rdevNumErrors.25=0

diskNumber.26=26

diskName.26=

diskSize.26=0

diskState.26=0

diskId.26=

rdevNumber.26=26

rdevStatus.26=DISK_NP

rdevName.26=

rdevOffset.26=0

rdevSize.26=0

rdevId.26=

rdevReads.26=0

rdevWrites.26=0

rdevNumErrors.26=0

diskNumber.27=27

diskName.27=

diskSize.27=0

diskState.27=0

diskId.27=

rdevNumber.27=27

rdevStatus.27=DISK_NP

rdevName.27=

rdevOffset.27=0

rdevSize.27=0

rdevId.27=

rdevReads.27=0

rdevWrites.27=0

rdevNumErrors.27=0

diskNumber.28=28

diskName.28=

diskSize.28=0

diskState.28=0

diskId.28=

rdevNumber.28=28

rdevStatus.28=DISK_NP

rdevName.28=

rdevOffset.28=0

rdevSize.28=0

rdevId.28=

rdevReads.28=0

rdevWrites.28=0

rdevNumErrors.28=0

diskNumber.29=29

diskName.29=

diskSize.29=0

diskState.29=4

diskId.29=

rdevNumber.29=29

rdevStatus.29=DISK_NP_DSBL

rdevName.29=

rdevOffset.29=0

rdevSize.29=0

rdevId.29=

rdevReads.29=0

rdevWrites.29=0

rdevNumErrors.29=0

@JorgeB I believe we are good now, thanks again!
ipefs /dev/md8p1

DEVICE OFFSET TYPE UUID LABEL

md8p1 0x0 xfs 5c05104a-0a7d-4477-b56a-293fc29435df

Disk8 was still not mounting in the screenshot. Is it mounting now?

23 minutes ago, JorgeB said:

Disk8 was still not mounting in the screenshot. Is it mounting now?

Yes it is mounted!

Great, that suggests something wiped the fs from the actual disk, or there was some kind of firmware issue, but it was done directly on the device, and parity was not updated.
