I had 5 4tb and 1 3tb drives. The 3 tb drive died and so I decided to steal 4 new 4tb drives from another nas to consolidate.

Drives:

Parity 1&2
ST4000VN006-3CW104_ZW603Z8V - 4 TB (sdb)
ST4000VN006-3CW104_ZW60222K - 4 TB (sdc)

Data 1-3
WDC_WD40EFAX-68JH4NO_WD-WX42D10FCX37 - 4 TB (sdf)
ST4000DM004-2CV104_ZFNOATC2 - 4 TB (sdd)
WDC_WD40EFRX-68N32N0_WD-WCC7K3ZPVZDR - 4 TB (sde)
MISSING DRIVE OLD 3 TB

New Drives
WDC_WD40EFAX-68JH4N0_WD-WX22D10FNV7V - 4 TB (sdg)
WDC_WD40EFAX-68JH4NO_WD-WX22D10FN9LC - 4 TB (sdh)
WDC_WD40EFAX-68JH4NO_WD-WX22D10FNAV4 - 4 TB (sdi)
WDC_WD40EFAX-68JH4NO_WD-WX42D1OLLCTE - 4 TB (sdj)

I ran hdparm -N /dev/sdx on all of them:

/dev/sdb:

max sectors = 7814037168/7814037168, HPA is disabled

/dev/sdc:

max sectors = 7814037168/7814037168, HPA is disabled

/dev/sdd:

max sectors = 7814037168/7814037168, HPA is disabled

/dev/sde:

max sectors = 7814037168/7814037168, HPA is disabled

/dev/sdf:

max sectors = 7814037168/7814037168, HPA is disabled

/dev/sdg:

max sectors = 7814037168/7814037168, HPA is disabled

/dev/sdh:

max sectors = 7814037168/7814037168, HPA is disabled

/dev/sdi:

max sectors = 7814037168/7814037168, HPA is disabled

/dev/sdj:

max sectors = 7814037168/7814037168, HPA is disabled

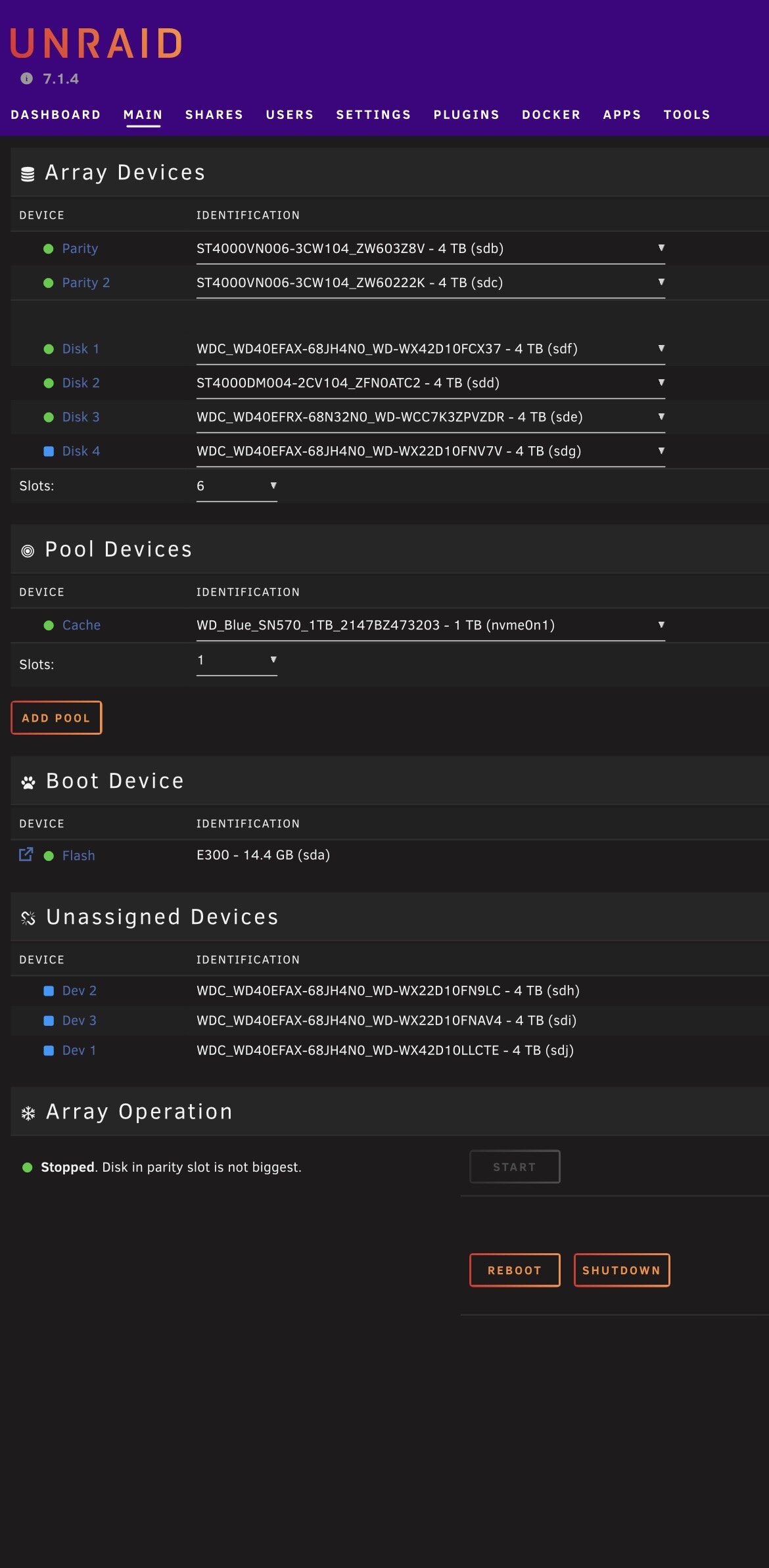

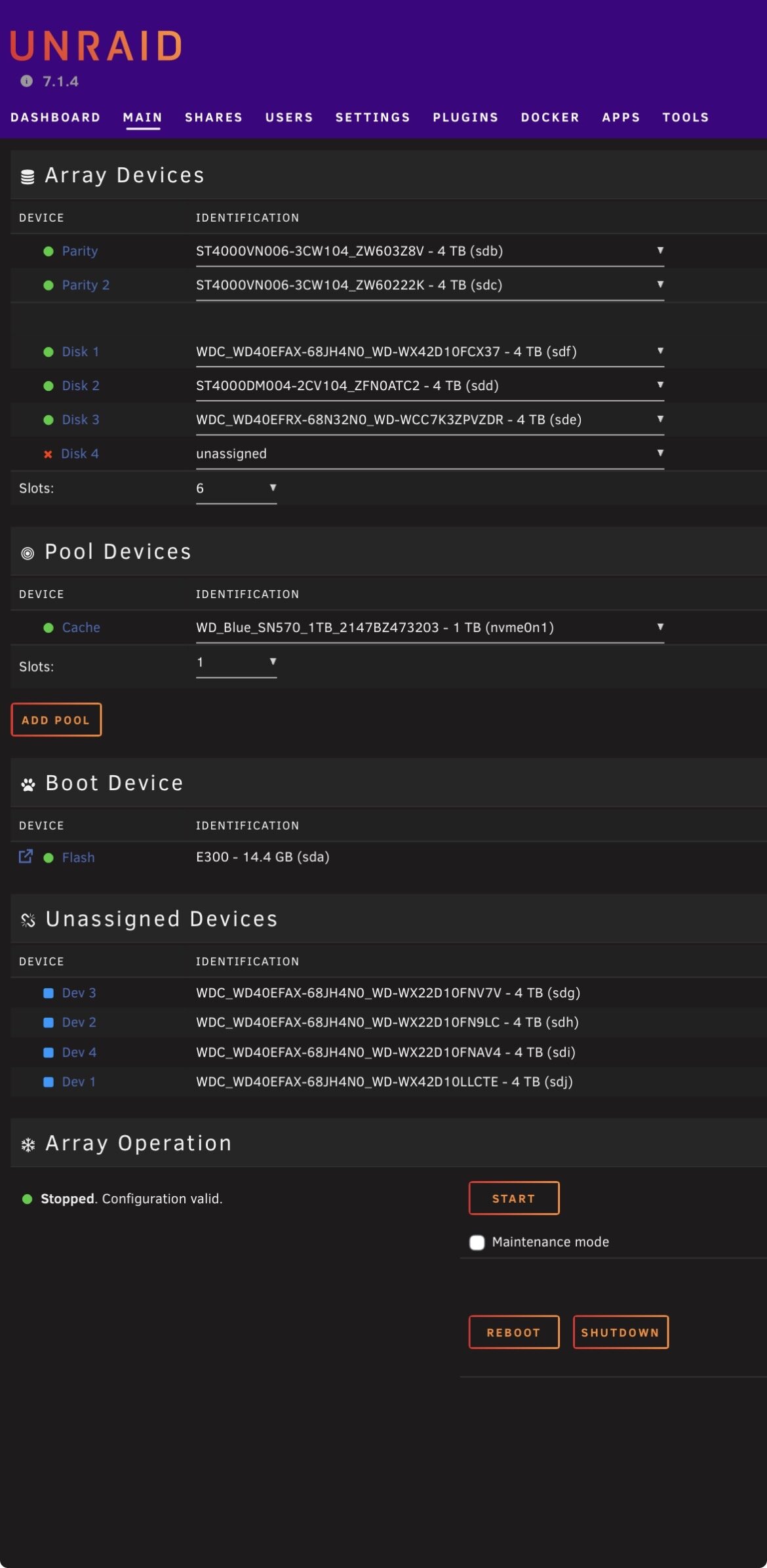

I can start the array normally, with the 4th data drive missing, but if I assign any of the new drives as a replacement for the 4tb data drive, unraid conplains:

Array Operation

Stopped. Disk in parity slot is not biggest.

What am I missing??

EDIT:

added diagnostics.zip

lnas-diagnostics-20250911-1419.zip

Edited September 11, 2025Sep 11 by SE_Lain
added diagnostics.zip

That message is always valid! Does the disk have existing partitions then removing them may help.

If you post your system’s diagnostics zip file we can see the underlying detail that is triggering this and advice on best way forward.

I edited the original post to add the diagnostics.zip file

I think I kind of see the issue perhaps, the disks all report being 4,000,787,030,016 bytes in size, but going into the disk settings the partition shows as being

Partition size: 3,907,017,540 KB

or 4,000,785,960,960 bytes

Could this be the issue? Curiously even unassigning an existing data disk and trying to assign it to data disk 4 is triggering the issue. Also curiously, unraid does let me add the disks as new disks, just not as replacement for the 3tb disk that died.

Parity has the partition starting on sector 2048, standard is sector 64, hence the issue. There was a trick we could use, but it won't work with 7.1.x, you'd need to downgrade to 7.0.1.

You can do a parity swap, assign the new disk as parity, and use the old parity to replace the disabled.

using fdisk -l /dev/sdx I see that the data disks partitions also start at sector 2048. I didnt change anything from default so I dont know why unraid would configure it like that and now complain about it. The 2 segates should end up being parity again since they are the only cmr drives in addition to the WDC_WD40EFRX. Can I not move forward with new disks also starting at sector 2048? If I do have to parity swap to get the sector start to be 64, should the same be done for the data disks?

It seems if I manually format the new drives to have a partition starting at 2048 I can add them as new data disks, but I still cant use them to replace the missing disk. But maybe that opens up some options?

28 minutes ago, SE_Lain said:

using fdisk -l /dev/sdx I see that the data disks partitions also start at sector 2048

Yes, but Unraid will want to make the new disk start on sector 64, so it will be slightly larger than parity; the other data disks don't matter.

5 minutes ago, SE_Lain said:

It seems if I manually format the new drives to have a partition starting at 2048 I can add them as new data disks,

Not with 7.1.x due to a bug, you can with 7.0 or 7.2-beta.

I didnt commit the change but manually formatting data disks to start at 2048 it no longer said "Disk in parity slot is not biggest." but instead "New data disk(s) detected."

Are you sure that would fail due to a bug? Also why did unraid format all my disks as starting at 2048 in the first place. I think I started out on an early 7.0 release of some kind so maybe that was an issue there. I still am not sure how to move forward from here.

2 minutes ago, SE_Lain said:

Are you sure that would fail due to a bug?

Pretty sure, but you are free to try.

2 minutes ago, SE_Lain said:

Also why did unraid format all my disks as starting at 2048 in the first place.

It didn't, but for a long time, if the disks were already partitioned on sector 2048, and the partitions used the full disk, Unraid would use it, since it's the layout it uses for SSDs.

1 minute ago, JorgeB said:

Pretty sure, but you are free to try.

But like mentioned, you can use that if you downgrade to 7.0 or upgrade to 7.2

Edit: yeah I just need to select "next" insted of stable oop

pretty scary warning though, I think I might just downgrade.

How can I upgrade to 7.2, it says im up to date.

Also would that allow me to replace the missing disk with a new one or only add new data disks, it still says "Disk in parity slot is not biggest.", if I try to replace the missing disk with a new formatted at 2048.

Edited September 11, 2025Sep 11 by SE_Lain

With 7.0 or 7.2 you can use the disk if you manually create a partition on sector 2048 before assigning it.

You can create one with:

sgdisk -o -a 8 -n 1:1M:0 /dev/sdX

Downgraded to 7.0.0 and tried with the manually partitioned disk again now it worked I think, so the bug is that the manually partitined disks only work as new drives and not replacements it seems?? Anyhow, thanks for the suggestion to downgrade I will mark solved once everything rebuilt and is working.

20 minutes ago, SE_Lain said:

so the bug is that the manually partitined disks only work as new drives and not replacements it seems??

No, IIRC 7.1 will still accept it if manually partitioned, but the rebuild will not be correct.
