Just set up unRAID, still on trial. The basic procedure I've done:

1. Set up an unRAID box with a new 28TB HDD.

2. Copy the data from my 2x8TB in my regular Windows box over to unRAID.

3. Use diskmgmt.msc to remove the partitions from the 8TB drives.

4. Remove the 2x8TB from the Windows box and put them in the unRAID box.

5. Add the disks to the unRAID array, click the Format box, agree to the warning...

And the result is the listing of the two new drives on the Main tab is "Unmountable: wrong or no file system".

I assume I missed a step somewhere?

Attach Diagnostics ZIP to your NEXT post in this thread.

Attached.

unraid-diagnostics-20250914-1402.zip

Disks have an existing very small partition, and Unraid now tries to use the existing partition, but those are too small to even have a file system.

Go to Tools - New Config - Keep All - Apply

Then on Main click on disk 2 and then "Erase." Do the same for disk3, start the array, and reformat those disks.

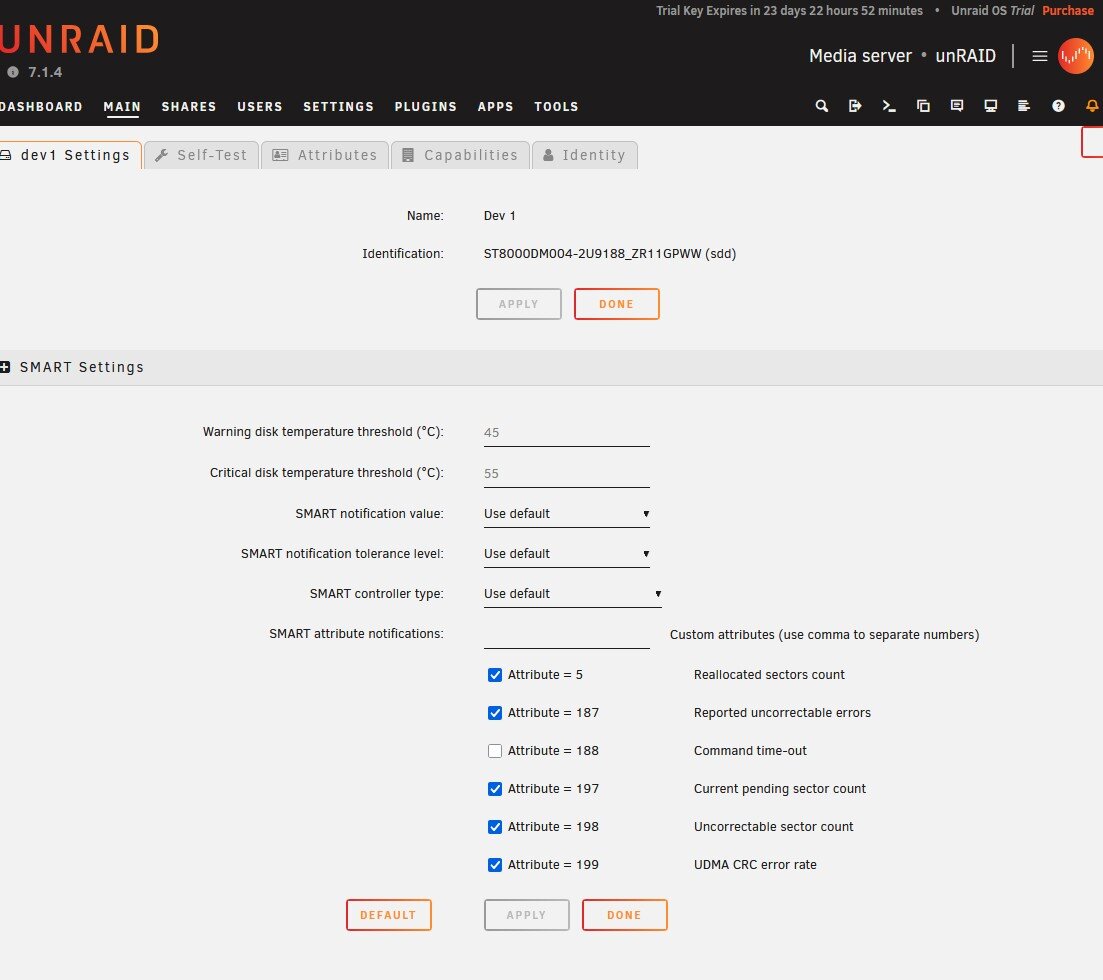

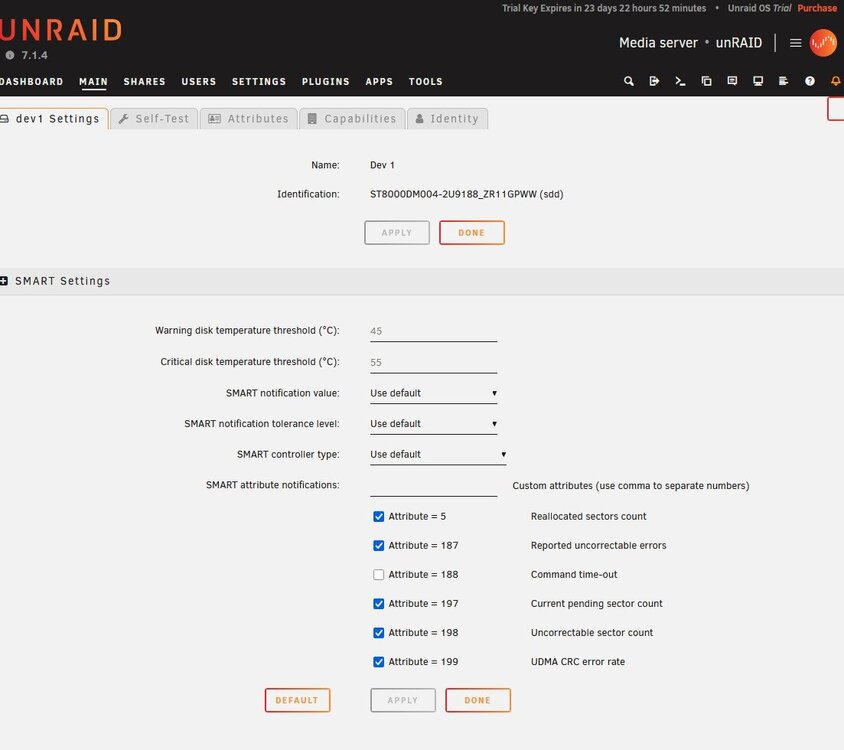

Cheers, just tried that. Can't see any Erase option on the disk's page.

-edit- Ah crap I missed the Keep All option. Neat. Guess I have to recreate the array?

-edit2- And I've wiped out my 28TB, apparently. Neat.

-edit3- OK it just looked like that because before you recreate the Array it shows the FS as Auto which I took to mean not xfs. It's all there once you recreate the array. Still no Erase option though.

Edited September 14, 2025Sep 14 by tantryl

So taking @JorgeB explanation about partitions into account I plugged the 8TB drives back into Windows and used diskpart to clean them. Back in unRAID, Tools New Config, set up again, Format works now.

No idea why I didn't diskpart clean the first time instead of just deleting the partitions in Disk Manager but there it is.

48 minutes ago, tantryl said:

Can't see any Erase option on the disk's page.

Disk must be assigned.

Just now, JorgeB said:

Disk must be assigned.

Tried it after recreating the array - still no Erase option.

Thanks for the info and problem solved though. I'm sure there's a command line equivalent in unRAID/Linux but I'm more familiar with Windows so I just did it there.

Edited September 14, 2025Sep 14 by tantryl

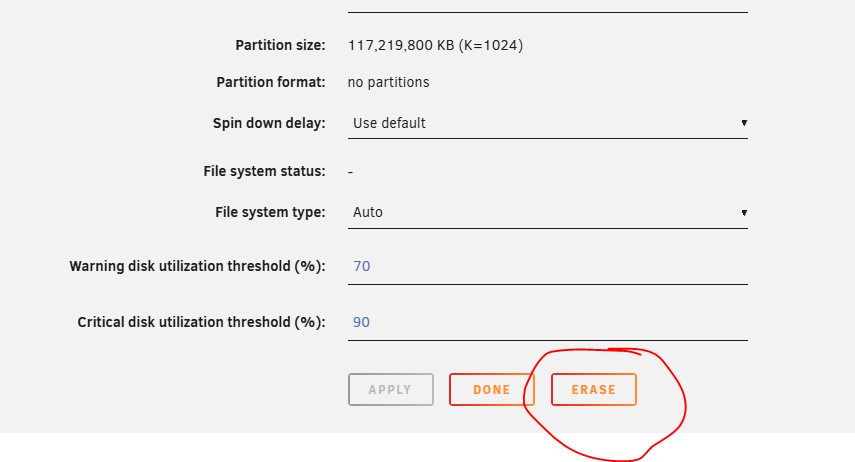

It's here:

Button will only be clickable after a new config/adding a new disk.

It was not. Can't prove it because I've already fixed the problem. But it was not.

That doesn't make sense, but it doesn't really matter now.
